Tecnam P2006T Illustrated Parts Catalogue Edition 4 Rev. 1 – PDF

Description

Tecnam P2006T Illustrated Parts Catalogue Edition 4 Rev. 1 – PDF

The Tecnam P2006T Illustrated Parts Catalogue Edition 4 Rev. 1 – PDF is a detailed aircraft parts reference for the P2006T, organized around ATA chapters and illustrated component breakdowns. Issued in December 2022 as document 2006_046, the catalogue is designed to help identify spare parts, assemblies, subassemblies and optional or configuration-dependent equipment used on the aircraft. Across its 642 pages, individual figures are paired with detailed parts lists showing item references, part numbers, descriptions, quantities and, where applicable, aircraft serial-number or modification effectivity.

This is particularly useful when a component can be identified visually but its part number is not known. The catalogue explains how to work from the table of contents to the relevant ATA chapter, section and illustration, locate the component by its item number and then match that number to the corresponding detailed parts list. It also provides an alphanumeric index for situations where the part number is already known, allowing the user to trace the number back to its chapter, section, figure and item.

File Details

• Manual type: Illustrated Parts Catalogue / Aircraft Parts Catalogue
• Brand: Tecnam
• Aircraft model: P2006T
• Language: English
• Page count: 642 pages
• File format: PDF
• Edition: Edition 4
• Revision: Rev. 1
• Issue date: December 2022
• Document number: 2006_046

How the P2006T Parts Catalogue Is Structured

The Tecnam P2006T parts catalogue uses the ATA chapter and section system to divide the aircraft into systems and structural areas. Assemblies are shown pictorially with numbered callouts, followed by corresponding parts lists. The detailed lists identify the manufacturer-assigned part number, nomenclature and required quantity for the next higher assembly or installation. Left-hand and right-hand applicability is shown where relevant.

Effectivity information is an important part of this catalogue. Where a component applies only to a particular aircraft serial number, a range of serial numbers or aircraft from a stated serial number onward, that information is placed in the S/N column of the applicable detailed parts list. Modification references can also appear against parts and assemblies, helping distinguish components introduced or changed through specific P2006T modifications.

The introductory material also explains the P2006T part-numbering system. Tecnam assemblies and individual components are grouped by major aircraft areas including wings, fuselage, tail cone, empennage, flap and aileron, interiors, engine installation, landing gear, systems, and markings and placards. This gives the catalogue a practical visual and numerical structure for working from an aircraft area to an exact component reference.

Chapters Covered

• ATA 01 – Introduction: Record of Revision; Record of Temporary Revision; Parts Catalogue Chapters and Sections; Table of Contents; General; Alphanumeric Index
• ATA 11 – Placards and Markings: Exterior Color Schemes and Marking; Exterior Placards and Markings; Interior Placards
• ATA 21 – Air Conditioning: General; Distribution; Heating; Cooling
• ATA 23 – Communications: Speech Communications; Audio Integrating; Static Discharging
• ATA 24 – Electrical Power: General; DC Generation; External Power; DC Electrical Load Distribution
• ATA 25 – Equipment and Furnishings: Flight Compartment; Cargo Compartment; Emergency; Accessory Compartments
• ATA 26 – Fire Protection: Detection; Extinguishing
• ATA 27 – Flight Control: General; Aileron and Tab; Rudder / Ruddevator and Tab; Horizontal Stabilizer / Stabilator; Flaps
• ATA 28 – Fuel System: Storage; Distribution – Drain Valves
• ATA 31 – Indicating Recording System: General; Instrument and Control Panel
• ATA 32 – Landing Gear: Main Gear and Doors; Nose Gear / Tail Gear and Doors; Extension and Retraction; Wheels and Brakes
• ATA 33 – Lights: Flight Compartment and Annunciator Panel; Exterior Lighting; Emergency Lighting
• ATA 34 – Navigation: Flight Environment Data; Attitude and Direction; Dependent Position Determining
• ATA 52 – Doors: Passenger / Crew; Emergency Exit; Service
• ATA 53 – Fuselage: General; Main Frame; Auxiliary Structure; Plates – Skin
• ATA 55 – Stabilizers: General; Horizontal Stabilizer / Stabilator or Canard; Vertical Stabilizer; Rudder – Ruddevator
• ATA 56 – Windows: Flight Compartment
• ATA 57 – Wings: General; Center; Outer; Leading Edge and Leading Edge Devices; Trailing Edge and Trailing Edge Devices; Ailerons and Elevons
• ATA 61 – Propellers: General; Propeller Assembly; Controlling
• ATA 71 – Powerplant: Cowling; Engine Mounts; Engine Drains
• ATA 75 – Bleed Air: Engine Cooling
• ATA 76 – Engine Control: Power Control
• ATA 77 – Engine Indicating: Power; Temperature
• ATA 78 – Exhaust: Collector / Nozzle
• ATA 79 – Oil System: Storage; Distribution; Indicating
• ATA 80 – Starting: Cranking
• ATA 93 – IPC Supplement List: Record of Revision

Together these chapters cover a broad cross-section of the P2006T, from external markings, cockpit equipment and environmental systems through flight controls, fuel distribution, landing gear, electrical equipment, fuselage structure, wings, propellers and engine-installation-related systems. The illustrations are not limited to general views: many sections break assemblies down into individual components and show their relationship to surrounding structure, fittings, tubes, controls, fasteners or installation hardware.

Illustrated Component Identification

A major strength of the Tecnam P2006T Illustrated Parts Catalogue Edition 4 Rev. 1 is the quantity and variety of illustrated references. The catalogue includes aircraft-level system views as well as detailed assembly drawings for areas such as heating and cooling installations, communications equipment, electrical relays and breakers, flight controls, fuel distribution, landing gear extension and retraction, wheels and brakes, fuselage structure, wing components, propeller assemblies, engine mounts and other installations.

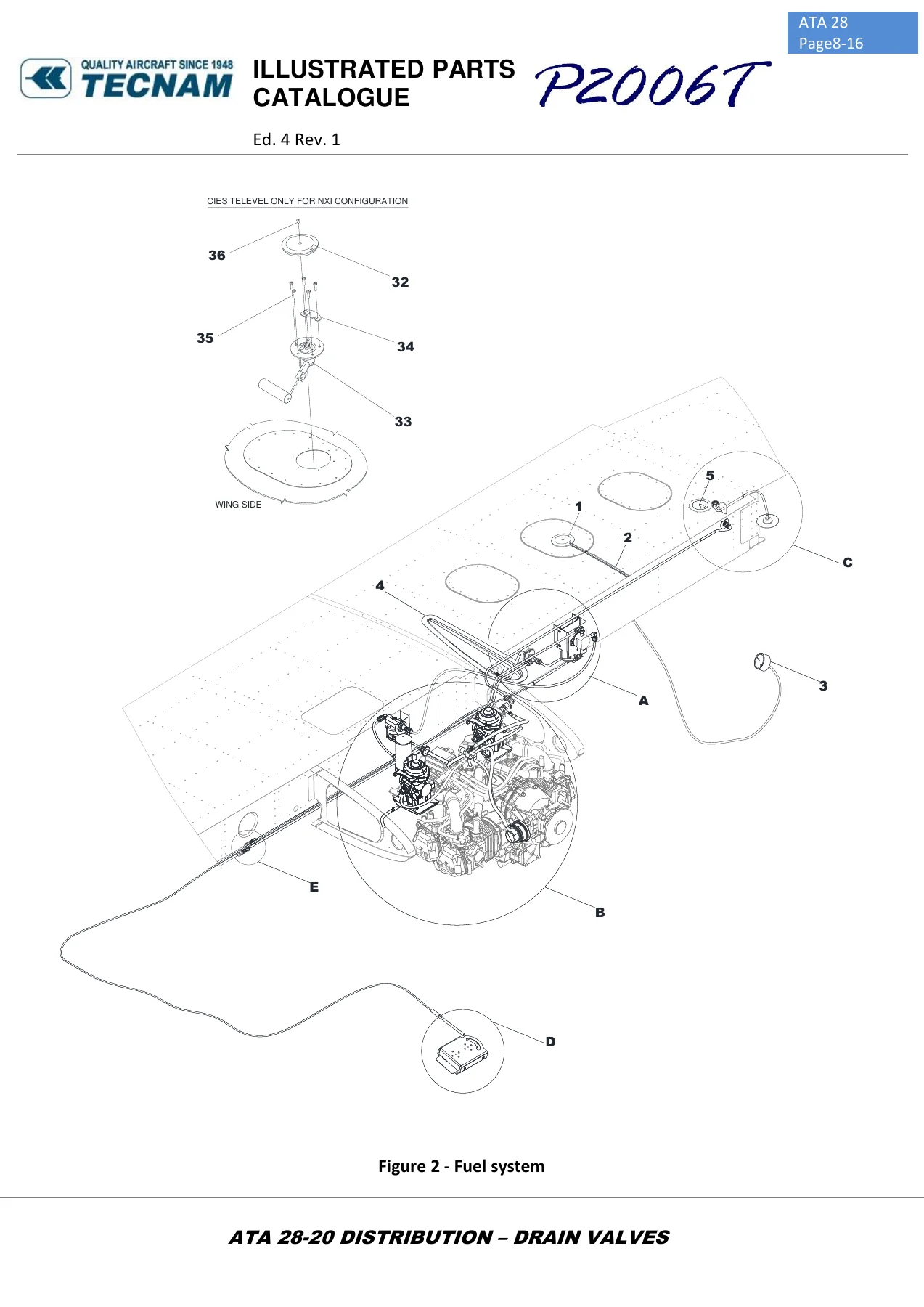

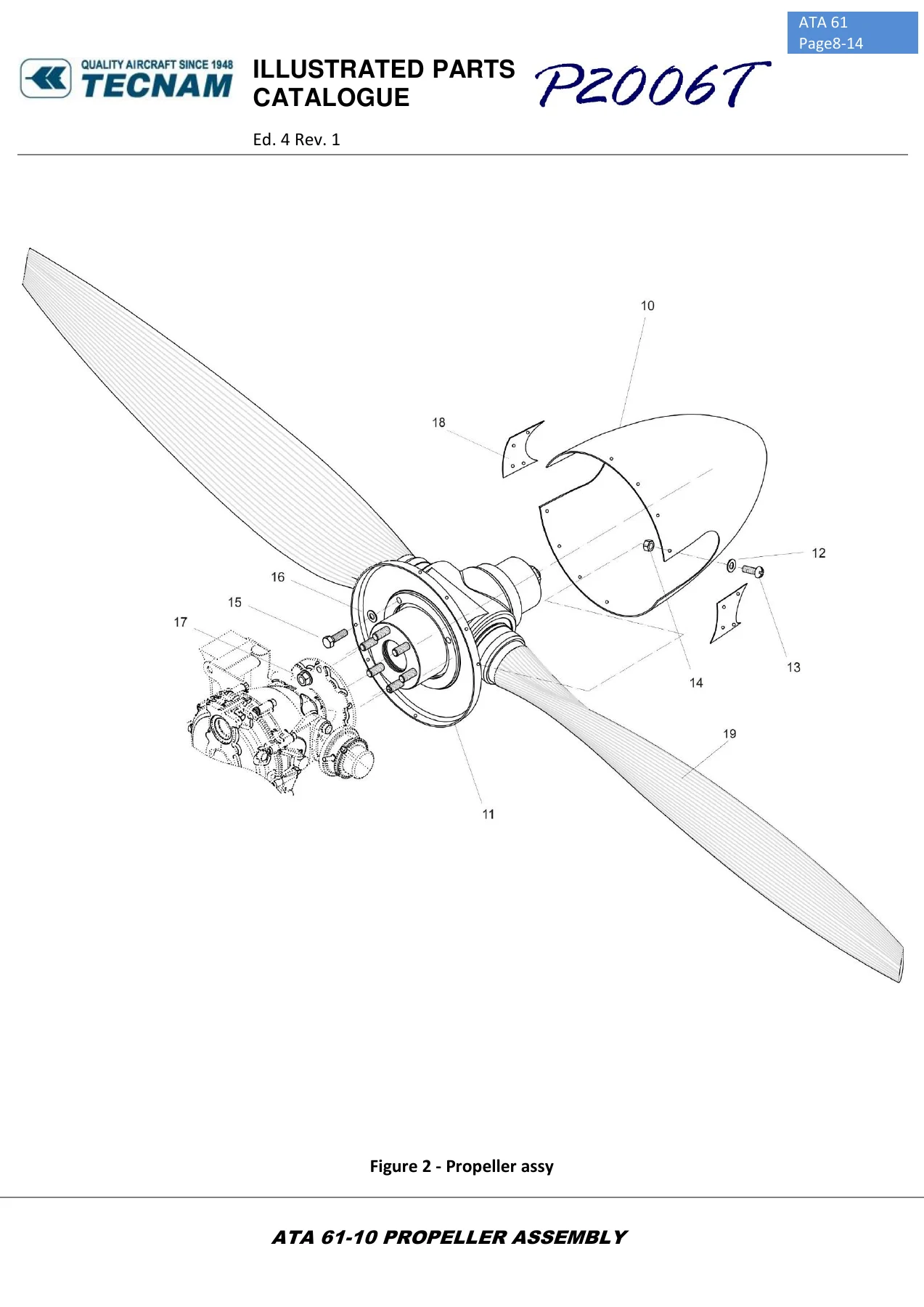

For example, the fuel-system section includes an illustrated distribution view linking wing and engine-area components with numbered references. The landing-gear chapter develops the system further with drawings for the main and nose gear, attachments, folding stays, doors, hydraulic extension and retraction components, emergency valve arrangements, accumulator and pump equipment, wheels, brake systems and brake-pedal assemblies. The propeller chapter similarly provides illustrated assembly and control references rather than only a simple parts index.

Configurations, Modifications and Effectivity

The P2006T illustrated parts catalogue contains configuration-specific and modification-related references throughout its figures and parts lists. Examples in the document include analog and digital instrument-panel configurations, G1000 NXi-related equipment, alternate installations and numerous MOD2006 references. This helps the user distinguish between parts that may look similar but belong to different aircraft configurations or modification states.

The supplement list records a range of P2006T modifications affecting areas such as landing gear, wheels and brakes, stabilator trim, electrical equipment, avionics installations, engine controls and other aircraft systems. Because individual applicability can depend on the aircraft serial number and modification status, the detailed S/N and MOD information beside a specific part should be checked when making a parts identification.

Important Engine Parts Coverage Note

This catalogue applies to the Tecnam P2006T aircraft, but it specifically states that it does not identify spare parts for the Rotax 912S engine itself. It identifies parts made by Costruzioni Aeronautiche Tecnam for the engine installation. For spare parts belonging to the Rotax 912S engine, the catalogue directs the user to the separate Rotax 912S Illustrated Parts Catalogue. This distinction is important when determining whether a required item belongs to the aircraft installation or to the engine itself.

IMAGES PREVIEW

Part Identification and Ordering Reference

When a part number is known, the catalogue instructs the user to locate it in the numerical index, identify the related chapter, then proceed to the chapter, section, subject and figure. The item number in the detailed parts list can then be matched to its callout in the illustration. When the part number is unknown, the process works in reverse: identify the aircraft system or component through the contents, locate the relevant illustration, note the callout item and use the detailed list to obtain the part number, description and quantity.

The catalogue also identifies the information normally required when ordering a spare part: system and chapter or subsystem and section, figure and item number, part number, description, quantity required and aircraft serial number. This makes the Tecnam P2006T Aircraft Parts Catalogue useful not simply as an index of numbers, but as a structured reference for identifying exactly where a component belongs and how it is represented in the aircraft assembly.

Get the Correct P2006T Parts Reference Instantly

With the Tecnam P2006T Illustrated Parts Catalogue Edition 4 Rev. 1 – PDF, owners, maintainers and parts personnel can trace aircraft components through illustrated assemblies, verify part numbers and quantities, examine left/right installation differences, check serial-number or modification effectivity where specified, and navigate directly to the relevant ATA system. Having the correct figure and detailed parts list available can reduce uncertainty when identifying a component and helps ensure that part-number and applicability information is checked against the correct aircraft location and configuration.

Purchase includes instant PDF delivery with no physical shipping required. The catalogue can be opened on compatible computers, tablets and phones and pages can be printed when a paper reference is useful in the workshop, hangar or parts department.
