Terex Crane RT130 Parts Manual 12261-338 – PDF DOWNLOAD

Description

Terex Crane RT130 Parts Manual 12261-338 – PDF DOWNLOAD

FILE DETAILS:

Terex Crane RT130 Parts Manual 12261-338 – PDF DOWNLOAD

Language : English
Pages : 235
Downloadable : Yes
File Type : PDF

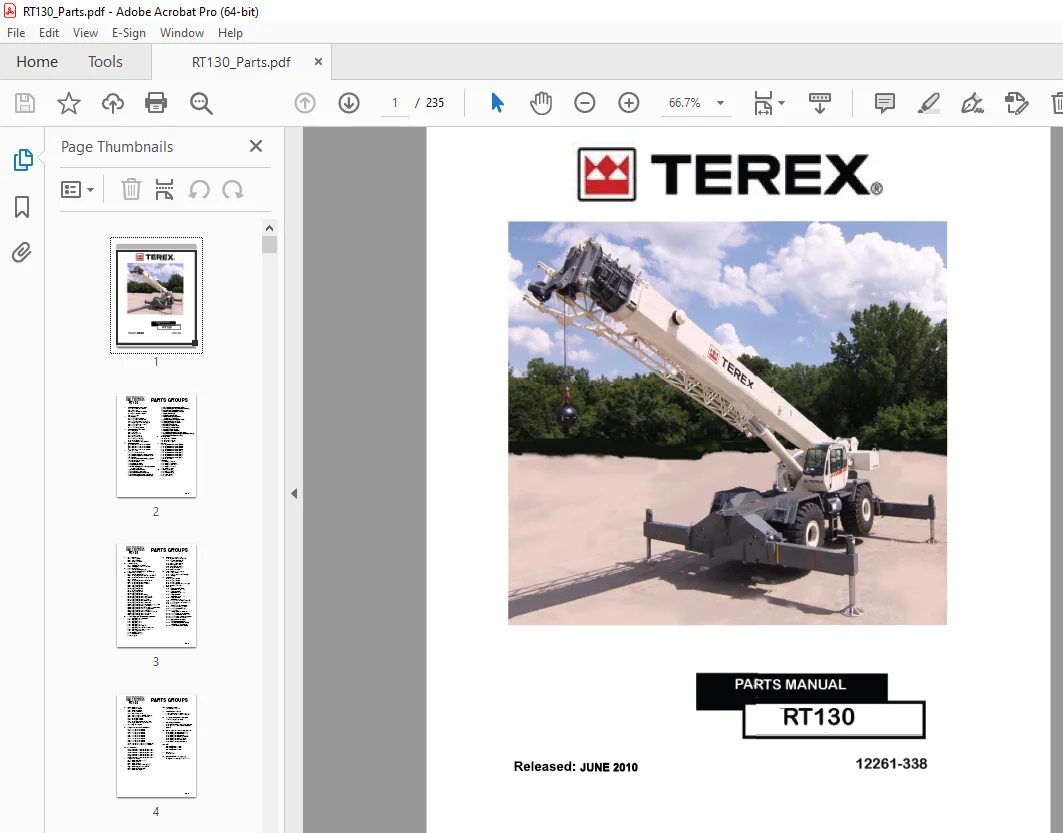

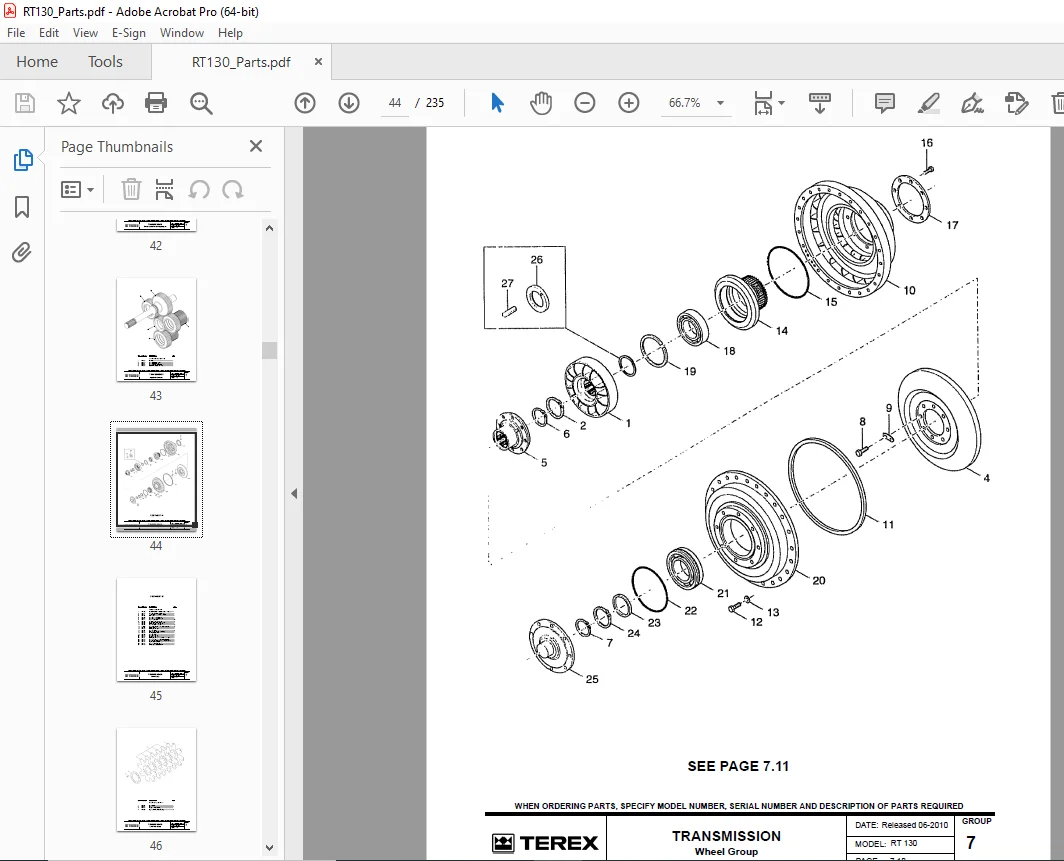

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Terex Crane RT130 Parts Manual 12261-338 – PDF DOWNLOAD

2 CARRIER FRAME, FUEL TANK
2.1) Frame, Fenders, Decks
2.2) Fuel Tank
2.3) Axle Lock-Out Assembly
2.4) Axle Lock-Out Cylinder
2.5) Pintle Hook
3 OUTRIGGERS
3.1) Outrigger Assembly
3.2) Outrigger Jack Cylinder
3.3) Outrigger Extend Cylinder
3.4) Lower Hydraulics, Outriggers
3.5) Outrigger Valve Selector
3.6) Outrigger Pads
3.7) Outrigger Assembly
5 CARRIER AXLES & WHEELS
5.1) Front Axle
5.2) Rear Axle
5.3) Wheels & Tires
5.4) Planetary Axles
5.5) Carrier Assembly
5.7) Hub & Shaft Group
5.10) Caliper Assembly
5.11) Steering Knuckle Assembly
6 CARRIER ENGINE
6.1) Engine Installation (Cummins)
6.2) Engine Installation (Cummins)
6.3) Engine Installation (Cummins)
6.4) Engine Installation (Cummins)
7 TRANSMISSION
7.1) Transmission (Dana)
7.2) Converter Housing Group 3 Speed
7.4) Transmission Case and Rear Cover
7.6) Dipstick
7.7) Turbine Shaft Rear Bearing Support
7.9) Input Drive Gear Set
7.10) Wheel Group
7.12) Drive Plate Group
7.13) Pump Drive Group
7.14) FWD, REV/2nd & 3rd/4th Clutch Shaft
Assembly Group
7.15) 1st Speed Gear Group
7.16) Low Speed Drive Group
7.17) Forward Clutch Shaft Group
7.19) Reverse & 2ND Clutch Shaft Group
7.21) Low 1ST Speed Clutch Shaft Group
7.23) Forward-High Clutch Idler Group
7.24) Forward High & 3RD Shaft Clutch Group
7.26) Low Clutch & Idler Gear Group
7.27) Idler Gear & Output Gear Group
7.28) Idler Shaft Group
7.29) Out Put Shaft Group
7.31) Pressure Regulating Valve
& Charging Pump Assy
7.32) Charge Pump & Regulator Valve
7.33) Pressure Regulator Valve
7.34) Charging Pump Assembly
7.35) Control Valve Group
7.36) Control & Shuttle Valves
7.37) Control & Shuttle Valves
7.38) Out Put Flange Group
7.39) Pump Disconnect Group
7.41) Assembly-Pump Disconnect Group
7.43) Dual Disconnect Plumbing & Atttachment Group
7.45) Dual Element Filter Assembly
9 DRIVE SHAFTS
9.1) Drive Shaft (Front)
9.2) Drive Shaft (Mid)
9.3) Drive Shaft (Rear)
10 BRAKES
10.1) Brake Line Assembly (Front)
10.2) Brake Line Assembly (Front)
10.3) Brake Line Assembly (Front)
10.4) Brake Line Assembly (Front)
10.5) Brake Line Assembly (Rear)
10.6) Brake Line Assembly (Rear)
10.7) Brake Line Assembly (Rear)
10.8) Brake Line Assembly (Rear)
10.9) Brake Line Assembly (Rear)
10.10) Air Brake Kit
11 STEERING
11.1) Steering System
11.2) Steering Assembly
11.3) Steering Control Unit
11.4) Steering Cylinder
11.5) Steering Valve
12 SUPERSTRUCTURE
12.1) Superstructure
12.2) Swing Bearing
12.3) Valve Cover
12.4) Cab Mounts
13 COUNTERWEIGHT
13.1) Counterweight
13.2) Counterweight
13.3) Auxiliary Weight
22 SWING SYSTEM
22.1) Swing Drive Assembly
22.2) Swing Reduction Unit, Braden
24 PUMP DRIVE CASE
24.1) Hydraulic Pump (Main)
24.2) Hydraulic Pump (Outrigger & Swing)
25 HYDRAULIC SYSTEM
25.1) Hydraulic Reservoir
25.2) Lower Hydraulics, Hydraulic Reservior
25.3) Lower Hydraulics, Swivel Assembly
25.4) Swivel
25.5) Lower Hydraulics, Diverter Valve
25.6) Lower Hydraulics, Pumps
25.7) Lower Hydraulics, Oil Cooler
25.8) Upper Hydraulics
25.9) Upper Hydraulics
25.10) Upper Hydraulics
25.11) Lower Hydraulics
25.12) Upper Hydraulics
25.13) Upper Hydraulics
25.14) Upper Hydraulics, Tubes
25.15) Upper Hydraulics, Boom & Hoist
25.16) Upper Hydraulics, Swing Drives
25.17) Upper Hydraulics, Steering
25.18) Upper Hydraulics, Winch Valve
25.19) Upper Hydraulics, Boom Valve
25.20) Upper Hydraulics, Shuttle Reducing Manifold
25.21) Upper Hydraulics, Relief Valves
25.22) Upper Hydraulics, Three-Way Solenoid Valve
25.23) Upper Hydraulics, Hoist Hold Valve
25.24) Upper Hydraulics, Reservoir
25.25) Upper Hydraulics, Steering Priority Valve
25.26) Upper Hydraulics, Swing Valve
25.27) Upper Hydraulics, Manifold
27 OPERATOR’S CAB & MACHINERY HOUSING
27.1) Operator’s Cab Assembly
27.2) Operator’s Cab
27.3) Operator’s Cab
27.4) Operator’s Cab
27.5) Operator’s Cab
27.6) Operator’s Cab (Door)
27.7) Operator’s Cab (Front Windshield)
27.8) Operator’s Cab (Roof Hatch)
27.9) Cableway Assembly
27.10) Operator’s Seat
27.11) Engine Housing
27.12) Wipers
PARTS GROUPS
28 OPERATOR’S CONTROLS
28.1) Directional Signal Control
28.2) Transmission Shifter
Control Assembly
28.3) Swing Brake Control
28.4) 360° House Lock
28.5) Cab Throttle Control
28.6) Electronic Controls
28.7) Control Module
29 TOOLS, PAINT, LUBRICANTS
29.1) Tools / Paint
29.2) Hydraulic O-Rings & Clamps
29.3) Clamps
30 MARKING
30.1) Marking Decals
30.2) Marking Decals
30.3) Marking Decals
30.4) Marking Decals, Anti-Skid Tape
30.5) Boom Marking Kit
31 HEATER
31.1) Propane Heater & Def
(Suburban NT-20S-TC)
31.2) Propane Heater
(Suburban NT-20S-TC)
31.3) Propane Heater
(Suburban NT-20S-TC)
31.4) Propane Heater
(Suburban NT-20S-TC)
31.5) Heater / AC I(Kenway TXCR306)
31.6) Heater / AC (Blower Assembly)
31.7) Heater / AC
(Pump & Motor Assembly)
31.8) Heater / AC (Compressor)
31.9) Heater / AC (Fan Group)
31.10) Heater / AC
(Motor & Plate Assembly)
31.11) Heater / AC (Pump Assembly)
31.12) Heater / AC (Blower Assembly)
31.13) Heater / AC (Hose Replacements)
31.14) Heater / AC (Heater Cover)
31.15 Hydrualic A/C (Kenway)
& LP Heater (Suburban)
31.17) Combination Of HYD Heater
Hydraulic AC & LP Heater
31.19) No Heater Includes Cover
33 ELECTRICAL SYSTEM
33.1) Dash Assembly
33.2) Dash Assembly
33.3) Circuit Breakers
33.4) Battery Assembly
33.5) Collector Ring (Before 09-2008)
33.6) Collector Ring (After 09-2008)
33.7) Electrical System
33.8) Electrical System
33.9) Electrical System, Relay Panel
33.10) Axle Centering Light Assembly
33.11) Optional Lights
39 HYDRAULIC TELESCOPING BOOM
39.1) 155’ Boom Assembly
39.2) 155’ Boom Assembly
39.3) 155’ Boom Assembly
39.4) 155’ Boom Assembly
39.5) 155’ Boom Assembly
39.6) 155’ Boom Assembly
39.7) 155’ Boom Assembly
39.8) 155’ Boom Assembly
39.9) 155’ Boom Assembly
39.10 155’ Boom Hoist Cylinder (Seabee)
39.11 155’ Boom Hoist Cylinder (Hyco)
39A ATTACHMENTS
39A.1) Jib Assembly, Offsetable 29’ To 72’
39A.2) Jib Assembly, Offsetable 29’ To 72’
39A.3) Jib Assembly, Offsetable 29’ To 72’
39A.4) Jib Assembly, Offsetable 29’ To 72’
39A.5) Jib Assembly, Offsetable 29’ To 72’
39A.6) Jib Assembly, Offsetable 29’ To 72’
40 HYDRAULIC WINCH
40.1) Winch, Hydraulic Motor
40.2) Winch, CH210A
40.3) Winch, CH210A
40.4) Winch, Primary Planet Carrier
40.5) Winch, Output Planet Carrier
40.6) Winch, Brake Cylinder
40.7) Winch, Cable Roller
PARTS GROUPS
40A AUXILIARY WINCH
40A.1) Auxiliary Winch
44 HOOK BLOCKS, BALLS
44.1) Hook Block, 5 Sheave / 75 Ton
44.2) Overhaul Ball, 419# / 12 Ton / 3/4”
45 WIRE ROPE, PENDANTS, REEVING
45.1) Wire Rope & Reeving
51 OPTIONAL EQUIPMENT
51.1) Rear Reflectors / Battery Disconnect
51.2) Operator’s Cab / Lights and Safety
Devices
52 RATED CAPACITY INDICATOR (RCI 510)
52.1) Greer RCI510 (RCI Assembly)
52.2) Greer RCI510 (RCI Assembly
52.3) Greer RCI510 (RCI Assembly
52.4) Greer RCI510 (Reel Assembly)
52.5) Greer RCI510 (Master Reel)
52.6) Greer RCI510 (Slave Reel)
52.7) Greer RCI510 (Slave Reel 2)
52A 3B6
52A.1) 3B6 (Schematics)
52A.2) 3B6 (Schematics)
52A.3) 3B6 (Schematics)
54 FILTERS
54.1) Filter Kit
55 RECOMMENDED SPARE PARTS
55.1) Recommended Spare Parts List
