TEREX HANDERS TH844C PARTS MANUAL 234908 – PDF DOWNLOAD

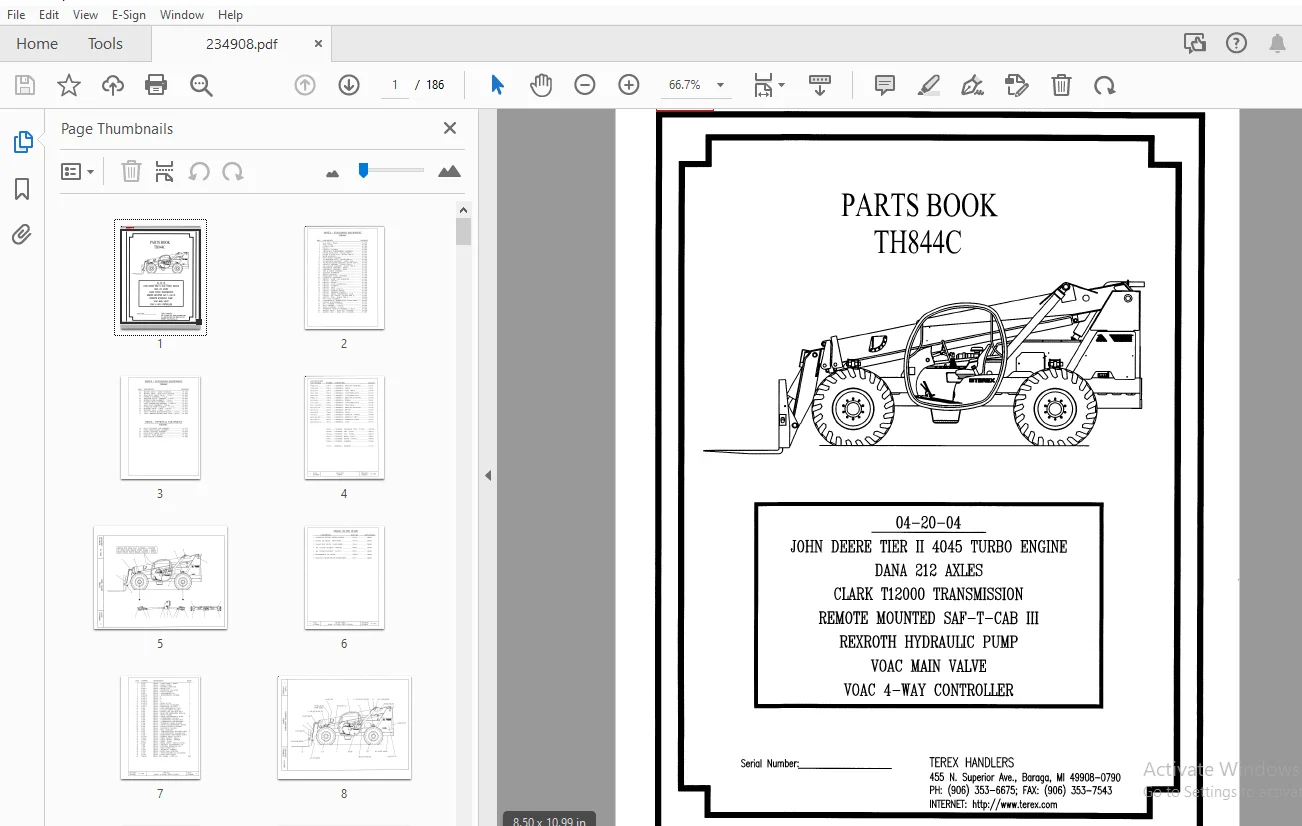

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
TEREX HANDERS TH844C PARTS MANUAL 234908 – PDF DOWNLOAD
- Seal Kits / TH844C – PI-1957
- Lube Chart – PI-1958
- Filter Guide – PI-1901
- Decals – PI-1959
- General Assembly – PI-1960
- Operator’s Compartment Assembly – PI-1930
- Power Train Assembly / JD-4045 Tier II – PI-1931
- Engine & Pump Assembly / JD-4045 Tier II – PI-1911
- Boom Assembly – PI-1961
- Foot Brake Assembly – PI-1933
- Accelerator Assembly / JD-4045 Tier II – PI-1978
- Accelerator Assembly / Pedal End – PI-1979
- Engine Enclosure Assembly / JD-4045 Tier II – PI-1934
- Exhaust Assembly / JD-4045 Tier II – PI-1935
- Air Cleaner Assembly / JD-4045 Tier II – PI-1936
- Driveshaft Assembly / Front – PI-1552
- Driveshaft Assembly / Rear – PI-1553
- Tire & Wheel Assembly – PI-1668
- Electric Schematic – PI-1937
- Wiring Diagram – PI-1938
- Instrument Panel Assembly – PI-1939
- Hydraulic Schematic – PI-1962
- Circuit / Pump / Oil Reservoir – PI-1941
- Circuit / Lift-Tilt – PI-1964
- Circuit / Boom – PI-1963
- Circuit / 4-Way Controller – PI-1942
- Circuit / Steering – PI-1943
- Circuit / Sway – PI-1944
- Circuit / Rear Lock-Up – PI-1945
- Circuit / Parking Brake – PI-1946
- Circuit / Pressure Checks – P4-1963
- Circuit / Brake – Differential Lock – PI-1951
- Circuit / Oil Cooler / JD-4045 Tier II – PI-1952
- Circuit / Fuel / JD-4045 Tier II – P4-2074
- Fuel Tank Assembly – PI-1949
- Starter Relay / Sender Assembly / JD-4045 Tier II – P4-2075
- Battery Box Assembly – PI-1947
- Lift Cylinder / 7-316-403 – Pl-1671
- Tilt Cylinder / 7-316-238 – P4-2044
- Boom Cylinder / 7-316-211 – P4-2017
- Sway-Rear Lock-Up Cylinder / 7-182-01 – PI-1924
- Motion Valve / Base Tilt Cylinder – P3-1098
- Motion Valve / Head Tilt Cylinder – P3-1097
- Motion Valve / Boom Cylinder – P3-1096
- Motion Valve / Base Lift Cylinder – P3-1209
- Dual Pilot Check Valve / 7-234-04 – P3-1100
- Orbital Assembly / 7-147-48 – Pl-1977
- Selector Valve / Steering / 7-359-02 – P4-2009
- Return Filter Assembly / 7-118-01 – Pl-1513
- Control Block Assembly / 7-234-94 – Pl-1451
- 4-Way Controller Assembly / 7-200-139 – Pl-1875
- Main Valve Assembly / 7-200-80 – P4-1425
- Hydraulic Pump Assembly / 7-345-113 – P4-2059
- Electric Valve / 4-Way / 7-367-09 – Pl-1447
- Electric Valve / 4-Way / 7-244-31 – P3-1140
- Valve / Boom Activated Rear-Lock / 7-367-13 – Pl-1456
- Valve / Parking Brake & Diff. Lock / 7-367-02 – Pl-1460
Optional Equipment
- Fully Enclosed Cab Assembly – Pl-1975
- Fork Frame Rotate Assembly – P4-1556
- Rotate Cylinder Assembly – P4-2020
- Dual Pilot Check Valve – P3-1141
- Circuit / Fork Rotate – Pl-1558
- Hose Roller Assembly – Pl-1568
