Terex PPM CE 680ATT GB Operators Manual G2044085 – PDF DOWNLOAD
Original price was: $67.95.$24.95Current price is: $24.95.
Terex PPM CE 680ATT GB Operators Manual G2044085 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Terex PPM CE 680ATT GB Operators Manual G2044085 – PDF DOWNLOAD
FILE DETAILS:
Terex PPM CE 680ATT GB Operators Manual G2044085 – PDF DOWNLOAD
Size : 17.9 MB
Format : PDF
Language : English
Brand: Terex PPM
Type of machine: Terex PPM Crane
Type of document: Operators Manual
Model: Terex PPM Crane ATT 680 CE GB
Number of Pages: 145 Pages
Part Number: G2044085
DESCRIPTION:
Terex PPM CE 680ATT GB Operators Manual G2044085 – PDF DOWNLOAD

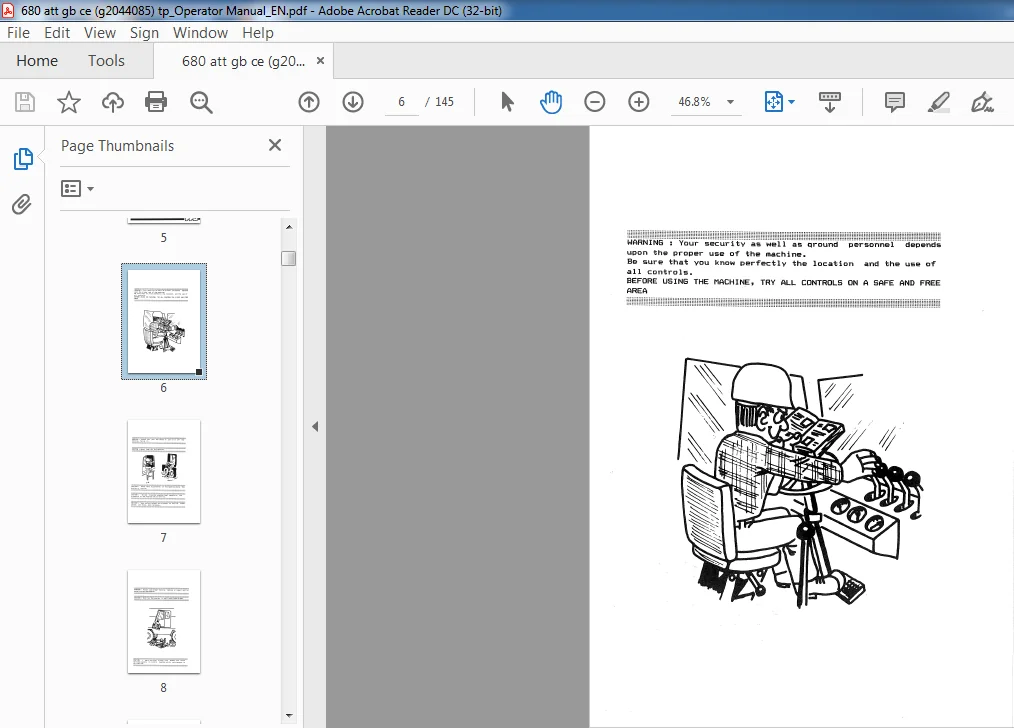

SAMPLE PAGES FROM THE MANUAL:
CARRIER SPECIFICATIONS
Chassis
Hight tensise steel box type PPM construction.
Engine
DEUTZ BF8L 5 l3 – 330 hp DIN (243 kW) at 2300 rpm . Air cooled, fuel tank: 350i with level gauge.
Transmission
Torque converter and powershllt gearbox 2 x 6 forward gears and 2 x 3 reverse gears. Lock up. Low range 8 x 6. 4 steering axles high range 8 x 4, 2 steering axles. Differential locking inter wheels and Inter axles.
Suspensions
— Front and rear hydropneumatique lockable suspension. Tyres: 1400 x 2.:
Steering
- Travel cab: waer assisted mechanical steering on iront whccis.
- Crane cab: hydrostatic with steering wheel tor rear axle, hydraulic with electropneumatic control by independent control located under the steering wheel for the (rent axle. Pneumatic control icr independency or combination of front and rear axle steering with the steering wheel.
Stabilizers
Horizontal beams operated by means of hydraulic cylinders. d hydraulic vertical jacks. One operating point from upperstructure and one from chassis.
Road cab
3 seats cab. All round vision. Modem and confortahies seats, heating, full equipment dash board.
CRANE:
- 38 M boom- Height under boom head 41.5M (59M with extension).
- Fully hydraulic and synchronised boom.
- Winch capacity 5 t – 60t hook block-B sheaves.
- Derricking maximum angle variation : — 4° to 80°.
- Crane operation over 360°.
- Simultaneous crane operations.
CARRIER:
- Engine power: 243 kW (330 HP DIN).
- Travel speed: 75 km/h.
- Gradeability: 70 %.
- Transmission 8x6x 8.
TEREX PPM CE 680ATT GB OPERATORS MANUAL G2044085 – PDF DOWNLOAD:

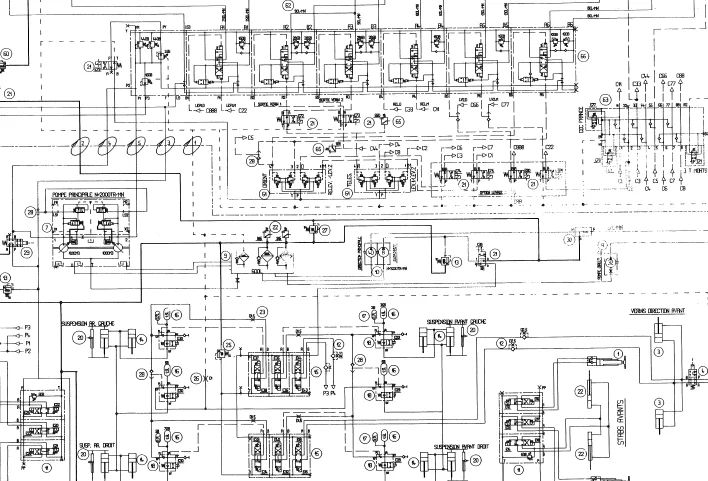

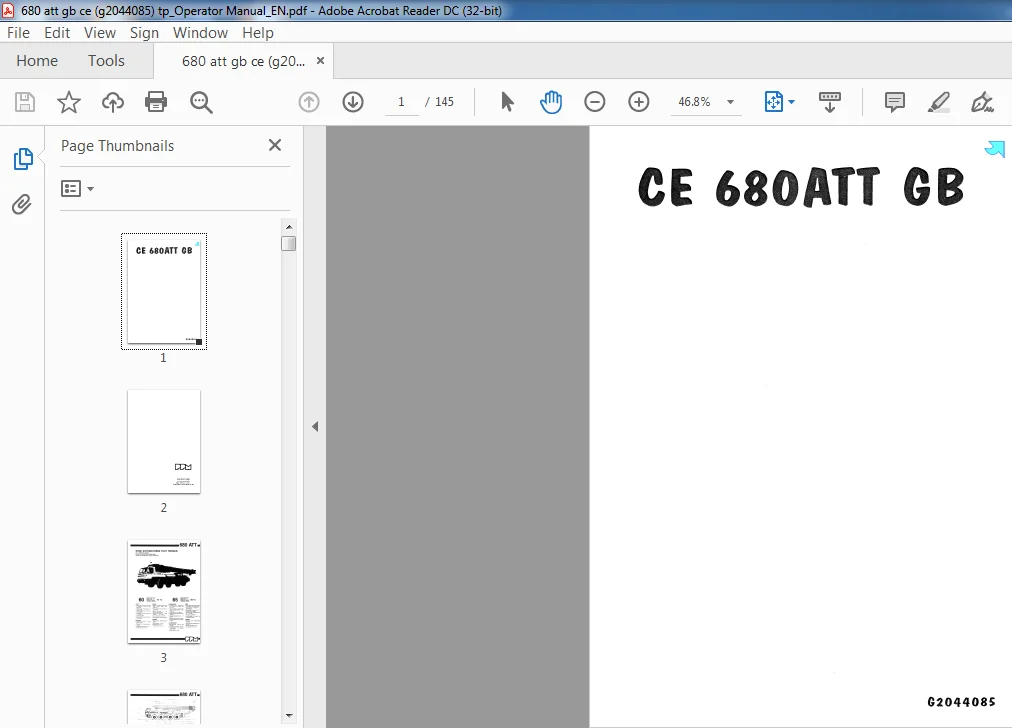

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
