Terex Tc50 Workshop Service Repair Manual – PDF DOWNLOAD

Description

Terex Tc50 Workshop Service Repair Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:1887
DOWNLOADABLE:YES
FILE TYPE:PDF

TEREX TC50 WORKSHOP SERVICE REPAIR MANUAL – PDF DOWNLOAD:

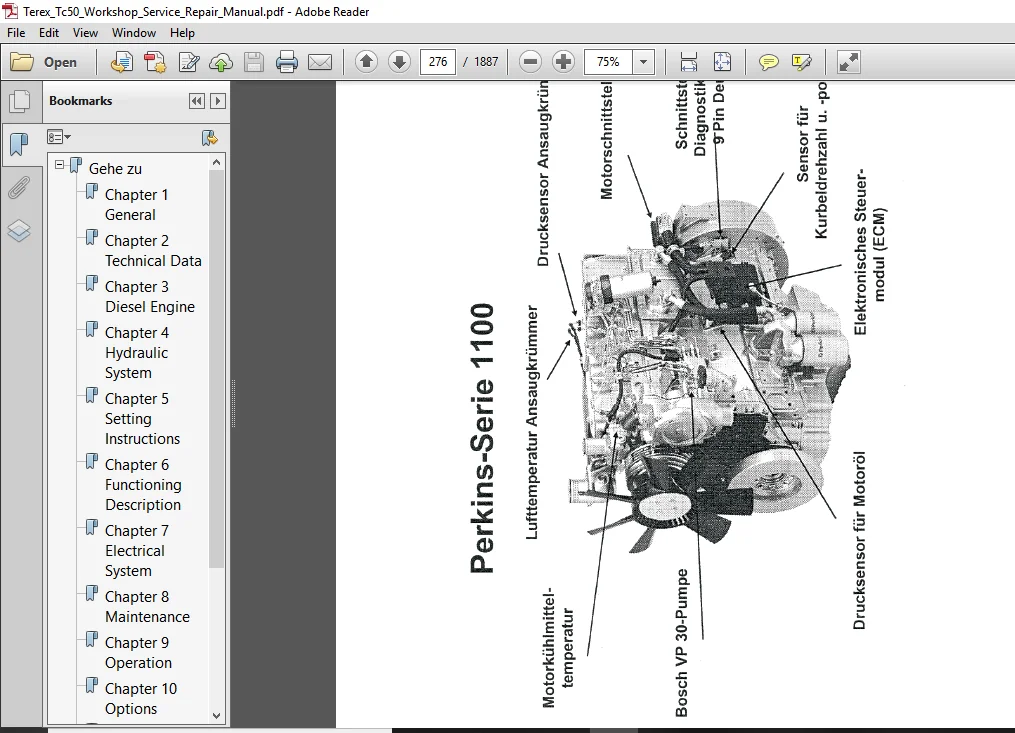

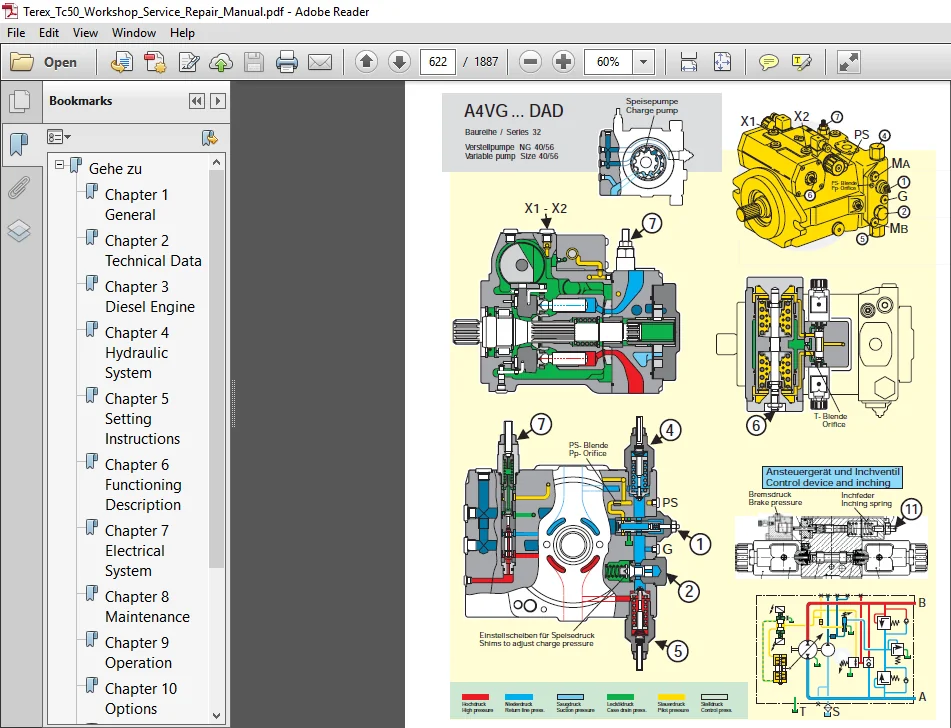

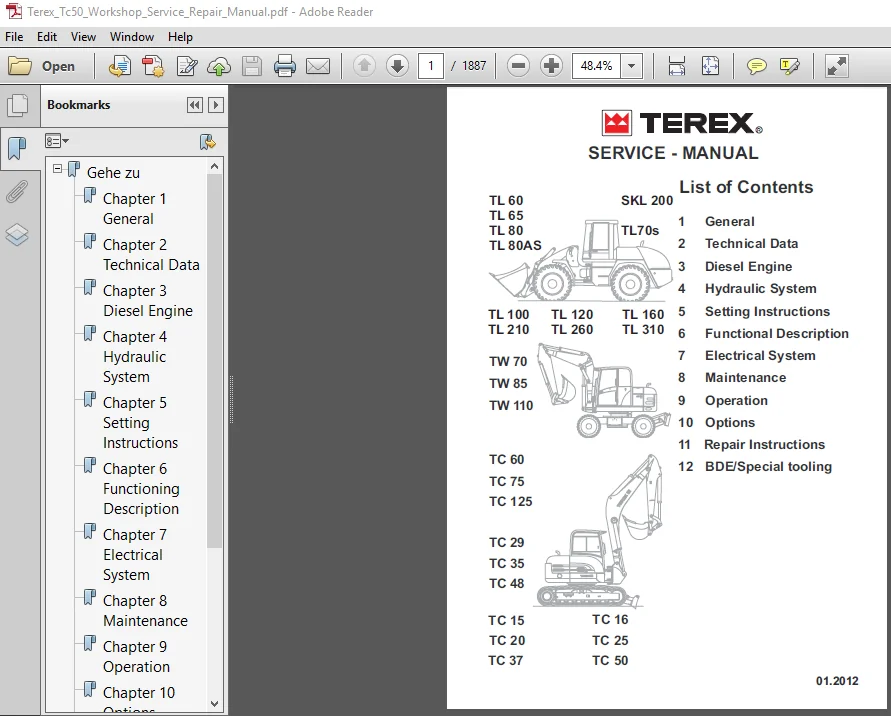

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Terex Tc50 Workshop Service Repair Manual

In this Service Manual the individual components of the Terex construction machinery range as well as the functions and adjustments of the aggregates installed are described. The hydraulic and electrical diagrams as well as cut-off views in connection with the operating manual and parts catalogue are to facilitate the repair and maintenance work. We have purposely left out assembly and working steps as major repairs are normally carried out by experienced and qualified workshop personnel familiar with these type of repairs. When carrying out a repair, safety and cleanliness at the workplace are essential. The use of excellent tools and the replacement of sealing parts at every repair should be self-evident. Unless any special values are indicated, screw fittings are to be tightened using correct torque specifications. This Service Manual is issued by the Customer Service Department of Messrs. Terex. It is to develop the after-sales service of Terex construction machinery together. The Service Bulletins we issue for your information can serve as a supplement. This Manual is kept up-to-date through periodic supplements. This document is not to be copied and / or distributed completely nor in part without our full written consent, nor is it to be passed on to a third party.

Safety and Accident Prevention:

1) Introductory remarks Please read the operating instructions carefully before putting an earth-moving machine into operation and strictly follow the following remarks for a safe operation. National safety regulations. – e.g. the Accident Prevention Regulations, “Earth- Moving Machinery” (VBG 40) and “Vehicles” (VBG 12) in the Federal Republic of Germany – must also be complied with. In addition to the operating instructions, legal regulations governing road traffic and road safety measures must also be observed.

• Such requirements could also apply in respect of handling hazardous goods or the wearing of personal safety equipment, for example. Furthermore, safety laws governing work in particular locations (tunnels, adits, quarries, pontoons, contaminated areas, etc.) must likewise be observed.

2 )Correct use The earth-moving machine with normal shovel equipment is only to be used for work which is suitable for the machine’s functions and its attachment. Such work includes the digging, loading, displacing and dumping out of earth, stones or other materials and the loading of these materials onto lorries, conveyor belts or other means of transportation. The transport of the loading material, however, is mainly carried out by moving the earth moving machine.

• If special attachments, such as Uni-shovel, side dump shovel, sweeper, fork lift attachment etc. are mounted, special jobs can be done with the attachment. Another or additional application, e.g. for transportation of passengers or using the lifting device as working platform etc. is not considered as correct use.
• The supplier is not liable for subsequent damage. The enduser himself bears the full risk. It is part of the correct use to follow the operating and maintenance instructions and to carry out the maintenance as well as to follow the maintenance intervals.

TABLE OF CONTENTS:

Terex Tc50 Workshop Service Repair Manual

Gehe zu.............................................   0
	Chapter 1 General...............................   4
	Chapter 2 Technical Data........................  44
	Chapter 3 Diesel Engine......................... 228
	Chapter 4 Hydraulic System...................... 340
	Chapter 5 Setting Instructions.................. 512
	Chapter 6 Functioning Description............... 696
	Chapter 7 Electrical System..................... 856
	Chapter 8 Maintenance...........................1448
	Chapter 9 Operation.............................1614
	Chapter 10 Options..............................1708
	Chapter 11 Repair instructions..................1770
	Chapter 12 BDE Description / Special tooling....1854
Home................................................   1

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
