Terex Ta25 Ta27 Articulated Dump Truck Parts Catalog Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:502
DOWNLOADABLE:YES
FILE TYPE:PDF

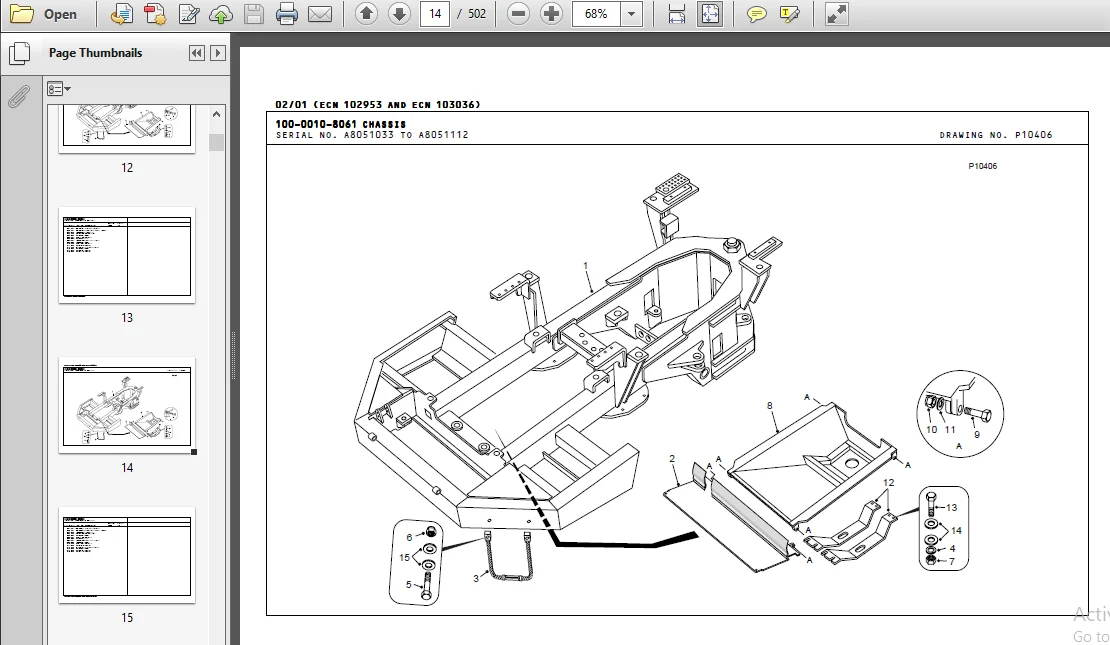

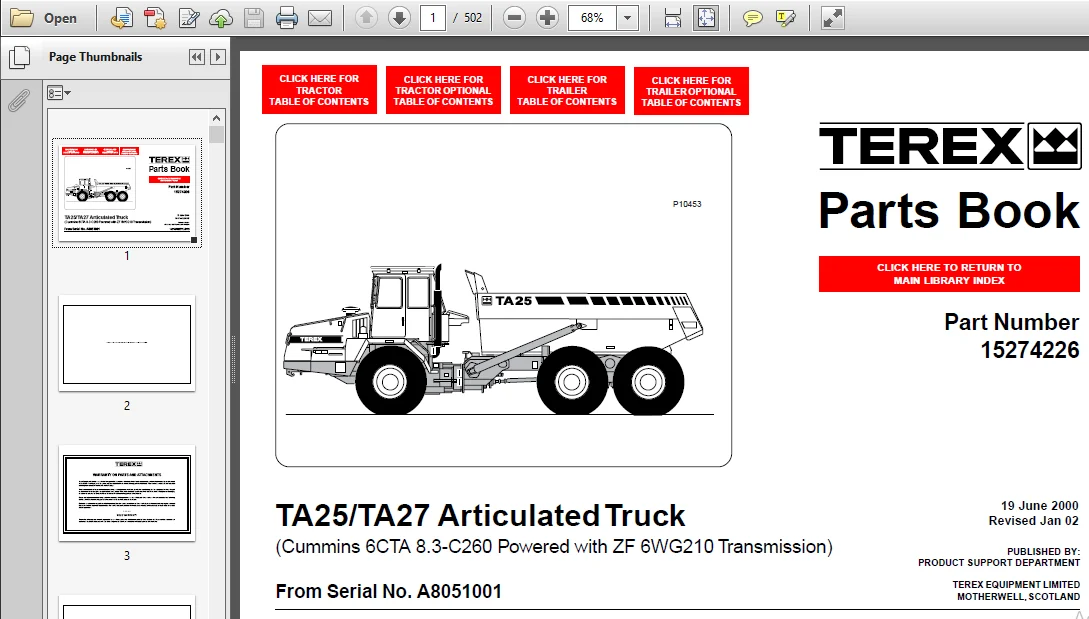

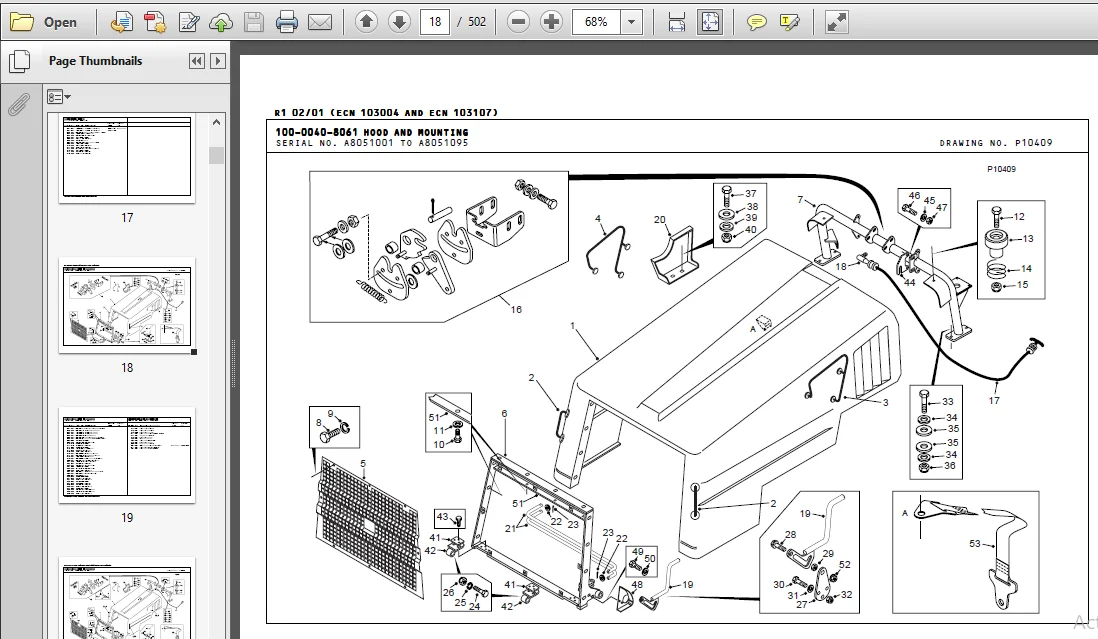

TEREX TA25 TA27 ARTICULATED DUMP TRUCK PARTS CATALOG MANUAL – DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Terex Ta25 Ta27 Articulated Dump Truck Parts Catalog Manual

This Parts Book is divided into Major Sections which cover components corresponding to specific areas of the machine.
Printed at the top left hand corner of each Parts Page is an Index Code which includes three numbers – the first of these relates to a Major Section, the second indicates a Sub-section
within a Major Section and the last the model PLI number. Certain Major Sections may not apply to the particular model covered in this Parts Book and, consequently, will be omitted.
An illustrated Index page shows all the Major Component Section numbers included in the book. For example –
SECTION 100 – CHASSIS SECTION 140 – FRONT AXLE GROUP SECTION 230 – BODY HOIST SYSTEM etc.
Major Component Sections are listed in the ‘Table Of Contents’ pages together with Sub-section headings.
For example to locate the serviceable items of a Steering Cylinder –
1. The Table of Contents shows the steering components to be in Major Section 220.
2. The steering cylinder is listed in Major Section 220, Sub-section 0120
3. Select the Parts Page Code that applies to the unit Serial number for which parts are needed and locate the Page with reference number.
EXAMPLE – 220-0120.
SERIAL NUMBERS – Each Parts Book covers a particular range of unit Serial Numbers.
It is important that unit Serial Numbers are quoted on all orders for Parts.
PARTS LISTS – Parts Forms usually consist of detailed parts information listed on one page together with a parts illustration on the opposite page. The parts list is printed in the order
of the reference numbers shown on the parts illustration. The first column lists Note Letters; the second lists the reference numbers; the third shows quantity required and the fourth
gives the parts descriptions. Parts which are part of an assembly have their descriptions indented beneath the assembly description.
ILLUSTRATIONS – These show typical assemblies and individual piece parts.They are intended for general reference only and may not always show exact details of parts. Parts are
identified on each illustration with an item number. Note the item number of the part required and locate it in the parts list. The part number opposite the item number is the part to order.

TABLE OF CONTENTS:

Terex Ta25 Ta27 Articulated Dump Truck Parts Catalog Manual

SECTION 100 CHASSIS
100-0010-8061 CHASSIS R1 02/01
100-0010-8061 CHASSIS 02/01
100-0010-8061 CHASSIS 02/01
100-0040-8061 HOOD AND MOUNTING R1 02/01
100-0040-8061 HOOD AND MOUNTING R1 06/01
100-0040-8061 HOOD AND MOUNTING 06/01
100-0070-8061 FENDERS AND MOUNTING
100-0135-8061 ROCK AND MUD GUARDS
SECTION 110 ENGINE
110-0020-8061 ENGINE ORDERING INSTRUCTIONS
110-0030-8061 ENGINE AND MOUNTING
110-0030-8061 ENGINE AND MOUNTING R1 01/02
110-0040-8061 FAN & MOUNTING/FAN LINES 02/01
110-0050-8061 AIR CLEANER
110-0060-8061 AIR CLEANER PIPES AND HOSES
110-0070-8061 EXHAUST AND MOUNTING R1 02/01
110-0070-8061 EXHAUST AND MOUNTING 02/01
110-0080-8061 EXHAUST BRAKE R1 09/00
110-0140-8061 COUPLING R1 01/02
110-0140-8061 COUPLING 01/02
SECTION 120 TRANSMISSION
120-0010-8061 TRANSMISSION MOUNTING R2 01/02
120-0020-8061 TRANSMISSION BREAKDOWN R1 01/02
120-0020-8061 TRANSMISSION BRREAKDOWN 01/02
120-0070-8061 SHIFT CONTROL R1 02/01
120-0070-8061 SHIFT CONTROL R1 01/02
120-0070-8061 SHIFT CONTROL 01/02
120-0100-8061 FILTER
120-0110-8061 OIL LINES-TRANSMISSION
120-0220-8061 OIL PUMP
120-0390-8061 TORQUE CONVERTER
120-0400-8061 LUBRICATION PIPES
120-0410-8061 INDUCTIVE TRANSMITTER
120-0430-8061 ELECTRIC SHIFT CONTROL VALVE
120-0440-8061 GEARSHIFT
120-0450-8061 GEARBOX HOUSING
120-0455-8061 COUPLING K1
SECTION 120 TRANSMISSION
120-0465-8061 COUPLING K2
120-0475-8061 COUPLING K3
120-0485-8061 COUPLING K4
120-0495-8061 COUPLING KV
120-0500-8061 PTO MAIN HYDRAULIC PUMP
120-0505-8061 COUPLING KR
120-0515-8061 EMERGENCY STEERING PUMP
120-0520-8061 INPUT-DRIVE ASSEMBLY
120-0540-8061 DIFFERENTIAL
120-0550-8061 AXLE DISCONNECT
120-0570-8061 INPUT
120-0590-8061 SPEEDOMETER
120-0600-8061 PRESSURE REGULATOR
120-0640-8061 FILLER NECK
120-0900-8061 LOOSE PARTS-TRANSMISSION
SECTION 130 DRIVELINE
130-0010-8061 FRONT DRIVELINE R1 02/01
130-0010-8061 FRONT DRIVELINE R1 06/01
130-0010-8061 FRONT DRIVELINE R1 01/02
130-0010-8061 FRONT DRIVELINE 01/02
SECTION 140 FRONT AXLE
140-0010-8061 AXLE COMPLETE-FRONT R1 02/01
140-0010-8061 AXLE COMPLETE-FRONT 02/01
140-0020-8061 AXLE GROUP-FRONT R1 06/01
140-0020-8061 AXLE GROUP-FRONT 06/01
140-0030-8061 PLANETARY GEARING-FRONT R1 06/01
140-0030-8061 PLANETARY GEARING-FRONT 06/01
140-0040-8061 WHEEL, RIM AND TYRE-FRONT
140-0060-8061 DIFFERENTIAL-FRONT R1 06/01
140-0060-8061 DIFFERENTIAL-FRONT 06/01
SECTION 165 BRAKE PARTS
165-0010-8061 BRAKE PARTS-ARTICS R2 06/01
165-0010-8061 BRAKE PARTS-ARTICS 06/01
165-0050-8061 BRAKE GUARDS R2 01/02
SECT – PAGE – PLI DESCRIPTION SECT – PAGE – PLI DESCRIPTION
SECTION 180 SUSPENSION SYSTEM
180-0020-8061 FRONT SUSPENSION R2 01/02
SECTION 190 ELECTRICAL SYSTEM
190-0010-8061 TERMINALS
190-0011-8061 CONNECTORS
190-0030-8061 CABLES/HARNESSES-CAB R2 01/02
190-0040-8061 CABLES/HARNESSES-CHASS/ENG R1 06/01
190-0070-8061 BATTERY AND CABLES
190-0080-8061 BATTERY MOUNTING R2 06/01
190-0080-8061 BATTERY MOUNTING 06/01
190-0100-8061 ELECTRICAL LIGHTING SYSTEM R1 06/01
190-0100-8061 ELECTRICAL LIGHTING SYSTEM 06/01
190-0170-8061 FLOODLAMP/SPOTLIGHT/WORK LIGHT 01/02
190-0270-8061 SWITCHES AND SENSORS
190-0300-8061 RADIO CASSETTE AND SPEAKERS R1 01/02
190-0300-8061 RADIO CASSETTE AND SPEAKERS 01/02
190-0310-8061 ELECTRICAL HORN
SECTION 200 FUEL SYSTEM
200-0010-8061 FUEL TANK AND MOUNTING R2 02/01
200-0010-8061 FUEL TANK AND MOUNTING R1 06/01
200-0010-8061 FUEL TANK AND MOUNTING 06/01
200-0040-8061 FUEL LINES
200-0050-8061 ACCELERATOR LINKAGE
SECTION 210 COOLING SYSTEM
210-0010-8061 RADIATOR ASSEMBLY R1 02/01
210-0010-8061 RADIATOR ASSEMBLY 02/01
210-0010-8061 RADIATOR ASSEMBLY 02/01
210-0020-8061 RADIATOR MOUNTING R1 02/01
210-0020-8061 RADIATOR MOUNTING R1 06/01
210-0030-8061 RADIATOR PIPING R1 02/01
210-0030-8061 RADIATOR PIPING R1 06/01
210-0030-8061 RADIATOR PIPING 06/01
210-0040-8061 RADIATOR HEADER TANK AND HOSES R1 02/01
210-0040-8061 RADIATOR HEADER TANK AND HOSES 02/01
210-0060-8061 OIL COOLER AND PIPING-TRANS R2 02/01
210-0060-8061 OIL COOLER AND PIPING-TRANS R2 08/01
210-0060-8061 OIL COOLER AND PIPING-TRANS 06/01
210-0065-8061 OIL COOLER 06/01
TABLE OF CONTENTS FOR MODEL TA25/27 FROM SERIAL NO A8051001 28/01/02
SECTION 220 STEERING SYSTEM
220-0010-8061 STEERING LINES R1 02/01
220-0010-8061 STEERING LINES 02/01
220-0010-8061 STEERING LINES R1 06/01
220-0090-8061 STEERING VALVE
220-0105-8061 PRIORITY VALVE R1 02/01
220-0120-8061 STEERING CYLINDER R1 02/01
220-0120-8061 STEERING CYLINDER 02/01
220-0140-8061 EMERGENCY STEERING VALVE
220-0230-8061 STEERING COLUMN MOUNTING
SECTION 230 BODY HOIST SYSTEM
230-0020-8061 LINES AND FITTINGS-BODY HOIST R3 01/02
230-0040-8061 TANK AND MOUNTING-BODY HOIST R1 01/02
230-0050-8061 PUMP-BODY HOIST
230-0060-8061 CONTROL VALVE-BODY HOIST R1 02/01
230-0081-8061 JOYSTICK-BODY CONTROL R1 06/01
230-0081-8061 JOYSTICK-BODY CONTROL 06/01
230-0121-8061 PILOT SUPPLY VALVE
SECTION 250 BRAKING SYSTEM
250-0010-8061 BRAKE LINES-AIR R2 01/02
250-0020-8061 BRAKE LINES-HYDRAULIC R2 01/02
250-0070-8061 TREADLE VALVE
250-0190-8061 CONTROL VALVE-BRAKES
250-0200-8061 AIR DRIER
250-0260-8061 BRAKE CHAMBER/PRESS CONVERTER
250-0290-8061 PRESSURE PROTECTION VALVE
SECTION 260 CAB
260-0010-8061 CAB ASSEMBLY R2 08/01
260-0010-8061 CAB ASSEMBLY R2 08/01
260-0010-8061 CAB ASSEMBLY R2 01/02
260-0015-8061 CAB MOUNTING R1 06/01
260-0030-8061 CAB DOOR-LEFT HAND R1 08/01
260-0080-8061 SWITCHES AND INSTRUMENTS R1 02/01
260-0090-8061 SEAT-DRIVER R2 08/01
260-0090-8061 SEAT-DRIVER 08/01
260-0110-8061 SEAT-PASSENGER
260-0130-8061 AIR CONDITIONER/HEATER
260-0140-8061 HEATER LINES AND WIRING
SECTION 260 CAB
260-0145-8061 AIR CONDITIONER LINES R1 02/01
260-0145-8061 AIR CONDITIONER LINES 02/01
260-0145-8061 AIR CONDITIONER LINES 02/01
260-0190-8061 WINDSCREEN WASHER
SECTION 290 DECALS
290-0010-8061 DECALS-ENGLISH R1 06/01
290-0010-8061 DECALS-ENGLISH R1 01/02
SECTION 300 MISCELLANEOUS
300-0040-8061 MULTI-TUBE CLAMPS AND HARDWARE
