Terex TW110 Mobile Excavator Illustrated Parts Catalog 5780290035 – 2013 Edition

Description

Terex TW110 Mobile Excavator Illustrated Parts Catalog – 5780290035

This is the complete Illustrated Parts Catalog for the Terex TW110 Mobile Excavator, issued by Terex Compact Germany GmbH as Reference No. 5780290035 on 26-September-2013 (Revision 1.00). It is the same document used to identify and order spare parts for the TW110 across its serial range 0560-XXXX. Every section uses exploded diagrams with item callouts linked to a parts list showing the official Terex part number, quantity, description and remarks, so you can pinpoint the exact component on your machine and order with confidence.

File Details

• Manual type: Illustrated Parts Catalog (Ersatzteilkatalog / Catalogue pieces / Catalogo de repuestos)
• Brand: Terex
• Model: TW110 Mobile Excavator (Mobilbagger / Pelle Sur Pneumatiques / Excavadoras De Ruedas)
• Reference No.: 5780290035
• Revision No.: 1.00
• Issue date: 26-September-2013
• Serial No. range: 0560-XXXX
• Languages: English, Deutsch, Francais, Espanol
• File format: PDF
• Page count: Approximately 678 pages

Chapters Covered

The catalog is organised by functional group, each with its own exploded-view illustrations and parts listings:

IMAGES PREVIEW

• 0.000 Inspection Parts

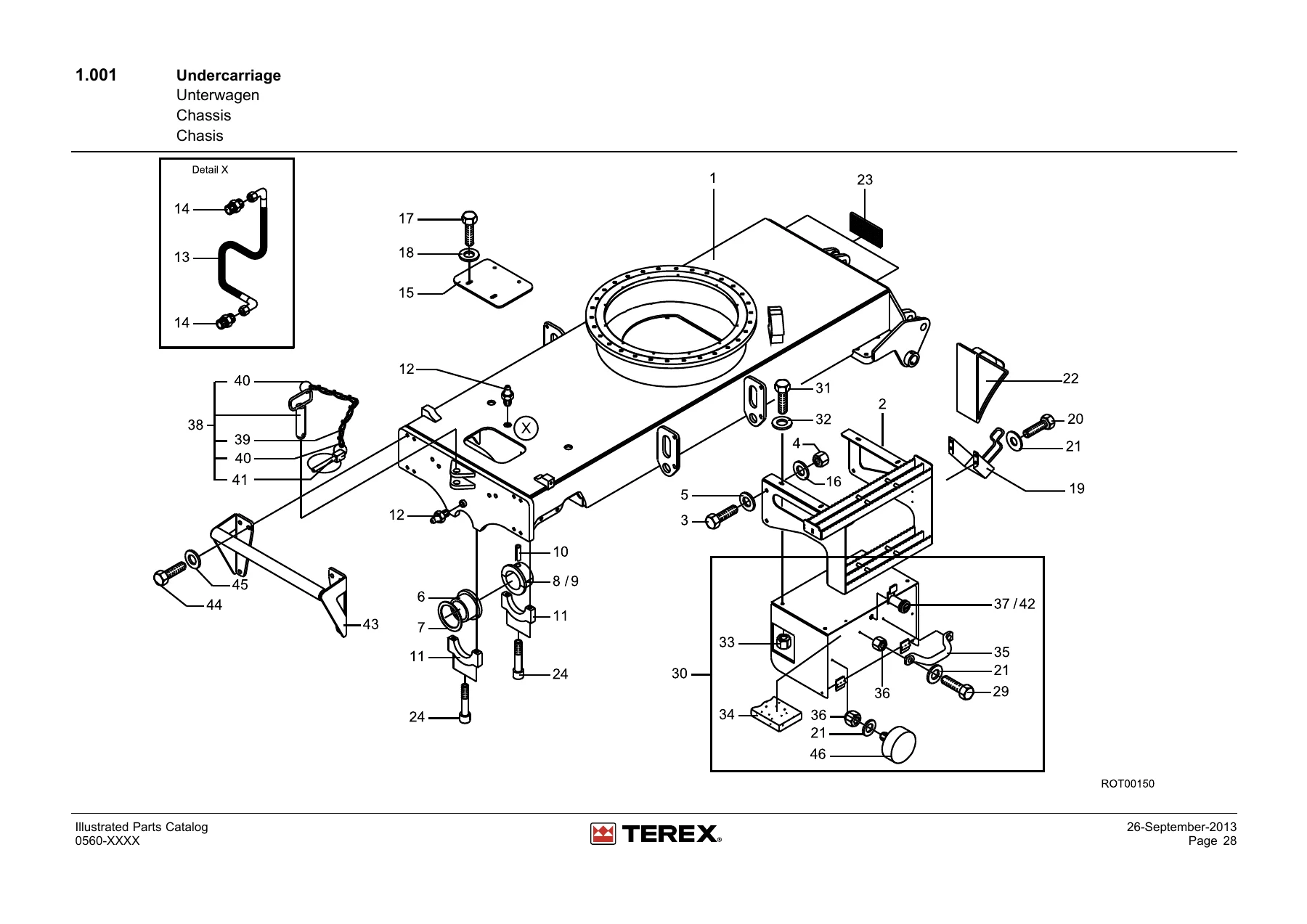

• 1.000 Undercarriage Including Attachments (undercarriage, support legs, base plates, front clearing blade, rear support blade, tools)
• 2.000 Upper Carriage Including Mountings (floor frame, oil tank, diesel tank, engine cover, seat consoles, slew equipment, cover, lining set, steering unit, stickers, cab glass, cab equipment, operator’s seat, air conditioner, evaporator unit)

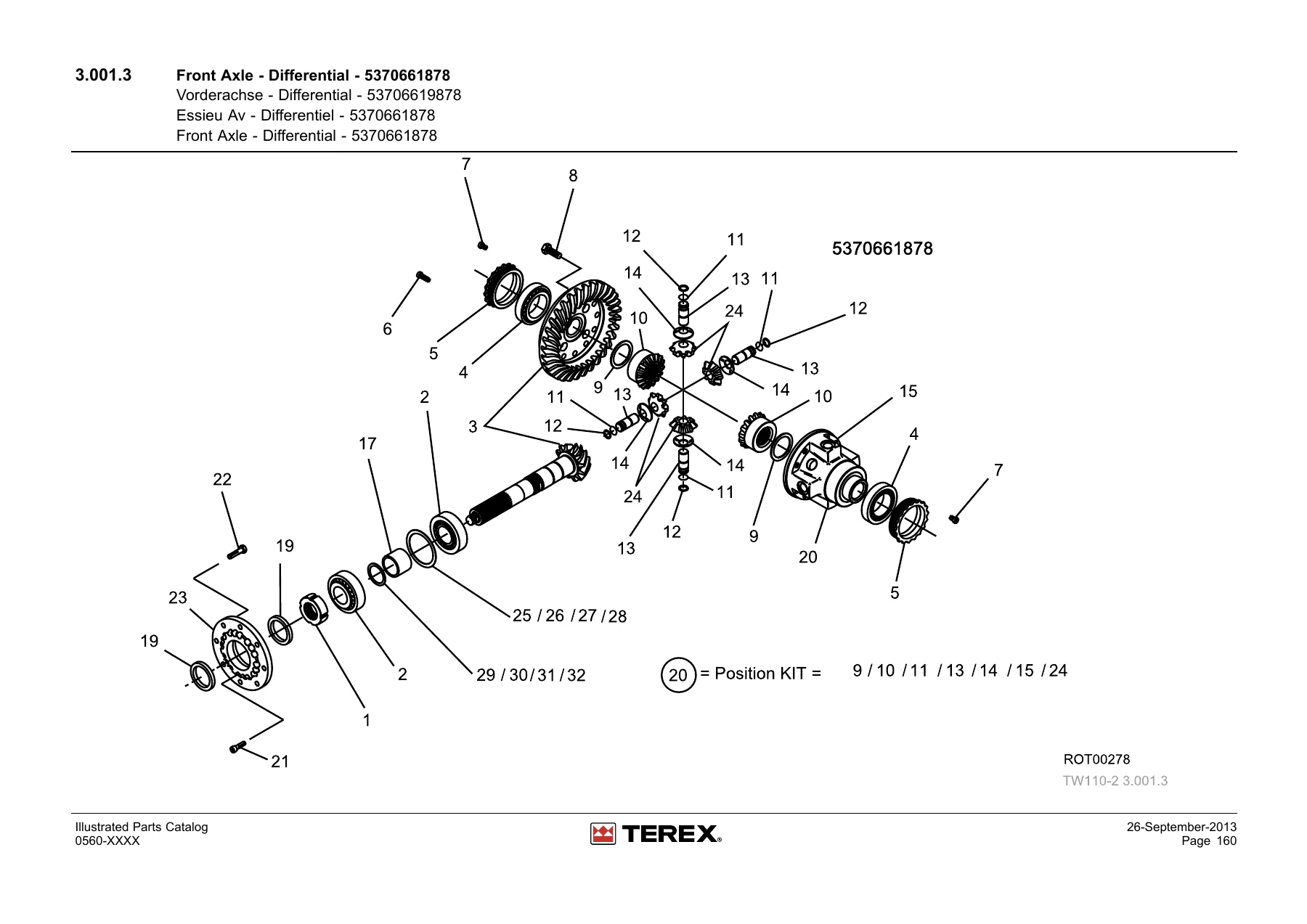

• 3.000 Axles (20 km/h, 36 km/h, all-wheel steering, high-speed version – covering differential housing, differential, wheel hub, axle case, brake, reduction gear, travel drive gear, steering cylinder)
• 4.000 Working Equipment (king post, articulated boom, dipper stick, dipper stick for Atlas attachment)
• 5.000 Attachments (quick mount hitch MS08, quick mount hitch Terex, buckets, swivelling buckets, grab suspension, hydraulic hammer, special equipment company Boegl)
• 6.000 Engine Including Mountings (engine assembly, pump assembly, exhaust, air filter, accelerator pedal, heating, radiator, fuel supply, engine parts, refilling pump)
• 7.000 Hydraulic Installation (steering, drive, circulation, under carriage, pilot control, valve control, service brake, articulated boom, rear support, front support blade, load control valves, boom height limitation, idle automatic system, changeover ISO/SAE, steering reversion, bucket changeover, 4-wheel steering)
• 8.000 Hydraulic Components (valve banks, remote control, pilot operated valve, hydraulic cylinders, variable motors, displacement pumps, inching system, slewing motor, slew gear, rotary transfer)
• 9.000 Electric Installation (machine wiring, fuse panel and relay panel, battery mounting, dash console, lighting, side light, boom height limitation, 2-stage gearbox, rotary transfer, travel motion alarm, immobilizer, RPM meter, speedometer, air conditioner)

For a technician or parts manager, this Terex TW110 parts catalog turns every repair and service job into a simple identification task. Instead of guessing at a component’s part number or hoping a generic description matches, you trace the item on the exploded illustration, note its position number, and look up the exact factory reference. The catalog covers the whole TW110 machine from the undercarriage and axles through the hydraulic installation and cab, so whether you are replacing a wheel hub seal, a boom cylinder, a fuse panel, or a boom, you have the correct diagram and part reference in front of you.

Why the Terex TW110 Illustrated Parts Catalog Matters

Parts lookup on a mobile excavator can go wrong quickly when you are working from memory, an old spreadsheet, or a photo of a rusty component. The Terex TW110 Illustrated Parts Catalog 5780290035 removes that risk. Every group – from the 20 km/h and 36 km/h axle variants to the all-wheel steering and high-speed versions – has its own dedicated diagram set, and the alphanumeric parts list at the back of the catalog lets you jump straight to any part number and find every page it appears on. That means less time hunting, fewer wrong orders, and fewer machine-down days.

The document also covers optional and special equipment such as the Boegl package, hydraulic hammer installation, grab suspension and swivelling buckets, so you are not left guessing when a machine in your fleet has an attachment that is not in the standard build. For workshops, fleets and independent operators who maintain their own TW110, this is the reference that keeps the correct Terex part number at your fingertips.

What You Get with This Instant PDF Download

The Terex TW110 Mobile Excavator parts catalog is delivered as an instant PDF download – no shipping, no waiting for a disc or printed binder to arrive. After checkout you can open it on a laptop in the workshop, a tablet in the cab, or a phone next to the machine. The pages are printable, so you can pull the relevant exploded view, mark it up with your own notes, and hand it to the person doing the job. Because the file is complete, you also have the full alphanumeric parts index and every chapter available whenever you need it, not just the one section you are working on today.
