Toro XL Lawn Tractor Service Manual PDF – Complete Service, Repair & Adjustment Guide DOWNLOAD

Description

This Toro XL Lawn Tractor Service Manual PDF is the factory-authorized service guide covering all Toro XL and HXL series lawn tractors built between 1993–2001. It includes highly detailed instructions for gear-drive 915 & MST-205 transaxles, Hydro-Gear 0500/0750/0510 hydrostatic transaxles, chassis systems, steering components, mower deck systems, and the full electrical safety interlock system.
Ideal for anyone performing Toro XL lawn tractor troubleshooting, full teardown and rebuild, or mower deck repairs.

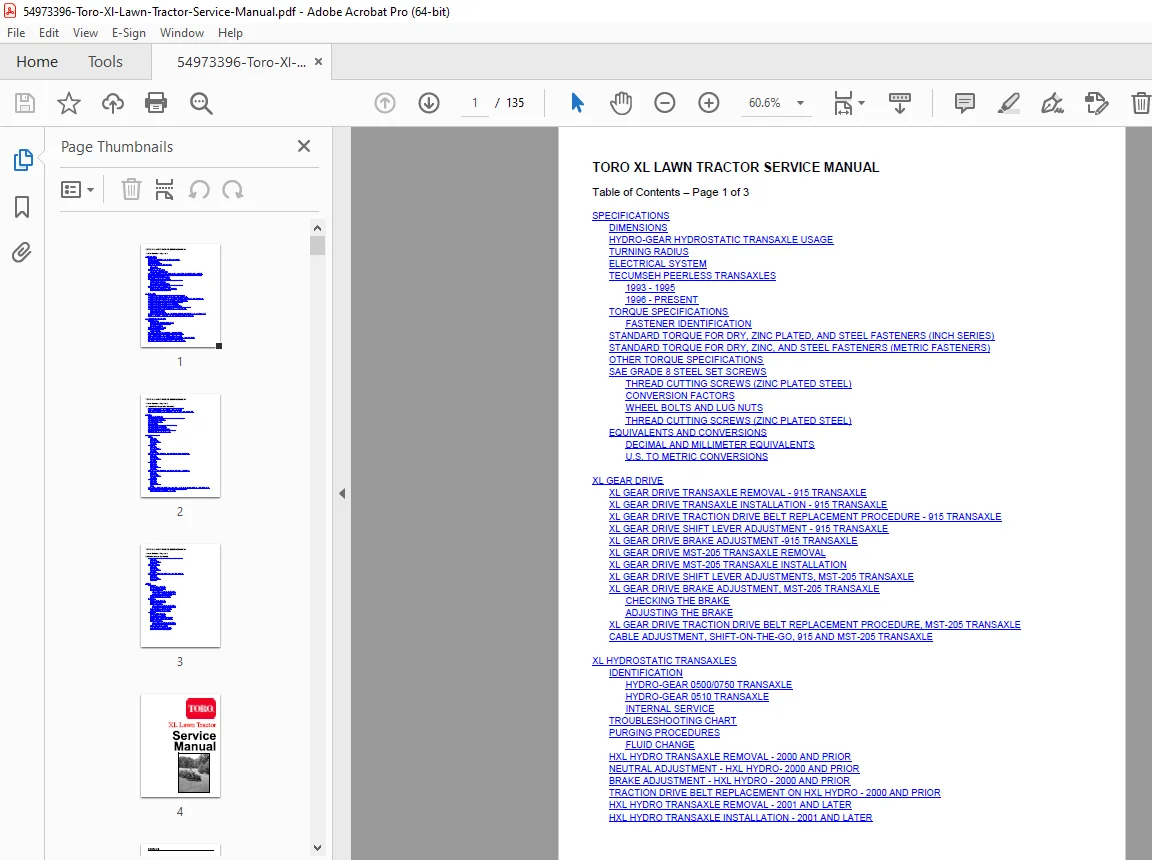

📘 Contents Extracted From the PDF

1. Specifications & Technical Data

• Dimensions for 32”, 38” & 44” models

• Hydro-Gear hydrostatic transaxle usage by year

• Electrical system specs (3-amp alternator, 12V 160 CCA battery)

• Tecumseh Peerless transaxles (915-020 / MST-205)

  54973396-Toro-Xl-Lawn-Tractor-S…

• Turning radius, weights & measurements

• Full torque specifications for:

  • SAE inch series

  • Metric class 8.8 / 10.9

  • Thread-cutting screws

  • Wheel bolt torque specs

• Conversion tables (decimal, millimeter, US-metric)

2. XL Gear-Drive Transaxle (915 & MST-205)

Procedures include:

• Transaxle removal (step-by-step with photos)

• Transaxle installation

• Traction drive belt replacement procedure

• Shift-lever alignment and adjustment

• Brake adjustment with testing procedure

• Cable adjustment for Shift-On-The-Go systems

  54973396-Toro-Xl-Lawn-Tractor-S…

3. Hydrostatic Transaxles (HXL)

• Identification of Hydro-Gear 0500/0750/0510 units

• Internal service & troubleshooting chart

• Purging procedures

• Hydrostatic fluid change

• Neutral & brake adjustment

• Belt replacement for 2000 & prior, and 2001 & later models

• Transaxle removal & installation procedures for both generations

4. Chassis & Steering System

• Front axle removal

• Upper steering shaft removal (tilt & non-tilt)

• Steering rack removal & assembly

• Steering tower removal/installation

• Rear body/fender removal

• PTO clutch removal & installation

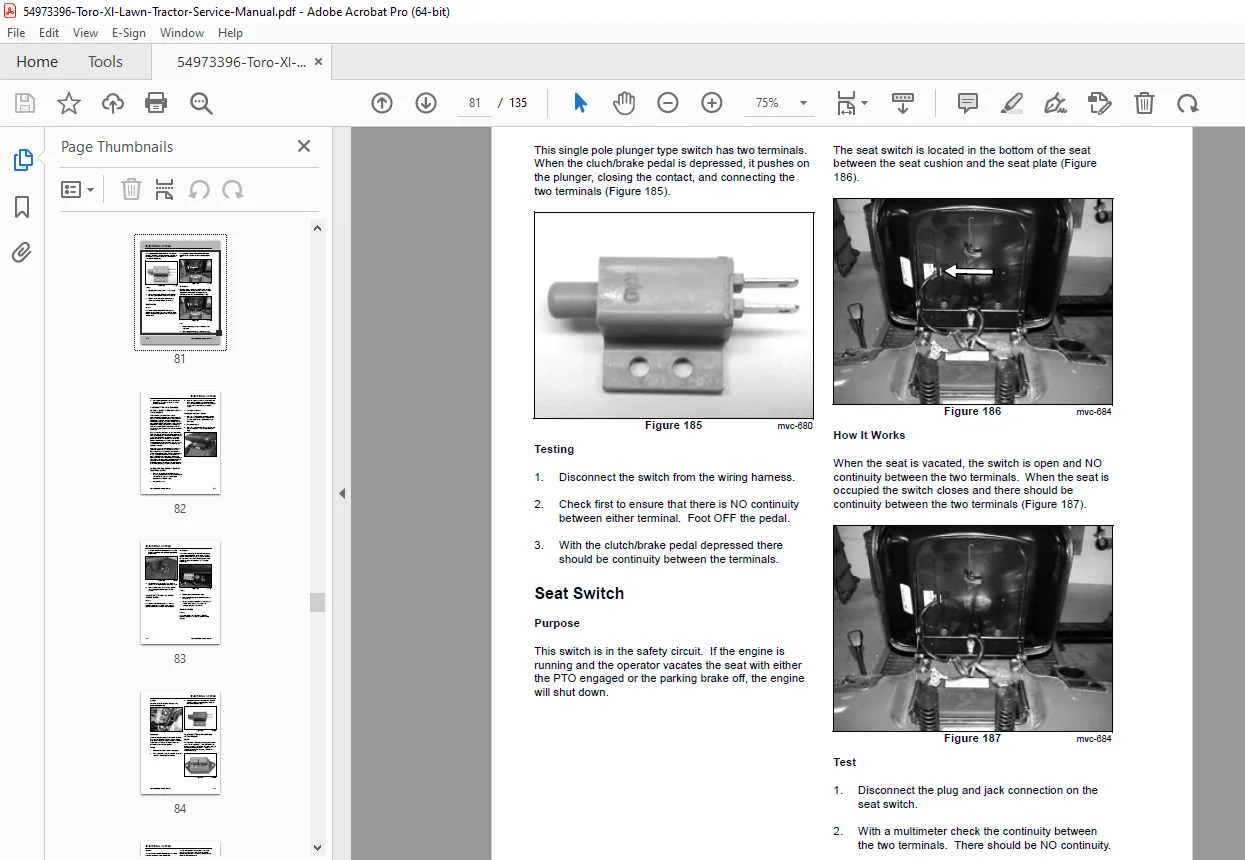

5. Electrical System Diagnostics

Includes complete operation and testing of all safety components:

• Relay – purpose, operation, testing

• Solenoid – purpose, location, testing

• Neutral switch (1999 & prior / 2000 & later)

• PTO switch testing

• Seat switch logic & test procedure

• KeyChoice™ Reverse Operating System

  • Switch, module, reverse switch

  • Testing diagrams and system checks

    54973396-Toro-Xl-Lawn-Tractor-S…

6. Mower Decks (32”, 38”, 44”)

For each deck:

• Removal / Installation

• Blade drive belt routing

• Leveling (side-to-side & front-to-rear)

• Blade brake adjustment

• Recycler baffle removal & installation (44″)

• Electric PTO versions (step-by-step belt changes & leveling)

📄 File Details
