FOREWORD:

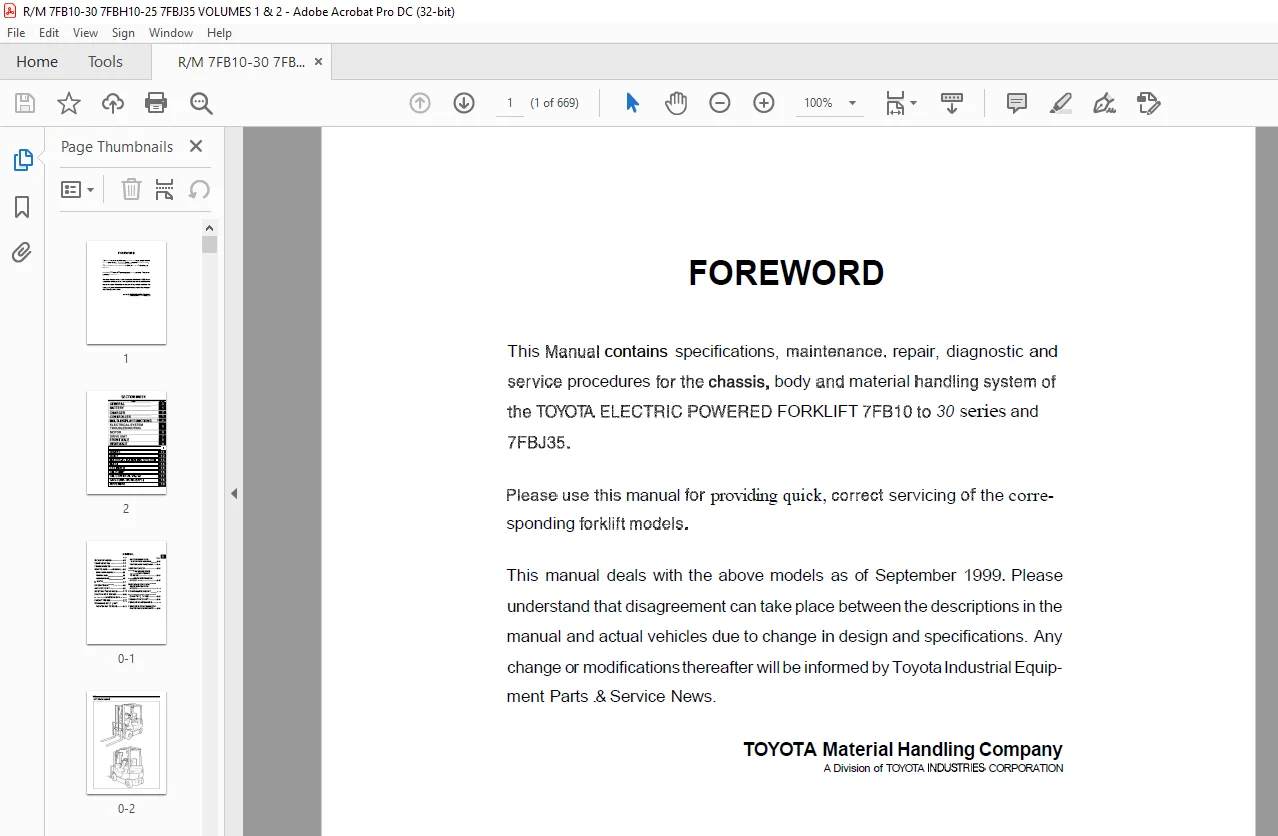

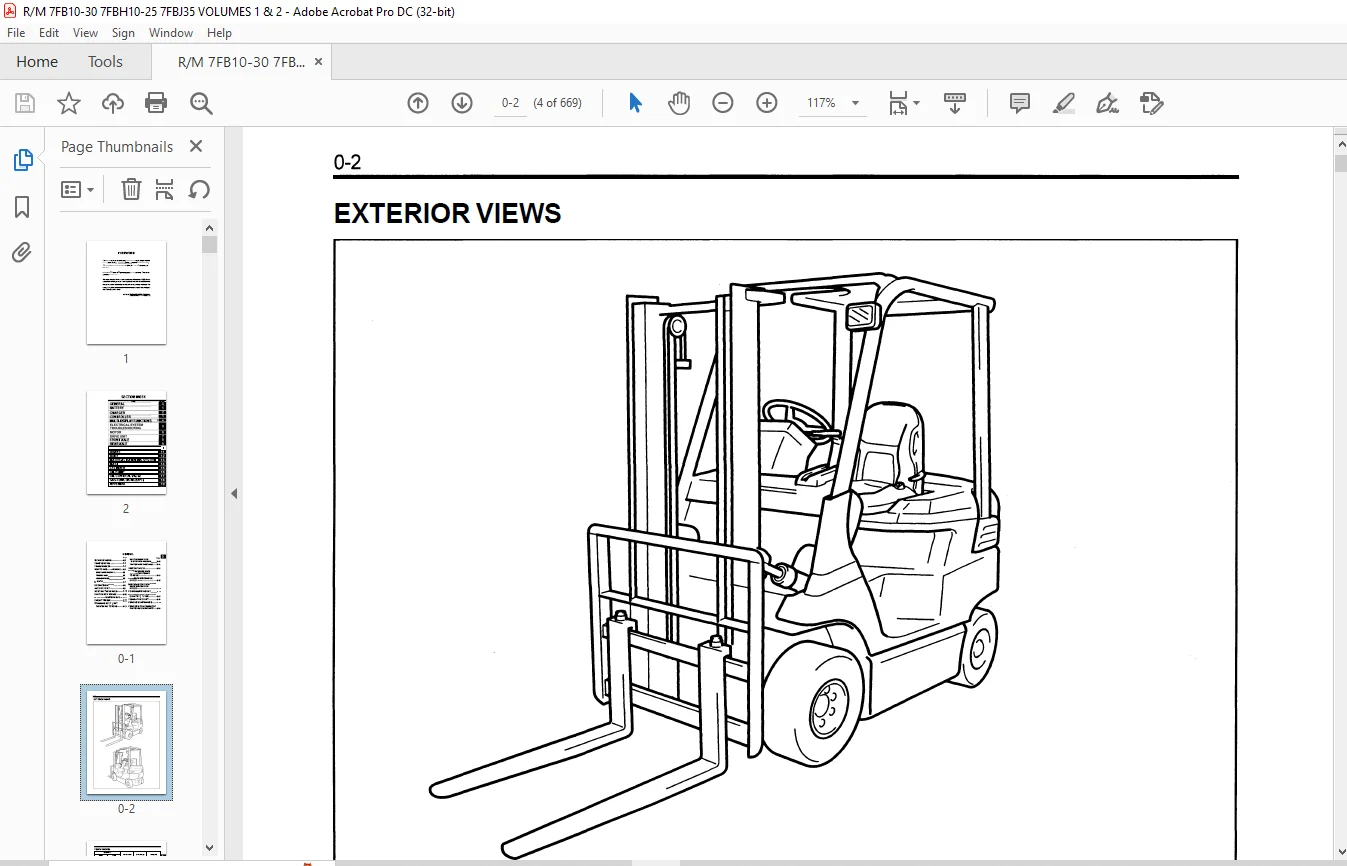

• This Manual contains specifications, mairstenances, repair, diagnostic and service procedures for %he a3l%assiis, body and material handling system sf the TOYOTA ELECTRIC POWERED FORKLIFT 7FB-10 to 30 series and 7FBJ35.
• Piease use this manual for providing quick, correct servicing of the corresponding forklilt models.
• This manual deals with the above models as of September 1999. Please understand that disagreement can take place between the descriptions in the manual and actual vehicles due to change in design and specifications. Any change or modifications thereafter will be informed by Toyota Industrial Equipment Parts .& Service News.

OPERATIONAL TIPS
1. Safe operation
(1) After jacking up, always support with wooden blocks or rigid stands.
(2) When hoisting the vehicle or its heavy component, use wire rope(s) with a sufficient reserve in load
capacity.
(3) Always disconnect the battery plug before the inspection or servicing of electrical parts.
2. Tactful operation
(1) Prepare the mechanic tools, necessary measuring instruments (circuit tester, megger, oil pressure
gauge, etc.) and SSTs before starting operation.
(2) Before disconnecting wiring, always check the cable color and wiring state.
(3) When overhauling functional parts, complicated portions or related mechanisms, arrange the parts
neatly to prevent confusion.
(4) When disassembling and inspecting such a precision part as the control valve, use clean tools and
operate in a clean location.
(5) Follow the described procedures for disassembly, inspection and reassembly.
(6) Replace, gaskets, packing and O-rings with new ones each time they are disassembled.
(7) Use genuine Toyota parts for replacement.
(8) Use specified bolts and nuts. Observe the specified tightening torque at the time of reassembly.
(Tighten to the center of the specified tightening torque range.)
If no tightening torque is specified, tighten the bolt or nut according to the standard tightening torque
table.
3. Protection of functional parts
(1) Thoroughly check each connector for any failure in or imperfect connection before reconnecting the
battery plug after the end of vehicle inspection or maintenance.
Failure in or imperfect connection of connectors related to controllers, especially, may
damage elements inside the controllers.
4. Confirming defect status
Do not start immediate disassembly or replacement, but first confirm if such disassembly or replacement
is actually needed.
