Triumph Rocket III Service Manual PDF – Workshop Repair Guide

This Triumph Rocket III Service Manual PDF – Workshop Repair Guide is the workshop text printed throughout as Service Manual – Rocket III. It is written first for a trained technician in a properly equipped workshop, and it also gives an owner enough procedure, specification, and safety detail to carry out basic maintenance when the correct hand tools and special service tools are available. Left- and right-hand references are taken from the rear of the motorcycle. Torque figures, wear limits, and tightening sequences in the text must be followed with calibrated tools.

File Details

• Manual type: Service manual (workshop repair)
• Brand / model: Triumph Rocket III
• Language: English
• Page count: 425
• File format: PDF
• Document title as printed: Service Manual – Rocket III

Motorcycle and Engine Covered

The specification section identifies a single machine: the Rocket III. The power unit is a three-cylinder, 12-valve DOHC engine arranged in line and longitudinally in the frame. Displacement is 2294 cc from a 101.6 x 94.3 mm bore and stroke, compression ratio 8.7:1, cylinder 1 at the front, firing order 1-2-3. Quoted output is 142 PS at 5,750 rpm and 200 Nm at 2,500 rpm. An electronic rev-limiter is set at 6,500 rpm. Ignition is digital inductive with twin-output coils and two NGK DPR8EA-9 spark plugs per cylinder at a 0.9 mm gap.

Primary drive is by gear with a backlash eliminator at 1.034:1. The clutch is a wet multi-plate unit with 10 friction plates, cable actuation, and 2–3 mm free play at the lever. The gearbox is a five-speed constant-mesh set. Final drive is a bevel-geared crown wheel and pinion on a universal-jointed shaft with a torsional damper; the printed ratio is 2.846:1 and bevel-box capacity is 0.17 litres of Mobilube SHC 75W-90 (or equivalent). Dry weight is given as 320 kg with a 235 kg maximum payload.

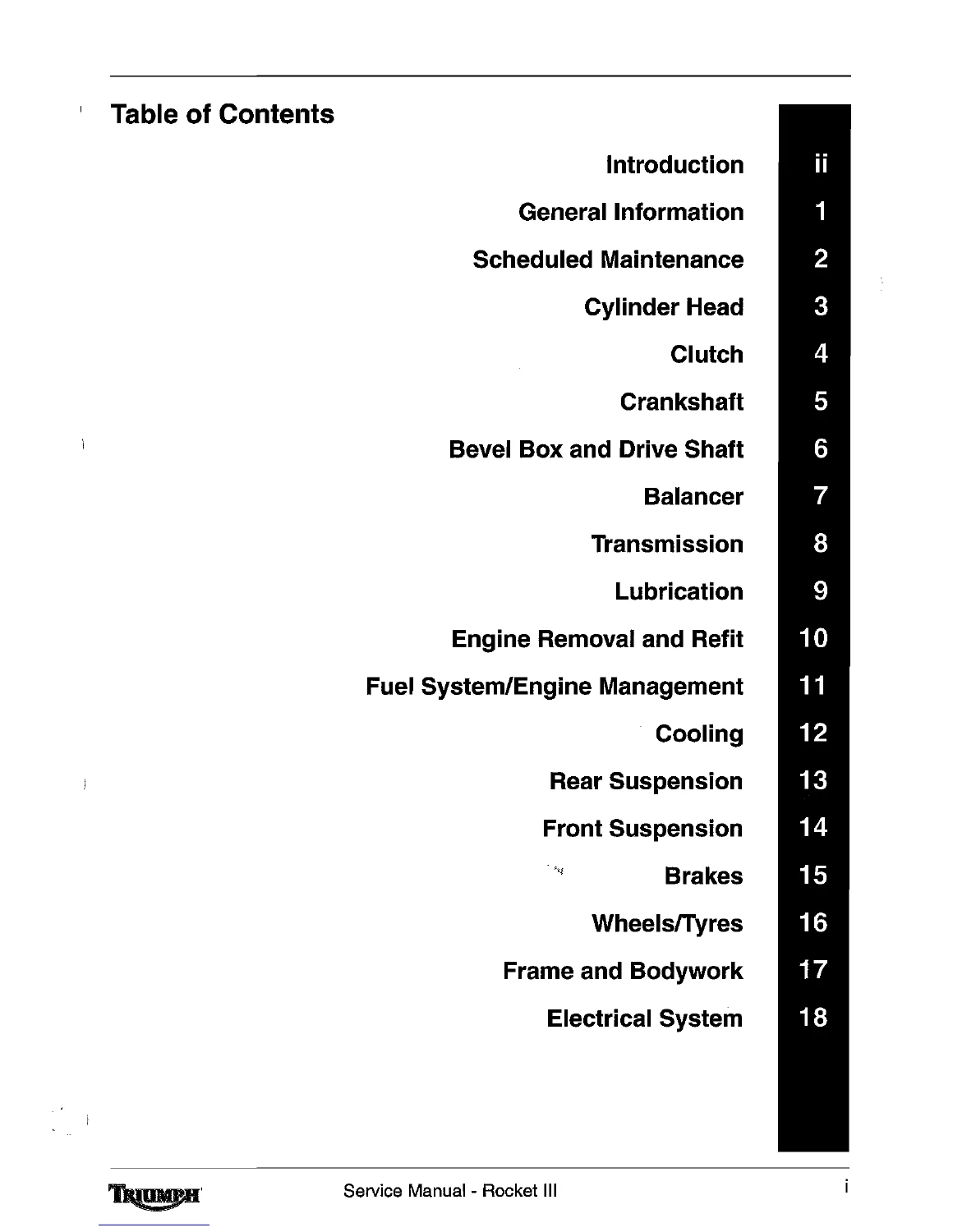

Chapters Covered

• Introduction — how to use the manual; warnings, cautions and notes; noise-control rules; tightening method; genuine-parts guidance
• 1 General Information — ignition and substance safety; oils and fluoroelastomers; brakes and coolant; jacking; gaskets, threads and locking devices; fuel handling; electrical precautions; service data; special tools; torque wrench settings; cable, hose and harness routings
• 2 Scheduled Maintenance — introduction and scheduled maintenance chart (500 mile / 800 km first service through 60,000 miles / 96,000 km)
• 3 Cylinder Head — cam cover, camshaft and cam-drive exploded views; cam-chain tensioner; camshaft identification and sprocket orientation; valve clearances and adjustment; cylinder head, valves and stem seals; cam-chain inspection
• 4 Clutch — clutch controls, clutch and cover exploded views; cable removal and examination; friction-plate thickness and assembly
• 5 Crankshaft — crankshaft, connecting-rod and piston exploded views; crankcases and liners; big-end and main-bearing selection; Plastigage clearance checks; pistons, rings and cylinder liners

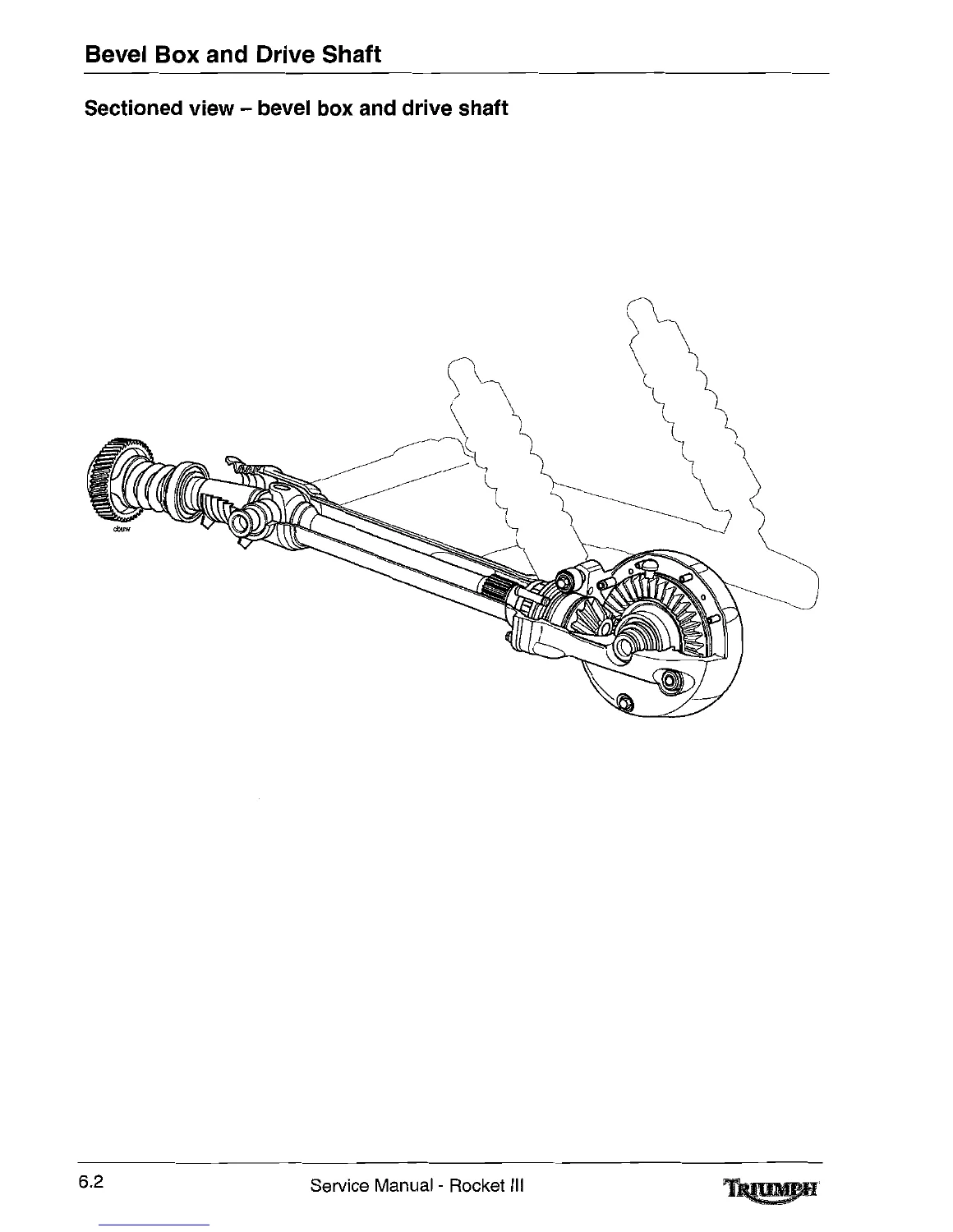

• 6 Bevel Box and Drive Shaft — sectioned view; oil specification, level check and oil change; bevel-box and drive-shaft removal and installation
• 7 Balancer — exploded view; removal, inspection and assembly for the odd-cylinder balancer
• 8 Transmission — input/output shafts, gear-change and selector mechanisms, torsional damper shaft; selector forks and drum; shaft disassembly and assembly
• 9 Lubrication — dry-sump oil circuit; oil specification and filter change; low-pressure switch; sump, pumps, non-return and relief valves; oil tank and transfer pipes
• 10 Engine Removal and Refit — complete engine-out and installation sequence
• 11 Fuel System / Engine Management — tank, pump, rail, throttles, injectors, airbox, exhaust and evaporative exploded views; fuel requirements; EMS sensors and actuators; circuit diagrams; on-board diagnostics, DTCs and Triumph diagnostic tool; throttle-body work and fuel-tank procedures
• 12 Cooling — radiator, water pump, expansion tank; coolant inspection and replacement; thermostat and pressure cap
• 13 Rear Suspension — swinging arm and rear units; suggested settings; swinging-arm bearings and drive-shaft interface
• 14 Front Suspension — fork exploded view; fork oil change and rebuild; steering-head bearing check and yoke work
• 15 Brakes — front and rear master cylinders, calipers and discs; fluid change and bleeding; pad and disc service
• 16 Wheels / Tyres — front and rear wheels and cush drive; pressures, tread limits and wheel inspection
• 17 Frame and Bodywork — frame fixings, mudguards, footrests, seats, side panels, side stand and handlebars
• 18 Electrical System — instruments, alternator, starter, lights, battery and horn; fuses; lighting, starting/charging, auxiliary and complete-system circuit diagrams

IMAGES PREVIEW

Taken together, the Triumph Rocket III Service Manual PDF – Workshop Repair Guide is a start-to-finish workshop path: daily and interval service from the chart, then component-level removal, inspection against printed service limits, and refit with the listed torque values. Engine work runs from valve-clearance shimming and cam timing through crankcase split, liner extraction and selective bearing choice. Chassis work covers the shaft final drive, forks, swinging arm, dual four-piston front calipers and the large rear tyre and wheel. Electrical and engine-management chapters add connector pin-outs, colour codes, DTC lists and the complete motorcycle wiring diagram.

Service Data Printed in the Manual

Engine oil capacity is 5.9 litres dry fill including filter, 5.4 litres at oil-and-filter change, and 5.1 litres for oil-only change. Specified oil is API SH (or higher) and JASO MA, 10W/40 or 15W/50, semi- or fully synthetic. Main-gallery oil pressure is 3.00–3.60 bar at 3,500 rpm. Valve clearances are 0.10–0.15 mm inlet and 0.15–0.20 mm exhaust. Coolant is a 50% Mobil Antifreeze mix in distilled water, 3.2 litres system capacity, 1.2 bar radiator cap, 85°C thermostat.

Fuel is unleaded 95 RON outside the USA and 89 RON/MON (CLC or AKI) in the USA; tank capacity 25 litres with a low-level lamp at 5.5 litres remaining. Nominal fuel pressure is 3.0 bar. Idle speed is 800 rpm under stepper-motor idle control with twin-butterfly throttles and multi-point sequential injection. Front forks use Kayaba 01 (SAE 0W) oil, 667 cm³ ± 4.0 cm³ dry fill, 89 mm level with the fork fully compressed, 120 mm travel. Rear wheel travel is 105 mm. Front brakes are twin 320 mm discs with four-piston calipers (33.96 / 30.23 mm pistons); rear is a 316 mm disc and 32 mm piston. Recommended fluid is DOT 4. Front tyre 150/80 R17 at 34 lb/in²; rear 240/50 R16 at 42 lb/in². Battery 12 V 18 Ah; alternator 37 A minimum at 2,000 rpm and 41 A at 6,000 rpm.

Special Service Tools Called Up in the Text

The General Information section illustrates tools that later procedures require, including angular torque gauge T3880105, fuel pressure gauge T3880048, fork filler evacuator 3880160-T0301, oil filter wrench T3880312, diagnostic tool T3880250, alternator puller T3880200 and anti-rotation jig T3880201, liner extractor T3880061, clutch anti-rotation jig 3880025-T0301, 38 mm and 31 mm castle wrenches T3880062 / T3880063, swinging-arm bearing drift T3880064, fork assembly rod 3880085-T0301, fork service tool 3880090-T0301, fork spring compressor T3880067, and cam timing jig T3880202. Operations that name a tool should not be improvised with makeshift substitutes.

Maintenance Chart and Safety Emphasis

Section 2 prints a chart from the 500 mile / 800 km (1 month) first service through 60,000 miles / 96,000 km (6 years). Recurring items include engine-oil and filter renewal, stored ECM diagnostic-trouble-code checks, throttle-body balance, coolant and fuel-filter renewal, headstock-bearing service, fork-oil renewal, brake-fluid renewal every two years, final-drive oil checks and changes, and daily-type inspections of leaks, lights, steering, pads, tyres and the clutch cable. Introduction and General Information pages cover ignition shock risk, pacemaker proximity, hot oil and coolant, brake-fluid hygroscopy, fluoroelastomer fire decomposition, petrol vapour handling, battery disconnect order (negative first), and the instruction not to modify the frame by welding or drilling.

Diagnostics and Electrical Coverage

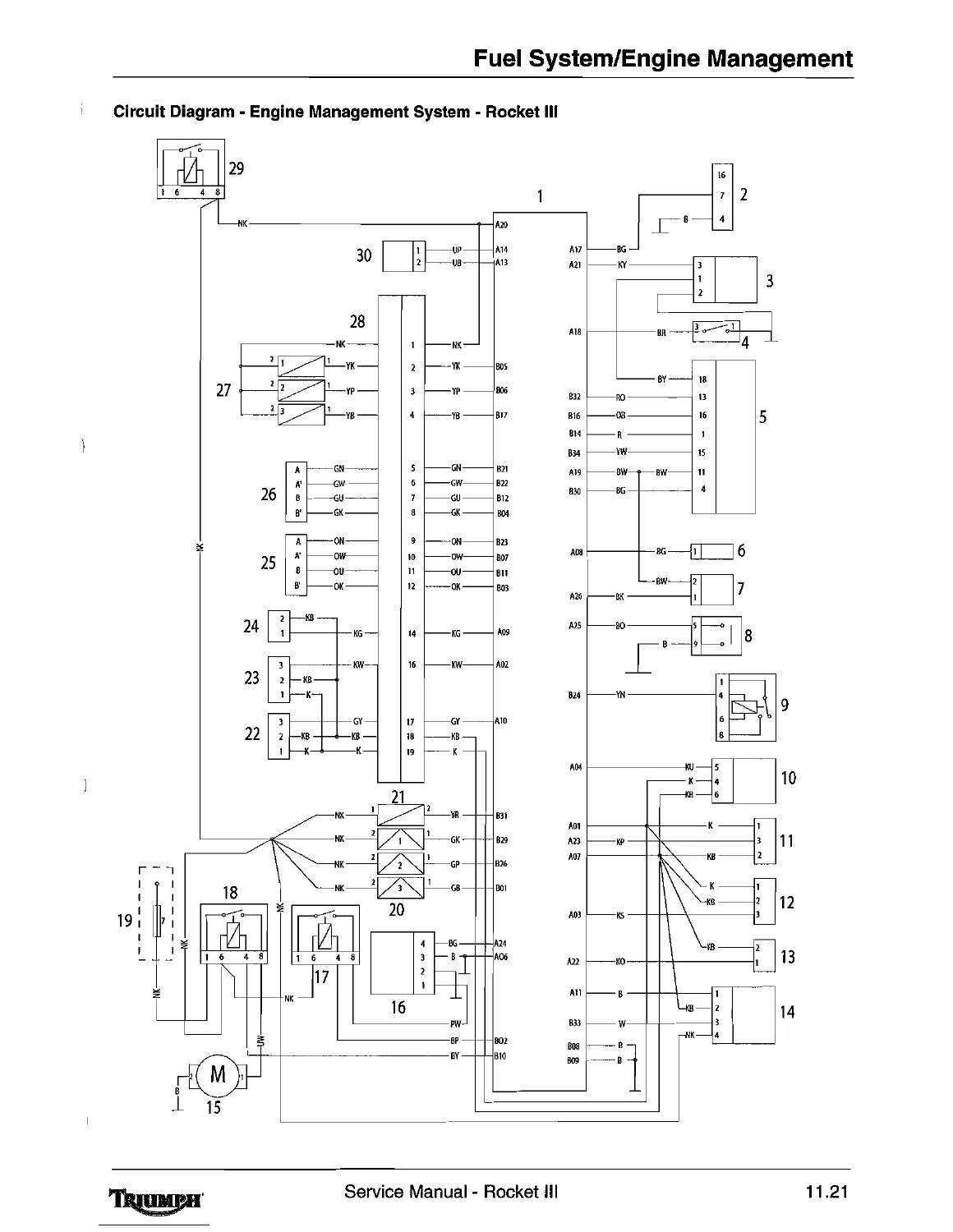

The engine-management chapter describes sensors for coolant temperature, manifold absolute pressure on all cylinders, intake-air temperature, barometric pressure, gear position, road speed, and primary and secondary throttle position. It includes the Rocket III engine-management circuit diagram, ECM connector pin numbering, freeze-frame and current-data screens on the Triumph diagnostic tool, adaption status, and a tabulated DTC list. Electrical System closes the book with battery commissioning and charging, fuse identification, headlamp aim, alternator and starter removal, plus separate lighting, starting/charging, auxiliary and complete-system circuit diagrams with item keys and wire-colour codes.

Use This Manual for Workshop Jobs

With the Triumph Rocket III Service Manual PDF – Workshop Repair Guide open, a technician can set valve clearances, time the cams with the listed jig, inspect friction plates against the 3.5 mm service limit, select big-end and main bearings from measured journals, extract cylinder liners, service the dry-sump pumps, change bevel-box oil, pull the engine as a unit, read and clear DTCs, balance throttles by the Triumph method (vacuum gauges are not used on this model), rebuild forks to the 89 mm oil height, bleed DOT 4 brakes, and trace faults on the complete wiring diagram. Printed wear limits, torque values and tightening sequences exist so those jobs are done to the figures in this Rocket III workshop text rather than by guesswork.

Correct procedures and the specification tables matter on a 2294 cc shaft-drive triple: over-tightened fasteners, reused encapsulated bolts, mixed brake fluid, or incorrect final-drive oil all have explicit warnings attached. Using the values and sequences in this service manual keeps clearances, oil films and brake performance inside the limits the text publishes.

Delivery is an instant PDF download after payment — no shipping delay. Open the Triumph Rocket III Service Manual PDF – Workshop Repair Guide on a computer, tablet or phone in the workshop, and print the exploded views, torque tables or wiring diagrams you need for the job in front of you.
