Triumph Tiger Explorer Service Manual PDF DOWNLOAD
Original price was: $120.00.$31.95Current price is: $31.95.
Comprehensive Triumph Tiger Explorer service manual PDF covering maintenance, repairs, and diagnostics for the adventure motorcycle. Includes Triumph Tiger Explorer cylinder head repair guide, Tiger Explorer engine removal instructions, Triumph Tiger Explorer electrical system wiring diagram, Tiger Explorer front suspension maintenance procedures, Triumph motorcycle fuel system troubleshooting, and rear bevel box service. 554 pages with detailed sections on scheduled maintenance, crankshaft, transmission, cooling, brakes, and electrical systems for mechanics.
Description
Triumph Tiger Explorer Service Manual PDF DOWNLOAD
Description
This official Triumph Tiger Explorer service manual PDF is an indispensable resource for mechanics and owners servicing the Triumph Tiger Explorer adventure motorcycle. It provides thorough guidance on general information, scheduled maintenance, and in-depth repairs across all systems, ensuring accurate diagnostics and upkeep. Key sections emphasize practical procedures with illustrations, such as the Triumph Tiger Explorer cylinder head repair guide for valve and camshaft servicing, Tiger Explorer engine removal instructions for safe disassembly and refit, and Triumph Tiger Explorer electrical system wiring diagram for circuit troubleshooting and wiring harness checks. The manual supports Triumph motorcycle fuel system troubleshooting with tips on injectors and engine management, Tiger Explorer front suspension maintenance procedures for fork adjustments and seals, and rear bevel box service for drive shaft inspections.
Safety warnings highlight proper tools, torque values, and precautions to avoid damage. The structured format aids quick reference, with chapters on balancer, transmission, lubrication, cooling, brakes, wheels/tyres, frame, bodywork, and electrical systems. Whether addressing clutch issues, crankshaft balancing, or rear suspension setups, this PDF equips users with reliable, illustrated steps using genuine Triumph parts.

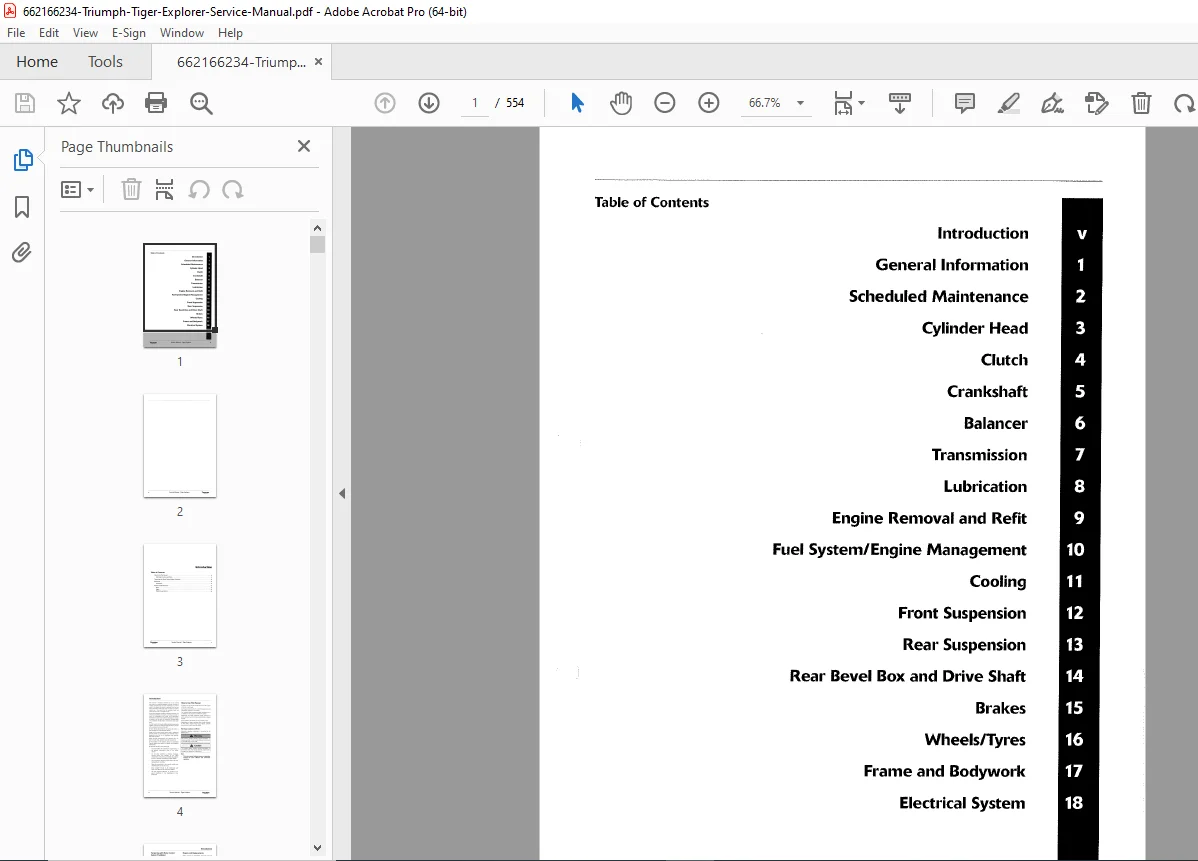

The manual includes a Table of Contents (neatly categorized from page 1):
| Section | Title |
|---|---|
| – | Introduction |
| 1 | General Information |
| 2 | Scheduled Maintenance |
| 3 | Cylinder Head |
| 4 | Clutch |
| 5 | Crankshaft |
| 6 | Balancer |
| 7 | Transmission |
| 8 | Lubrication |
| 9 | Engine Removal and Refit |
| 10 | Fuel System/Engine Management |
| 11 | Cooling |
| 12 | Front Suspension |
| 13 | Rear Suspension |
| 14 | Rear Bevel Box and Drive Shaft |
| 15 | Brakes |
| 16 | Wheels/Tyres |
| 17 | Frame and Bodywork |
| 18 | Electrical System |
No additional index or bookmarks are present in the provided content. Ideal for Tiger Explorer engine removal instructions, Triumph Tiger Explorer electrical system wiring diagram analysis, and overall motorcycle maintenance. Specifications subject to change; verify with actual vehicle.
File Details
- Manual Name: Triumph Tiger Explorer Service Manual
- Models Covered: Tiger Explorer
- Year: 2012 (based on model introduction)
- Manual PDF Quality: High quality with clear text, illustrations, and diagrams
- No. of Pages: 554
