UD Trucks Condor MKB8E PKC8E PDC8E Body Installation Manual 2015

Description

UD Trucks Condor MKB8E PKC8E PDC8E Body Installation Manual 2015

This UD Trucks Condor MKB8E PKC8E PDC8E Body Installation Manual 2015 is the complete body builder’s reference for the forward control 4×2 MKB8E series, 4×2 PKC8E series, and 6×2 PDC8E series of medium-duty trucks. Issued 03 June 2015, this manual presents the basic data and describes the precautions involved in designing and manufacturing the body and general equipment to be installed on these Condor models. It is written for body manufacturers, modification companies, and second-stage-of-manufacture (SSM) specialists who need to install a quality vehicle body that satisfies both customer requirements and Australian Design Rules (ADR) compliance.

File Details

• Manual Type: Body Installation Manual
• Brand: UD Trucks
• Models: MKB8E, PKC8E, PDC8E (Condor)
• Language: English
• Page Count: Approximately 154 pages
• File Format: PDF
• Issued Date: 03 June 2015
• Region: Australian Market

Chapters Covered

• Vehicle Specifications — MK Series, PK Series, PD Series
• Guidelines — Legislation
• General Overview
• Australian Design Rules (ADR) Certification
• Manufacturer’s Guidelines
• Weight Distribution Calculations
• Maximum Aggregate Trailer Mass (ATM)
• Front Underrun Protection System (FUPS)
• Other Legislation — AVSR, Load Restraint Guide, CML, PBS
• ADR Summary — Applicable to ’11 M/Y
• SSM and Body Builders ADR Check List
• Guidelines — Body Installation
• Sub-Frame and Body Installation
• Sub-Frame Shape and Mounting
• Front End Shape
• Positions of Front-End Reinforcement
• Mounting Brackets
• Location Plates

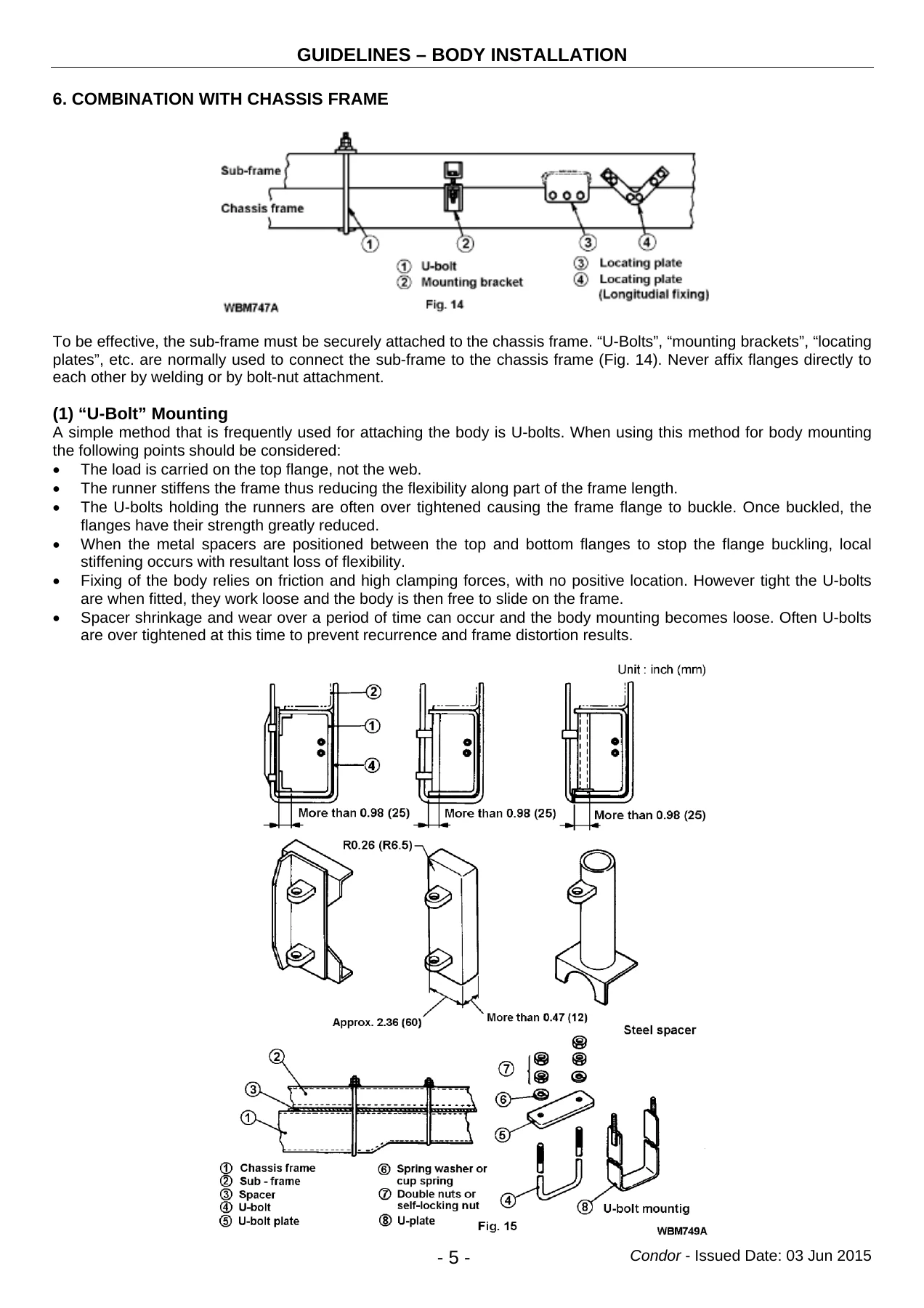

• Combination with Chassis Frame
• Long Wheelbase Truck
• Chassis Frame — Drilling the Frame, Riveting
• Mechanical Connections Between Vehicles
• Towbars, Tow Couplings and Fifth Wheels
• Lifting Devices — Cranes, Tailgate/Platform Loader
• Precautions During Electric Welding
• Precautions on Vehicles Equipped with ABS
• Precautions on Vehicles Equipped with EHS
• Precautions for the SRS Airbag System
• Precautions for Body Installation — AdBlue SCR System
• Remodeling the Exhaust System
• Allison Automatic Transmissions — Precautions & Optional Features
• Chassis Layout — MKB8E, PKC8E, PDC8E
• Mass — Chassis Cab
• Frame Assembly
• Section Modulus

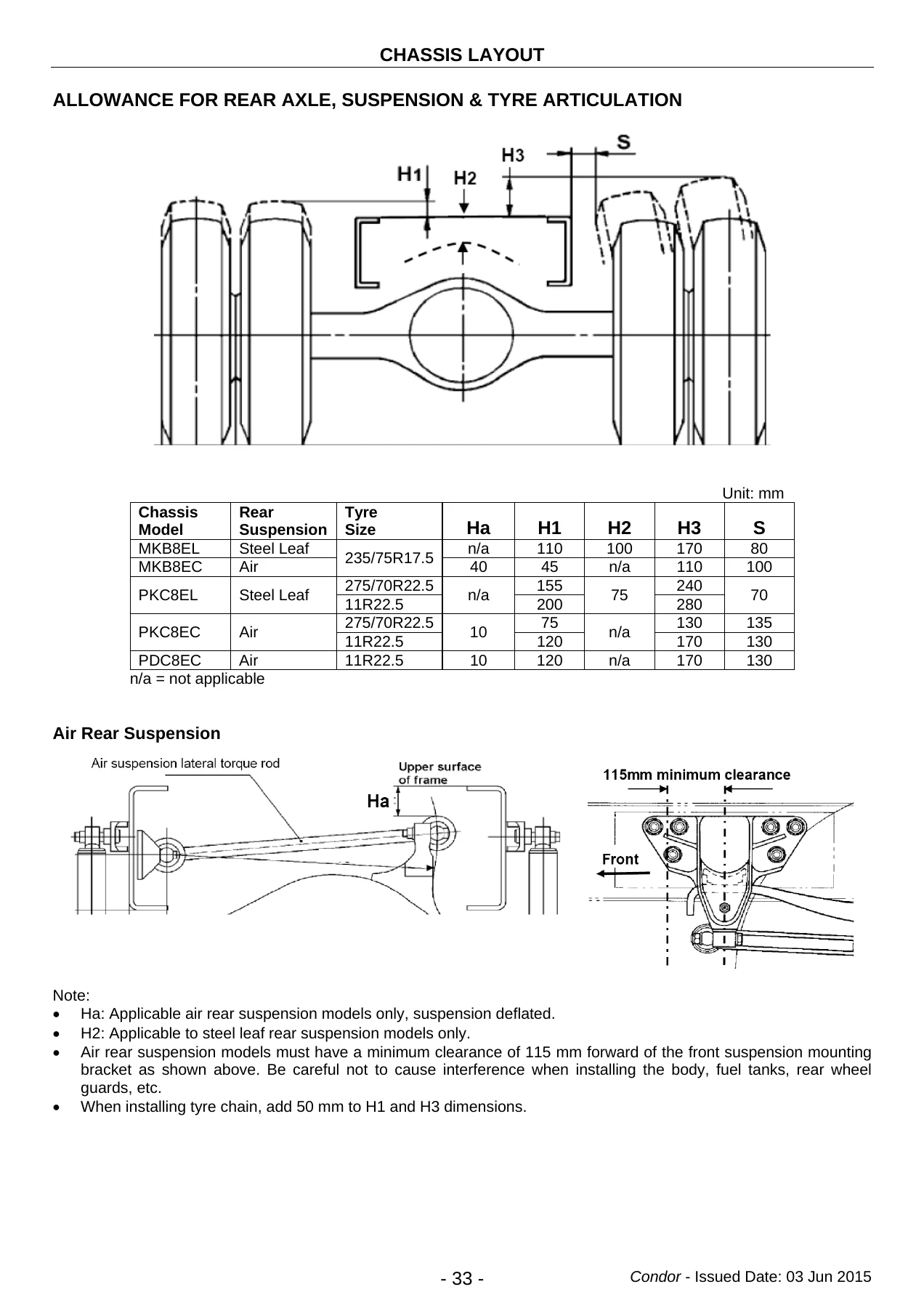

• Allowance for Rear Axle, Suspension & Tyre Articulation
• Allowance for Body Clearance, Cab Tilt & Suspension Movement
• PTO Location — Rear Engine PTO, Transmission PTO
• PTO Circuit — Manual and Automatic Transmission Models
• Engine Control System — Junction Connection Patterns
• External Engine Control Lever Unit
• PTO Switch
• Electrical System — Battery Disconnection
• Harness for Rear Lamps
• Location of Relay, Fuse Box, and Other Electrical Units
• General Precautions on Electrical Wiring
• Cab Routing of Additional Harness
• Harness and Electrical Component Layout
• Air System — Discharge of Air, Preferential Charging
• Air Piping Diagrams
• Painting — Precautions on Painting
• Allowable Temperature Limits of Major Parts
• Boundaries of Cab Painting
• Precautions on Painting the Disc Wheel
• Tightening Torque of General Chassis Bolts
• Appendix

This UD Trucks Condor body installation manual covers the full scope of body mounting work for the MKB8E, PKC8E, and PDC8E chassis-cab models. From the initial weight distribution calculations and ADR compliance checklists through to the final painting and tightening torque specifications, the document gives body builders a structured, regulation-aware process for completing these medium-duty Condor trucks.

Vehicle Coverage

The UD Trucks Condor MKB8E PKC8E PDC8E Body Installation Manual 2015 covers the following Australian market sales models and their UDTC model code designations:

• MK 11 250 (including Tipper) — MKB8E
• MK 11 280 — MKB8E
• PK 16 250 — PKC8E
• PK 16 280 — PKC8E
• PK 17 280 — PKC8E
• PD 24 280 — PDC8E

Engine options documented include the GH7TA (180 kW) and GH7TB (206 kW). Transmission coverage spans the MLS63B, MPS63B, Allison 2500, and Allison 3000 series. Both steel leaf and air rear suspension variants are included across the MKB8EL, MKB8EC, PKC8EL, PKC8EC, and PDC8EC model codes.

What the Body Installation Manual Covers in Practice

The UD Trucks Condor MKB8E PKC8E PDC8E Body Installation Manual 2015 is not simply a specification sheet. It walks through the entire body installation process with the level of detail needed for compliant, durable work on these medium-duty trucks. Key practical content includes:

• Chassis frame drilling restrictions — maximum hole diameters (13 mm MK, 15 mm PK/PD), edge distance rules, and prohibited zones around flanges, crossmembers, and gussets
• Riveting procedures — cold hydraulic riveting, joint drilling, and staggered hole patterns
• Sub-frame design — flange width ratios, front-end taper geometry, and correct use of steel spacers
• Mounting methods — U-bolt specifications, mounting bracket installation, and location plate requirements (minimum four plates, front and rear both sides)
• Welding precautions — low hydrogen electrode specifications, pre-heating, bead length minimums, and prohibited weld zones
• ABS, EHS, and SRS airbag system protection during body installation and electric welding
• AdBlue SCR system handling — hose removal/installation, connection protection, and prohibited modifications
• Allison transmission precautions — oil cooler requirements, lubricant specifications, and reprogramming options
• PTO installation — rear engine PTO and transmission PTO layouts, drive shaft angle limits, and electrical circuit diagrams
• Engine control system junction patterns for standard, engine PTO, and transmission PTO configurations
• Electrical harness routing — clearance requirements, grommet usage, and fuse ratings
• Air system charging requirements per ADR 35/04, including MPV port 24 auxiliary circuits
• Painting boundaries and allowable temperature limits for cab and chassis components

Each of these areas is treated with the specific values, dimensions, and procedural steps needed on the shop floor, not general advice.

Why This Manual Matters for Body Builders

Installing a body on a UD Trucks Condor MKB8E, PKC8E, or PDC8E without the correct installation data risks voiding ADR compliance, damaging the chassis frame, or creating an unsafe vehicle. This UD Trucks Condor body installation manual gives you the exact drilling limits, welding restrictions, torque values, and clearance requirements that the manufacturer expects. It also details the ADR certification obligations of the Second-Stage-of-Manufacture, including the specific lighting position requirements, wheel guard rules, and registration plate provisions that must be met after the body is fitted.

For workshops handling PTO installation, the manual includes full wiring diagrams for both manual and automatic transmission models, external engine control lever installation, and the end-of-line programming parameters needed to activate optional PTO features. The air system section explains the preferential charging requirements and shows the correct port to use when adding air-operated accessories, keeping the brake system compliant with ADR 35/04.

The painting chapter is equally practical, listing which exterior parts should be removed before painting, the allowable temperature limits for major components, and the special precautions needed for resin and polypropylene parts. The tightening torque tables for general chassis bolts cover the metric sizes used throughout the vehicle, giving you the correct values when no torque is specified in the service manual.

IMAGES PREVIEW

Instant PDF Delivery

This UD Trucks Condor MKB8E PKC8E PDC8E Body Installation Manual 2015 is delivered as an instant PDF download after purchase. There is no shipping, no waiting, and no physical media. You can open it on any device — laptop, tablet, or smartphone — and print the pages you need for the workshop. Whether you are quoting a body installation, performing the work, or checking compliance before registration, this manual gives you the manufacturer’s data in a searchable, portable format.
