Unicarriers Nissan Forklift 2W4 Parts Manual PN CF850-UBOOK – PDF DOWNLOAD

Description

Unicarriers Nissan Forklift 2W4 Parts Manual PN CF850-UBOOK – PDF DOWNLOAD

FILE DETAILS:

Unicarriers Nissan Forklift 2W4 Parts Manual PN CF850-UBOOK – PDF DOWNLOAD

Language : English_Spanish_French_Portuguese
Pages : 136
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Unicarriers Nissan Forklift 2W4 Parts Manual PN CF850-UBOOK – PDF DOWNLOAD

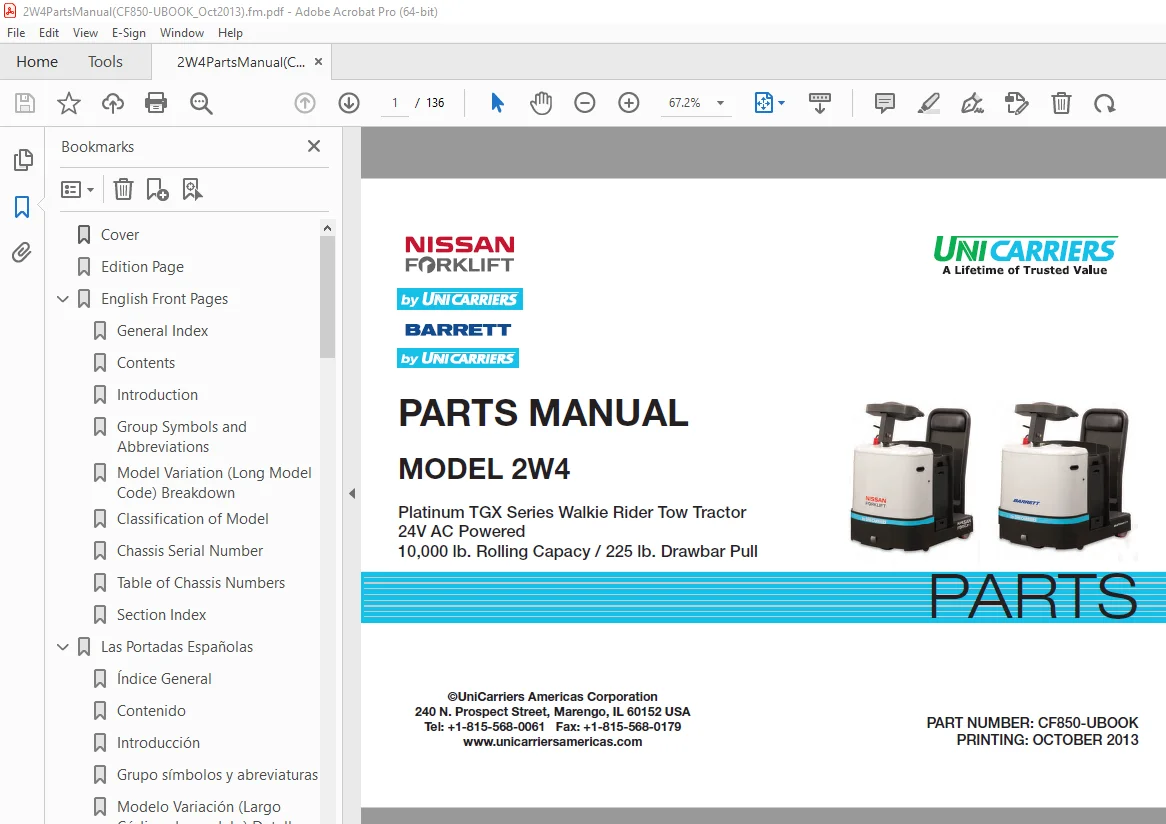

Platinum TGX Series Walkie Rider Tow Tractor
24V AC Powered
10,000 lb. Rolling Capacy / 225 lb. Drawbar Pull

Cover 1
Edition Page 3
English Front Pages 4
General Index 4
Contents 5
Introduction 6
Group Symbols and Abbreviations 7
Model Variation (Long Model Code) Breakdown 8
Classification of Model 9
Chassis Serial Number 11
Table of Chassis Numbers 12
Section Index 14
Las Portadas Españolas 15
Índice General 15
Contenido 16
Introducción 17
Grupo símbolos y abreviaturas 18
Modelo Variación (Largo Código de modelo) Detalle 19
Modelo de Clasificación 20
Número de Serie du Chasis 22
Tabla de números de chasis 23
Índice Sección 25
Português páginas Dianteiras 26
Índice Geral 26
Conteúdo 27
Introdução 28
Grupo símbolos e abreviaturas 29
Modelo Variação (Long código de modelo) A repartição 30
Classificação do Modelo 31
Número de Série do Chassi 33
Tabela de números de chassi 34
Índice da Seção 36
Français Pages Avant 37
Index général 37
Contenu 38
Introduction 39
Groupe Symboles et abréviations 40
Modèle Variation (Long Code de modèle) Ventilation 41
Classification de modèle 42
Numéro de série du châssis 44
Tableau des numéros de châssis 45
Index de section 47
Motor Sec 290 48
Sec 290 Drive Motor 49
Body Electrical Sec 240-270 52
Sec 240A Legend (Standard) 53
Sec 240B Legend (Optional) 54
Sec 241A Electrical Schematic (Standard) 55
Sec 241B Electrical Schematic (Optional) 56
Sec 242 Power Wiring 57
Sec 243A Control Wiring (Standard) 59
Sec 243B Control Wiring (Optional) 63
Sec 244 Steerhead Wiring 65
Sec 250 Truck Electronics 67
Sec 260A Battery Gate 69
Sec 260B Battery Gate & Roller 71
Sec 260C Battery Gate & Roller W/Switch 73

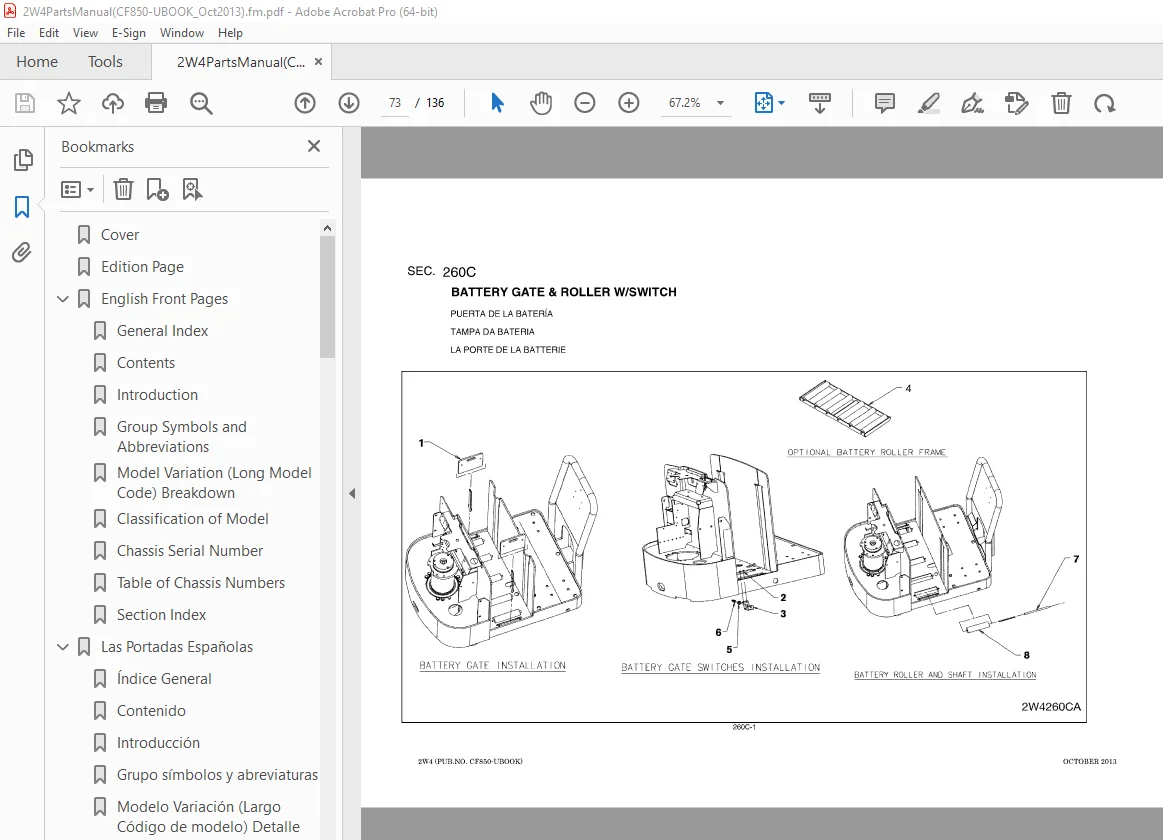

Sec 270 Controller Programmer 75
Power Train Sec 310-320 78
Sec 310 Transmission Assembly 79
Sec 320 Transmission & Motor Mounting 83
Axle & Suspension Sec 410-430 86
Sec 410A Drive Wheel 10 x 4 87
Sec 410B Drive Wheel 10 x 5 89
Sec 420 Load Wheel 91
Brake Sec 440 94
Sec 440 Brake Assembly 95
Steering Sec 480-485 98
Sec 480 Steering Mechanism 99
Sec 483 Steer Handle Assembly 101
Sec 485A Steerhead -Tilt 103
Sec 485B Steerhead -Fixed 105
Body (Front, Roof & Floor) Sec 510-670 108
Sec 540 Final Assembly 109
Sec 630 Convenience Tray 111
Sec 660 Coupler Mounting 113
Sec 661 Jaw Coupler 115
Sec 662 Towing Eye Coupler 117
Sec 663 Pin and Clevis Coupler 119
Sec 670 Picking Steps 121
Miscellaneous Sec 991-992 124
Sec 991A Decals -Barrett 125
Sec 991B Decals -Nissan Forklift 127
Sec 992 Paint 129
Part No Index 132
Dealer Suggested Stocking List 135
