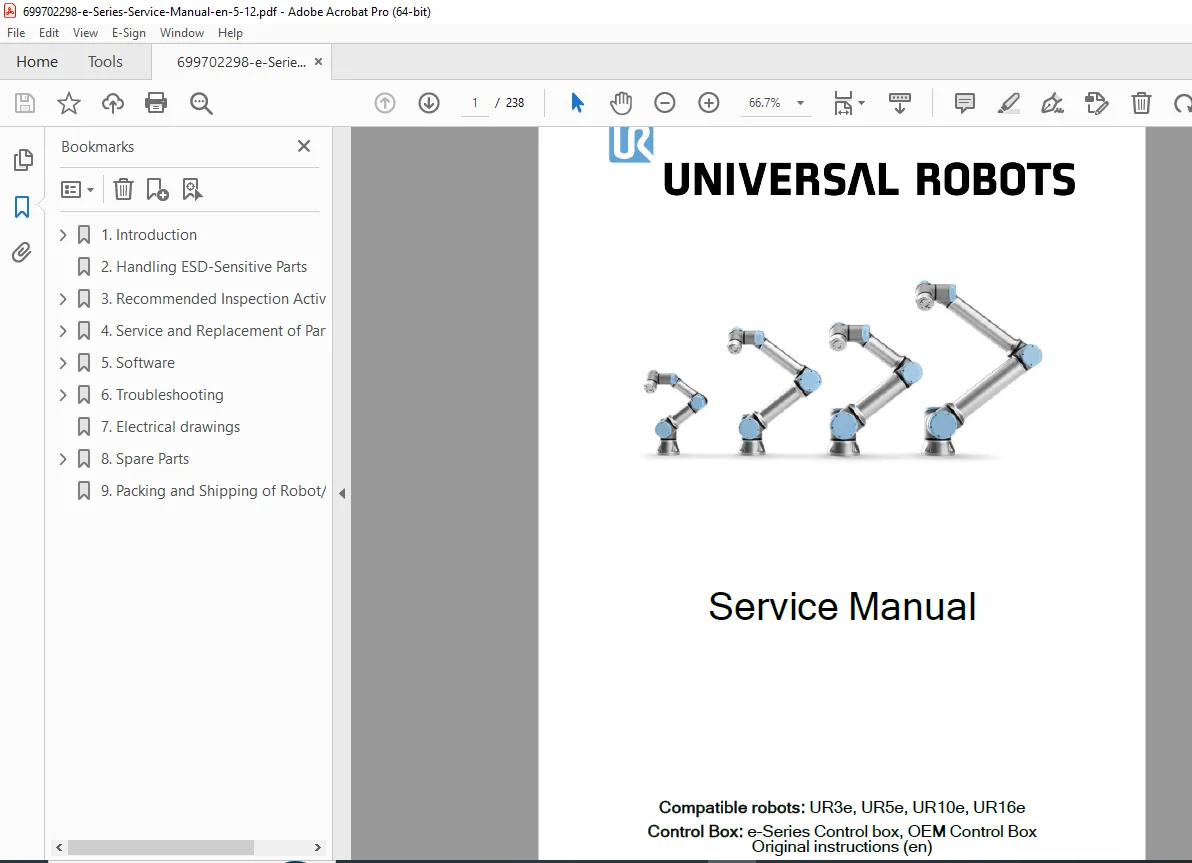

Universal Robots e-Series UR3e UR5e UR10e UR16e Service Manual PDF

Description

Universal Robots e-Series UR3e UR5e UR10e UR16e Service Manual PDF DOWNLOAD

Description

This downloadable Universal Robots e-Series Service Manual (PDF) is the official factory workshop guide for servicing and maintaining UR3e, UR5e, UR10e and UR16e cobots and control boxes.

It provides complete procedures for inspection, disassembly, repair, calibration, safety verification, troubleshooting, and spare parts replacement across the full e-Series lineup.

✅ 1. Safety, ESD & Handling Guidelines

• Safety message classifications (Danger / Warning / Caution / Notice)

• Proper shutdown sequence before service

• ESD wristband & grounding procedures

• Safe PCB and connector handling

• Damage-prevention precautions during cold / low-humidity conditions

✅ 2. Recommended Inspection Activities

Covers periodic visual & functional inspections for:

Robot Arm

• Joint screws & blue lid inspection

• Flat-ring & wear-ring condition

• Mounting bolt torque validation

• Cable condition & strain checks

Control Box & Teach Pendant

• E-stop & freedrive/3-position enable checks

• Grounding & power continuity

• Safety I/O verification

• Filter cleaning procedures

✅ 3. Service & Replacement of Parts

Includes detailed, illustrated repair workflows for:

• Robot joint separation & reconnection

• Screw-type vs bracket-type joint assemblies

• Torque specs for all fasteners

• Tool flange removal & refit

• Robot cable replacement limits (max 12 m)

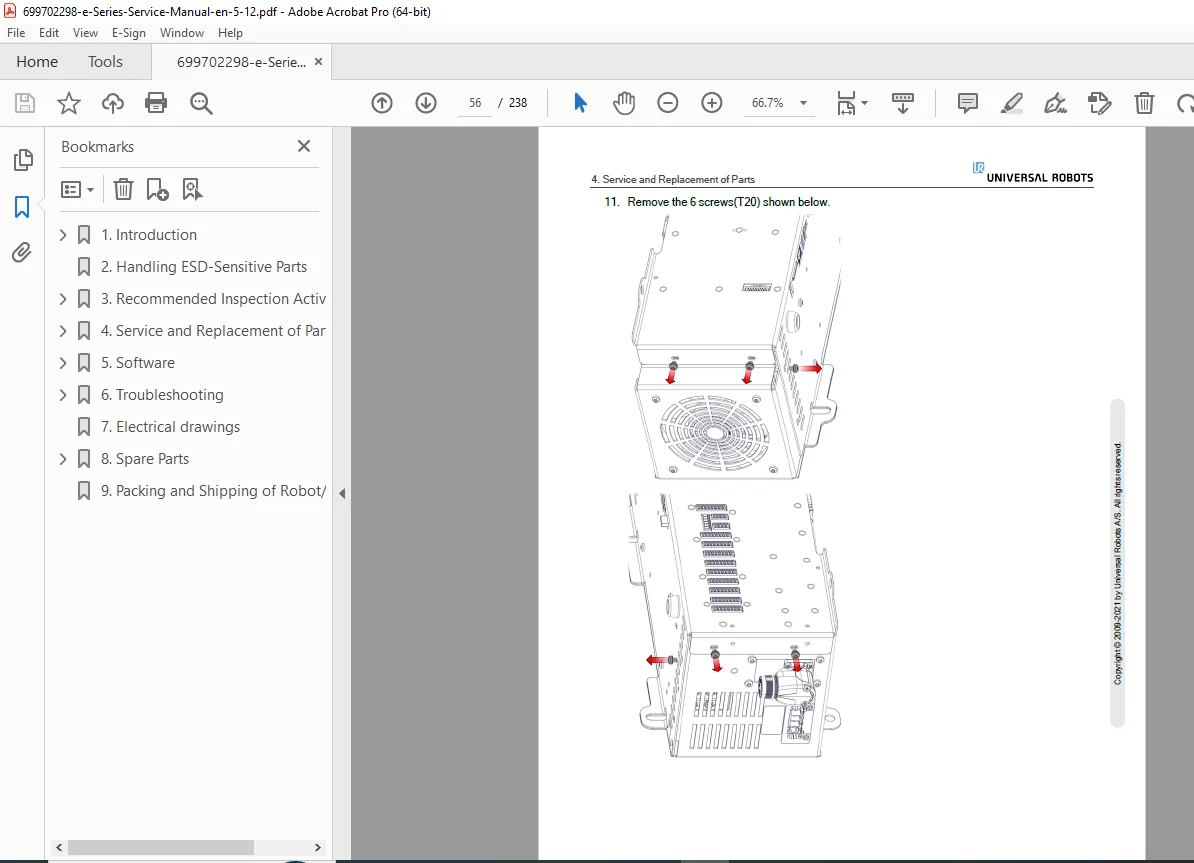

• Control box dismantling (standard + OEM AC/DC)

• Safety control board, PSU & fan assemblies

⚙ Joint & Alignment Procedures

• Joint verification after replacement

• Manual & dual-robot calibration

• Zeroing joints using spirit level

• Program correction via key waypoints

🖥 Software & Data Maintenance

• PolyScope update rules & compatibility steps

• Backup & restore procedures

• Accessing Linux partition

• Support/magic file usage

🧩 Troubleshooting Section

Includes:

• Support Log Reader usage

• Error code directory

• LED indicator reference

• Fuse diagnostics

• Rebooting & protective stop logic

📐 Electrical Drawings & Schematics

Useful for:

• Board-level service

• Wiring trace analysis

• Connector mapping

🧾 Spare Parts Catalogue (Robot + Control Box)

Covers:

• Wrist, elbow, shoulder & base joints (size sets per model)

• Tool/force-torque sensor mounts

• Lid & sealing ring kits

• Robot cable assemblies

• Control box PSUs & safety boards

• Teach pendants (Standard & 3PE)

• OEM AC/DC variants

• Service tools & calibration tooling

📄 File Details
