Valleylab Force EZ / Force EZ C Electrosurgical Generator Service Manual PDF

Description

Valleylab Force EZ / Force EZ C Electrosurgical Generator Service Manual PDF DOWNLOAD

Description

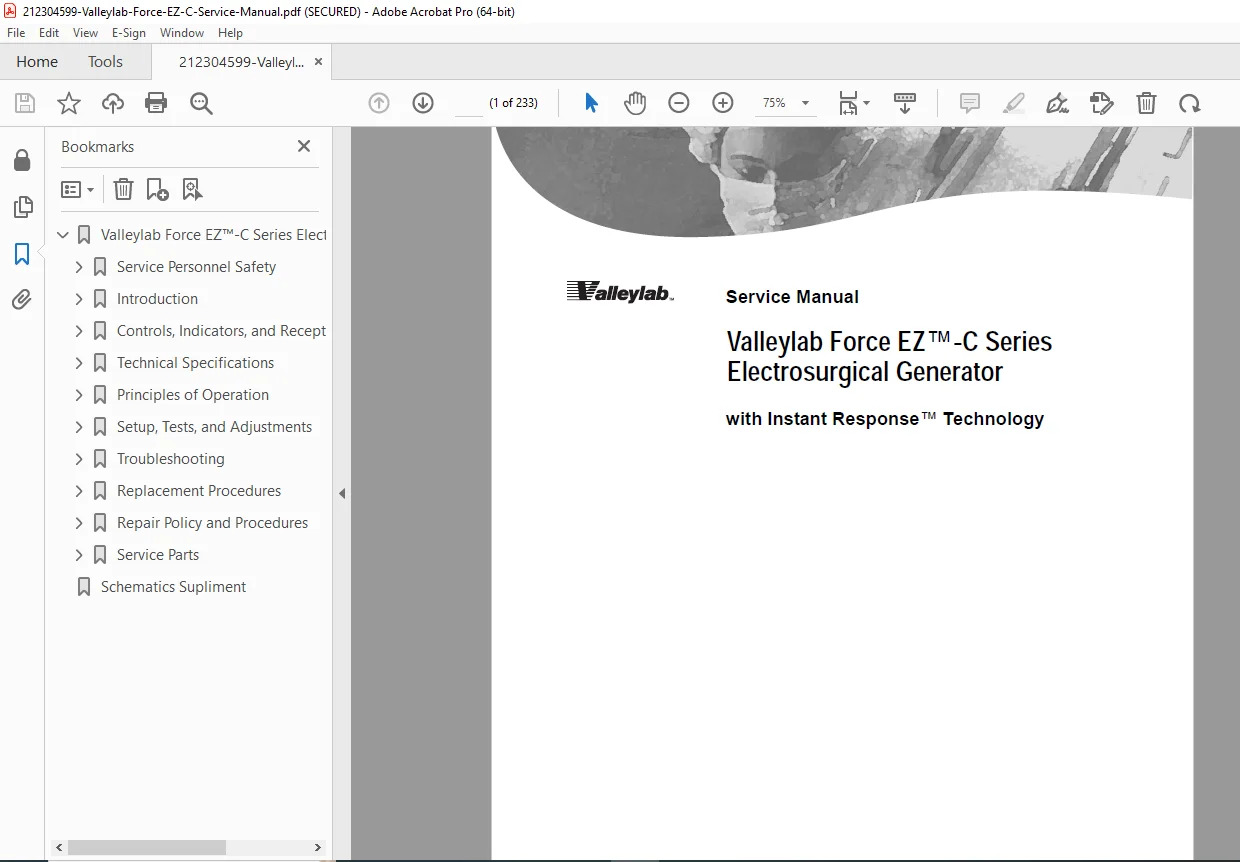

This is the official service manual for the Valleylab Force EZ and Force EZ C Electrosurgical Generators, used worldwide in surgical theaters for monopolar and bipolar electrosurgery.
It provides comprehensive technical instructions for calibration, diagnostics, troubleshooting, repair, testing, performance verification, disassembly, schematics, and component-level maintenance.

The manual includes safety checks, operational theory, waveform output specifications, PM schedules, internal block diagrams, error code meanings, and service test procedures required for regulatory-compliant servicing of Valleylab electrosurgical units.

Designed for biomedical technicians, clinical engineers, and service professionals, this manual ensures accurate repair and safe operation of the Force EZ and Force EZ C ESUs.

Table of Contents

1. Safety Information

• Electrical safety warnings

• High-frequency surgical output precautions

• Grounding and leakage requirements

• ESU risk controls

2. System Overview

• Force EZ / Force EZ C feature differences

• Front panel controls

• Connections & output ports

• Internal block diagrams

• Monopolar / bipolar output paths

3. Installation & Setup

• Incoming inspection

• Power-on checks

• Accessory verification

• Environmental requirements

4. Theory of Operation

• Cut / Coag waveform generation

• High-frequency oscillator

• RF output section

• Control logic & CPU functions

• Power supply architecture

5. Diagnostics & Troubleshooting

• Automatic power-on self test

• Troubleshooting charts

• Common error codes

• Fault isolation procedures

• Leakage, output, and grounding tests

6. Calibration Procedures

• Output waveform verification

• Power accuracy testing

• Crest factor measurements

• Bipolar calibration

• Test equipment requirements

7. Repair & Component Service

• Top cover removal

• Board access

• Connector servicing

• Subassembly replacement

• Fuse replacement

8. Performance Verification

• Cut mode power test

• Coag mode output accuracy

• Bipolar mode performance

• Alarm and safety circuit testing

9. Maintenance

• Preventive maintenance intervals

• Cleaning procedures

• Electrical safety checks

• Record-keeping guidelines

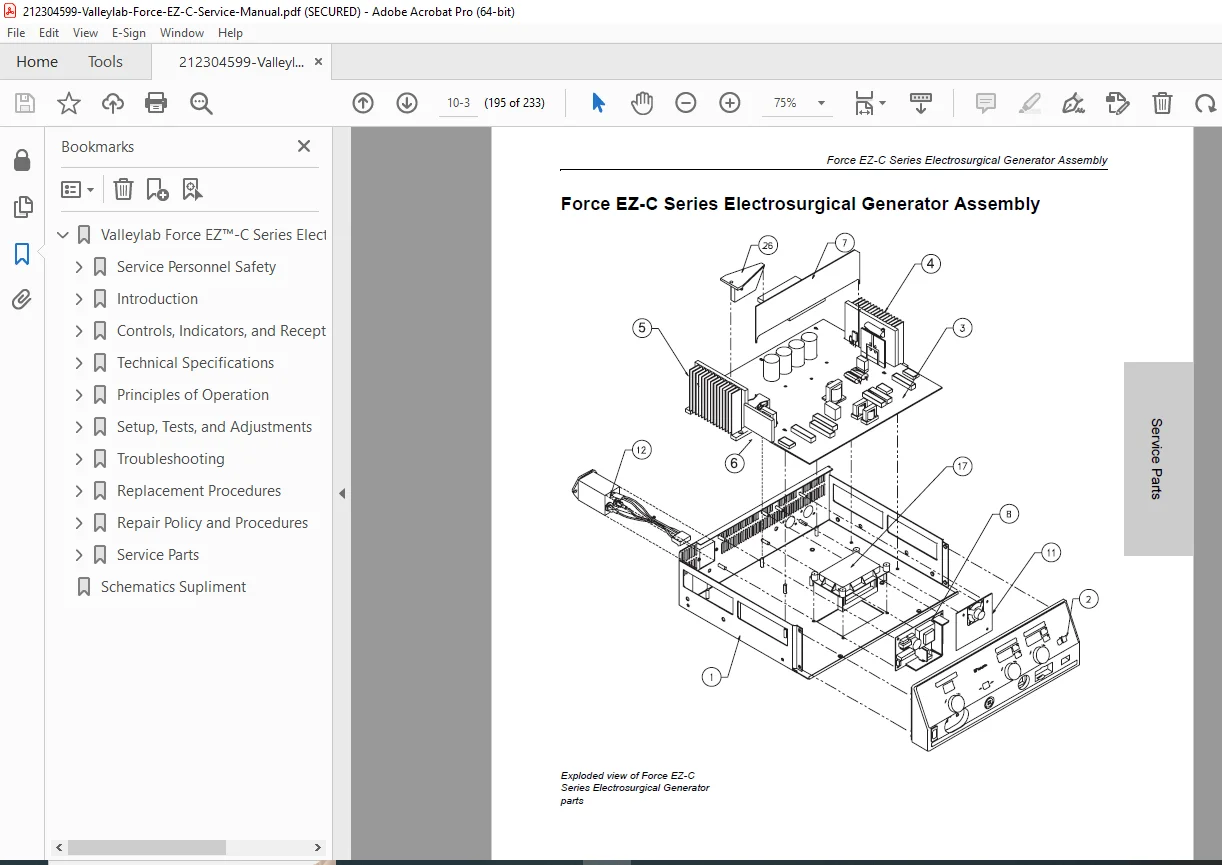

10. Schematics & Wiring

• System wiring diagrams

• Internal block schematics

• Power supply and RF output circuits

🛠 Key Technical Highlights

• Covers both Force EZ and Force EZ C ESUs

• Full calibration and PM instructions

• Power output accuracy testing for CUT & COAG modes

• Detailed self-test error lists and troubleshooting flowcharts

• RF output stage theory

• Circuit board descriptions and connection diagrams

• Electrical safety compliance procedures (IEC 60601)

• Internal block diagrams and wiring schematics

📄 File Details
