Varian Clinac 6EX 6 MV Service Calibration Schematics & Technical Documentation Package PDF Download

Description

Varian Clinac 6EX 6 MV Technical Service Documentation Package

This is a carefully assembled technical documentation package for engineers, medical physicists and qualified service personnel working with the Varian Clinac 6EX / Low-Energy C-Series linear accelerator.

The package is designed around the areas most commonly required during technical service and troubleshooting: Service Mode, calibration and adjustment functions, beam-test setup, process values, interlocks, diagnostics, system logs, electrical interconnections, PCB schematics, power distribution, PFN/modulator hardware, gantry and collimator systems, couch electronics, maintenance parts and supporting imaging documentation.

Rather than presenting a collection of unrelated PDFs, the included documents have complementary roles. The technical-reference material covers the accelerator’s software, calibration, beam-test and diagnostic environment, while the Low-Energy C-Series engineering databook provides the deeper hardware, wiring, board, cable and subsystem drawings needed when troubleshooting moves beyond the console screen.

The 6EX is explicitly identified in the Low-Energy C-Series documentation and appears repeatedly in model-specific engineering configurations and drawings.

Major Technical Coverage

• Clinac 6EX / Low-Energy C-Series system architecture
• Physics Mode configuration
• Service Mode operation
• Beam-test setup and test exposures
• Calibration and process-value adjustment
• Dosimetry-system testing
• Dose counters and timers
• Low-energy accelerator PRF information
• Machine process values and operating parameters
• Interlock identification and troubleshooting
• Trigger control during service work
• System status and diagnostic information
• System, Morning Checkout, Dynamic Beam Delivery and event logs
• Console and cardrack electronics
• System interconnections
• PCB schematics
• Power-distribution circuitry
• Stand electronics
• PFN / modulator hardware
• Gantry wiring and assemblies
• RF-related hardware and interfaces
• Collimator electronics and drives
• Treatment-couch electronics
• Cable and harness identification
• Maintenance parts and annual service consumables
• Lubricants, filters, hoses and maintenance kit references
• PortalVision MV imaging workflows where that option is fitted

Service Mode, Calibration & Adjustment Coverage

The Clinac technical-reference material is one of the most important documents in this package for service work. Varian describes Service Mode as being used by authorized personnel to maintain the accelerator, calibrate its readouts and troubleshoot it.

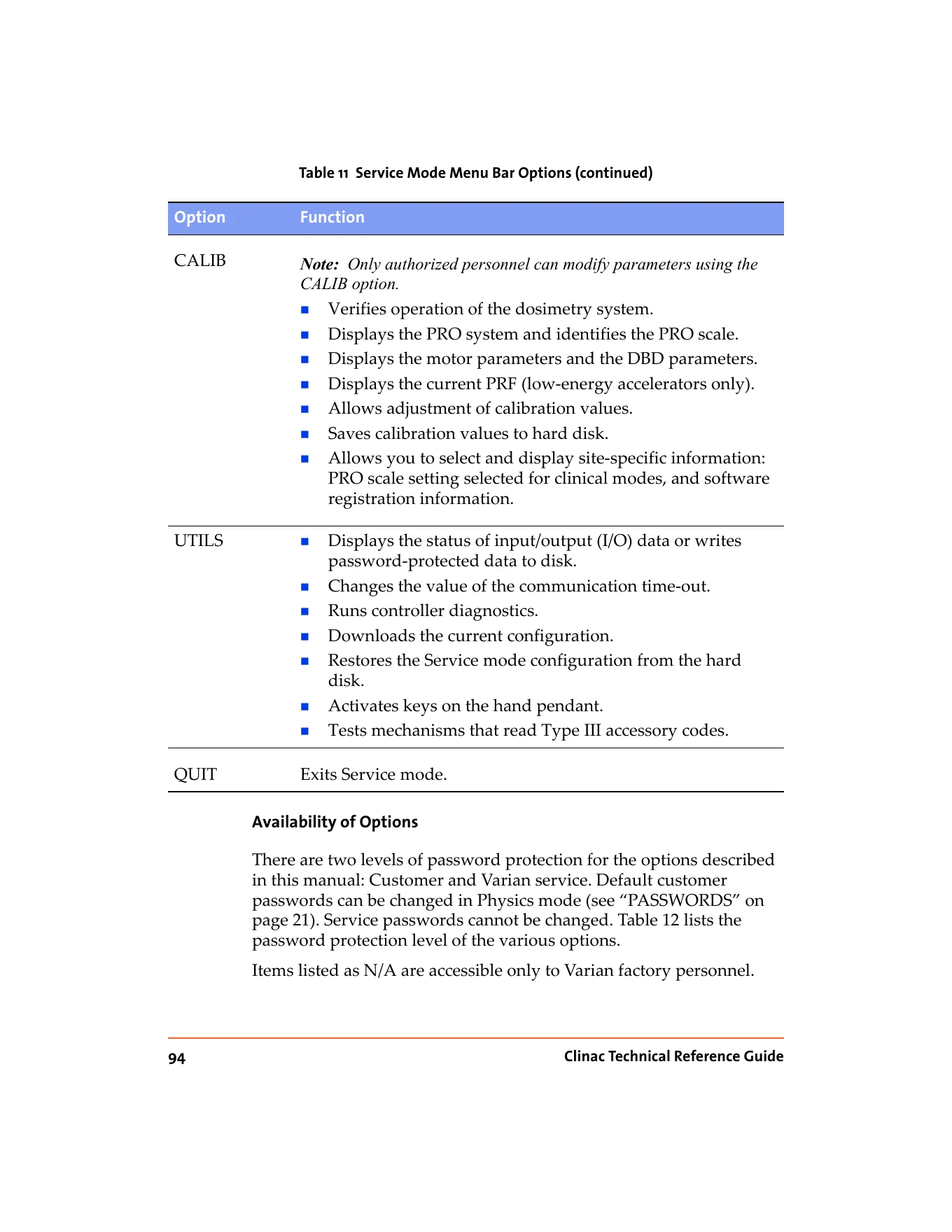

The Service Mode environment includes dedicated menus for beam testing, process data, motor controls, interlocks, triggers, calibration and service utilities.

Documented functions include:

• Setting treatment type and beam-test parameters
• Selecting accelerator energy
• Setting repetition rate / dose rate
• Setting dose and exposure time
• Controlling Beam On and Beam Off during test work
• Viewing accelerator process data
• Displaying system readings and operating conditions
• Monitoring motor parameters
• Working with interlocks and triggers
• Temporarily controlling triggers during maintenance and troubleshooting
• Testing the dosimetry integration system
• Verifying dose counters and timers
• Displaying current PRF on low-energy accelerators
• Adjusting authorized calibration values
• Saving calibration values
• Running diagnostic and utility functions

The reference contains dedicated low-energy versions of multiple configuration and calibration screens, including dose-rate configuration, maximum-dose settings, treatment selection, customer-interlock configuration, energy selection, trigger control and CALIB functions.

For an engineer specifically looking for calibration, adjustment and diagnostic access rather than a basic operating guide, this material is central to the package.

Interlocks & Troubleshooting

A substantial portion of the technical-reference material is devoted to accelerator interlocks and abnormal machine conditions.

The documentation provides guidance for recording and investigating interlocks, identifying the condition responsible for beam interruption and looking up the relevant interlock code. It contains an alphabetical interlock-code guide with possible causes and corrective information.

This is particularly useful when troubleshooting follows a path such as:

Interlock code → affected machine condition → possible subsystem → process values / diagnostics → hardware drawing or schematic.

Because the package combines the technical-reference guide with the Low-Energy C-Series engineering databook, the engineer can move from the software/diagnostic side of the Clinac into the corresponding hardware documentation without relying on a single type of manual.

Electrical, Hardware & Schematic Coverage

The large Low-Energy C-Series engineering databook is the hardware-heavy portion of the package.

The document explicitly identifies the Clinac family as including 600C, 600C/D, 600SR, 6EX, 600N and DBX, and many individual drawings distinguish 6EX and other model configurations directly.

The engineering documentation includes coverage of:

System Interconnections

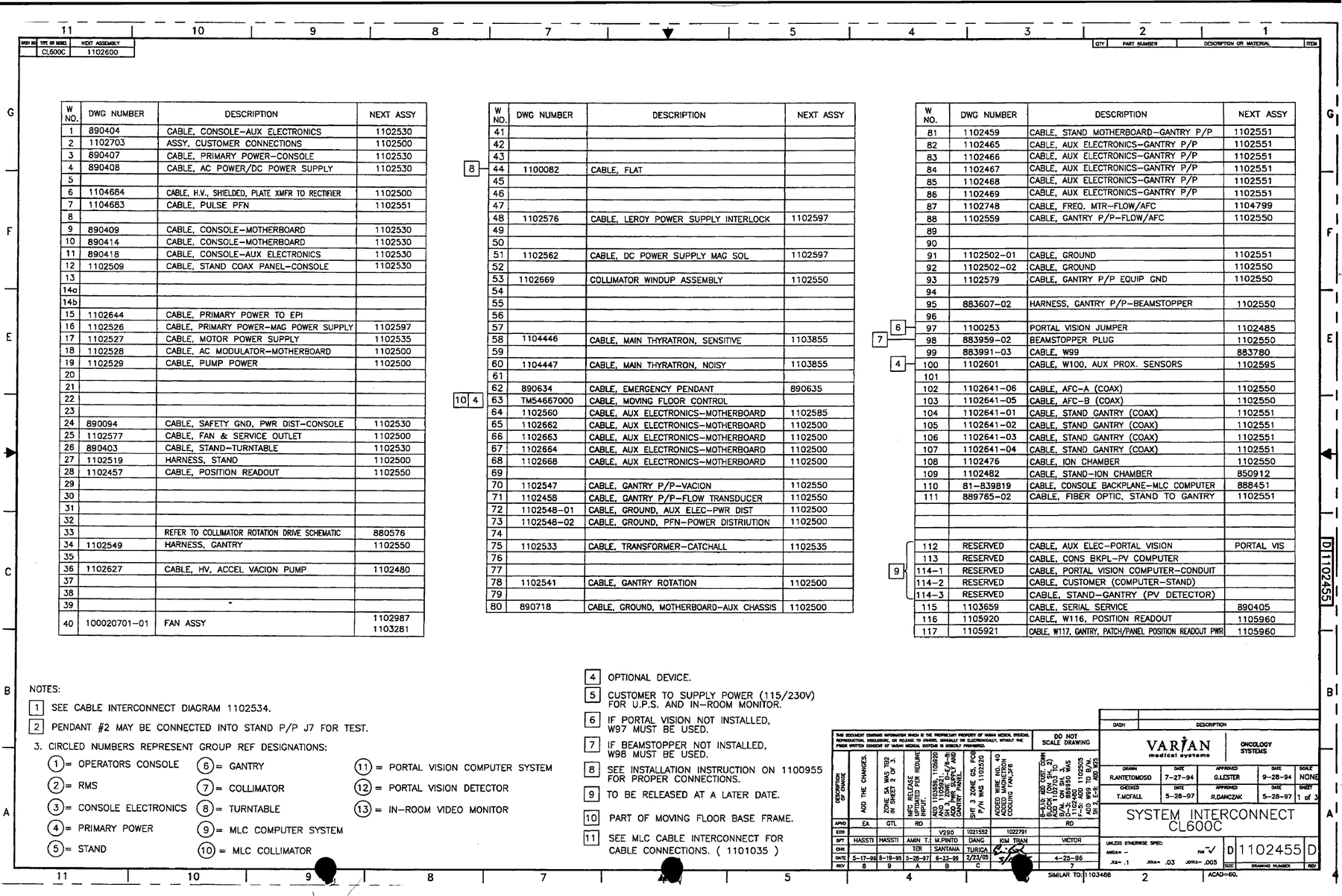

• Whole-system interconnection drawings
• Clinac-to-customer wiring
• Console interconnections
• Stand interconnections
• Gantry interfaces
• Power and signal paths
• System cable references

Console Electronics

• Console backplane circuitry
• Console power-supply interconnections
• Computer/control electronics
• Cardrack and interface boards
• PCB schematics

Stand & Power Systems

• Stand electronics
• Primary power distribution
• Auxiliary electronics
• Control circuitry
• PFN / modulator-related assemblies and schematics

Gantry & Beam-Generation Systems

• Gantry wiring
• Gantry assemblies
• Water/cooling system
• Flow-related hardware
• RF-related assemblies
• Associated power and control electronics

Collimator & Accessories

• Low-energy collimator assembly
• Collimator schematics
• Collimator rotation drive
• Jaw/control electronics
• Accessory interfaces
• Associated PCB and cable drawings

Treatment Couch

• ETR couch assemblies
• Couch control electronics
• Keypad-controller assemblies and schematics
• Interconnecting cabling

Dedicated Cable Documentation

The databook contains a substantial cable section covering console, stand, gantry and other system interconnections. This can be especially valuable when a fault involves a connector, cable or harness rather than a complete PCB or major subsystem.

The engineering databook also contains numerous 6EX-specific and 6 MV configuration references, including 6EX white/silver variants and option/package configurations.

Technical Documents Included & What Each One Covers

1. Clinac Low/High Energy Technical Service & Calibration Reference — English Edition

This is the primary service-mode and diagnostic reference in the package.

It covers:

• Physics Mode configuration
• Service Mode
• Beam-test setup
• Interlocks and trigger controls
• Process-data displays
• Motor-control functions
• Calibration of process values
• Diagnostic/service utilities
• System logs
• Morning Checkout logs
• Dynamic Beam Delivery logs
• Event logs
• Hand-pendant diagnostics
• Extensive interlock troubleshooting

The guide states that it covers low- and high-energy Clinac accelerators and is intended for advanced users including physicists, dosimetrists and authorized service personnel.

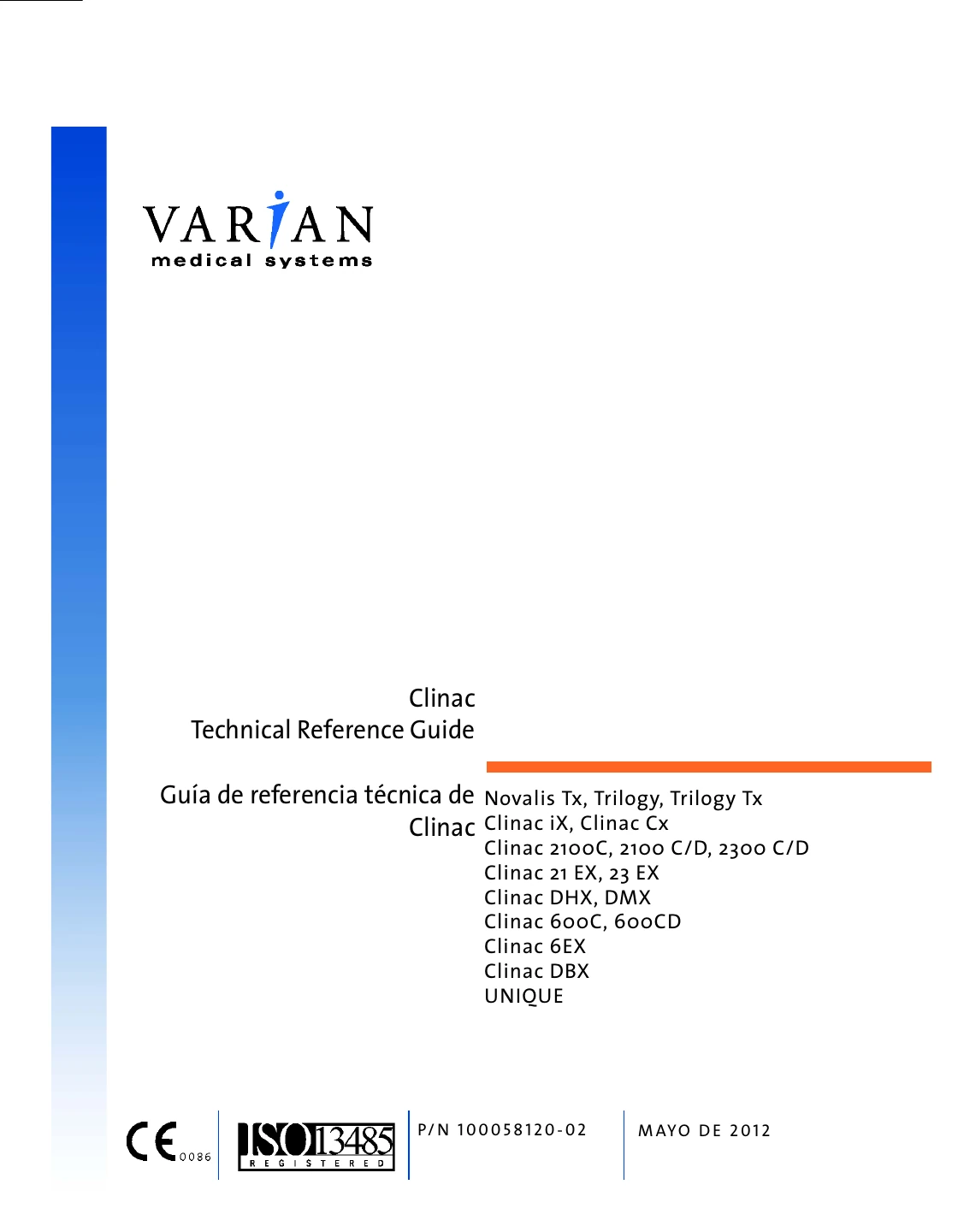

2. C-Series Technical Reference — 6EX Model Coverage Edition

This additional technical-reference edition explicitly lists Clinac 600C, 600CD and Clinac 6EX among the covered models.

The supplied copy is in Spanish and is included as a supporting exact-model reference alongside the English technical guide.

Its value is primarily in confirming and supplementing 6EX / Low-Energy C-Series service, calibration and configuration coverage.

3. Low-Energy C-Series 600C / 6EX Engineering Schematics & Databook

This 704-page engineering databook is the main hardware and schematic resource in the package.

It covers:

• System interconnections
• Console electronics
• PCB schematics
• Stand electronics
• Primary power distribution
• PFN/modulator hardware
• Gantry systems
• Cooling and flow hardware
• RF-related assemblies
• Beam-stopper/counterweight assemblies
• Collimator and accessory electronics
• Treatment couch
• System cables and harnesses
• Options and miscellaneous system drawings

The databook’s declaration and engineering material explicitly associate 6EX with the Low-Energy C-Series family.

4. Varian Linac Annual Maintenance Parts, Kits & Lubricants Bulletin

This maintenance bulletin is included as the parts-and-consumables companion to the technical manuals.

It applies to High and Low Energy Clinacs and identifies:

• Annual PMP/PMI maintenance kits
• Filters and fans
• Cooling/water-system items
• Hose kits
• Service tools
• Lubricants
• Sealants and thread-lock products
• Cleaning materials
• Selected replacement components

The bulletin explicitly states that its purpose is to provide a one-stop parts and maintenance-item list for periodic maintenance of Varian linear accelerator systems.

5. PortalVision Advanced Imaging Technical Guide

Included as supporting documentation for installations equipped with PortalVision.

Coverage includes:

• MV image acquisition
• Single-image matching
• Image-pair matching
• AutoMatch
• Manual matching
• MV repositioning
• MarkerMatch
• Administration
• Imaging-related troubleshooting

PortalVision coverage is option-dependent. This document is included for systems where PortalVision equipment/software is installed and should not be interpreted as meaning that every Clinac 6EX configuration contains PortalVision.

What This Package Does Not Cover

We believe a technical package should be clear not only about what is included, but also about what is not included.

No Single All-in-One “6EX Complete Service Manual”

This package does not claim that one individual PDF is a single complete Clinac 6EX factory repair manual.

Instead, it combines several complementary technical documents covering the areas most useful for 6EX service work: Service Mode, calibration, diagnostics, interlocks, hardware, electrical schematics, PCB drawings, cabling, maintenance parts and selected supporting options.

Dedicated Low-Energy C-Series PMI Procedure Is Not Included

The Clinac Technical Reference Guide identifies a separate publication:

Low-Energy C-Series Periodic Maintenance Inspection (PMI) — CTB-GE-420 / P/N 100048326.

That dedicated step-by-step Low-Energy PMI procedure is not included in this package.

The included annual maintenance-parts bulletin provides parts, maintenance-kit, lubricant and consumable information, but should not be confused with the complete CTB-GE-420 maintenance procedure.

Dedicated Millennium / HD120 MLC Maintenance Manuals Are Not Included

The technical-reference documentation identifies separate publications for:

• Millennium MLC System and Maintenance Guide
• HD120 MLC Systems and Maintenance Guide

Those dedicated MLC maintenance manuals are not included in this package.

Where the included accelerator drawings contain MLC interfaces or related system references, those are still useful, but this package should not be interpreted as a complete MLC service documentation set.

Dedicated 6EX Installation Data Package Is Not Included

The separate Installation Data Package currently available in this collection principally covers Clinac 2000C/R, 2100C(/D), 2300C/D, 21EX and 23EX. It therefore is not being represented here as a Clinac 6EX installation manual.

A respiratory-gating section within that document references 600C/D and 6EX compatibility, but that does not change the principal coverage of the Installation Data Package.

High-Energy Clinac PMI Is Not Presented as 6EX PMI Coverage

A High-Energy C-Series PMI document is available separately, but it explicitly states that it applies to High Energy C-Series Clinacs.

Because the Clinac 6EX is part of the low-energy family, that high-energy PMI procedure is not represented as a 6EX maintenance procedure in this package.

No Complete Eclipse / Treatment-Planning Service Package

This package is centered on the Clinac accelerator itself: service interface, calibration, diagnostics, interlocks, hardware, wiring, system drawings and selected associated equipment.

It is not a complete Eclipse treatment-planning-system, oncology-information-system or hospital IT service documentation package.

Who This Package Is Best Suited For

• Biomedical engineers
• Radiotherapy service engineers
• Medical physicists
• Qualified accelerator maintenance personnel
• Technical departments supporting older Varian C-Series installations
• Engineers diagnosing electrical, interlock, calibration or configuration problems

Why This Package Is More Useful Than a Basic Operator Manual

A normal operator manual tells the user how to operate the accelerator clinically.

This package goes substantially further by bringing together documentation for:

Service Mode + calibration + diagnostics + interlocks + electrical schematics + PCB drawings + subsystem interconnections + maintenance references.

For a technician dealing with a Clinac 6EX fault, that combination is often more useful than any one document by itself because the troubleshooting process may begin with a service-screen condition or interlock and eventually require tracing the corresponding board, cable, power circuit or mechanical subsystem.

Instant PDF Download

The complete technical documentation package is supplied digitally in PDF format for immediate download after purchase. The documents can be stored on a service laptop or other PDF-capable device for quick technical reference.

Please review the coverage and exclusions above before purchase. This listing deliberately distinguishes exact 6EX / Low-Energy C-Series material from related Varian documentation so that you know precisely what the package contains and what it does not.
