Villa Sistemi Medicali VISION 0051 X-Ray Tilting Table Service Manual – PDF

Description

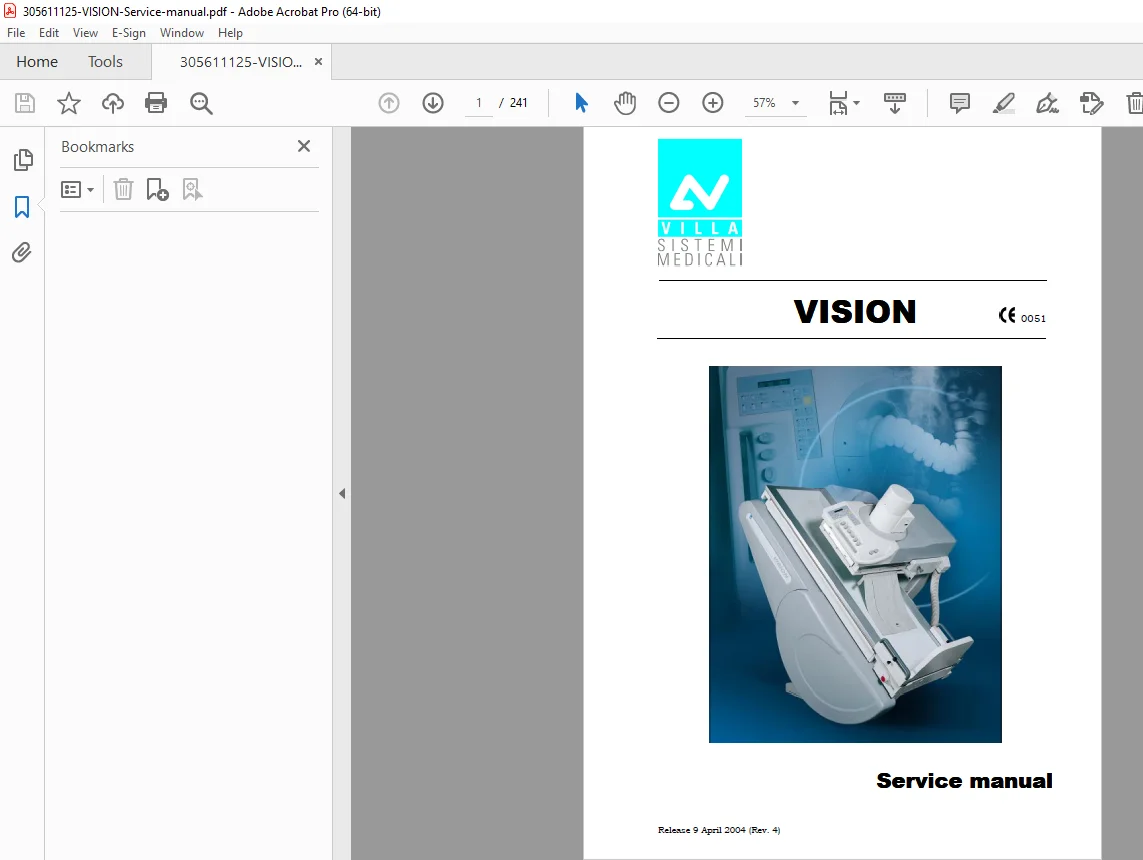

Villa Sistemi Medicali VISION 0051 X-Ray Tilting Table Service Manual – PDF Download

Description:

Overview

Villa Sistemi Medicali VISION service manual rev 4 dated April 2004 for the 0051 CE marked tilting table. Designed for techs servicing remote-controlled X-ray systems 241 pages cover fluoroscopy radiography modes. Warnings on radiation protection environment disposal. Compatible with image intensifiers TV chains digital acquisition for angiographic exams.

IMAGES:

Technical Features and Data

Chapter 4 lists specs like motorized tilting longitudinal transversal motions servo-assisted tube positioning. Spot film device handles 18×24 to 35×35 cm cassettes metric or 8×10 to 14×14 inch imperial. Sub-divisions from 1 on 1 to 6 on 1 with lead shutters for image separation. Automatic compressor for cross sub-divisions vibrating grid synced to exposure. Electronic collimator with hold mode. Applicable standards UL IEC etc dimensions included.

Installation and Setup

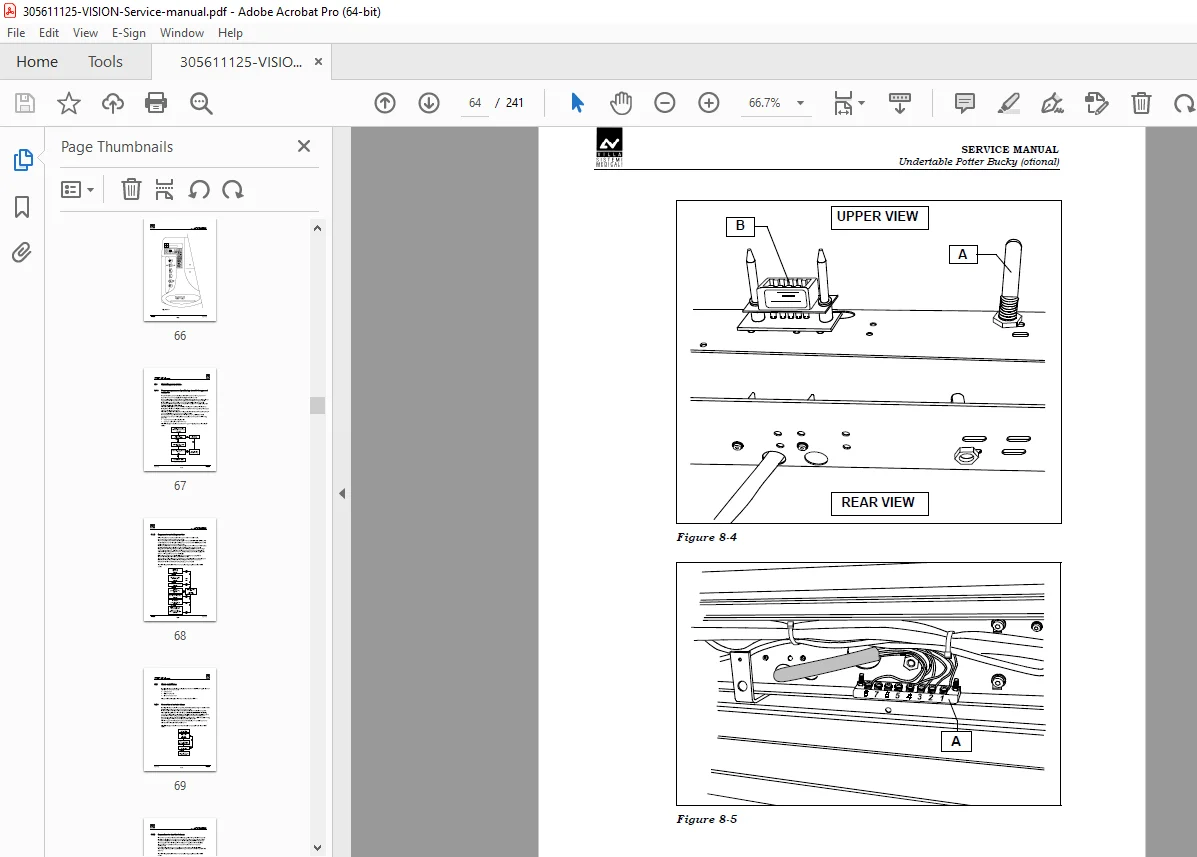

Pre-installation in chapter 6 electrical setup line voltage emergency button connection. Installation chapter 7 support base spot film carriage assembly image intensifier corrugate hose X-ray tube beam limiting device balancing checks. Undertable potter bucky optional with voltage setting cassette tray.

Parameter and Adjustments

Parameter set-up chapter 11 accessing groups for potentiometer motor parameters dimensions movements range. PID-regulated axis theory travel limits safety factors EEPROM duplication serial changer life test. Hardware adjustments chapter 15 SFD CPU board cassette tray shutters drive board.

Operating Logic and Safety

Operating logic chapter 9 sequences power-up motions error conditions status functional power alarms. Single fault logic chapter 12 hardware software implementation. Emergency safeties chapter 14. Operating conditions chapter 13 collisions collimator signal timing standard rapid sequence digital radiography flows.

Diagnostics Troubleshooting

Diagnostics chapter 18 resettable non-resettable. Troubleshooting chapter 19 radiological electrical mechanical faults. Checking radiographic results chapter 17 serial changer collimator adjustments. LED descriptions chapter 16 for boards.

Includes schematics drawings appendix tube stand. Torque specs for assemblies but not all some general. Assumes tools like multimeter. Good for field though sections assume radiology knowledge.

File Details

• Document Title: VISION Service manual (Release 9 April 2004 Rev. 4)
• Models Covered: VISION 0051
• System Coverage: Introduction, Safety Aspects, Description, Technical Data, Accessories and Compatible Components, Pre-installation, Installation, Undertable Potter Bucky, Operating Logic of the Table, Connecting the I/O Interface, Parameter Set-up Procedure, Single Fault Operation Logic, Operating Conditions, Emergency Safeties, Hardware Adjustments, Spot Film Device Board LED Description, Checking the Radiographic Results, Diagnostics, Troubleshooting, Cleaning and Disinfection, Maintenance, Schematics and Drawings, Appendix A – Tube Stand for VISION
• Pages: 241
• Format: Searchable PDF (OCR-enabled)
• Languages: English
• File Size: ~6.14 MB
• Quality Notes: Factory scan with clear text, crisp schematics, OCR searchable; diagrams sharp and legible. ✅ Verified factory technical content.
