Volvo A45G Parts Catalog Parts 1 & 2 20051481-B PDF

Description

Volvo A45G Parts Catalog Parts 1 & 2 20051481-B PDF

The Volvo A45G Parts Catalog Parts 1 & 2 20051481-B brings both major portions of the A45G parts documentation together in one extensive 1564-page PDF. Part 1 covers Groups 1-4 and Part 2 continues with Groups 5-9, providing illustrated component identification across the articulated hauler from the engine and transmission through the braking, steering, chassis, cab, body and hydraulic systems. The catalog was produced by Volvo Construction Equipment and is dated 2017-03.

Rather than presenting only a list of numbers, the catalog combines exploded illustrations with corresponding text pages. Individual entries can show illustration position, part number, quantity, description, parts status, kit inclusion and notes relating to applicability, manufacturing numbers, replacement parts and cross-references. This makes the Volvo A45G Parts Catalog Parts 1 & 2 20051481-B PDF particularly useful when identifying the exact component shown in an assembly before ordering or checking related pieces.

File Details

• Manual type: Parts Catalog
• Brand / model: Volvo A45G articulated hauler
• Publication / Ref. No.: 20051481-B
• Catalogue ID: 20779
• Date: 2017-03
• Languages: English, Spanish, Brazilian Portuguese and French
• Page count: 1564 pages
• File format: PDF
• Part 1: Groups 1-4
• Part 2: Groups 5-9

A45G Machine and Component Applicability

The introductory information identifies the Volvo A45G basic machine under product number 37545 BRA with serial-number applications beginning at 322001- and 342001-. The catalog also identifies associated major units so the parts information can be followed against the relevant machine configuration.

• Cab product numbers 11294105 and 11294109
• Drive axles 56103, 56104 and 56105, identified as ARB40
• Hydraulic transmission product number 22443, PT 2529
• Dropbox / transfer case product number 22568, IL 2
• D16J engine product numbers 15187303 and 15187304
• D16F engine product number 15187306
• D16E engine product number 15185593

Applicability is refined further throughout individual sections. Depending on the assembly, notes can distinguish product numbers, serial or engine-number breaks, equipment variants and other configuration-specific information. This is important when an apparently similar component has more than one listed version.

Illustrated Parts Identification

The catalog is arranged around paired illustration and text information. Exploded drawings assign position numbers to individual components, while the related listings provide the corresponding part numbers, descriptions and quantities. Assemblies are frequently broken down into their internal pieces, allowing a user to trace items such as seals, O-rings, bearings, bushings, screws, housings, gears, valves, hoses, pipes and mounting hardware instead of identifying only the complete assembly.

The catalog guide also explains its parts-status system. Entries marked NS indicate a part not stocked as a spare part, OP identifies a part no longer in stock, SE indicates an alternative spare-part version, and SS identifies a superseded part. Components marked K are included in a parts kit. Notes and cross-references can point to replacement numbers, associated groups and other relevant pages, while the numerical index provides another route for locating known part numbers.

Chapters Covered

• Group 1 – Preface and instructions
  • Title and publication information, group index, product identification, catalog guide, abbreviations, and product and equipment variants
• Group 2 – Engine

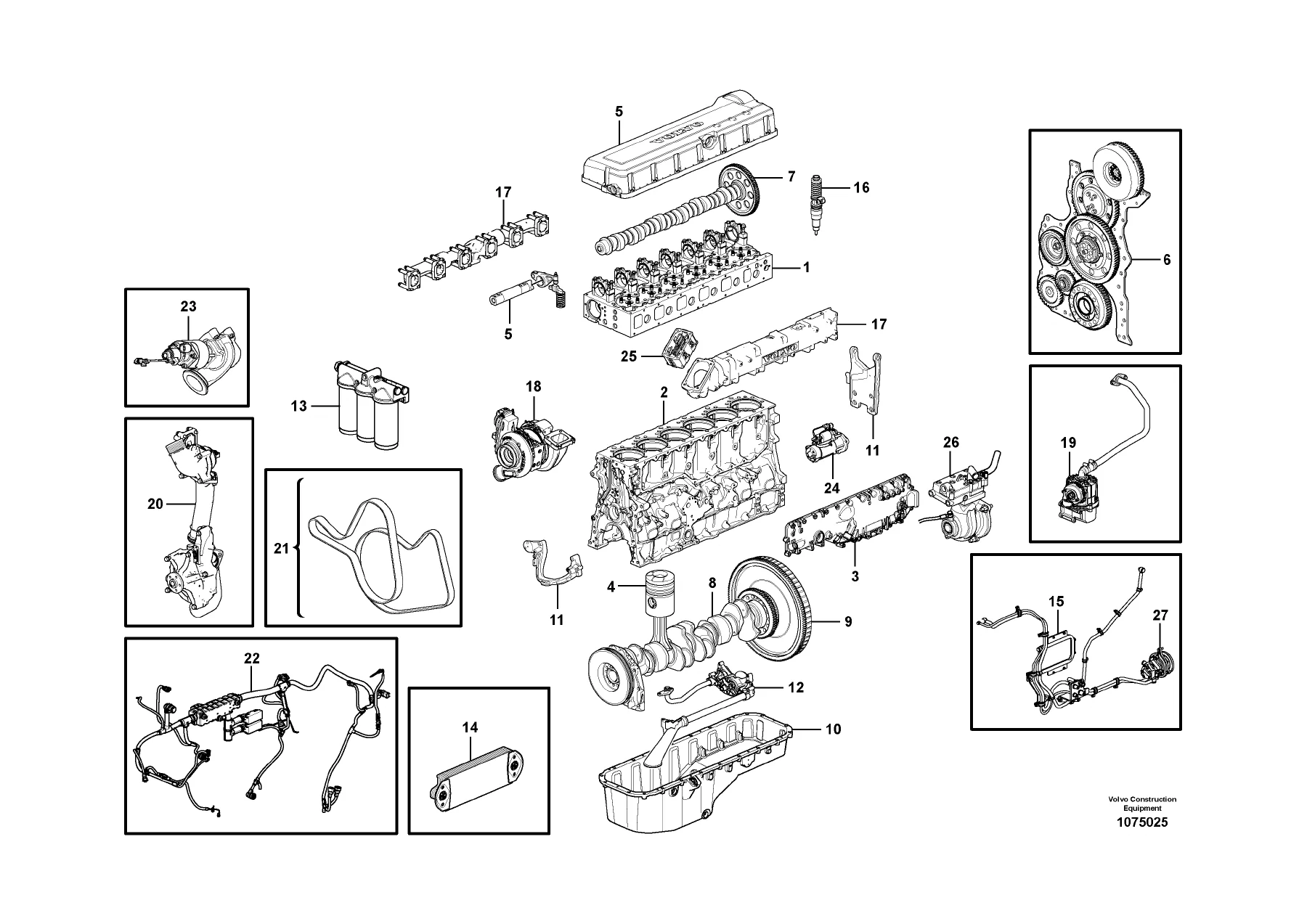

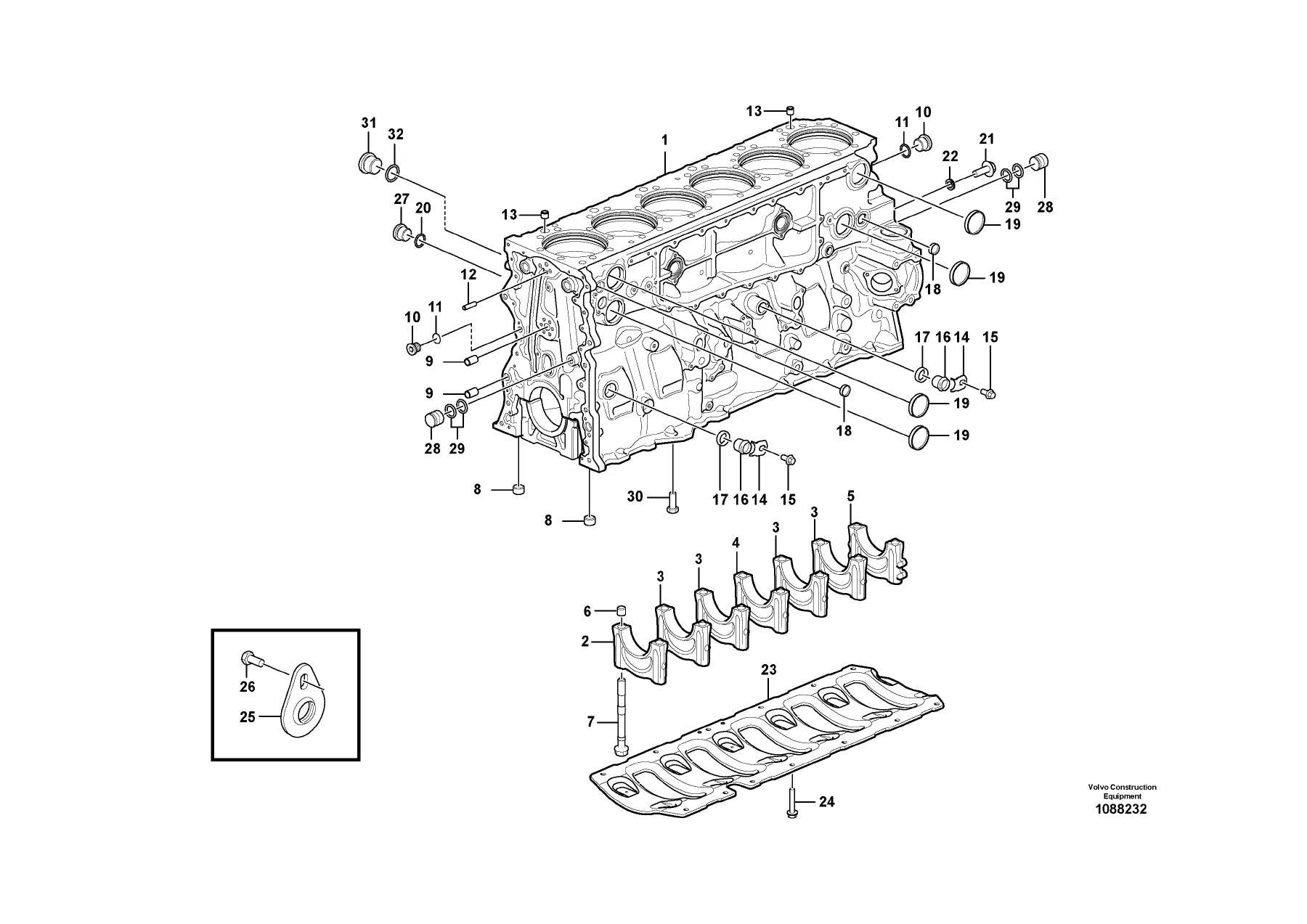

  • Engine assemblies; cylinder head and cylinder block; cylinder liner and piston; valve mechanism; timing gears and camshaft; crankshaft and flywheel housing; oil sump and engine mounting
  • Lubricating oil system, oil pump, oil filters and oil cooler; fuel pump, fuel tanks, fuel system and injectors
  • Inlet and exhaust systems, exhaust brake, AdBlue/DEF and diesel particulate filter components, turbocharger, air filtration and charge-air cooling
  • Radiator and cooling system, water pump and thermostat housing, belt and fan drive, engine heaters, ECU, sensors, engine wiring and EGR components
• Group 3 – Electrical systems and instruments
  • Battery and battery box, alternator, starter motor and pre-heater
  • Front and rear lighting, work lights, interior lighting, license-plate lighting and lamp retainers
  • Air horn, back-up warning equipment, rotating beacon, warning flasher and on-board weight system
  • Windscreen washers and wipers, switch panels, electronic units, battery cables and extensive cab, front, rear, ceiling and instrument-panel wiring harnesses
• Group 4 – Power transmission
  • Torque converter and oil pump, transmission housing, clutches and brakes, planetary gears, shafts and planetary stages
  • Transmission control system, pressure and control valves, retarder pedal, transfer gearbox and differential-related components
  • Propeller and intermediate shafts, planetary axles, hub reductions and final drives for motor and load units
  • Differential locks, pump-drive power take-off, PTO oil lines, oil pump and oil cooler
• Group 5 – Brakes
  • Brake lines and pipes for tractor and trailer, hydraulic brake system and brake valve
  • Brake cooling systems for tractor and trailer axles, brake accumulators and parking brake
  • Air compressor assemblies, feed lines, cooling coil, receiver drier and compressed-air reservoirs
• Group 6 – Steering system
  • Steering wheel and column, universal joint, steering linkage and drag rod
  • Steering cylinder, control valve, steering system and damping cylinder
  • Auxiliary steering systems and steering pumps
• Group 7 – Frame and wheels
  • Frame, cover plate and frame extension; protecting plates and superstructure
  • Vertical and horizontal frame-joint bearings, front axle suspension and bogie suspension
  • Wheel assemblies and wheel-rim configurations
• Group 8 – Body with associated parts
  • Complete cab and cab mounting, engine hood, hood pump and hydraulic cylinder, support frame and grille
  • Fenders, mudflaps, steps, ladders, roof arches, doors, lock kits, floor and cover panels
  • Rear-view mirrors, windows, cab upholstery and insulation, operator seats, seat belt, armrests, headrests and instructor seat
  • Noise reduction, protective equipment, air distribution and filters, air conditioning, auxiliary heating, instrument panels and cab interior equipment
  • Tool and lifting equipment, signs, decals, warning triangle and slow-moving-vehicle signs
• Group 9 – Miscellaneous equipment
  • Nipple assemblies, hydraulic oil tank and hydraulic suction, pressure, return, leakage, load-sensing and measuring lines
  • Tipping systems, steering unit, hydraulic pumps and servo system for tipper control
  • Dumper body components, hoist cylinder, spillguard, tailgates, gas spring, uplifted body, wear plates and body heating
  • Emergency equipment, fire suppression and fire extinguisher equipment, central lubrication and manual lubrication systems, pumps and air compressor
• Group 10 – Numerical index / replaced parts
  • Part-number indexing and replacement references used to trace listed and superseded components

Across these groups, the Volvo A45G parts catalog moves from complete systems down to detailed subassemblies. Engine pages, for example, illustrate cylinder heads, blocks, pistons and liners, valve gear, camshafts, crankshafts, flywheel components and lubrication hardware. Other groups apply the same illustrated approach to transmission internals, axles, brakes, steering components, electrical harnesses, cab equipment and the hydraulic tipping system. This structure is valuable when the required part is known only by its physical location or appearance rather than by an existing part number.

Equipment and Configuration Variants

The catalog includes a dedicated product and equipment variants section. Listed equipment spans items such as warning and lighting equipment, operator-seat configurations, rims, body-height extensions, spillguards and mudflaps, telematics equipment, tipping-system variants, lock kits, noise-reduction equipment, fuel filtration, body exhaust-gas heating, air compressors, standard and secondary steering, frame extensions, tailgates, fuel tanks, electrical installations, cab wiring, engine installations, load-weight equipment, emergency engine stop equipment, mirrors, tool kits, air cleaners, engine heaters, automatic greasing, rear-window wipers, mining cab equipment and other option-dependent components.

This matters when identifying parts for an A45G fitted with optional or market-adapted equipment. Instead of assuming every machine uses the same hardware, the catalog provides equipment numbers and applicability references that can be checked against the machine and the relevant illustrated section.

Important Use Note

This is a parts catalog, not a workshop repair manual. The catalog itself states that its illustrations should not be used as assembly or workshop instructions. The drawings are intended for parts identification and catalog navigation; repair procedures, assembly instructions, adjustment methods and other workshop operations require the appropriate service literature.

Identify Volvo A45G Parts with the Correct References

The Volvo A45G Parts Catalog Parts 1 & 2 20051481-B PDF gives owners, parts departments and technicians a detailed reference for identifying components across the A45G, checking illustrated assembly positions, finding part numbers and quantities, distinguishing applicable variants and following replacement or cross-reference information. Having the correct catalog reference helps reduce uncertainty when preparing a parts order or determining which component belongs to a particular assembly or machine configuration.

IMAGES PREVIEW

After purchase, the catalog is supplied as an instant PDF download with no physical book and no shipping wait. It can be opened on compatible computers, tablets and phones and pages may be printed when a paper reference is useful in the workshop, parts counter or equipment yard.
