Volvo B8R(3) Wiring Diagram Manual – PDF DOWNLOAD

Description

Volvo B8L Double Decker Bus – Wiring Diagram Manual (Volume 1)

This is the official factory Wiring Diagram Manual for the Volvo B8L Double Decker Bus, covering chassis numbers 0 through 168174. Published as Document No. 70405100, Issue 03 (Reference: TP 20046), this is Volume 1 of a 3-volume set and spans 416 pages of complete product schematics.

Also applicable to the Volvo B5LH and B5TL Double Decker variants where noted. This manual is an indispensable resource for bus technicians, auto electricians, fleet maintenance engineers, and workshop professionals working on Volvo’s premium double-decker bus platforms.

What’s Inside This Manual

Power Supply & Hybrid / High-Voltage Systems

• Power Supply (AA2A)
• 2 and 3 Alternators in Chassis Harness
• I-Start with I-Start Batteries (Hybrid)
• ESS – Energy Storage System (3 diagram sheets)
• ESS Cooling System & Electrical Thermostat 3-Way Valve
• 600V High Voltage System for 4×2 Double Decker
• HVIL – High Voltage Interlock Loop (4×2 Single and Double Decker)
• DC/DC Converter
• Full Electric Drive
• HPCU – High Power Control Unit
• MCU (ISAM and PEC) for Hybrid

Vehicle Control & Electronics

• VECU – Vehicle Electronic Control Unit
• BBM – Body Builder Module
• BIO – Body Input/Output Module
• VIC – Engine Interface for MDE5, MDE8 and HDE (3 diagram sheets)
• On Board Diagnostics (OBD)
• Accelerator Pedal
• Alcolock System

Instrument Cluster & Driver Controls

• Instrument Cluster Control with Stalk / Feed Knob
• Instrument Cluster Switches
• Instrument Cluster Level and Temperature Sensors
• Speedometer Sensor with Tachograph
• Speedometer Sensor without Tachograph
• Steering Wheel Switches

Engine & Emission Systems

• Ignition System
• DPF – Diesel Particle Filter
• NOx Sensors
• UREA / AdBlue System
• Fuel Quality Sensor (FQS)
• Fuel Cut Off

Cooling & Thermal Management

• Engine Cooling Fan – B5LH and B5TL variants
• Engine Cooling Fan (30A) – B8L
• Extra Engine Cooling Fan – B8L (Engine Compartment)
• Remote Coolant Filling System (Single Tank)
• Oilmaster
• Heater Water Separator
• Heat Sensors / Extra Heat Sensors (Singapore & Hong Kong variants)
• HFV Cooling System
• HVAC for Hybrid Double Decker

Transmission & Driveline

• I-Shift Automatic Gearbox
• ZF Ecolife Automatic Gearbox (1 or 2 switches) – Control, Sensors and Valves
• ZF Ecolife CAN Bus
• Retarder Controls (Stalk and Marquardt)

Braking, Suspension & Steering

• Hill Start and Traction Control Switches
• Extra Park Brake (Singapore and Hong Kong variants)
• ECS Switches with Marquardt Connector
• Steering Angle (ESP) with and without Yaw Sensor
• Power Steering
• 1st Axle, 2nd Axle, 3rd Axle diagrams

Air Systems

• Air Compressor
• Air Dryer for Hybrid
• Air Sensor – Wet Tank
• Extra Auxiliary Air (Singapore and Hong Kong variants)

Lighting Systems

• Halogen and Xenon Headlights (Variant EL)
• Fog Lights (Variant EL)
• Extra High Beam (Variants EL and EXTL)
• Direction Indicators (Variant EL – 2 sheets)
• Side Marker Lights (Variants EL and EXTL)
• Brake Lights, Park Lights, Reverse Lights (Variant EL)

CAN Bus, Networking & Harness

• Backbone 1 & 2 – DD Hybrid
• Backbone 1 & 2 – DD B5TL and B8L
• PT Subnet for Hybrid
• Engine Subnet, J1939-2/3, FMS CAN
• D-Bus, E-Bus, J1587
• XCB401/502, XCB403/906, XCB801F, XCB803F Connectors
• Engine Room Supply
• Ground Diagrams

Body & Auxiliary Systems

• Washer System
• I-COACH
• AIC – Power Supply & Grounding
• TGW2 Telematics Gateway
• FMS-GW3 Fleet Management System Gateway
• One Motor System
• Extra Engine Hatch Switch (Hybrid variants)

Document Specifications

Who Needs This Manual?

• Bus workshop technicians diagnosing electrical faults on Volvo B8L double deckers
• Fleet engineers managing hybrid and high-voltage bus systems
• Auto electricians tracing circuit issues across chassis harnesses
• Body builders integrating accessories via BBM/BIO modules
• Technical trainers and vocational instructors

Instant PDF download — available immediately after purchase.

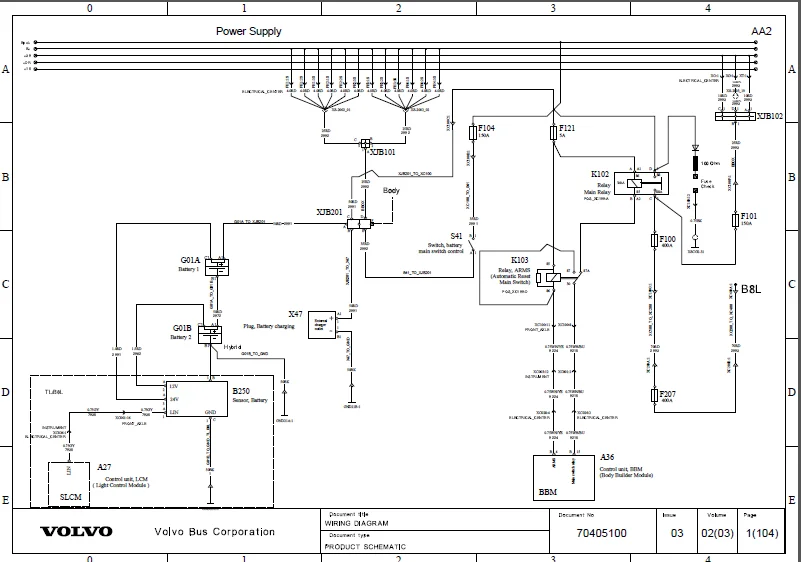

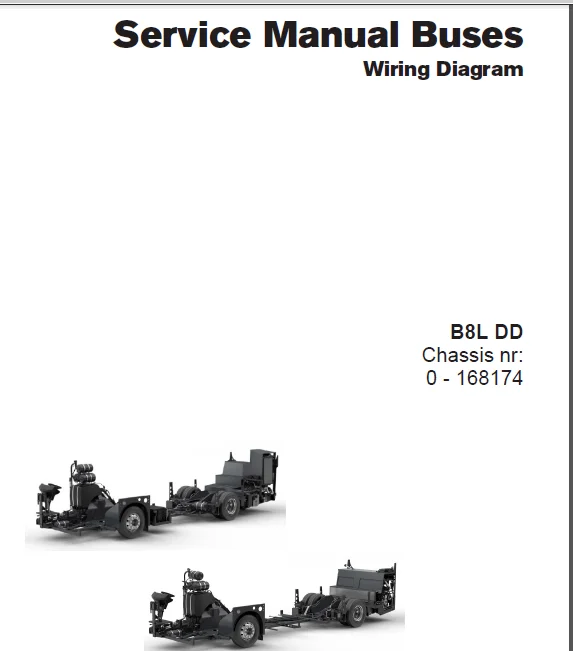

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
