Volvo Construction BL60B/BL61B/BL70B/BL71B Service & Maintenance Manual PDF
Original price was: $95.00.$21.95Current price is: $21.95.
Factory Service & Maintenance manual PDF for Volvo BL60B, BL61B, BL70B, and BL71B backhoe loaders. Covers recommended lubricants/fluids, service positions and safety steps, complete maintenance schedules (daily to 6000 hours), service points map, oil/filter changes, hydraulic pressure checks, transmission pressure tests, brake tests/bleeding, valve adjustments, coolant service, and more.
Description
Volvo Construction Equipment BL60B/BL61B/BL70B/BL71B Service & Maintenance Manual PDF DOWNLOAD
Description
Keep your Volvo B-Series backhoe loader running strong with this Service & Maintenance Manual (PDF) covering BL60B / BL61B / BL70B / BL71B. This is a technician-focused booklet with clear step-by-step service procedures, maintenance intervals, fluid specifications, safety instructions, and test/check routines—perfect for workshops, fleet owners, and owner-operators.
✅ What you’ll be able to do with this manual
Follow the correct service positions (1–3) for safe maintenance work
Use the service points diagram to locate filters, dipsticks, fillers, breathers, and key check areas fast
Perform maintenance by hour interval: daily, 50h, 250h, 500h, 1000h, 2000h, 6000h
Replace fluids & filters correctly (engine, hydraulic, transmission, axles, hubs)
Check and adjust hydraulic pressures, steering pressure, and transmission clutch pressures
Perform brake tests, pressure checks, and bleeding procedures
Carry out coolant replacement and valve clearance adjustments
🗂️ Table of Contents / Bookmarks (Neatly Organized)
16 — Lubricant / Fuel / Other Fluid
Recommended lubricants & oils (engine, hydraulics, axles/transmission/hubs)
Coolant specifications (mix ratios + water quality requirements)
17 — Service
170 General (common info)
Service position 1
Service position 2
Service position 3
Service overview + safety when servicing
Service points (diagram + numbered list)
173 Maintenance (Schedules + Procedures)
Maintenance schedules
First 100 hours
First 1000 hours
Daily
Every 50 hours
Every 250 hours
Every 500 hours
Every 1000 hours
Every 2000 hours
Every 6000 hours
Checks / adjustments / replacements
Transmission oil level check
Leak checks (fuel/coolant/oil), hoses/couplings inspection
Hydraulic cylinders leak inspection
Turbocharger + intake/exhaust leak checks
Stabiliser wear pad checks (BL61B, BL71B)
Coolant change (draining/filling)
Valve adjustment (inlet & exhaust clearances)
Battery checks (electrolyte, capacity, terminals)
Radiator / oil cooler / condenser cleaning
Air cleaner primary/secondary filter service
Fuel filters replacement + fuel system bleeding + water trap drain
Cab filter service
Axles & hubs: oil checks, breather cleaning, oil changes
Wheel/tyre checks + wheel nut torque
Hydraulic tank breather filter replacement
Transmission oil filter + breather filter + suction filter replacement
Hydraulic system pressure release + hydraulic oil changes
Hydraulic pressure checks (open centre / HP-LS / standby / servo, etc.)

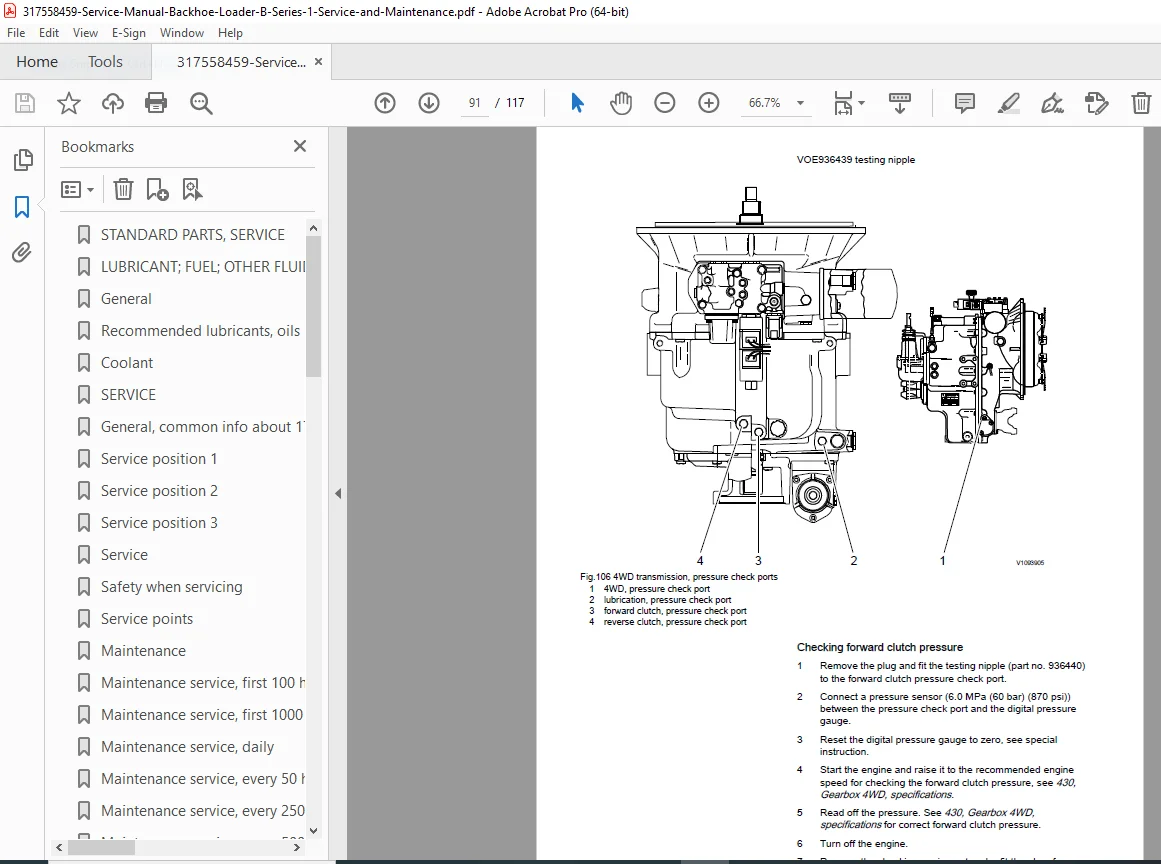

Transmission pressures (2WD / 4WD / Powershift options)
Engine speed checks
Boom lock function checks
Extendible dipper wear pad checks (if installed)
Lubrication points (stabilisers, pivots, propeller shaft)
Accumulator pre-charge pressure check
Test-run & final checks
Brake test, service/parking brake checks, pressure checks, bleeding
Seat belt replacement
Service journal entries
📄 File Details
| Item | Details |
|---|---|
| Manual Name | BL60B/BL61B/BL70B/BL71B — Service and Maintenance (Service Manual) |
| Models Covered | BL60B, BL61B, BL70B, BL71B |
| Year / Publication | 2011-09 (PUB 20026861-B) |

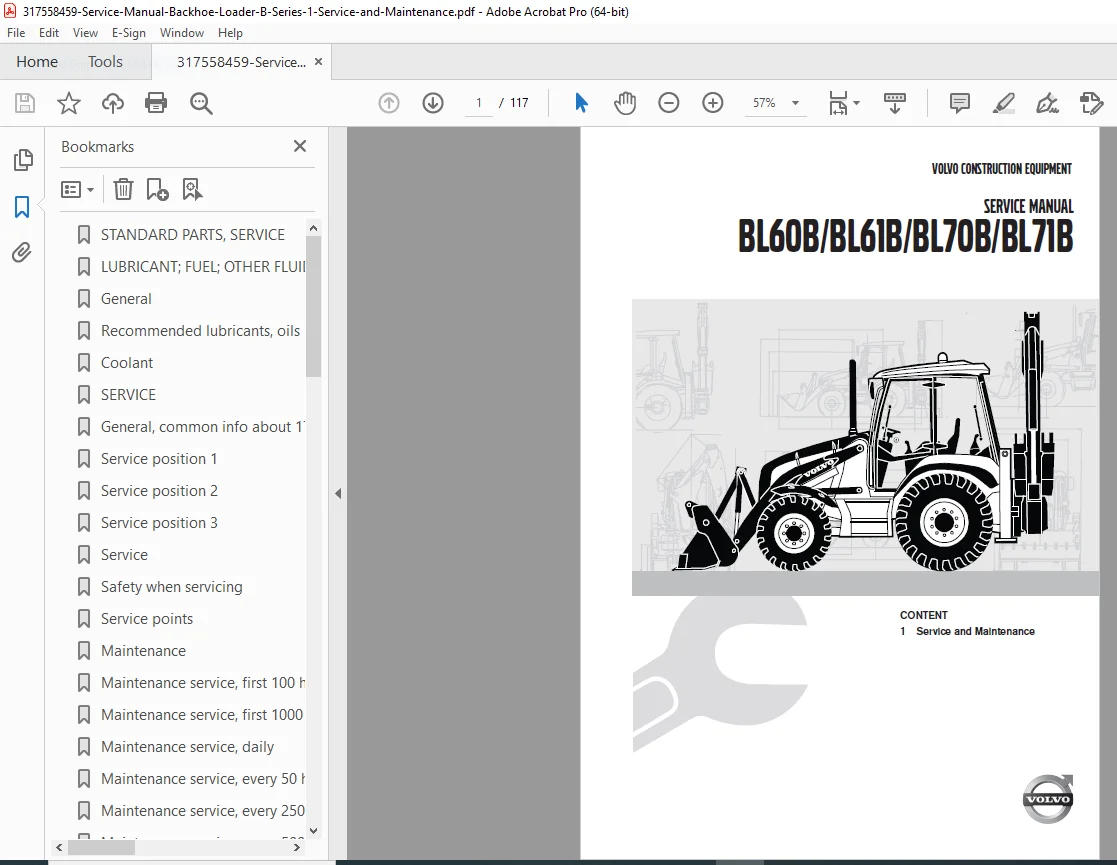

| Manual PDF Quality | Scanned manual, clear text + diagrams |
| No. of Pages | 117 pages |
Avoid costly downtime and guesswork—service your Volvo backhoe the correct way with the factory procedures. Instant PDF download—open it now and get back to work faster with the exact maintenance steps and check specs you need.
