Volvo G900 Series Motor Graders Parts Catalog 20061 – G930 G940 G946 G960 G970 G976 G990 PDF

Volvo G900 Series Motor Graders Parts Catalog

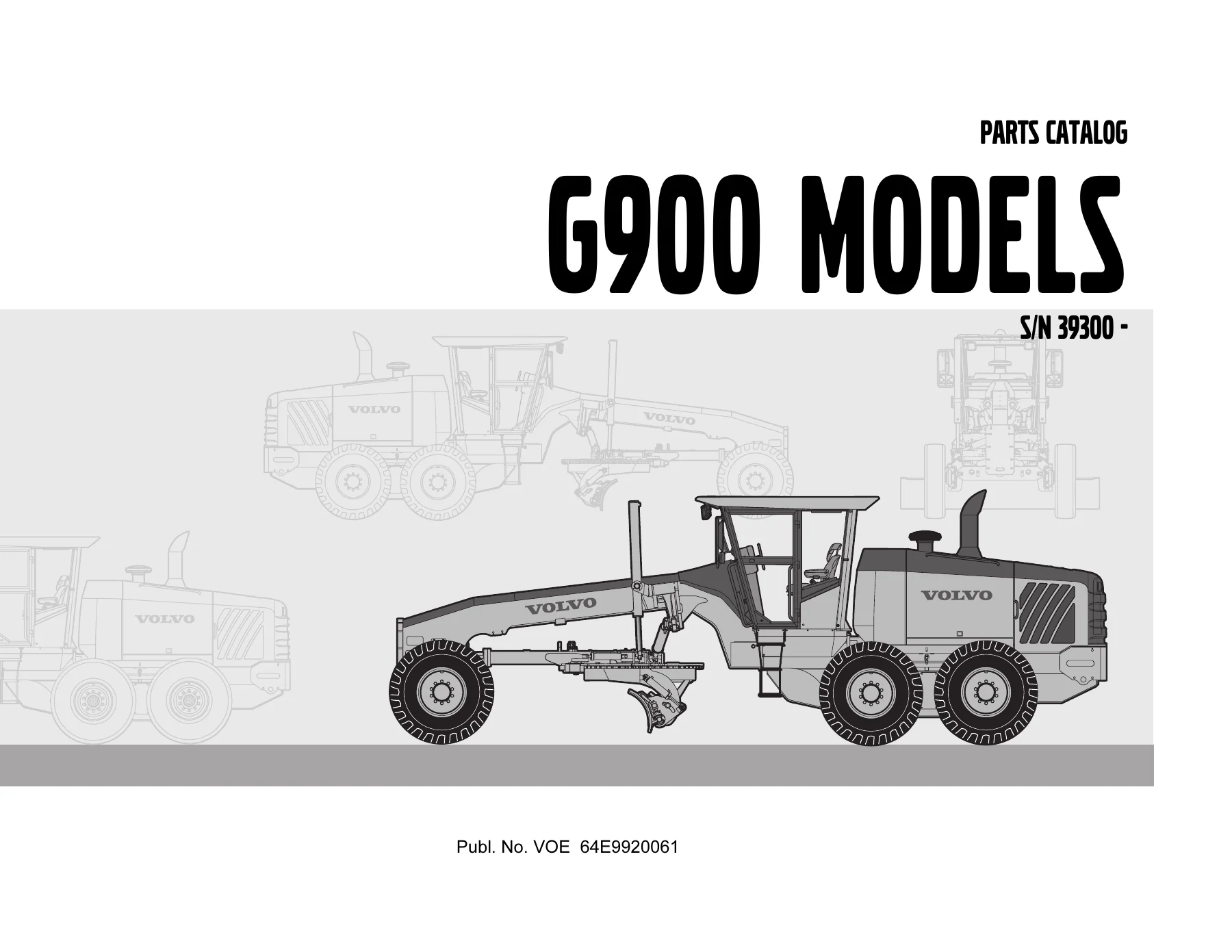

This Volvo G900 Series Motor Graders Parts Catalog is the complete illustrated parts reference for the G900 family, published under catalogue ID 20061 and document number VOE 64E9920061. It covers every major assembly on the machine — from engine internals and fuel systems to the circle turn mechanism and moldboard hardware — using exploded illustrations tied directly to Volvo part numbers and quantities. This is a parts catalog, not a repair or service manual, and it is designed to help you identify and order the correct component for the exact machine you are working on.

File Details

• Manual type: Parts Catalog
• Brand: Volvo Construction Equipment
• Model family: G900 Series Motor Graders
• Covered models: G930, G940, G946, G960, G970, G976, G990
• Serial number coverage: S/N 39300 and up
• Language: English, French, German, Spanish
• Page count: Approximately 952 pages
• File format: PDF
• Catalogue ID: 20061
• Publication number: VOE 64E9920061

Chapters Covered

• Group 1 — Preface and Instructions (group index, product plates, catalogue guide, abbreviations)
• Group 2 — Engine
  • 210 Repair kits for engine — D7 / D9
  • 211 Cylinder head
  • 212 Cylinder block, cylinder block frame, water manifold cover
  • 213 Cylinder liner and piston
  • 214 Valve mechanism, rocker assembly, control valve
  • 215 Timing gear casing, gears, camshaft
  • 216 Crankshaft and related parts, flywheel housing
  • 217 Oil sump and oil drain
  • 218 Engine mounts and mounting
  • 221 Lubricating oil system and oil pump
  • 222 Oil filter and oil filter housing
  • 223 Oil cooler
  • 233 Fuel pump, filter/water separator, fuel filter
  • 234 Fuel tank
  • 235 Fuel circuits and fuel pipes
  • 237 Delivery pipe and injectors
  • 251 Inlet manifold and exhaust manifold
  • 252 Muffler and exhaust stack
  • 255 Turbocharger with fitting parts
  • 256 Air cleaner and inlet assembly
  • 258 Intercooler with connectors
  • 261 Radiator installation
  • 262 Water pump and thermostat housing
  • 263 Fan housing and belt transmission
  • 269 Recirculating coolant heater, oil sump heater, engine block heater
• Group 3 — Electrical Systems and Instruments
  • 311 Battery and battery box
  • 321 Alternator — D7 and D9
  • 331 Starter motor and heat shield
  • 333 Pre-heater — D7 and D9
  • 352 Cab lights with mounting
  • 353 Rear lights including harness
  • 356 Extra front lights including harness
  • 361 Direction indicator
  • 362 Horn and back-up warning
  • 363 Window wipers (low and high profile cab), washer
  • 364 Switches
  • 371 Cable harnesses (front, cab, rear, engine ECU, secondary steering)
  • 372 Electrical distribution box
  • 387 Contronics and display unit, auto blade control display
  • 393 Radio, cassette, CD player and converters
• Group 4 — Power Transmission
  • 421 Housing, covers, oil filter, oil distributor, hydraulic couplings, valve housing, transmission electrical
  • 424 Transmission controller
  • 426 Transmission mounts
  • 442 Front axle hydraulic circuit — AWD, hydraulic oil tank, pump drives
  • 444 Wheel motor assembly and hydraulic pump — AWD
  • 445 Fan hydraulic circuits and charge pump circuits — AWD
  • 451 Upper and lower drive shafts
  • 463 Tandems, rear axle installation, final drive, differential lock, planetary axle
  • 468 Differential hydraulic circuit
  • 491 Transmission oil cooler hydraulic circuit
• Group 5 — Brakes
  • 517 Oil disc brakes
  • 520 Brake linkage
  • 521 Brake master cylinder and booster
  • 522 Brake circuit
  • 551 Parking brake circuit and parking brake
• Group 6 — Steering System and Front Axle
  • 622 Front axle, hub and knuckle
  • 641 Steering column, control head assembly, pedestal adjuster
  • 645 Steering circuit and steering cylinders
  • 647 Secondary steering circuit and pump unit
  • 648 Single and dual wheel lean circuits, wheel lean cylinders
• Group 7 — Frames and Wheels
  • 711 Frames
  • 715 Transmission guard and covers
  • 716 Push block
  • 740 Articulation hinge assembly
  • 742 Articulation hydraulic circuit and cylinders
  • 771 Wheels and rims
• Group 8 — Body with Associated Parts
  • 810 Cab body and cab exterior trim
  • 818 Cab mounts
  • 821 Engine cowl (D7, D9, winter covers, oil-bath version)
  • 823 Radiator housing, radiator casing, hydraulic tank cowl
  • 825 Front fender
  • 826 Rear fender
  • 827 Cab step
  • 831 Doors and latch
  • 834 Door lock and handle
  • 841 Decals, safety signs, mirrors, license plate bracket
  • 843 Cab glass
  • 844 Lower front vent window
  • 851 Headliner, floor mat, sun visor
  • 852 Suspension seat, air suspension seat, operator comfort kit
  • 865 Sound suppression — engine cowl
  • 872 Air duct and cab interior plastic, defrost duct and fan
  • 873 Cab heater and AC/heater installation
  • 874 Air conditioning installation, compressor and receiver/dryer
  • 881 Angle meter installation
  • 882 Cab blind
  • 891 Toolbox, tools, paint, slow moving vehicle sign

  IMAGES PREVIEW







• Group 9 — Miscellaneous Equipment
  • 911 Hydraulic oil tank, hydraulic filter, filter return line
  • 912 Load sensing relief valve, manifold valves, auxiliary manifold valves, priority valve, fan control valves, control levers, shuttle valve
  • 913 Steering and implement pump, fan drive hydraulic pump
  • 916 Ten bank auxiliary circuits, two and three bank auxiliary circuits
  • 922 Towing hook
  • 926 Ripper, mid mount scarifier, front mount scarifier, parallel lift, dozer blade, support arch, sound trap and skid protection
  • 981 Moldboards (G930–G976, G990)
  • 982 Moldboard installation and blade tilt circuits and cylinders
  • 983 Blade lift, circuit, cylinders, accumulators
  • 984 Slide shift circuit, swivel joint, slide shift cylinders
  • 985 Circle turn (front and rear), circle turn circuit, valve, cylinders
  • 986 Circle shift circuit and cylinder, lock cylinder circuit and lock cylinder
  • 987 Drawbar front and rear
  • 992 Anti-vandalism equipment
  • 993 Remote greasing
• Group 10 — Replaced Parts and Numerical Index

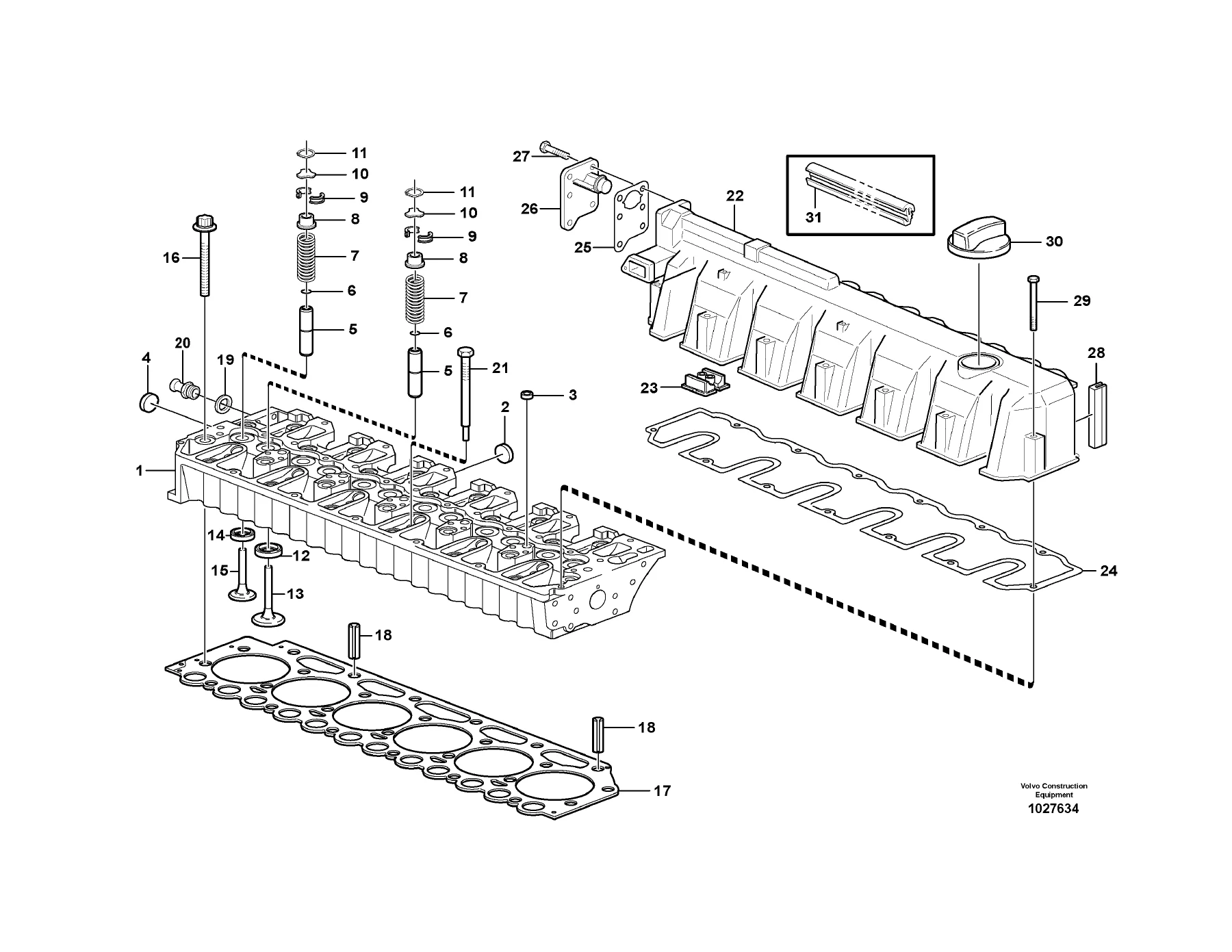

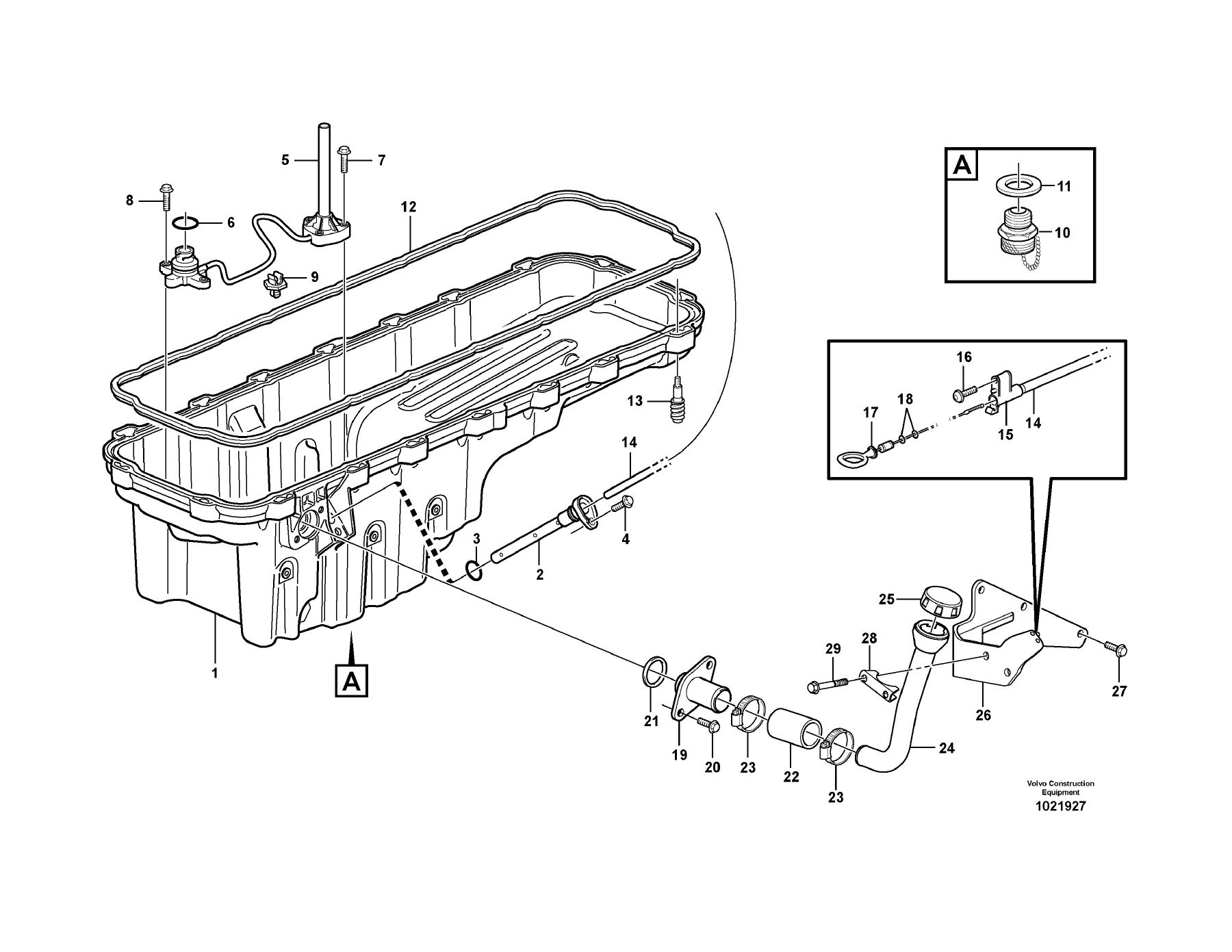

Across its roughly 952 pages, this Volvo G900 Series Motor Graders parts catalog presents the entire machine as a system of numbered assemblies. Every exploded view carries position numbers that cross-reference to a parts list giving the Volvo part number, description in four languages, required quantity and any notes such as serial number breaks, model applicability, alternative parts or whether a part is included in a kit. The document is organized by functional group, so you can move from a broad system — for example, cylinder head or hydraulic filter — down to the specific bolt, seal, gasket, bearing or casting you need, without having to flip through unrelated sections. Groups 2 through 9 cover the engine, electrical, power transmission, brakes, steering and front axle, frames and wheels, body and cab, and the long list of miscellaneous equipment including ripper, scarifier, moldboard, circle turn and drawbar assemblies. Group 10 supplies the replaced-parts reference and the numerical index, which lets you trace any part number back to the exact group, section and page where it is used.

Because the catalog lists parts rather than repair procedures, it is the document that answers the hardest question in any repair: which part, and exactly which variant of it, belongs on this specific machine. Model and serial filters appear throughout the notes so the correct version can be selected for a G930, G940, G946, G960, G970, G976 or G990 within the covered S/N 39300 and up range. Whether you are rebuilding a D7 or D9 engine, chasing an electrical fault through a cable harness, ordering wear parts for the moldboard and circle turn, or sourcing hydraulic components for an all-wheel-drive machine, this catalog gives you the Volvo part number to work with.

Delivered as an instant-download PDF, the Volvo G900 Series Motor Graders Parts Catalog 20061 opens on any computer, tablet or phone and can be printed as needed for the workshop. There is no shipping, no waiting, and no reason to guess at a part number again — keep the full illustrated parts breakdown for your G900 motor grader within reach and order the right component the first time.
