Volvo Penta DPI-A Sterndrive Workshop Manual – Group 40 Power Transmission Repair Guide

Description

Volvo Penta DPI-A Workshop Manual – Group 40

This is the Volvo Penta workshop manual for the DPI-A Aquamatic sterndrive, dedicated to Group 40 Power Transmission. It covers the drive and transom shield from top to bottom – removal and refitting of the complete drive, overhaul of the upper gear and lower gear, shimming of the gear set, replacement of the clutch disc package, the shifting valves, trim cylinders, trim sensor, steering angle sensor, lubrication oil pump, propeller shaft seals and the AQ intermediate shaft housing. Written for workshop technicians, it uses the same step-by-step working methods whether the unit is on the bench in a fixture or still mounted in the boat.

File Details

• Manual type: Workshop Manual
• Brand: Volvo Penta
• Model: DPI-A (Aquamatic sterndrive)
• Group: 40 – Power Transmission / Marine Propulsion
• Language: English
• File format: PDF
• Page count: 154 pages
• Sections included: General Information, Specifications, Safety Instructions, Special Service Tools, Marine Propulsion 44-0 and 44-1

Chapters Covered

• General Information – General; About this Workshop Manual; Certified Engines; Colours Used in Images; Safety Information
• Specifications – Power Transmission tightening torques; Technical Data; Transmission Oil; Upper Gear; Drive Leg; Trim and Steering Hydraulics
• Safety Instructions – Cleanliness Requirements
• Special Service Tools – Special Tools listing
• Marine Propulsion 44-0 General – Check and Fault Trace; Oil Level Check; Oil Pressure Check; Oil Pump Check; Propeller Shaft Check; Reducing Valve Check; Leakage Control; Control Hydraulic, Venting
• Aquamatic Unit, Stern Drive 44-1 – General Information, Drive and Transom Shield; Fitting in Fixture; Drive, Complete, Replace
• Upper Gear – Gearcase, Replace; Vertical Shaft Bearing, Change; Shifting Valves, Replace; Gear Set, Replace; Clutch Disc Package, Replace
• Lower Gear – Lower Gear, Overhaul
• Transom Shield – Power Trim Cylinders, Replace; Power Trim Sensor, Replace
• AQ Intermediate Shaft Housing, Overhaul and Jackshaft Overhaul
• Maintenance – Water Intrusion in Transmission; Transmission Oil and Filter, Replace; Painting; Welding
• Propeller – Propellers, Replace; Propeller Shaft Seals, Replacement
• Miscellaneous – Shimming, Reference Guide; Index

Across those chapters the manual gives the technician a complete picture of the DPI-A drivetrain. You get removal and installation sequences for the entire sterndrive, exploded illustrations of the upper and lower gear cases with numbered fasteners, shim-thickness calculation tables for the vertical shaft and pinion, gear backlash measurement procedures, contact-pattern reading for the forward and rear gearwheels, clutch pack assembly and torque settings, hydraulic circuit identification (trim up/down, steering starboard/port/return) and seal integrity pressure tests for the complete drive and the valve housing cover.

Tightening Torques and Reference Values

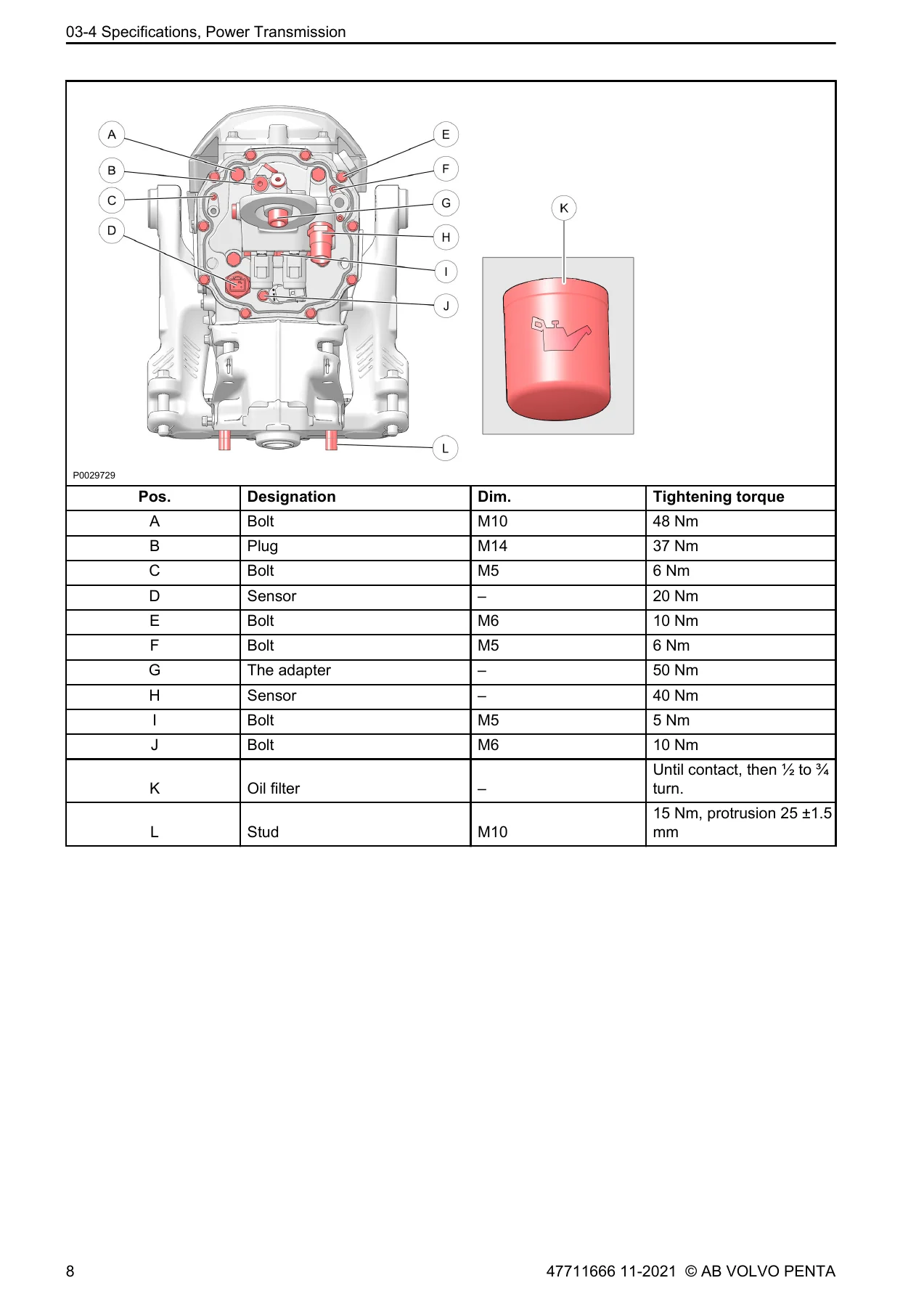

The Power Transmission specifications section is illustrated with call-out diagrams across multiple pages so each bolt, plug, clamp, sensor and nut is matched to its torque figure. Representative values include the pinion nut (105 Nm plus 90 degrees angle tightening with locking fluid 22618324), the clutch/gear case nut (300 Nm with locking fluid), the bearing housing bolts (48 Nm), the drive bolts (80 Nm), the propeller nut (200 Nm using tool 23161623) and the trim cylinder pivot pin (220 Nm). Fill quantities and working pressures are also stated – transmission oil 5.8 litres with 15-18 bar working pressure, power trim approximately 1.3 litres of ATF (Dexron II or III), steering approximately 1.2 litres of ATF, and total drive weight of 85 kg without propeller.

Diagnostics, Leak Testing and Gear Set Shimming

The Check and Fault Trace chapter walks through oil level verification with and without a filled filter, oil pressure testing with a manometer, oil pump wear limits (tooth-tip play must not exceed 0.15 mm), propeller shaft runout (maximum 0.08 mm in the housing, 0.05 mm between centres over 285 mm) and reducing valve inspection. Leakage control instructions cover pressure-testing the complete drive and the valve housing cover with soapy water, including permissible pressure decay and the note that the cover seal must never be reused. The shimming reference guide provides the correction values and worked examples for F, R, P and I shims used to set the correct gear backlash and turning resistance.

Who This Manual Suits

This Volvo Penta DPI-A workshop manual is aimed at marine technicians, sterndrive rebuilders and experienced owner-mechanics who already have access to, or can source, the Volvo Penta special tools referenced throughout. Several operations – the gear set replacement, clutch disc package and lower gear overhaul – carry a note that prior theoretical or instructor-led training is required before the work is started, so this is a professional-level reference rather than a beginner’s guide.

What You Get

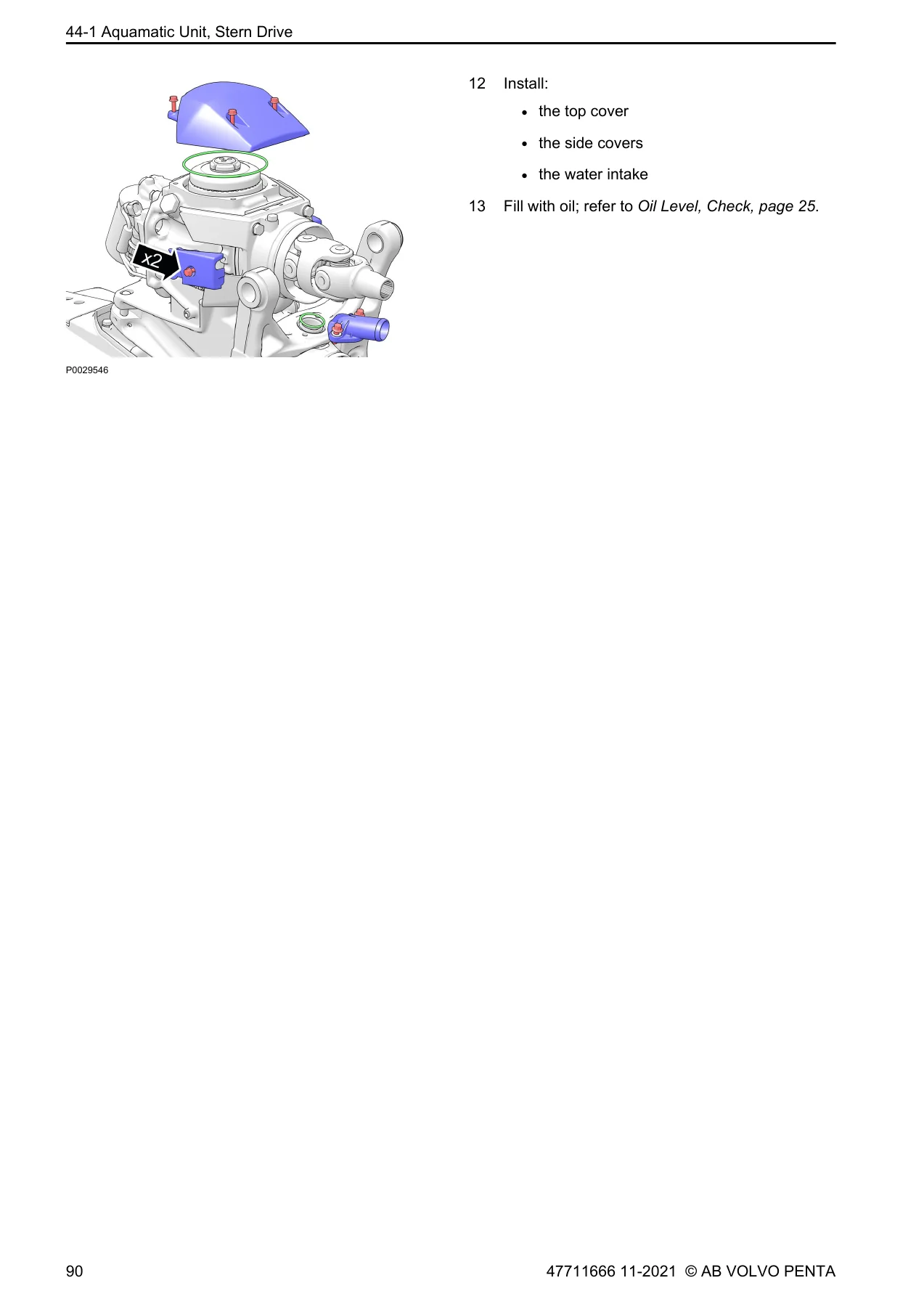

IMAGES PREVIEW

With the Volvo Penta DPI-A Sterndrive Workshop Manual – Group 40 Power Transmission Repair Guide at hand you can strip and rebuild the DPI-A drive with the correct assembly order, tool numbers and torque values, read gear contact patterns to decide shim changes, pressure-test for leaks, vent the steering hydraulics, service the trim system and replace every major internal component from the input bearing housing down to the propeller shaft seals. Correct procedures and exact specifications are what keep a sterndrive quiet, cool and leak-free – and what stops a stripped gear set from costing a second rebuild. Delivered as an instant PDF download after payment, no shipping and no waiting – view it on any device, print the pages you need for the bench, and take it back to the job as often as you like.
