White 2.55 , 2.65 , 2.75 Tractor Service Repair Manual – PDF Download

Description

White 2.55 , 2.65 , 2.75 Tractor Service Repair Manual

FILE DETAILS:

White 2.55 , 2.65 , 2.75 Tractor Service Repair Manual

LANGUAGE:ENGLISH
PAGES:45
DOWNLOADABLE:YES
FILE TYPE:PDF

WHITE 2.55 , 2.65 , 2.75 TRACTOR SERVICE REPAIR MANUAL – PDF DOWNLOAD:

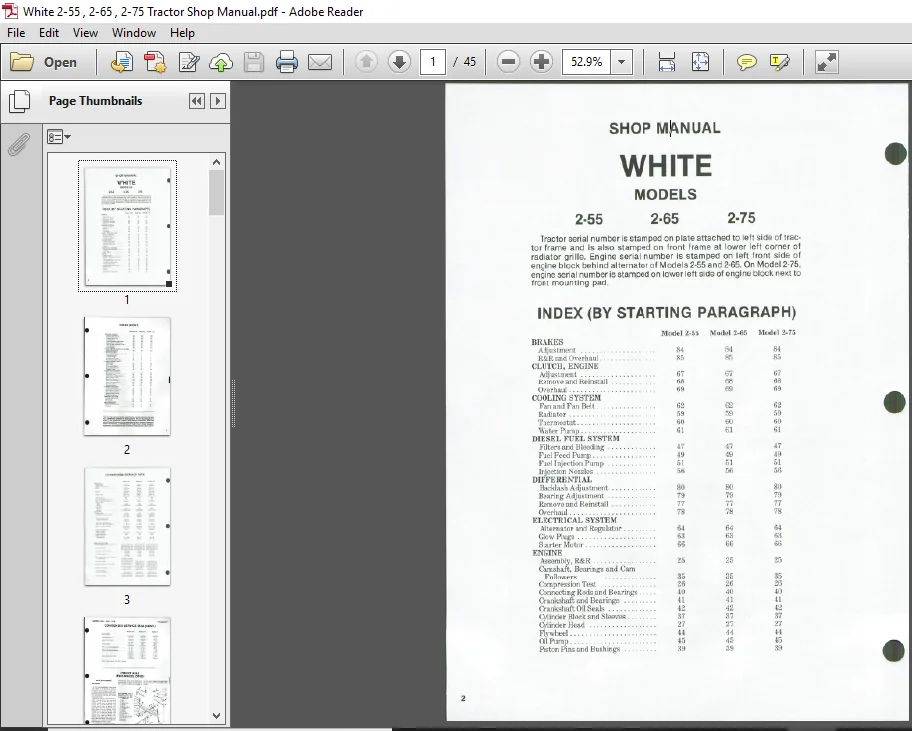

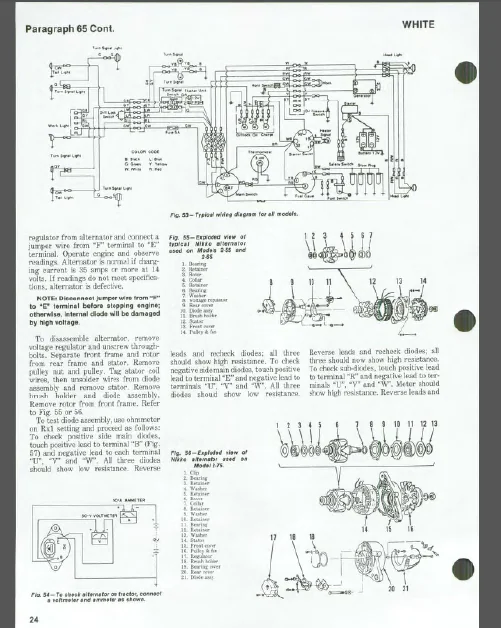

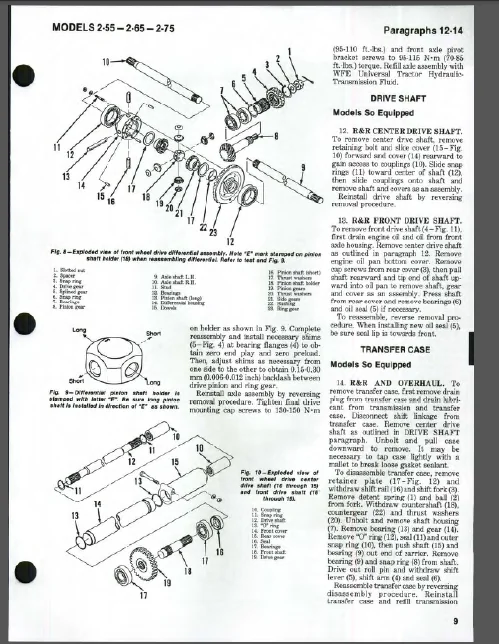

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

• White 2.55 , 2.65 , 2.75 Tractor Service Repair Manual
• Tractor serial number is stamped on plate attached to left side of tractor frame and is also stamped on front frame at lower left corner of radiator grille. Engine serial number is stamped on left front side of engine block behind alternator of Models 2-55 and 2-65. On Model 2-75, engine serial number is stamped on lower left side of engine block next to front mounting pad.
• To remove adjustable front axle and wheels as an assembly, support front of tractor and disconnect tie rod ends from center steering arm (22-Fig. 1). Remove pivot pin (10) from front support and axle main member. Raise front of tractor and roll front axle and wheels from under tractor. Inspect all parts for excessive wear or other damage. Pivot pin standard diameter is 39.950-39.975 mm (1.5728-1.5738 inches) on Models 2-55 and 2-65 or 49.950-49.975 mm (1.9665-1.9675 inches) on Model 2-75.
• Renew pivot pin if wear exceeds 0.1 mm (0.004 inch). Pivot pin bushing inside diameter is 40.025-40.064 mm (1.5758-1.5773 inches) on Models 2-55 and 2-65 or 50.025-50.064 mm (1.9695-1.971 inches) on Model 2-75. Maximum allowable bushing wear is 0.2 mm (0.008 inch). When renewing pivot bushings, use a suitable driver and install bushings with seam upward. To reinstall axle, reverse removal procedure. Be sure to renew “0” rings (12) and apply multi-purpose grease to sliding parts during assembly.

TABLE OF CONTENTS:

White 2.55 , 2.65 , 2.75 Tractor Service Repair Manual

BRAKES
Adjustment 84
R&R and Overhaul 85
CLUTCH, ENGINE
Adjustment 67
Remove and Reinstall 68
Overhaul 69
COOLING SYSTEM
Fan and Fan Belt 62
Radiator 59
Thermostat 60
Water Pump 61
DIESEL FUEL SYSTEM
Filters and Bleeding 47
Fuel Feed Pump 49
Fuel Injection Pump 51
Injection Nozzles 56
DIFFERENTIAL
Backlash Adjustment 80
Bearing Adjustment 79
Remove and Reinstall 77
Overhaul 78
ELECTRICAL SYSTEM
Alternator and Regulator 64
Glow Plugs 63
Starter Motor 66
ENGINE
Assembly, R&R 25
Camshaft, Bearings and Cam
Followers 35
Compression Test 26
Connecting Rods and Bearings 40
Crankshaft and Bearings 41
Crankshaft Oil Seals 42
Cylinder Block and Sleeves 37
Cylinder Head 27
Flywheel 44
Oil Pump 45
Piston Pins and Bushings 39
ENGINE (CONT.)
Pistons and Rings
Rod and Piston Units
Timing Gtear Cover
Tinning Gears
Valve Clearance Adjustment
Valves, Guides and Seats
Valve Rocker Arms and Shaft
Valve Springs
Valve Timing
FINAL DRIVE AND REAR AXLES
R&R and Overhaul
FRONT SYSTEM
Axle Main Member
Steering Spindles
and Bushings
Tie Rods and Toe-in
Wheel Hub and Bearings
FRONT WHEEL DRIVE
Differential
Drive Shaft
Front Axle Carrier
Planetary Final Drive
Transfer Case
HYDRAULIC SYSTEM
Hydraulic Housing
Hydraulic Lift Cylinder
Hydraulic Pump
Lubrication and Maintenance
Main Control Valve
Main Flow Divider
Remote Control Valve
Return Restrictor Valve
Test and Adjust
Troubleshooting
POWER STEERING
Flow Control Valve
Lubrication and Bleeding
Power Steering Pump
Power Steering Unit
System Pressure Test
Troubleshooting
POWER TAKE OFF
Linkage Adjustment
Pto Clutch
Pto Flow Divider
TRANSMISSION
Remove and Reinstall
Overhaul
