Williams Gorgar Pinball Machine Instruction And Parts Manual – DOWNLOAD

Description

Williams Gorgar Pinball Machine Instruction And Parts Manual

WILLIAMS GORGAR PINBALL MACHINE INSTRUCTION AND PARTS MANUAL – DOWNLOAD:

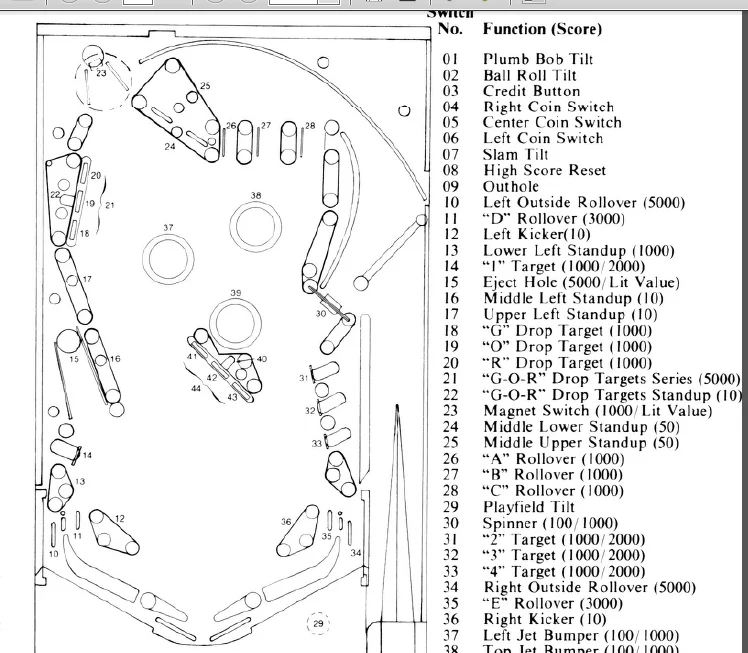

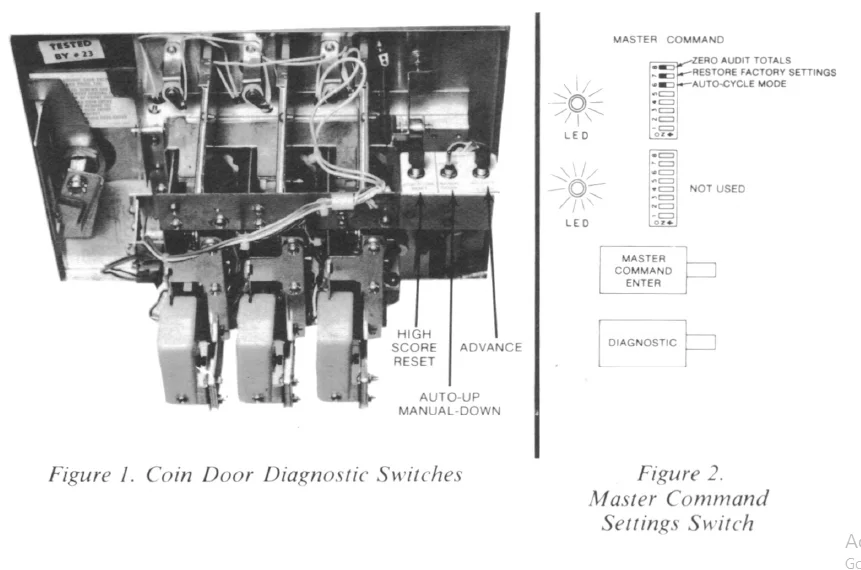

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

This booklet provides game operation, bookkeeping, game adjustment, and diagnostic procedures for GORGAR. For installation and special maintenance information refer to the
blue-covered game manual. For detailed information refer to Williams Solid State Flipper Maintenance Manual.
SPECIAL CONSIDERATIONS WHEN REPLACING CIRCUIT BOARDS
CPU Board
I. For memory protection feature, revision level 6 CPU Boards (batteries located on lower right corner of board) must be used. Revision level 4 CPU Boards equipped with IC14 and IC16 sockets may be used but the memory protection feature is lost.
2. Must be equipped with green-labeled GORGAR PROMs or game ROM and green-labeled flipper ROMs.
3. When Game ROM is used, jumper J3 must be connected and J4 removed.
Sound Board
1. Model D 8224 required for speech.
2. Must be jumpered for white-labeled sound ROM operation and be equipped with Sound
ROM 2. (Jumpers W2, W5, W7, W9, W10, and W15 connected; W3, W4, W6, W8, W 11,
yvi2, and W13 removed)
Power Supply, Board
I. Fuse F4 (15A SB) for flipper solenoids and magnet must be installed.
Optional Speech Module
i’. Requires 5T4961 (IC7). 5T4962 (IC5), and 5T4963 (IC6) speech ROMs

FILE FORMAT:

LANGUAGE:ENGLISH
PAGES:12
DOWNLOADABLE:YES
FILE TYPE:PDF
