WPES-10 WPES-20 WPES-30 600 GPH ROWPU Reverse Osmosis Water Purification Unit Maintenance Manual

Description

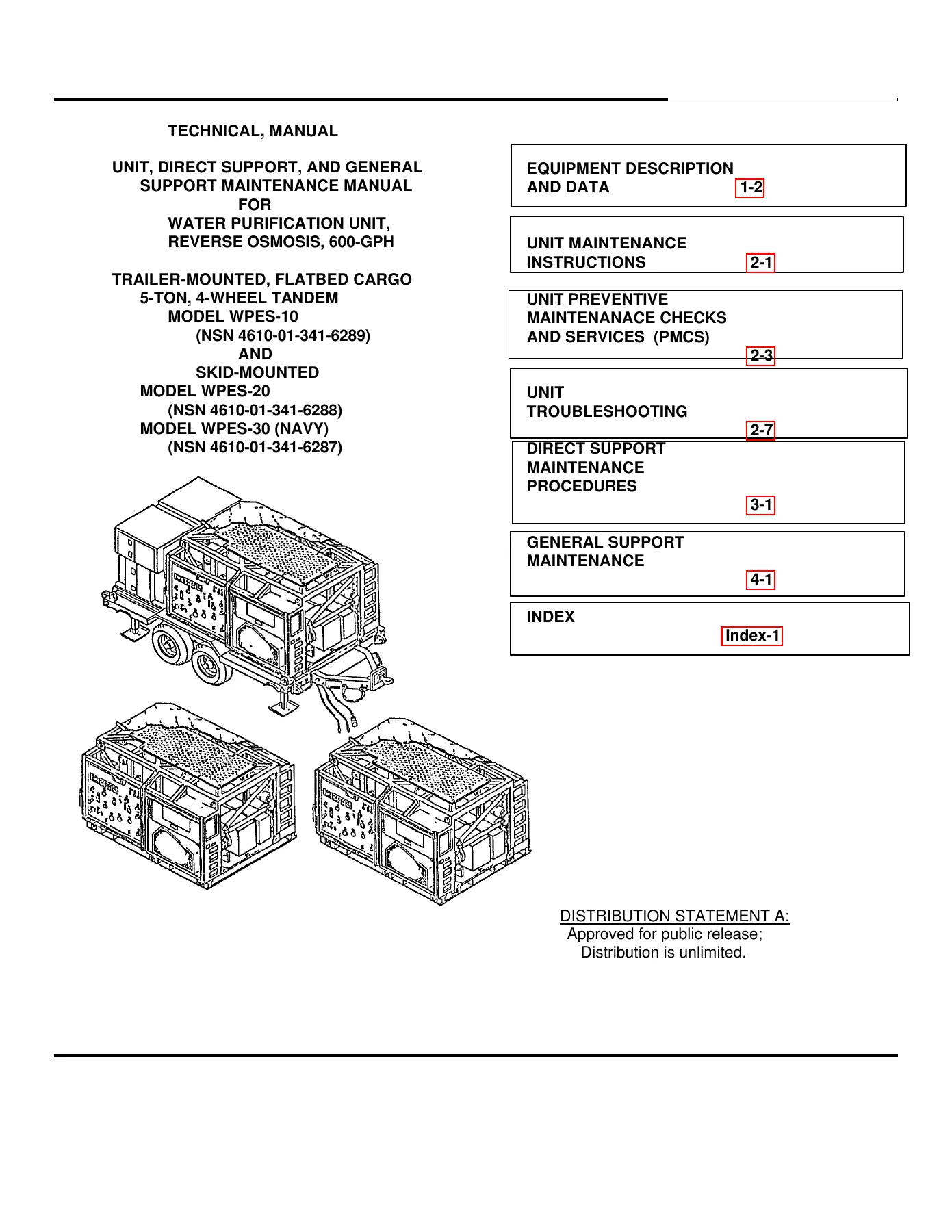

600 GPH ROWPU Reverse Osmosis Water Purification Unit Maintenance Manual (TM 10-4610-241-24)

This 600 GPH ROWPU Reverse Osmosis Water Purification Unit Maintenance Manual is the official Unit, Direct Support, and General Support technical manual (TM 10-4610-241-24 / TO 40W4-13-42) covering the WPES-10, WPES-20, and WPES-30 reverse osmosis water purification units, along with their equivalent designations H-9518-1 (Army), H-9518-2 (Air Force), and HJ-9518-3 (Navy). Whether you know it as the WPES-10 trailer-mounted ROWPU, the WPES-20 skid-mounted unit, or the WPES-30 Navy variant, this manual is the single reference for keeping the 600 gallon-per-hour reverse osmosis system running.

• Manual type: Unit, Direct Support, and General Support Maintenance Manual
• Equipment: Water Purification Unit, Reverse Osmosis (ROWPU), 600 GPH
• Models covered: WPES-10 / H-9518-1 (Army, NSN 4610-01-341-6289), WPES-20 / H-9518-2 (Air Force, NSN 4610-01-341-6288), WPES-30 / HJ-9518-3 (Navy, NSN 4610-01-341-6287)
• Publication number: TM 10-4610-241-24, TO 40W4-13-42
• Original date: 15 January 1993, updated by Change 1 (26 December 1997) and Change 2 (31 August 2005)
• Language: English
• Page count: 902 pages
• File format: PDF

Chapters Covered

• Chapter 1 – Introduction
  • Section I – General Information (scope, maintenance forms, EIRs, warranty)
  • Section II – Equipment Description and Data (differences between models WPES-10, WPES-20, WPES-30)
  • Section III – Technical Principles of Operation (system and component operation)
• Chapter 2 – Unit Maintenance Instructions
  • Section I – Repair Parts, Special Tools, Test, Measurement and Diagnostic Equipment
  • Section II – Service Upon Receipt
  • Section III – Unit Preventive Maintenance Checks and Services (PMCS)
  • Section IV – Unit Troubleshooting Procedures
  • Section V – Unit Maintenance Procedures
  • Section VI – Preparation for Storage or Shipment
• Chapter 3 – Direct Support Maintenance Procedures
  • Section I – Direct Support Troubleshooting Procedures
  • Section II – General Maintenance Procedures
  • Section III – Backwash Pump Assembly Maintenance Procedures
  • Section IV – Raw Water Pump Assembly Maintenance Procedures
  • Section V – Distribution Pump Assembly Maintenance Procedures
  • Section VI – ROWPU Assembly Maintenance Procedures
  • Section VII – Electrical Installation Maintenance Procedures
  • Section VIII – Booster Pump Assembly Maintenance Procedures
  • Section IX – Chemical Feed Pump and R.O. Pump Assemblies Maintenance Procedures
  • Section X – Multimedia Filter Assembly Maintenance Procedures
  • Section XI – Control Box Assembly Maintenance Procedures
  • Section XII – Junction Box Assembly Maintenance Procedures
  • Section XIII – Flatbed Cargo Trailer Assembly Maintenance Procedures
• Chapter 4 – General Support Maintenance
• Appendix A – References
• Appendix B – Maintenance Allocation Chart
• Appendix C – Expendable/Durable Supplies and Materials List
• Appendix D – Illustrated List of Manufactured Items
• Appendix E – Torque Limits

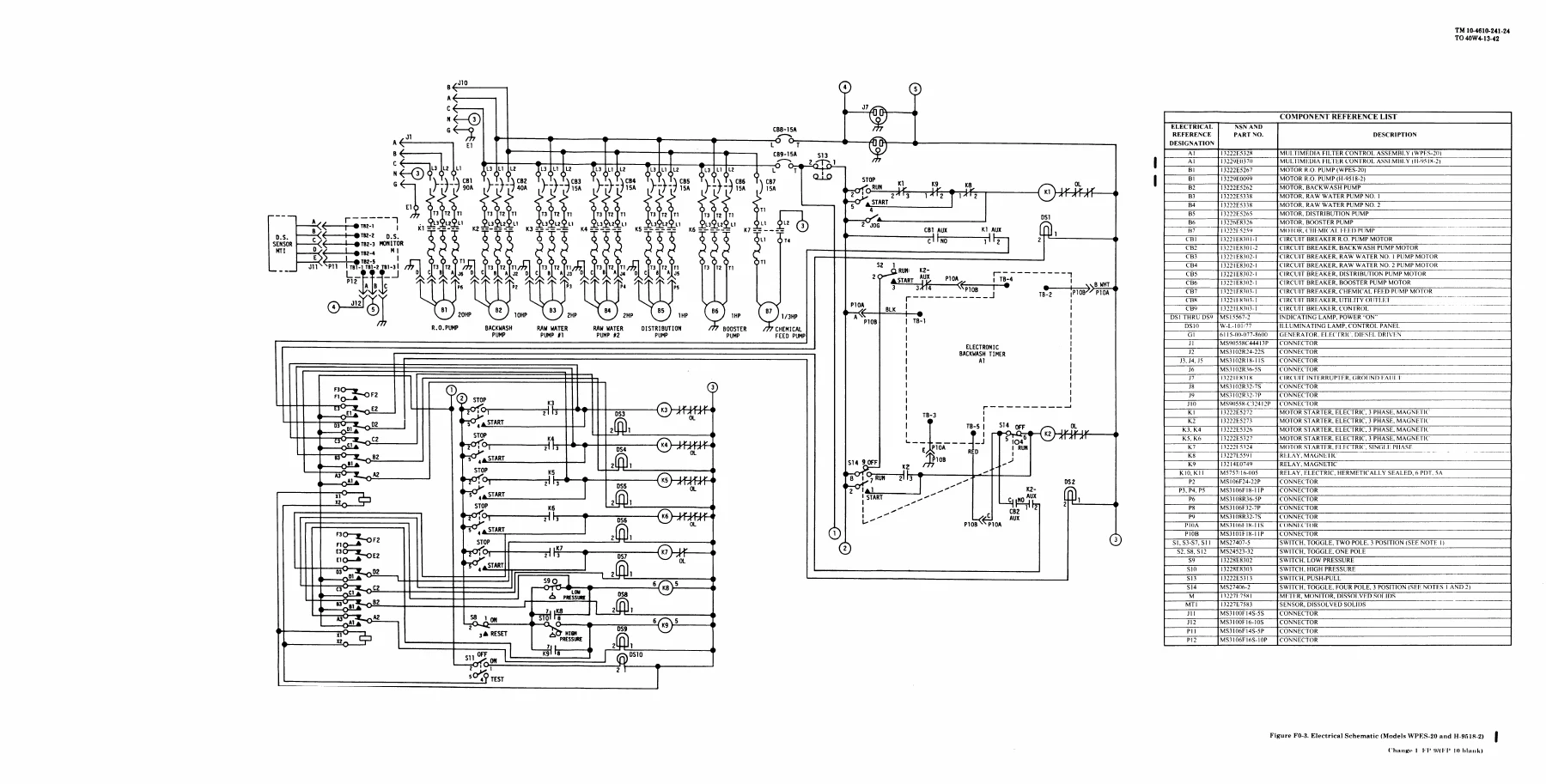

• Appendix F – Schematics
• Index

Together these chapters walk a unit and direct support technician all the way from receiving and inspecting the ROWPU through full troubleshooting, teardown, repair, and reassembly of every major assembly – the multimedia filter, cartridge filter, chemical feed pump, booster pump, R.O. pump and pressure tubes, distribution pump, backwash pump, control box, junction box, and (on the trailer-mounted WPES-10) the flatbed cargo trailer itself.

How the ROWPU System Works

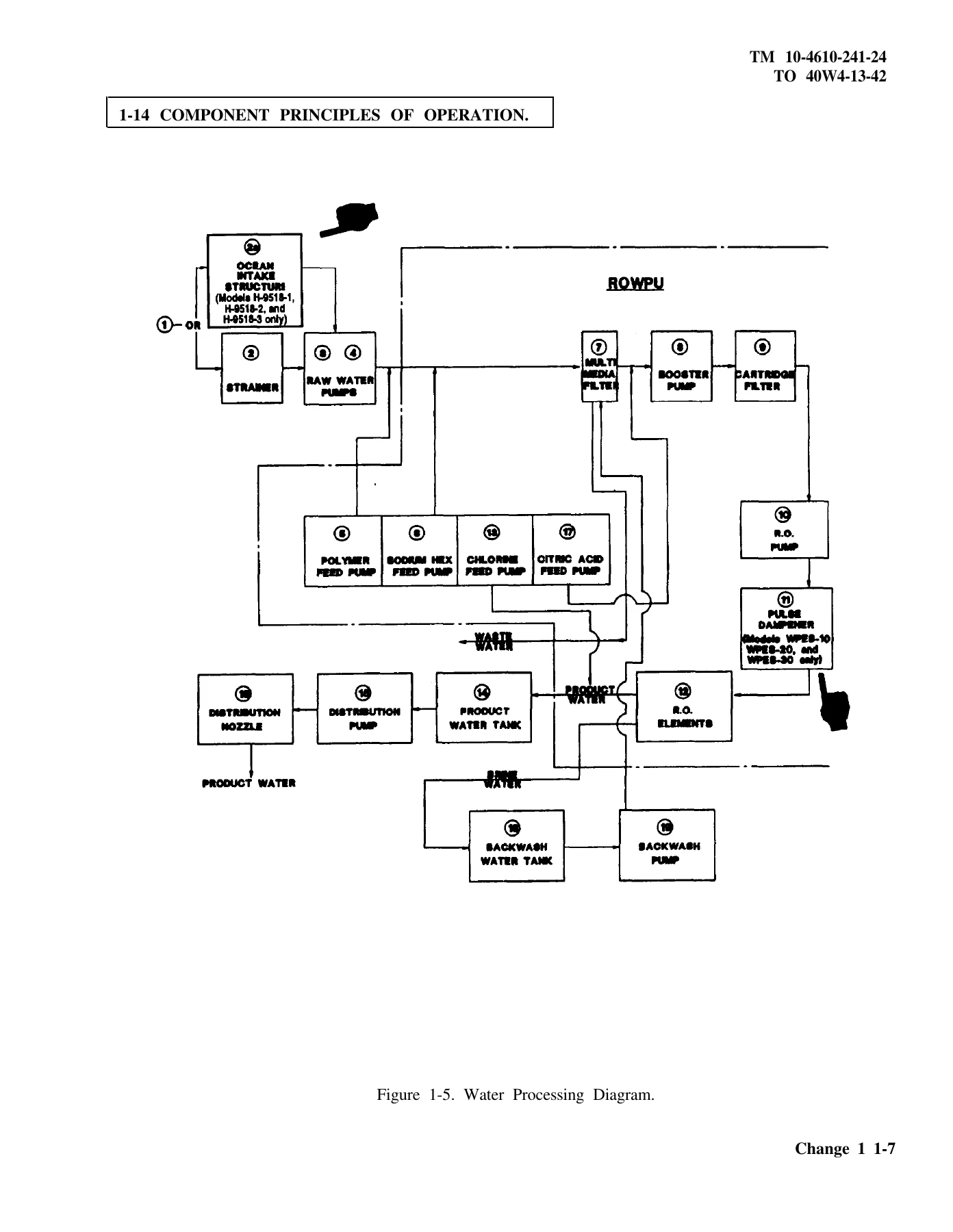

The manual’s Technical Principles of Operation section explains how the 600 GPH ROWPU purifies fresh, brackish, or salt water: raw water is drawn in through a strainer and raw water pumps, coagulated with polymer and filtered through a six-media multimedia filter, polished by a cartridge filter, then forced under high pressure by the R.O. pump through fiberglass R.O. pressure tubes containing the semi-permeable R.O. elements. Sodium hex and citric acid injection control scaling and pH (5.0-8.0) at the membranes, while chlorine is dosed into the finished product water. About 10 gallons of drinking water are produced for every 30 gallons of raw water processed, and the two 3,000-gallon collapsible product tanks and matching backwash tank are covered along with the distribution pump and nozzle used to fill containers.

IMAGES PREVIEW

Troubleshooting Coverage

The Unit Troubleshooting section of TM 10-4610-241-24 organizes malfunctions by assembly with a full Symptom Index, including the ROWPU assembly, piping installation (high-pressure relief valve, rupture disk, pressure gage indications), booster pump assembly, chemical feed pump assembly, R.O. pump assembly, distribution pump assembly, and raw water pump assemblies. Each symptom is tied to page-referenced diagnostic steps and corrective actions, so a technician working from a real fault – a pump that won’t prime, an abnormal differential pressure reading, an inoperable TDS monitor – can go straight to the right procedure instead of guessing.

Differences Between the WPES-10, WPES-20, and WPES-30

Because this single ROWPU maintenance manual serves three services, it clearly documents what separates the models: the Army’s WPES-10/H-9518-1 rides on a flatbed cargo trailer with an onboard 30KW generator and single power input; the Air Force’s WPES-20/H-9518-2 is skid-mounted with dual power input and two forklift pockets; and the Navy’s WPES-30/HJ-9518-3 is skid-mounted with four forklift pockets. Electrical wiring, R.O. element removal (front-only versus front/rear), and piping differences between the models are called out throughout the maintenance procedures wherever they apply.

Get Your ROWPU Running Right

With this WPES-10 WPES-20 WPES-30 600 GPH ROWPU maintenance manual in hand, you can perform preventive maintenance checks and services, diagnose pump, filter, and electrical faults, rebuild the backwash, raw water, distribution, booster, chemical feed, and R.O. pump assemblies, service the control and junction boxes, and correctly torque fasteners using the Appendix E torque limits and Appendix D illustrated parts references. Working from the same factory-authored maintenance manual keeps procedures, wiring, and torque specs correct instead of guessed at, which matters on a system running 115/208 VAC and high-pressure water lines. This 600 GPH Reverse Osmosis Water Purification Unit Maintenance Manual downloads instantly as a PDF after purchase – no shipping wait – so you can read it on a laptop, tablet, or phone, or print out just the pages you need for the shop.
