XCMG GR2605 Motor Grader Service Manual PDF

Description

XCMG GR2605 Motor Grader Service Manual

This is the English-language service manual for the XCMG GR2605 motor grader, a full-size machine rated at 194 kW (260 hp) with a standard operating weight of 19,000 kg. The document is structured to take a technician from system-level understanding through hands-on disassembly, adjustment, fault diagnosis, and scheduled maintenance. It covers every major assembly on the machine, from the hydraulic torque converter and powershift gearbox through to the blade, the working devices, the hydraulic and electrical systems, and the air conditioning system.

File Details

• Manual type: Service Manual
• Brand: XCMG
• Model: GR2605
• Language: English
• Pages: 311
• File format: PDF

Chapters Covered

• 1. Preface
  • 1.1 Safety precaution items (electrical, hydraulic, fuel, refrigerant, waste disposal)
  • 1.2 Standard bolt tightening torque values
  • 1.3 Conversion table
• 2. Overview

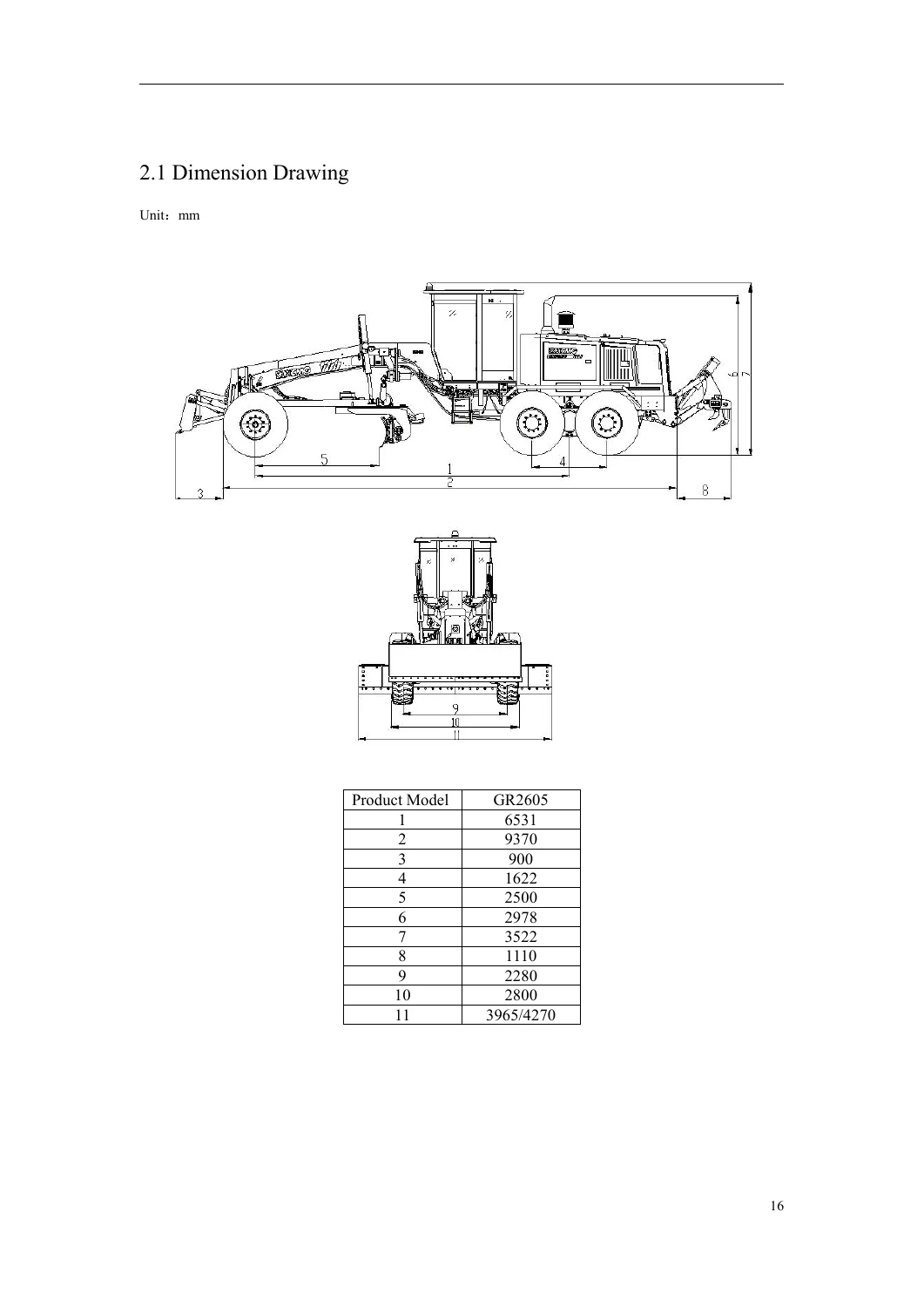

  • 2.1 Dimension drawing (all key dimensions tabulated for GR2605)
  • 2.2 Technical specification
  • 2.3 Fuel, coolant, and lubrication oil table
• 3. Structure and Function
  • 3.1 Overview; 3.2 Engine; 3.3 Drawing of powertrain
  • 3.4 Hydraulic gear box (torque converter, power transmission box, gearbox structure)
  • 3.5 Drive axle assembly; 3.6 Front axle assembly structure
  • 3.7 Structure of the working device; 3.8 Blade assembly structure
  • 3.9 Swing frame assembly; 3.10 Worm-gear case

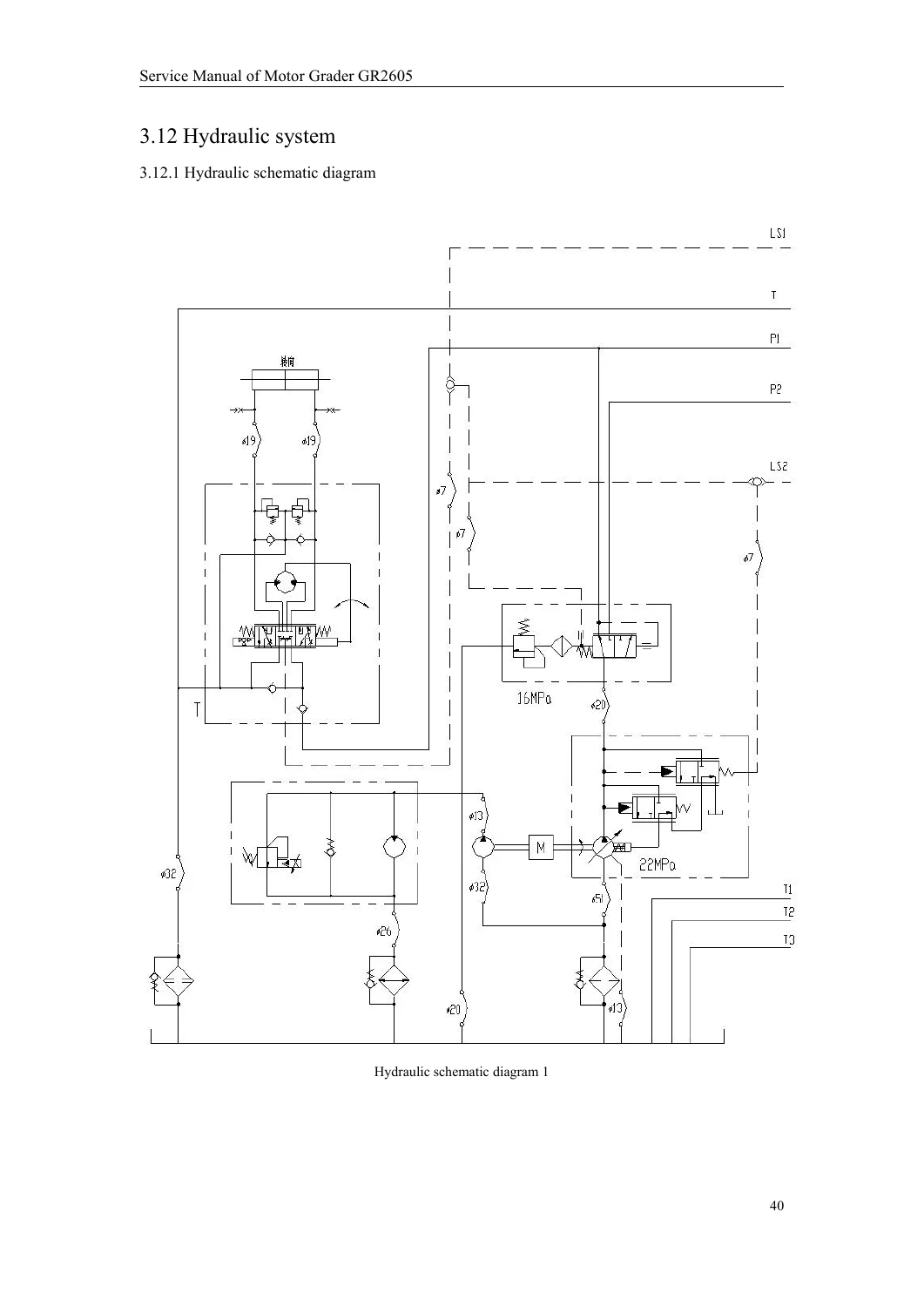

  • 3.11 Operating mechanism; 3.12 Hydraulic system (hydraulic schematics 1 and 2)
  • 3.13 Electric system; 3.14 Air conditioning system
• 4. Test and Adjustment
  • 4.2 Gearbox; 4.3 Rear axle; 4.4 Working devices
  • 4.5 Hydraulic system; 4.6 Front axle; 4.7 Tire; 4.8 Fault diagnosis
• 5. Assembly and Disassembly (50+ component groups, including):
  • 5.2 Articulated parts of front and rear frame
  • 5.3 Front ballast; 5.4 Front frame guard plate; 5.5 Front frame light support
  • 5.6 Blade swing cylinder; 5.7 Blade lift cylinder
  • 5.8 Cab base; 5.9 Rear frame articulating seat
  • 5.10 Tilting tie bar; 5.11 Steering tie rod
  • 5.12 Right inclined joint; 5.13 Right steering joint; 5.14 Front axle hub
  • 5.15 Front axle; 5.16 Cooling motor; 5.17 Center rotary body
  • 5.18 Left multi-way valve; 5.19 Right multiway valve
  • 5.20 Blade tip cylinder; 5.21 Blade induced cylinder; 5.22 Front wheel inclining cylinder
  • 5.23 Front wheel steering cylinder; 5.24 Fuel tank
  • 5.25 Turning circle and traction frame; 5.26 Worm-gear case
  • 5.29 Blade assembly; 5.30 Accumulator; 5.31 Parking accumulator
  • 5.32 Console; 5.33 Control box; 5.34 Brake valve
  • 5.35 Radiator; 5.36 Torque converter assembly; 5.37 Engine assembly
  • 5.38 Drive shaft; 5.39 Rear tire assembly; 5.40 Front tire assembly
  • 5.41 Rear axle assembly; 5.42 Storage battery
  • 5.43 Hood; 5.44 Cab; 5.45 Air conditioning
  • 5.46 Lower pendulum; 5.47 Fork; 5.48 Left and right pendulums
  • 5.49 Gear pump; 5.50 Piston pump; 5.51 Front wheel steering cylinder
  • 5.52 Steering gear; 5.53 Rear scarifier assembly
• 6. Maintenance
  • 6.1 Regular maintenance (as-needed, every 10 h/daily, 50 h, 100 h, 250 h, 500 h, 1000 h, 2000 h intervals)
  • 6.2 Maintenance operation procedures
  • 6.3 Table of oil types and brands

Across its 311 pages the XCMG GR2605 Service Manual gives a technician complete system-level coverage of the machine — powertrain architecture including the hydraulic torque converter and powershift transmission, full hydraulic circuit schematics, wiring and electrical system detail, and blade/working-device geometry. The Assembly and Disassembly section alone spans more than 50 named component groups, each with step-by-step procedures, so a workshop can confidently tackle everything from blade cylinder replacement to a full torque converter pull.

Key Technical Specifications

The GR2605 Service Manual documents the machine as equipped with a Cummins QSB6.7 engine producing 194 kW at 2200 RPM. The powertrain uses a hydraulic torque converter feeding a powershift gearbox with 6 forward speeds (5, 8, 11, 19, 26, 47 km/h) and 3 reverse speeds (5, 11, 26 km/h). The blade measures 3965 × 610 mm with a maximum lifting height of 480 mm, maximum scraping depth of 715 mm, a 360° angle of revolution, and a tilt angle of up to 90°. The machine’s minimum turning radius is 7.9 m and its maximum gradeability is ≥25%. Hydraulic system working pressure is 22 MPa; gear box pressure is 1.85–2.2 MPa; steering cylinder pressure is 16 MPa. Oil filling capacities: coolant 50 L, fuel tank 270 L, engine 24 L, gearbox 38 L, balance box 85 L each, drive axle 44 L, hydraulic system 190 L.

What This Manual Supports

The XCMG GR2605 Motor Grader Service Manual covers the full range of workshop tasks: gearbox hydraulic brake adjustment, rear axle teardown and reassembly, blade and working device calibration, hydraulic pressure testing and circuit diagnosis, electrical fault tracing, torque converter removal (including tooling specifications: Q0-1090, 2 × 1T*2m slings), and engine assembly removal. The fault diagnosis chapter provides systematic guidance for isolating root causes before committing to disassembly. Scheduled maintenance tables span eight service intervals from daily checks through 2000-hour major service. Delivery is instant — you receive a PDF download immediately after purchase, readable on any device and printable for workshop use.
