Xerox Phaser 3250 Service Manual – PDF DOWNLOAD

Description

Xerox Phaser 3250 Service Manual – Repair, Troubleshooting & Parts List PDF DOWNLOAD

Description

Product Overview Extend the lifespan of your office equipment with the complete Xerox Phaser 3250 Service Manual. This technical reference is designed for service technicians and advanced users, covering every aspect of the printer’s hardware and electronics. Whether you are diagnosing print quality issues or performing a complete Xerox 3250 fuser unit replacement, this manual provides the factory specifications and step-by-step procedures required.

The manual offers in-depth technical data, including Phaser 3250 main board schematics, wiring diagrams, and logic sequences for the printing process. It features a dedicated section for troubleshooting Phaser 3250 error codes, helping you quickly identify LED status messages and paper jam locations. The detailed parts catalog ensures you can identify and order the correct replacement components, from rollers to solenoids.

Key Features:

• Mechanical Repair: Illustrated step-by-step guides for removing and replacing covers, the Laser Scanning Unit (LSU), Fuser, and Drive Units.

• Diagnostic Logic: Comprehensive charts for resolving image quality defects, power failures, and media feed issues.

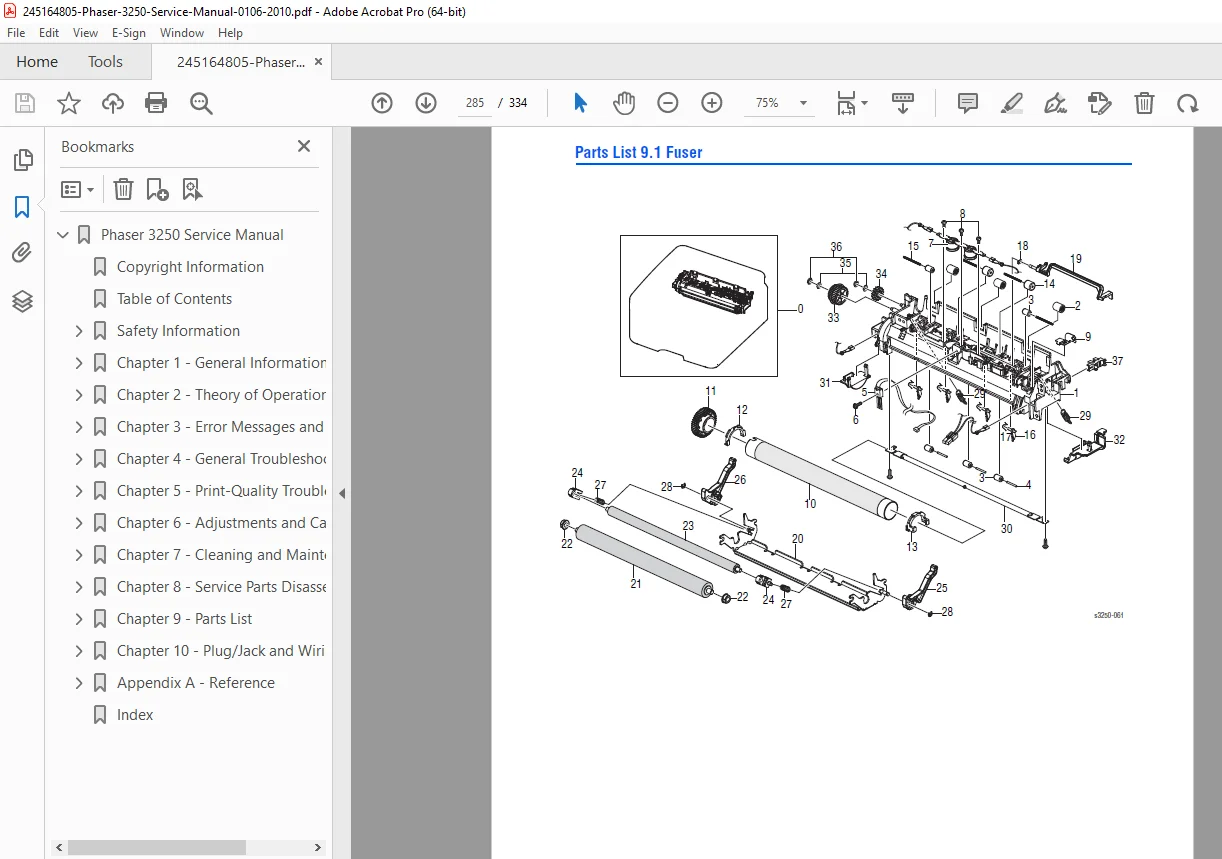

• Parts Identification: Full exploded view diagrams with part numbers for precise ordering.

• System Diagrams: Block diagrams and connection maps to trace electrical faults.

Table of Contents & Categorized Index:

• 1. General

  • Product Specifications (Speed, Resolution, Acoustic Noise)

  • System Overview & Parts Component

  • Consumable Life Expectancy

• 2. Theory of Operation

  • Engine Control (Feed, Transfer, Fusing, Exit)

  • LSU (Laser Scanning Unit) Logic

  • Input/Output System & Sensors

• 3. Error Codes & Troubleshooting

  • Troubleshooting Phaser 3250 error codes (LED Status & Monitor Errors)

  • Paper Jam Diagnosis (Feed, Fuser, Exit)

  • Image Quality Troubleshooting (Vertical lines, Ghosting, Background)

• 4. Alignment & Adjustment

  • Altitude Setting Adjustment

  • Paper Path Test & Clearing Memory

  • Periodic Defective Image check

• 5. Disassembly and Reassembly

  • Xerox Phaser 3250 disassembly instructions

  • Housing Removal (Front, Rear, Top covers)

  • Fuser Unit & Exit Roller Removal

  • LSU & Fan Removal

  • Main Drive Assembly & Solenoids

  • Engine Shield & HVPS Board

• 6. Parts List (Exploded Views)

  • Main Assembly

  • Frame Base & Drive System

  • Fuser Unit Components

  • Cassette & Feeder Assemblies

• 7. Wiring Diagrams

  • Block Diagrams

  • Connection Wiring Diagrams

File Details

• Manual Name: Xerox Phaser 3250 Laser Printer Service Manual

• Models Covered: Xerox Phaser 3250, 3250D, 3250DN

• Year: 2010 (Revision)

• File Quality: High-Quality PDF (Text Searchable, Vector Illustrations)

• No. of Pages: ~334
