Xerox WorkCentre 5945/5955 Service & Repair Manual – Troubleshooting & Parts

Description

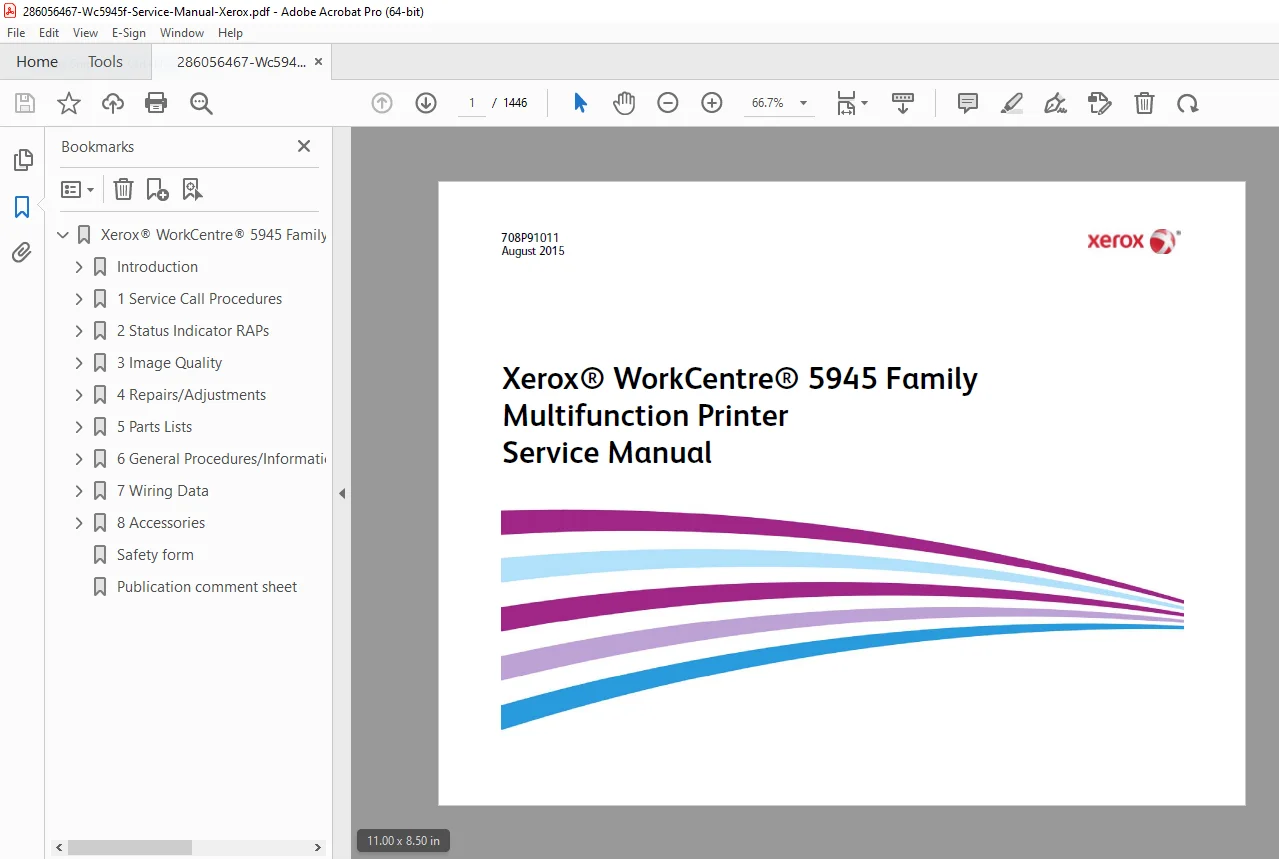

Xerox WorkCentre 5945/5955 Service & Repair Manual – Troubleshooting & Parts PDF DOWNLOAD

Description

The Xerox WorkCentre 5945 Family Service Manual is the complete official technical guide for certified technicians servicing the Xerox WorkCentre 5945 and WorkCentre 5955 multifunction printer systems. This manual provides every diagnostic, repair, maintenance, and adjustment procedure used by product-trained Xerox engineers.

It includes the full WorkCentre 5955 Repair Analysis Procedures (RAPs), helping technicians diagnose and isolate hardware and electronic issues efficiently. For hardware failures, it functions as a complete Xerox WorkCentre 5945 Fuser Replacement Guide, with step-by-step removal, inspection, and adjustment instructions found in Section 4.

This professional WorkCentre 5945/5955 Printer Maintenance Guide contains detailed mechanical, electrical, and software troubleshooting data—especially the comprehensive Troubleshooting Xerox 5945 Status Indicator RAPs (Section 2), which cover all non-image-quality faults. It also includes image quality diagnostics, adjustments, wiring diagrams, and a fully illustrated Xerox WorkCentre 5945 Family Parts List (Section 5).

Engineered for quick reference, this manual offers deep technical coverage across the complete printer architecture, ensuring fast repairs, minimal downtime, and accurate maintenance.

Manual Organization & Contents

Introduction

• About This Manual

• How To Use This Manual

• Remote Control Panel

• Change History

• Mod/Tag Identification

• Voltages, Resistances & Tolerances

• Safety Information

• Health & Safety Incident Reporting

• Translation of Warnings

Section 1 — Service Call Procedures

• Starting and completing a service call

• Routing to the correct RAP

• Identifying faulty modules and sub-assemblies

Section 2 — Status Indicator Repair Analysis Procedures

• Status Indicator RAPs

• System checkouts and diagnostics

• Fault isolation for all non-image-quality issues

Section 3 — Image Quality

• Image Quality RAPs

• IQ diagnostics and checkouts

• Setup procedures

• Resolving image-quality faults

Section 4 — Repairs / Adjustments

• Removal, replacement, and adjustments for all assemblies

• Fuser replacement

• Xerographic module procedures

• Scanner, paper path, and feeder repairs

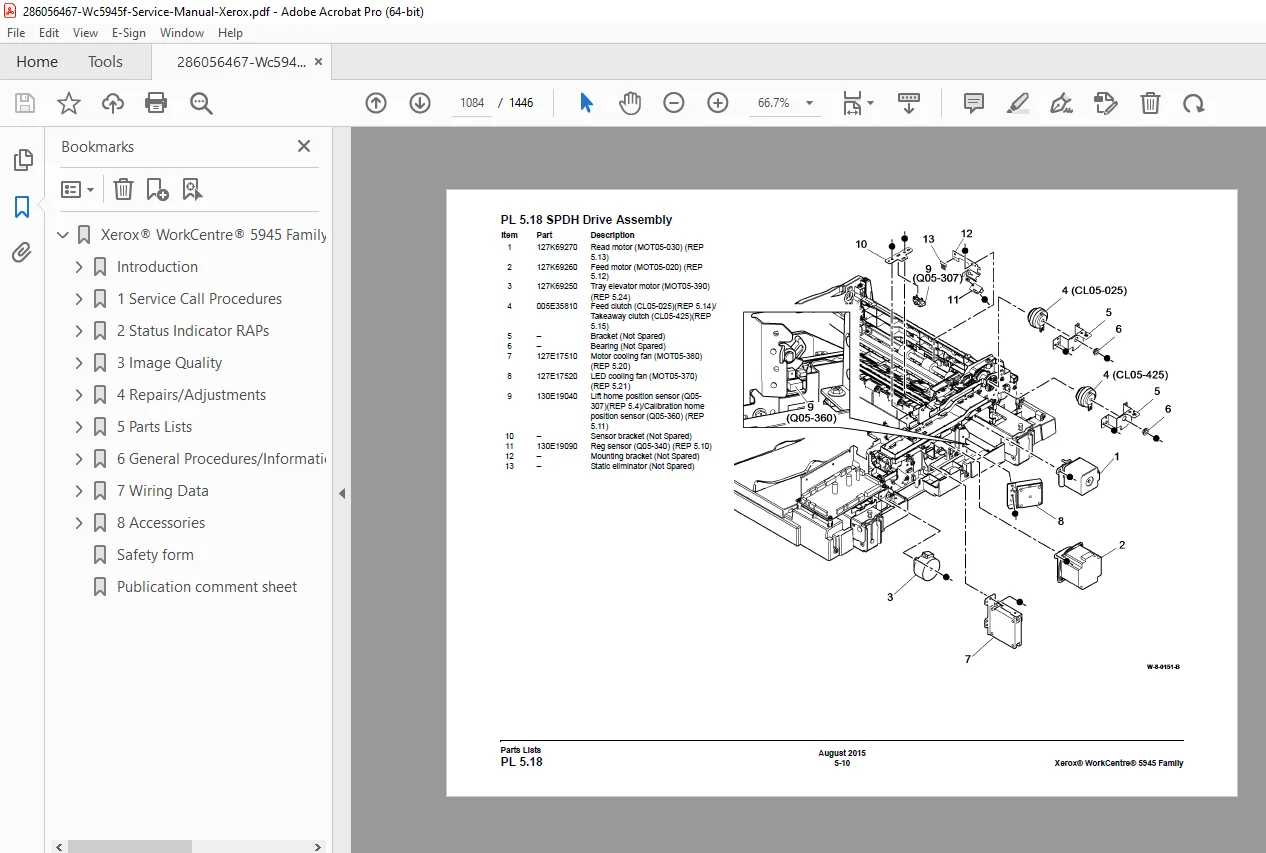

Section 5 — Parts List

• Fully illustrated spare parts list

• Exploded diagrams

• Access-dependent parts

• Component identifiers

Section 6 — General Procedures / Information

• All miscellaneous procedures

• Product specifications

• General technical data

• MOD/TAG reference information

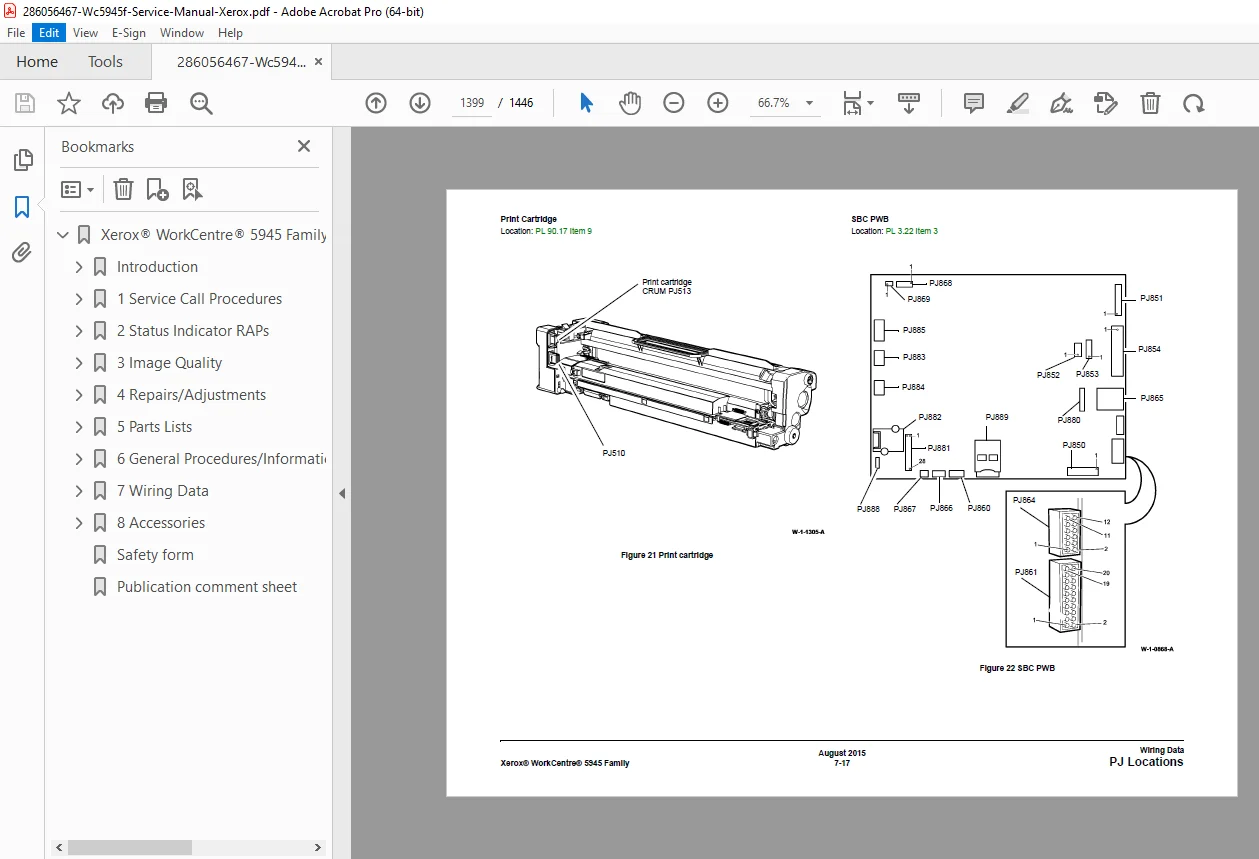

Section 7 — Wiring Data

• PJ connector locations

• Complete wiring diagrams

• Detailed electrical routing charts

Section 8 — Accessories

• Office Finisher (2K LCSS)

• LVF Booklet Maker Finisher

• Hole Punch Kits

• Workshelf

• Fax Options

• Wireless Print Accessories

🔧 Key Procedures & Technical Highlights

High Frequency Service Items (HFSI)

• Toner cartridges

• Fuser modules

• Transfer components

• Feed rollers

Lubrication & Cleaning

• Xerographics section cleaning

• Scanner glass care

• Mechanical lubrication schedules

Configuration Options Covered

• Finisher & Booklet Maker

• Hole punch modules

• Fax boards

• Wireless printing kits
