Yale ERC80VH ERC100VH ERC100VHS Electric Forklift Parts Manual 550053502 PDF

Description

Yale ERC80VH ERC100VH ERC100VHS Electric Forklift Parts Manual 550053502

This Yale ERC80VH ERC100VH ERC100VHS parts manual is the illustrated replacement-parts catalog for the ERC-series electric sit-down rider cushion-tire lift trucks. It is publication 550053502, dated 04/2022, and runs to 630 pages arranged across fourteen numbered sections. Every figure in the book pairs a numbered illustration with a parts list giving the part number, description and quantity required, so a counterweight cover, a wet-brake axle shaft or a three-stage mast chain can all be traced to the correct number before an order is placed.

File Details

• Manual type: Parts Manual (service replacement parts catalog)
• Brand / publisher: Yale Materials Handling Corporation, Greenville, NC
• Models covered: ERC80VH, ERC100VH, ERC100VHS (ERC80-100VHS and ERC100-120VH series designations)
• Publication number: 550053502
• Date: 04/2022
• Language: English
• Page count: 630
• File format: PDF

Related publications listed in the manual itself are the Operating Manual 550053473 and the complete Service Manual 550053510, which covers service and overhaul procedures rather than part identification.

Chapters Covered

• 1 General Truck — counterweight and cover, overhead guard (standard and flat), hood variants, seats and seat attaching parts, full suspension seat, armrest slider assembly, battery compartment and covers (horizontal and vertical battery removal versions), dash and steering column covers, floorplates and steps, fenders, drip shield and static strap, operator module, nameplates and labels
• 2 Electrical System — electrical arrangement, battery connector, power cables, control panels and contactors, contactor and fuse assembly, contactor assembly UL-E and UL-EE, controller assembly (pump, traction, pump and traction combined), display group and harness, lights, mini-lever controls (3 and 4 function), traction speed limiter, vehicle system manager, impact sensor, wire harnesses for manual-hydraulic and electro-hydraulic trucks, emergency disconnect, seat harnesses, steering column and synchronous steering harnesses
• 3 Drive Unit — drive axle and attaching parts, drive axle assembly with wet brake right and left hand hubs, brakes and differential, input pinion carrier, differential assembly, traction motor, drive tire and wheel for ERC100-120VH and ERC80VH-100VHS
• 4 Steering System — steer axle without sensor, steer axle cylinder, steer pump assembly (both the earlier and the 11/2014-onward unit), steer tire and wheel, steering accumulator, steering column assembly in fixed and telescopic versions, steering wheel and column
• 5 Brake System — brake system layout, brake assembly, parking brake valve, master cylinder, accelerator pedal assembly in standard and foot directional control versions
• 6 Hydraulic System — hydraulic supply and return, hydraulic tank and attaching parts, steering hoses, hydraulic pump and motor mounting (wet spline drive 29 cc and 33 cc), hydraulic pump, hydraulic motor assembly, manual control levers, hydraulic control valve and fittings, hydraulic control valve assembly, lift/tilt/auxiliary valve sections, inlet sections for manual and electro-hydraulic, position sensor kit, tilt cylinder and attaching parts
• 7 Mast — Two Stage Limited Free-Lift — outer mast, inner mast, main lift, main lift cylinder (ERC80VH and ERC100-120VH/ERC100VHS)
• 8 Mast — Three Stage Full Free-Lift — outer mast, intermediate mast, inner mast, main lift, main lift cylinder, free-lift, free-lift cylinder
• 9 Mast — Two Stage Full Free-Lift — outer mast and main lift, inner mast and free-lift, main lift cylinder (left and right hand), free-lift cylinder
• 10 Attachments and Header Hose Group — load back rest extension, forks (standard taper, polished, optional latch, lever latch), carriage for two stage limited free-lift, three stage full free-lift and two stage full free-lift, integral side-shift assembly and integral side-shift carriage in Class III and Class IV, header hose, auxiliary tube extensions
• 11 Options — accumulator, back-up alarm, mirrors and panoramic mirror, fire extinguisher, rear drive handle, DC converter primary and auxiliary, tail light mounting, auxiliary keyswitch, impact sensor, interface front/rear lights and front switch harnesses
• 12 Field Conversion Kits — add-on option kits, light kits, back-up alarm kits, telemetry kits, hydraulic control conversion kits, seat belt extension and miscellaneous conversion kits, repair kits
• 13 Numerical Index — complete numeric part number listing with page and item references
• 14 User Support Information — service parts ordering instructions, technical service publications, operator training, service training courses and materials

Across those sections the manual supplies the full replacement-parts picture for these trucks: general truck bodywork and operator station, the complete electrical architecture including controllers, contactors, displays and every harness variant by build date, the wet-brake drive axle down to individual bearings and seals, the steering axle and column, the brake and accelerator pedal assemblies, the entire hydraulic circuit from tank through pump and valve sections to the tilt cylinders, four distinct mast configurations with their cylinders and chains, and the carriage, fork and side-shift attachments that bolt onto them.

Decoding the Model Code Before You Order

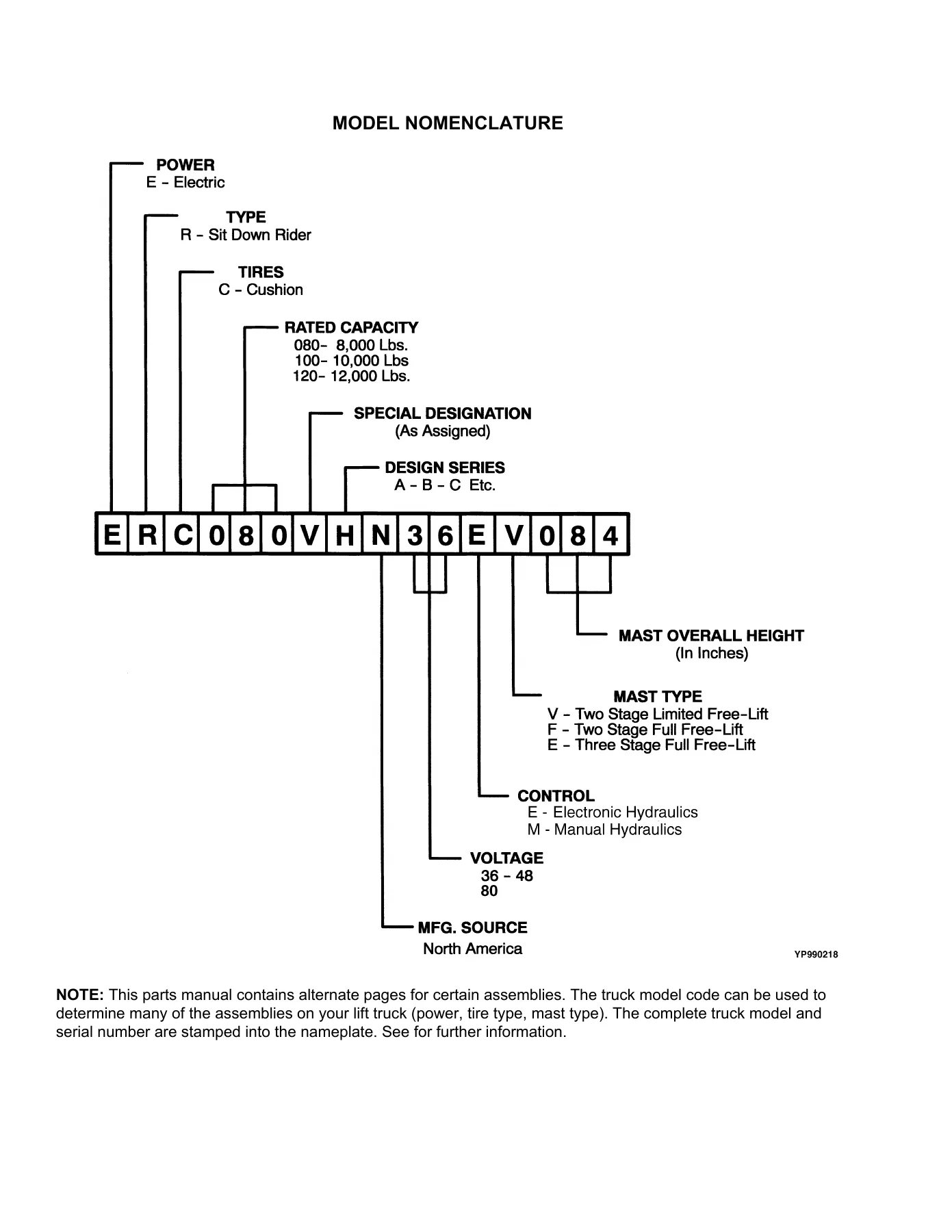

The manual opens with a nomenclature chart that breaks the truck model number into its component parts. E stands for Electric, R for Sit Down Rider and C for Cushion tires. Rated capacity is given as 080, 100 or 120 for 8,000, 10,000 and 12,000 lbs respectively. Further positions identify the special designation, design series (A, B, C and so on), mast overall height in inches, mast type, control type, voltage and manufacturing source. Reading this chart against your own truck’s model number is the quickest way to confirm which assembly variations apply before you search the figures.

How the Parts Listings Are Organized

Each figure is keyed so that two or more similar assemblies, or right and left hand parts, can be distinguished without guesswork. A key letter selects the correct column and quantity. A part that is not used in a given assembly is marked with two periods, while five periods in the part number column signal that the item is either not serviced separately or is cross-referenced to another figure. Indented descriptions show subparts belonging to a parent assembly, and quantities are given for one assembly, so a bearing cap listed as two means two per assembly, not two per truck.

Superseded part numbers appear in the list in the order they were replaced, with the older numbers struck through, which makes it possible to identify whether a number you already have on the shelf has been updated. Where a change took effect at a particular machine, the manual shows it as a serial number break, a date break or a pending serial number tied to an Engineering Change Notice. The serial number format itself is explained, including how the final letter encodes the year of manufacture, so a break such as S/N A938N02880S can be matched against your own truck’s plate.

Masts, Carriages, Forks and Attachments

The mast sections are organised by mast group number and by lift height to the bottom of the forks, with separate columns for each height variant. That structure matters because chain, hose assembly and cylinder part numbers change with lift height even when the mast series stays the same. Section 10 does the same for carriages and forks, splitting by carriage class and by integral side-shift versus standard carriage, and listing the wear strips, load rollers, thrust bearings, chain anchors and shim packs that keep a carriage running true.

Options and Field Conversion Kits

Section 11 covers factory and dealer-fit options with the same part-level detail as the rest of the book, and Section 12 lists the field conversion kits by kit part number, including hydraulic valve conversions between three and four function arrangements, light kits, telemetry kits and hydraulic control conversion kits. Where a conversion kit requires software configuration, the manual states that the file must be obtained by the dealer.

Get the Correct Part the First Time

With this Yale ERC80VH ERC100VH ERC100VHS parts manual open, a technician or parts counter can identify the exact replacement for a failed component, confirm whether a part number has been superseded, check which build-date variant of a harness, axle or valve applies to a specific truck, and assemble a complete order without a second trip to the machine. Getting the number right matters more than usual on these trucks, because several assemblies — battery compartments, drive axles, wire harnesses, masts and side-shift carriages — exist in multiple versions split by serial number, date break or mast series, and ordering the wrong variant means a part that will not fit.

IMAGES PREVIEW

The file is delivered as an instant PDF download once payment clears. There is no shipping and no waiting for a printed book to arrive. The manual opens on a phone, tablet, laptop or desktop, and any figure or parts page can be printed for the workshop bench or the parts counter, so the illustration and its parts list stay in front of whoever is doing the work.
