Yale Forklift MS14 MS16 MS14 MS16 (C852) Parts Manual 524336822 PDF
$26.95
Yale Forklift MS14 MS16 MS14 MS16 (C852) Parts Manual 524336822 – PDF DOWNLOAD
Description
Yale Forklift MS14 MS16 MS14 MS16 (C852) Parts Manual 524336822 – PDF DOWNLOAD
FILE DETAILS:
Yale Forklift MS14 MS16 MS14 MS16 (C852) Parts Manual 524336822 – PDF DOWNLOAD
Language : English
Pages : 114
Downloadable : Yes
File Type : PDF

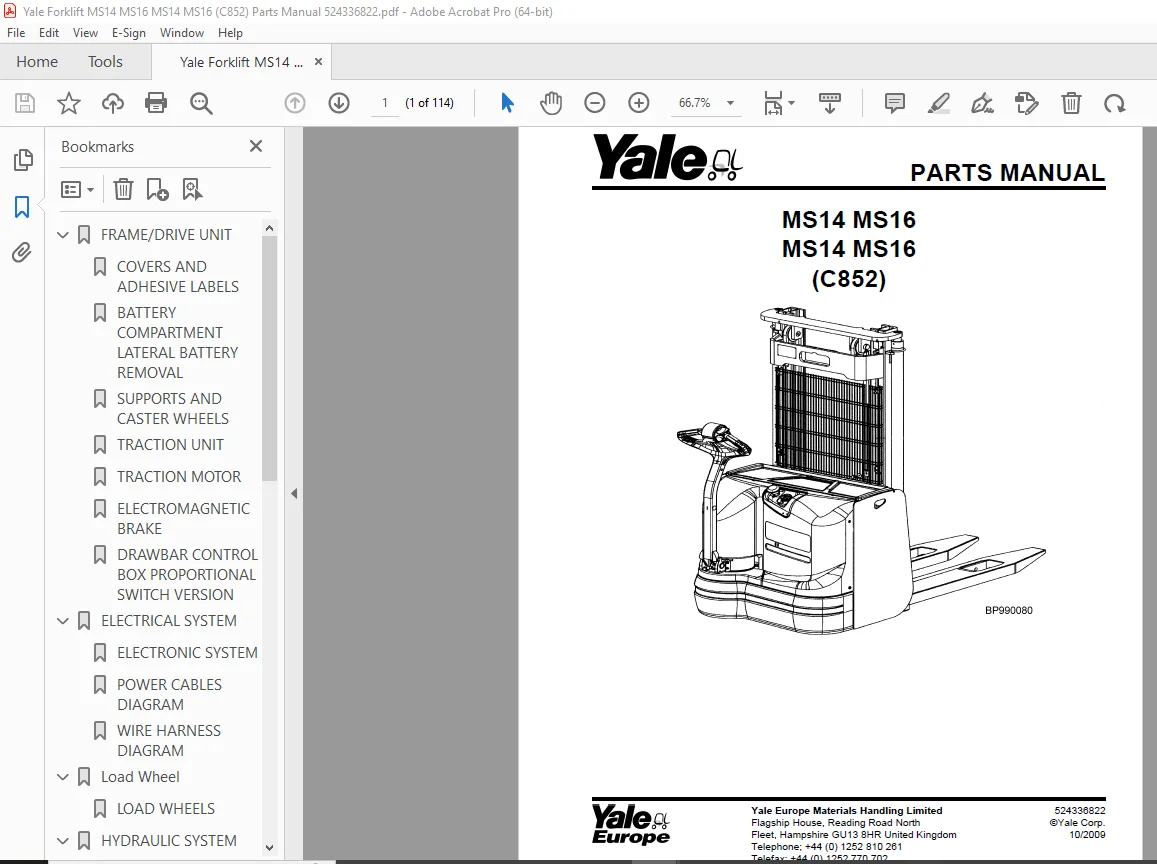

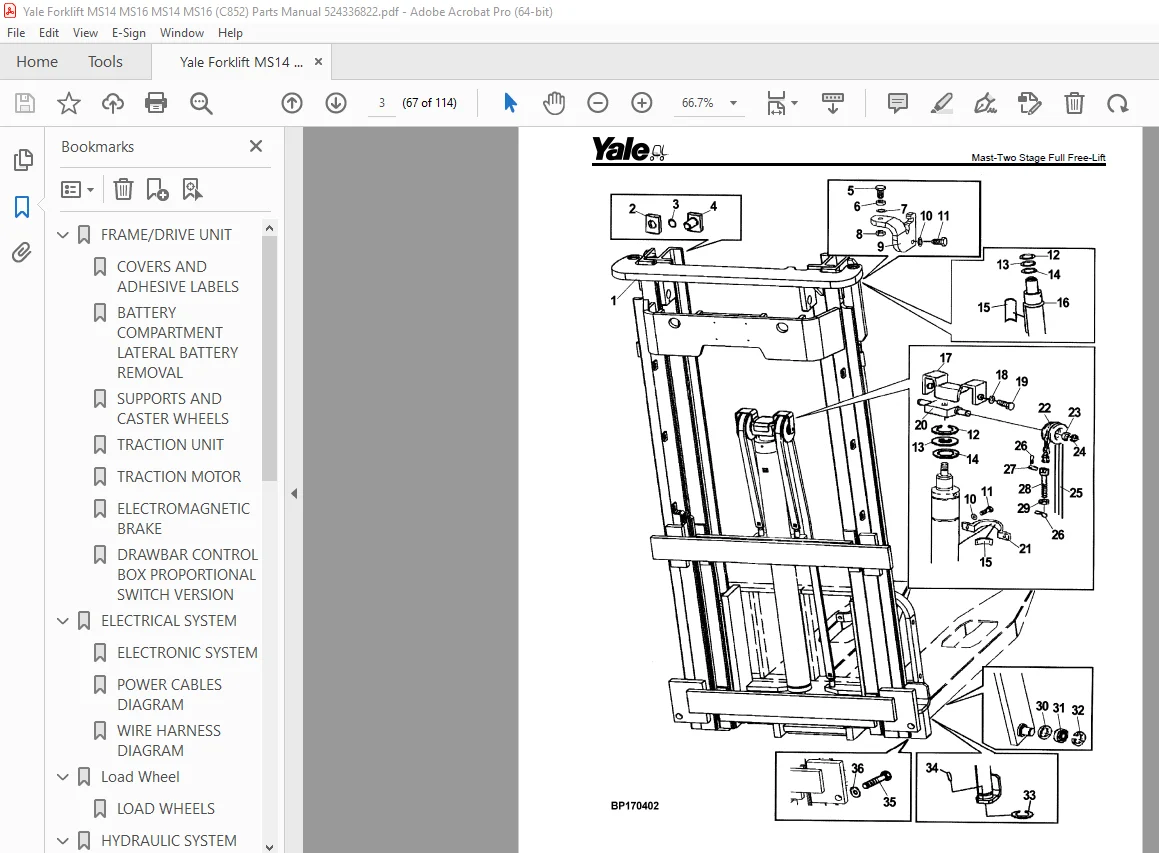

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Yale Forklift MS14 MS16 MS14 MS16 (C852) Parts Manual 524336822 – PDF DOWNLOAD
FRAME/DRIVE UNIT 13
COVERS AND ADHESIVE LABELS 16
BATTERY COMPARTMENT LATERAL BATTERY REMOVAL 20
SUPPORTS AND CASTER WHEELS 24
TRACTION UNIT 26
TRACTION MOTOR 28
ELECTROMAGNETIC BRAKE 30
DRAWBAR CONTROL BOX PROPORTIONAL SWITCH VERSION 32
ELECTRICAL SYSTEM 35
ELECTRONIC SYSTEM 38
POWER CABLES DIAGRAM 40
WIRE HARNESS DIAGRAM 42
Load Wheel 45
LOAD WHEELS 48
HYDRAULIC SYSTEM 51
DISTRIBUTOR 54
HYDRAULIC SYSTEM 56
HYDRAULIC CYLINDER 2 STAGE HI-VI 58
HYDRAULIC CYLINDER 2 STAGE FFL 59
HYDRAULIC CYLINDER 3 STAGE 60
Mast-Two Stage Full Free-Lift 63
MAST 2 STAGE FFL 66
MAST 2 STAGE HI VI 70
FORK 2 STAGE FFL 72
FORK 2 STAGE HI VI 74
WIRE NET 76
Mast-Three Stage Full Free-Lift 79
MAST 3 STAGE FFL 82
FORK 3 STAGE FFL 86
WIRE NET 88
OPTIONS 91
BATTERY ROLLER TRUCK 94
LEXAN GUARD 2 STAGE HI-VI 96
LEXAN GUARD 2 STAGE FFL 98
LEXAN GUARD 3 STAGE FFL 100
NUMERICAL INDEX 103
USER SUPPORT INFORMATION 109
