Description

Yale GP/GLP/GTP15-35AK, RK, TK Optional Parts Manual — 5500956-00

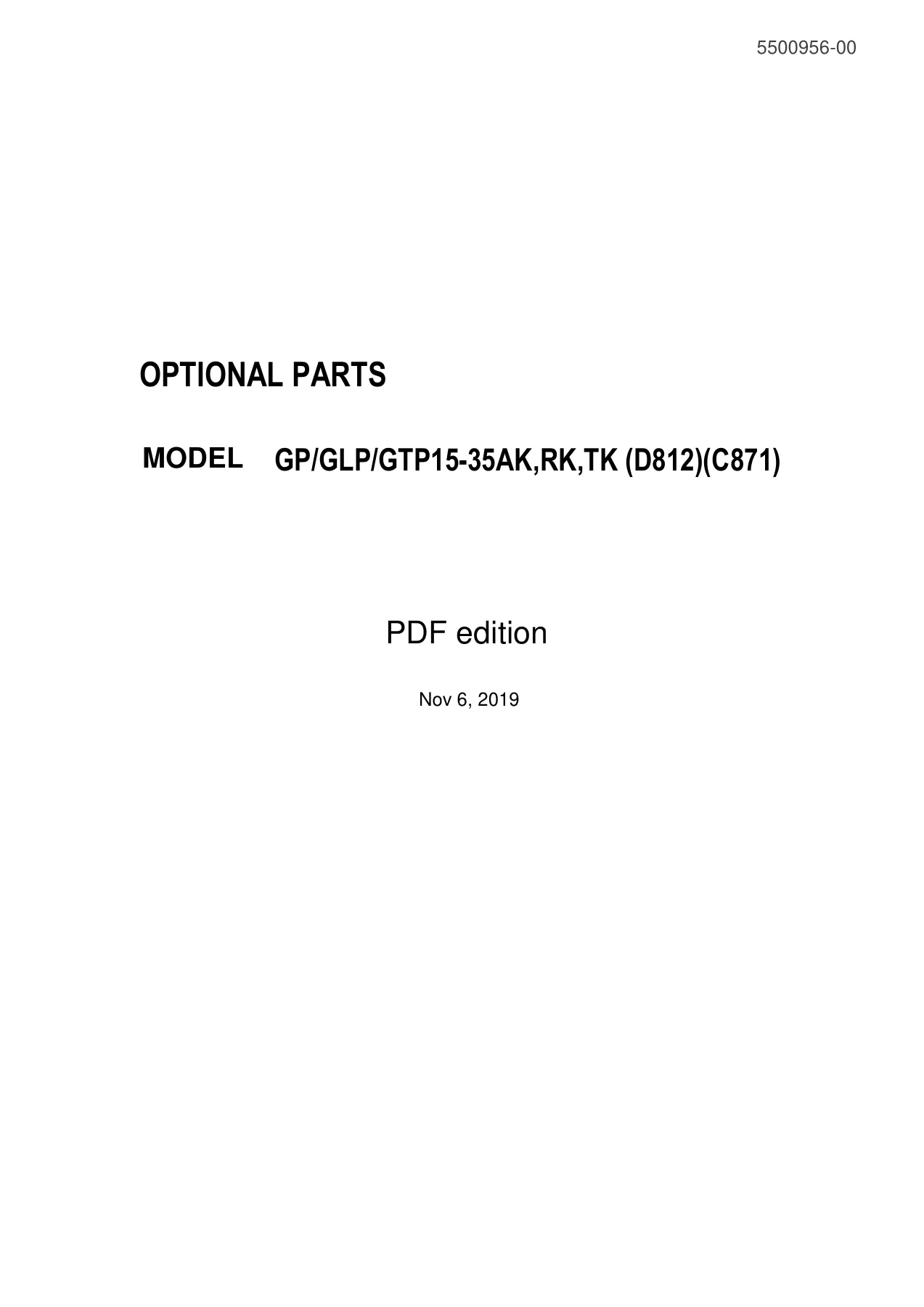

This PDF edition of the Yale GP/GLP/GTP15-35AK, RK, TK Optional Parts Manual is the complete reference for identifying and ordering optional equipment components on these forklift trucks. Published November 6, 2019 under document number 5500956-00, the manual carries the model designation GP/GLP/GTP15-35AK, RK, TK (D812)(C871) and covers the full range of factory optional parts groups.

The PDF edition is generated automatically by the Application Program and is provided for users who have difficulty accessing TRD direct access. It contains the same illustrated parts breakdowns and part number tables used by authorized Yale dealers when ordering optional service parts. Every section pairs exploded-view illustrations with itemized part number listings, so you can visually locate a component and cross-reference its exact part number before placing an order.

File Details

• Manual Type: Optional Parts Manual (PDF edition)
• Brand: Yale
• Model: GP/GLP/GTP15-35AK, RK, TK (D812)(C871)
• Document Number: 5500956-00
• Edition Date: Nov 6, 2019
• Language: English
• Page Count: 336
• File Format: PDF

Chapters Covered

The manual is organized into the following top-level optional parts groups, each with illustrated breakdowns and part number tables:

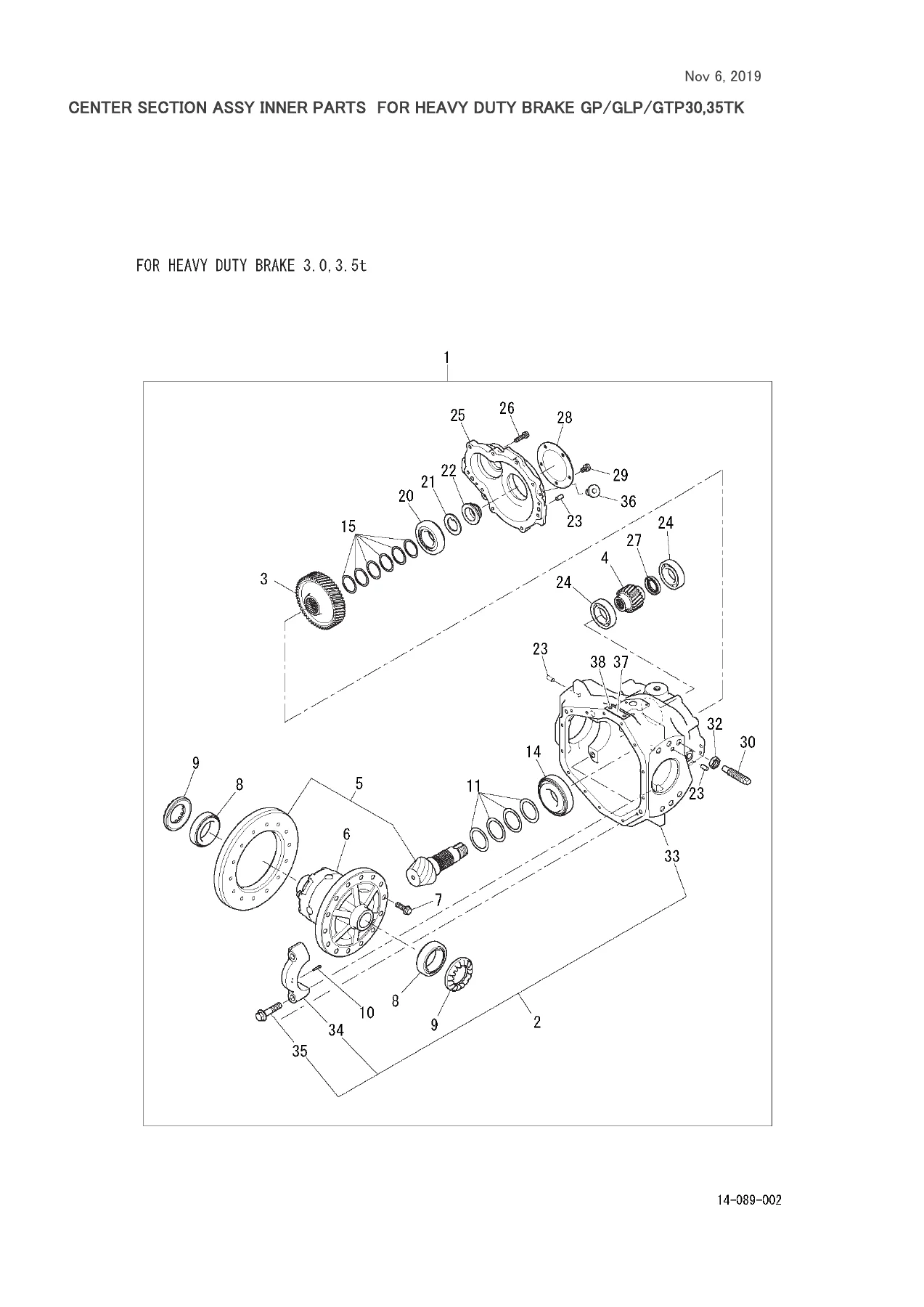

• 1.01 Option — Drive Unit: Drive axle assemblies for heavy-duty brake GP/GLP/GTP30,35TK; center section assemblies; differential assemblies; brake line groups for FDC pedal; high mount air breathers; drive tires (single, wide, dual) in sizes 6.00-9, 21×8-9, 6.50-10, 7.00-12, 28×9-15/250-15-16, and 6.00-15.
• 1.02 Option — Steering System: Steer linkage for R.H. shift and FDC pedal; combination lever assemblies and inner parts; stop lamp switch; steer tires 5.00-8, 18×7-8, 6.00-9, and 6.50-10; power steering cylinder boots.

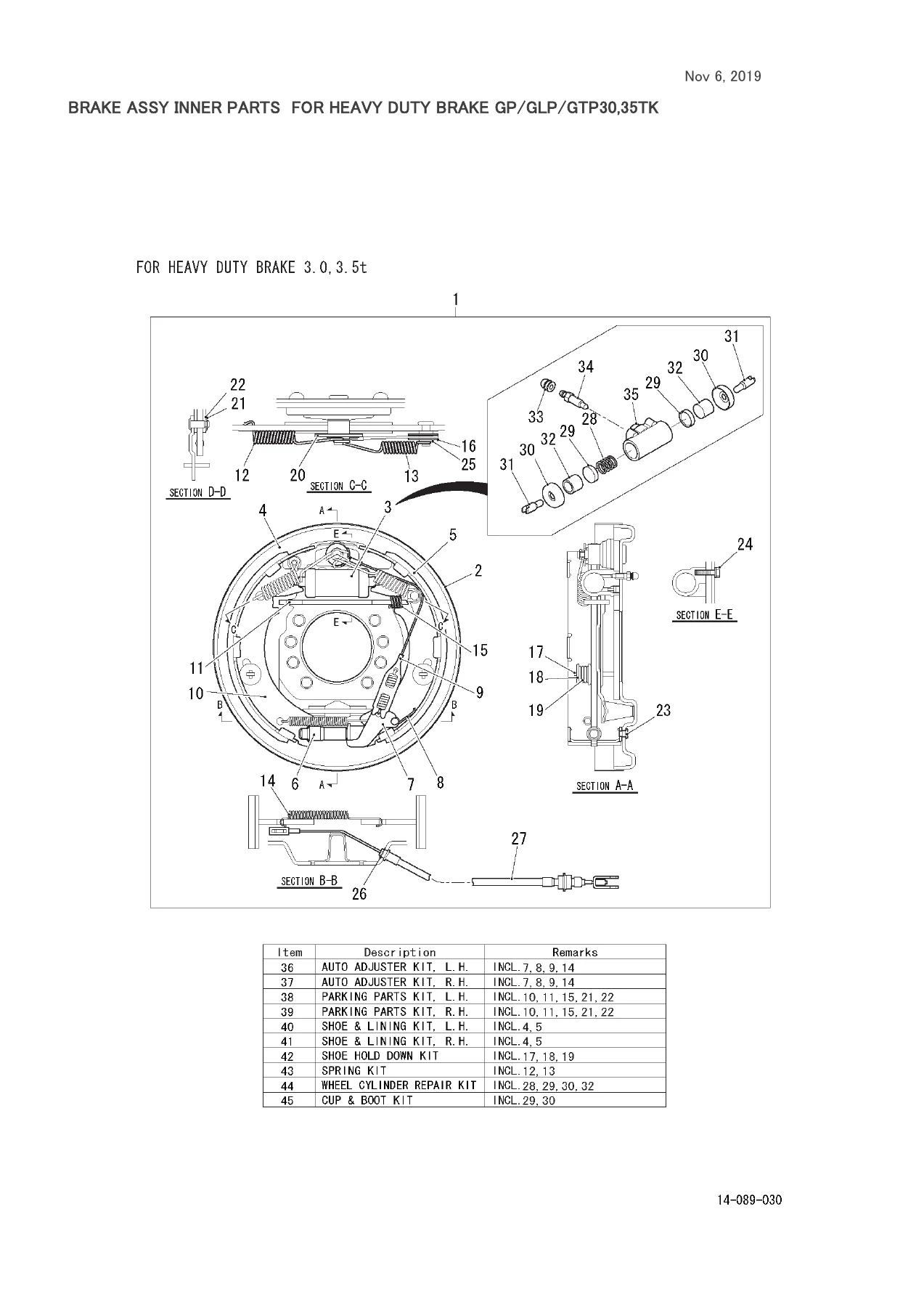

• 1.03 Option — Brake System: Single and separate inching brake pedals; brake pedal assemblies; master cylinder assemblies and inner parts; brake assembly inner parts for heavy-duty brake GP/GLP/GTP30,35TK including auto adjuster kits, parking parts kits, shoe and lining kits, spring kits, wheel cylinder repair kits, and cup and boot kits.
• 1.04 Option — Frame and Body: FDC pedal covers and floor plates; cover top and mirror; canvas cabin; over fenders for single, wide, and dual tires; front glass with wiper and window washer; decals and labels; LPG tank bracket decals; non-suspension seat assemblies (to 2016.12 and from 2017.1); suspension seat assemblies; seat assemblies with belt interlock; counterweight cover.
• 1.05 Option — Hydraulic System: Control valve and lever assemblies; control valve assemblies non-ISO and ISO with and without interlock (2, 3, and 4 spool); spool section assemblies for lift, tilt, and attachment (with and without interlock); port relief valves; plug for valve; seal kits and lip seal kits.
• 1.06 Option — Electrical System: Lights group; lamp assembly inner parts; LED headlights; LED rear combi lights; rear working lamp; rotating flasher beacon; back buzzer and back buzzer with volume change switch; load weight gauge; rear handle; speed meter; battery disconnect device; battery group (55D23L/80D26L); wire harnesses for NEM GAS, NEM LPG, NEM DUAL, and EM; speed limiter; LPG fuel pressure alarm; return to vertical tilt system.
• 2.00 Option — LPG & Dual Fuel System & Relative Parts: LPG tanks; LPG connecting tank stop valve; LPG connecting quick couplings (hose L=500 and hose L=710 for Thailand); LPG tank brackets for various configurations (with canvas cabin, Brazil, Thailand large and small diameter bottles, Australia); fuel system dual NEM for Australia; converter assembly; solenoid I/P converter assembly; LPG connecting quick couplings for Australia with and without relief valve.
• 3.00 Option — Engine Relative Parts: Vertical exhaust system NEM; vertical exhaust system EM for Australia; special muffler (GS); horizontal exhaust system; exhaust system catalytic converter; throttle pedal linkage FDC pedal; air intake dual element; air intake pre-cleaner; anti-clog cooling system; large capacity cooling system; cooling duct cover for optional cooling system; air cleaner tandem.
• 4.00 Option — Kit: 1 to 2 inching brake pedal conversion kit; 2 to 1 inching brake pedal conversion kit; valve kit 2 to 3 function; valve kit 2 to 4 function; valve kit 3 to 4 function; FDC to shift lever conversion kit; FDC to shift lever conversion kit EM; accel assembly EM; shift lever to FDC conversion kit NEM; shift lever to FDC conversion kit EM.
• 5.00 Option — Mast Relative Parts: Boot tilt cylinder; pin tilt lubrication; dust proof mast pin.
• 6.00 Option — Other: Earth belt for color tire; fire extinguisher; tool set; special tools including pulley puller, engine attachment, base-engine assembly, crankshaft main bearing cap puller, valve lifter, oil seal drifts, EGI fuel pressure indicator, heated oxygen sensor wrench, diagnosis kit, and adapters.

Each section follows the same parts-list format: an item number, part number, description, quantity, and remarks column that notes the applying model, successive changes, and specifications. The abbreviation key in the front matter decodes terms such as W/ (with), W/O (without), NSS (not supplied separately), NA (no longer available), INCL (including), AR (as required), GAS, DUAL, LPG, INT., EXH., SW., SP., STD, R.H., L.H., CYL., T, L, EM (electronic controlled engine), and NEM (non-electronic controlled engine).

This manual is a working parts catalog, not a repair guide. It enables a technician or parts counter person to visually identify every optional component on a given truck and order the correct part number the first time. The exploded views show the relationship between assemblies and their sub-components, and the part number tables list the exact quantities required. Sections are also indexed by part number at the back of the PDF, so a known part number can be traced to its illustration page.

Who This Manual Is For

This Yale GP/GLP/GTP15-35AK, RK, TK optional parts manual is intended for forklift owners, fleet maintenance departments, parts managers, and independent technicians who need to maintain or repair the optional equipment on these trucks. It is particularly useful when a machine is fitted with factory options that are not covered by the standard parts manual — over fenders, canvas cabins, LPG tank brackets, seat belt interlocks, LED lighting, cooling system upgrades, and conversion kits.

Because the manual covers AK, RK, and TK configurations across the 15, 18, 20, 25, 30, and 35 capacity classes, it serves the entire GP/GLP/GTP range under one document. The D812 and C871 designations identify the applicable truck series, and the remarks column in each parts table tells you which capacity class a given part applies to.

Why This Manual Matters

Ordering the wrong part for a forklift is expensive in both time and money. Optional equipment varies significantly between trucks, and a part that fits a GP15AK may not fit a GLP30TK. This manual removes the guesswork by showing the exact illustration and part number for every optional component, along with the quantity required and the model applicability. The exchange-of-parts notes in the front matter also alert you to superseded part numbers and early/late type differences.

The manual is written in English, and the parts tables preserve the exact part number formatting used by Yale. Whether you are replacing a torn canvas cabin, fitting a new LPG tank bracket, repairing a heavy-duty brake assembly, or adding a rotating beacon, the relevant exploded view and part list are included.
