Yamaha Exciter 570 Snowmobile Service Manual Repair 1987 1988 1989 1990 Ex570

Description

📘 DOCUMENT OVERVIEW

This comprehensive digital service manual provides in-depth technical information for maintaining and repairing Yamaha EX570 and EX570E snowmobiles. It’s a valuable resource for professional mechanics and experienced DIY enthusiasts seeking detailed repair procedures and specifications.

🔧 Service Manual Content: The manual goes far beyond basic operation instructions. It offers detailed step-by-step procedures, accompanied by clear diagrams and illustrations, covering almost every aspect of snowmobile maintenance and repair. It is designed to be an essential tool for professional technicians and knowledgeable DIYers.

🚜 Covered Models: This manual explicitly covers the Yamaha EX570 and EX570E snowmobile models, providing model-specific information throughout. The specific serial numbers are also provided in the manual.

Major Sections and Procedures: The manual is logically organized into several key sections, each addressing a specific area of the snowmobile’s systems. These sections are:

• General Information: Covers machine identification, storage, pre-season preparation, safety precautions, and the use of special tools. This section provides crucial background information needed before any repair or maintenance.
• Periodic Inspections and Adjustments: Detailed checklists for regular maintenance tasks, including lubrication intervals, and adjustments of various components (engine, power train, chassis, and electrical systems). A periodic maintenance table is a key highlight here, outlining the recommended frequency for each check.
• Engine Overhaul: Provides a thorough guide to engine disassembly, inspection, repair, and reassembly. This section is particularly useful for addressing major engine issues.
• Cooling System: A detailed explanation of coolant flow, procedures for coolant replacement, and cooling system inspection and repair instructions, including the use of specialized testing equipment.
• Carburetion: Explains carburetion specifications and includes detailed steps for carburetion removal, disassembly, inspection, reassembly, and installation, along with troubleshooting tips and high-altitude tuning adjustments.
• Power Train: Covers the primary and secondary sheave systems, including detailed disassembly, inspection, repair, and assembly instructions. This section is essential for maintaining the snowmobile’s drive train performance.
• Chassis: This section includes procedures for steering and front suspension removal, inspection, and installation. It also includes safety warnings associated with shock absorbers and handling instructions.
• Electrical: Covers the ignition, lighting, and signal systems. Includes detailed circuit diagrams, troubleshooting steps, and testing procedures for various electrical components.
• Appendices: Contains supplementary information, including specifications, torque values, and cable routing diagrams.

⚠️ Safety Warnings: Throughout the manual, crucial safety warnings and precautions are clearly highlighted, emphasizing the importance of following safety guidelines during repairs and maintenance tasks.

🔧 Technical Information: The manual contains detailed technical specifications and diagrams for all major components and systems. This includes torque specifications, clearance measurements, oil and grease types, and troubleshooting flowcharts.

❌ WHAT’S NOT INCLUDED

• Wiring diagrams for all models.
• Exploded parts diagrams.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

Q: What models does this manual cover?

This manual covers the Yamaha EX570 and EX570E snowmobile models, providing detailed repair and maintenance instructions specific to these models.

Q: What type of procedures are included?

The manual includes detailed procedures for engine overhaul, cooling system maintenance, carburetion adjustments, power train repairs (including primary and secondary sheaves and drive chain), chassis adjustments (steering and suspension), electrical system diagnostics and repairs, and more. It also features periodic maintenance schedules.

Q: Is this suitable for DIY mechanics?

While suitable for experienced DIY mechanics, the manual’s technical depth and complexity make it best suited for users with prior snowmobile repair experience. Beginners should seek professional assistance.

Q: What format is this manual in?

This manual is provided as a digital PDF, ensuring convenient access and immediate download after purchase.

Q: Are there any language requirements?

The manual appears to be in English. However, the images and diagrams may make it somewhat understandable even for non-English speakers.

Q: What special tools are mentioned?

The manual lists several special tools required for specific procedures. These tools are detailed in the “Special Tools” section.

Q: Does the manual include safety precautions?

Yes, the manual incorporates numerous safety warnings and precautions throughout, particularly when dealing with high-pressure systems or potentially hazardous procedures.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; comprehensive and detailed.
• Content Type: Service Manual
• Language: English
• Technical Level: Professional
• Recommended For: Professional mechanics and experienced DIY users familiar with snowmobile repair.
• Page Count: Approximately 262 pages
• Image Quality: Good; diagrams and illustrations are generally clear and well-labeled.

📋 Original Product Description:

Yamaha Exciter 570 Snowmobile Service Manual Repair 1987 1988 1989 1990 Ex570

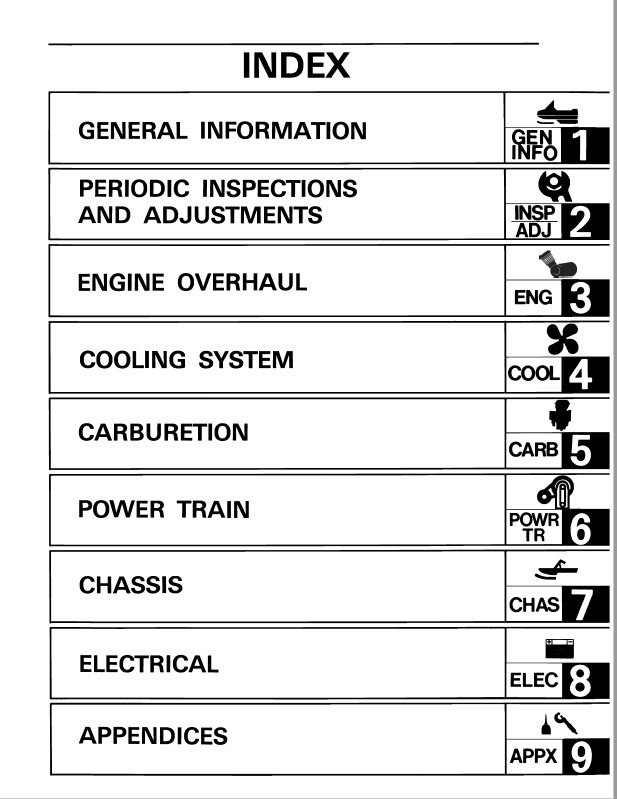

IMAGE PREVIEW:
