Yamaha F40B Outboard Service Manual – F40BMHD F40BWHD F40BED F40BET PDF Download

Description

Yamaha F40B Outboard Motor Service Manual

This is the factory-prepared service manual for the Yamaha F40B carbureted 4-stroke outboard motor, published by Yamaha Motor Co., Ltd. and prepared primarily for Yamaha dealers and trained mechanics. At 253 pages, it delivers comprehensive disassembly, repair, assembly, and inspection procedures across all major systems of this 40 hp inline 3-cylinder engine — everything a workshop needs to service the F40B correctly from first principles.

Models This Manual Applies To

This manual covers the following F40B model variants exactly as listed in the document:

• F40BMHD (USA/Canada: F40MH) — Starting serial number 300101
• F40BWHD — No USA/Canada equivalent listed
• F40BED (USA/Canada: F40ER) — Starting serial number 450101
• F40BET (USA/Canada: F40TR) — Starting serial number 500101

All four variants share approval model code 67C (where applicable). The serial number is stamped on the port clamp bracket label.

Main Systems & Chapters Included

• Chapter 1 — General Information: identification, serial numbers, safety, special tools list
• Chapter 2 — Specifications: general specs, maintenance specs (power unit, lower unit, electrical), dimensions, tightening torques
• Chapter 3 — Periodic Check and Adjustment
• Chapter 4 — Fuel System
• Chapter 5 — Power Unit
• Chapter 6 — Lower Unit
• Chapter 7 — Bracket Unit
• Chapter 8 — Electrical System
• Chapter 9 — Trouble Analysis

Repair & Service Coverage

The manual uses a sequential step-by-step format with exploded-view diagrams and job instruction charts throughout. Key coverage includes:

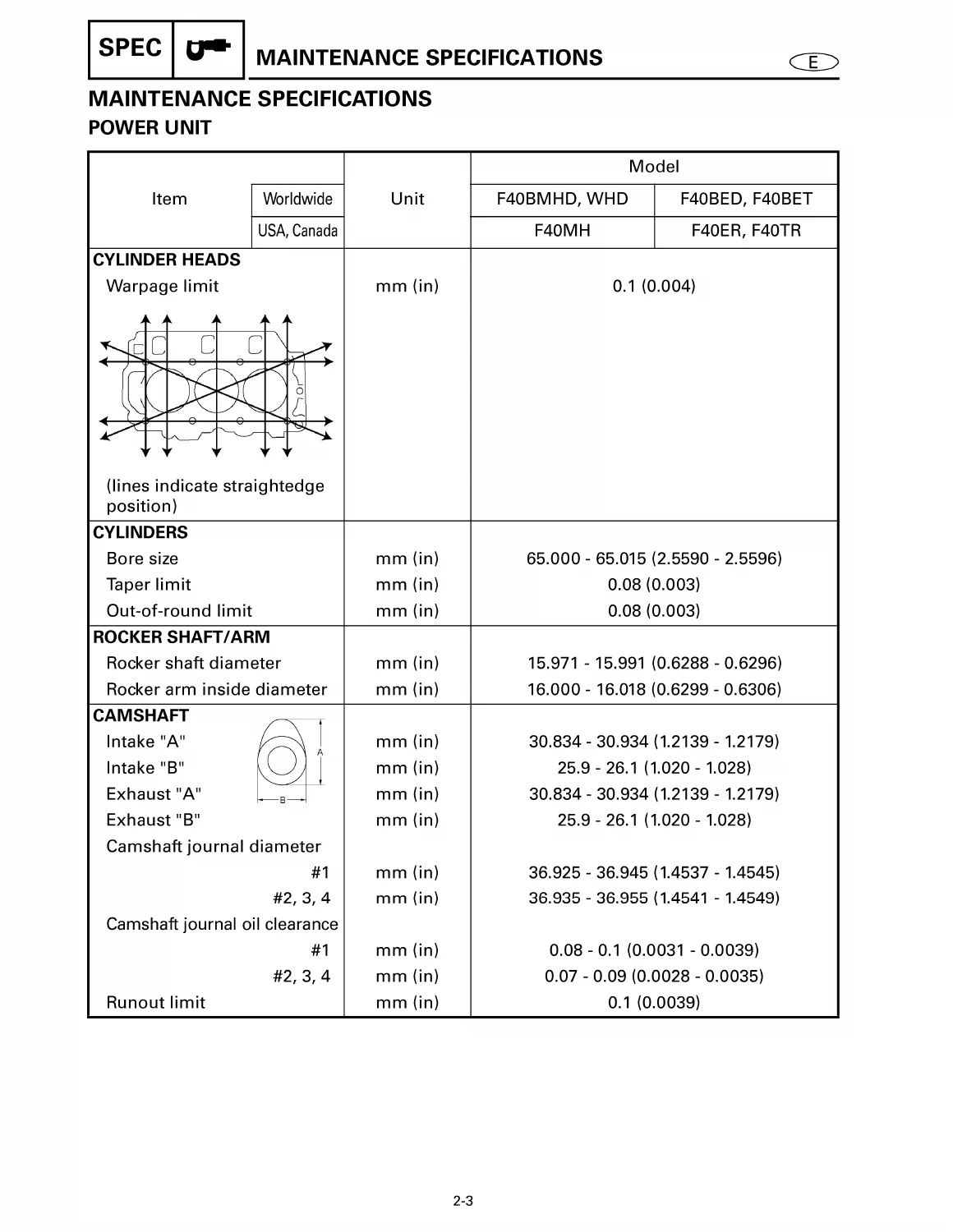

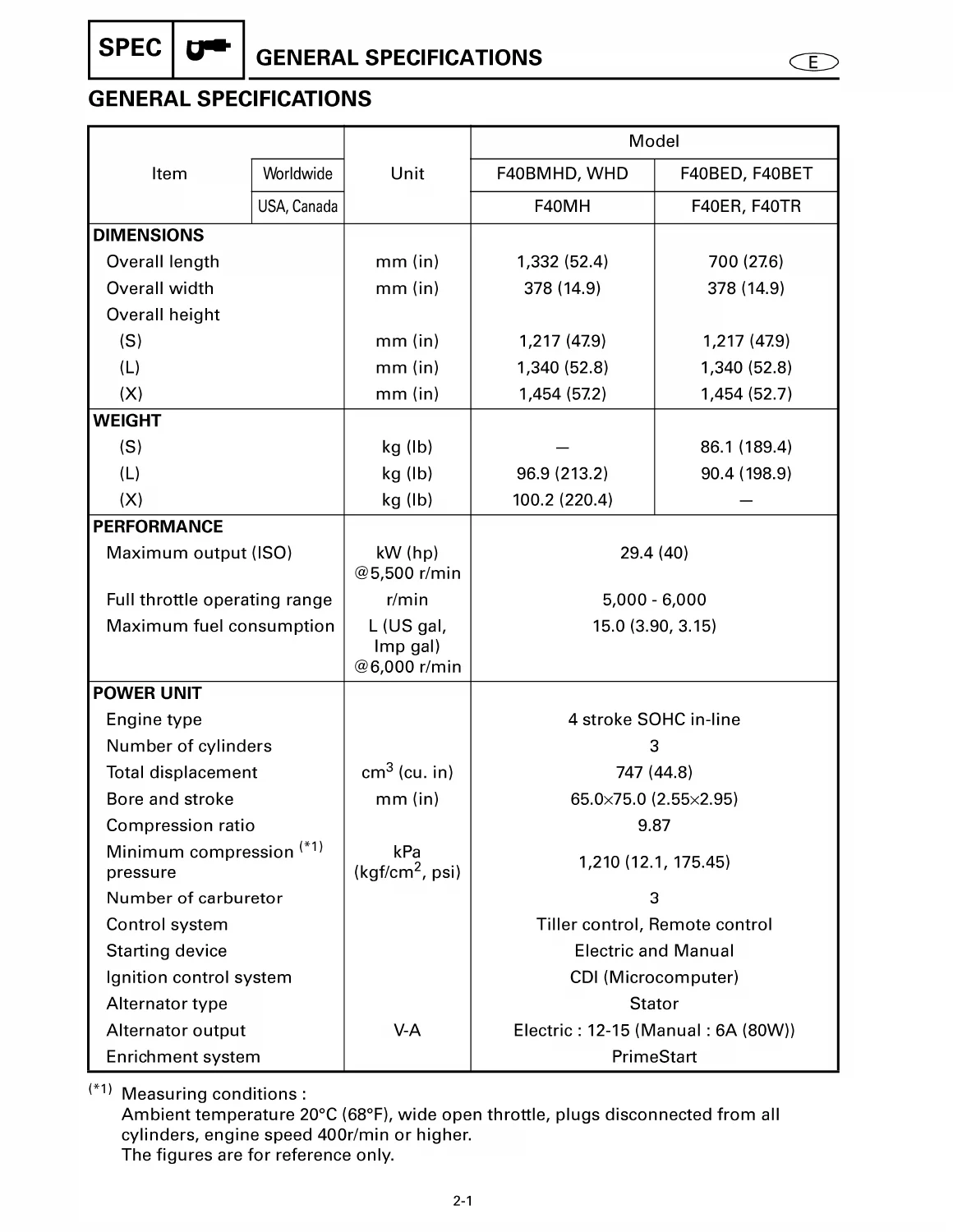

• Engine specifications: 4-stroke SOHC inline-3, 747 cc (44.8 cu in) displacement, bore 65.0 × stroke 75.0 mm, compression ratio 9.87:1, rated output 29.4 kW (40 hp) @ 5,500 r/min
• Periodic checks and adjustments including throttle cable, carburetor synchronization, and control system
• Fuel system service — 3-carburetor setup with PrimeStart enrichment system
• Power unit disassembly and assembly: cylinder heads, cylinders, camshaft, rocker shaft/arm, pistons with precise service limits and wear tolerances
• Lower unit service: gear ratio 2.0 (26/13), spiral bevel gear, propeller shaft, seals and bearings
• Bracket unit including tilt cylinder, pump housing, and steering system
• Electrical system: CDI (microcomputer) ignition, stator alternator (Electric: 12–15 V-A, Manual: 6A/80W), battery capacity 40–70 Ah, cold cranking 380 A
• Tightening torque specifications — specified and general torque tables
• Trouble analysis chapter for systematic fault diagnosis
• Special tools list with part numbers for measuring and removing/installing operations

Why This Manual Delivers Results

Carbureted F40B motors manufactured from April 2005 onward share the same 67C approval code architecture covered here, making this the correct technical reference for a service that goes beyond guesswork. With bore and stroke limits, camshaft journal clearances, cylinder warpage limits, gear oil capacity (430 cm³), and engine oil capacity (2,000–2,200 cm³) all documented, a mechanic can work to exact factory tolerances rather than approximations. The trouble analysis chapter gives a structured path through electrical, fuel, and mechanical faults without expensive dealer visits.

Instant PDF Download

Your purchase delivers an immediate PDF download — no waiting, no shipping. Open it on any device the moment payment is confirmed.
