Yamaha Ténéré 2024 Service Manual Workshop Repair PDF Download

Description

Ténéré 2024 is covered by this Yamaha Ténéré 2024 service manual, a 613-page PDF built around service procedures, troubleshooting, specifications and system-level repair information. The manual moves from basic service practice and fault diagnosis into periodic maintenance, chassis work, engine disassembly and inspection, fuel injection, ABS and electrical diagnosis. Its reference material includes special tools, model dimensions, engine and chassis specifications, tightening torques and cable-routing drawings.

Yamaha Ténéré 2024 service manual file details

• Manual type: Service / Workshop / Repair
• Brand/model: Yamaha Ténéré 2024
• Model code: BWM1
• Document number: LIT-11616-37-37
• Language: English
• Page count: 613
• File format: PDF

Coverage from setup and troubleshooting through engine and electrical work

The opening material establishes the workshop conventions used throughout the manual: removal and disassembly precautions, replacement parts, gaskets and seals, bearings and oil seals, circlips, locking agents and rubber parts. Basic service information then covers quick fasteners, electrical-part handling, connector checks, continuity and resistance testing, general tightening torque guidance, wheel static balance, switch checks and bulb/socket inspection. These sections are useful before deeper disassembly because the same handling practices recur through the chassis, engine and electrical chapters.

The troubleshooting section is broad rather than limited to one subsystem. It addresses engine faults, clutch and transmission problems, cooling-system faults, brake problems, ABS warning-light diagnosis, suspension and steering/handling complaints, charging faults, lighting faults and signaling faults. The diagnostic material works alongside dedicated system procedures later in the manual, so a technician can move from a symptom toward checks and then into removal, inspection or adjustment work.

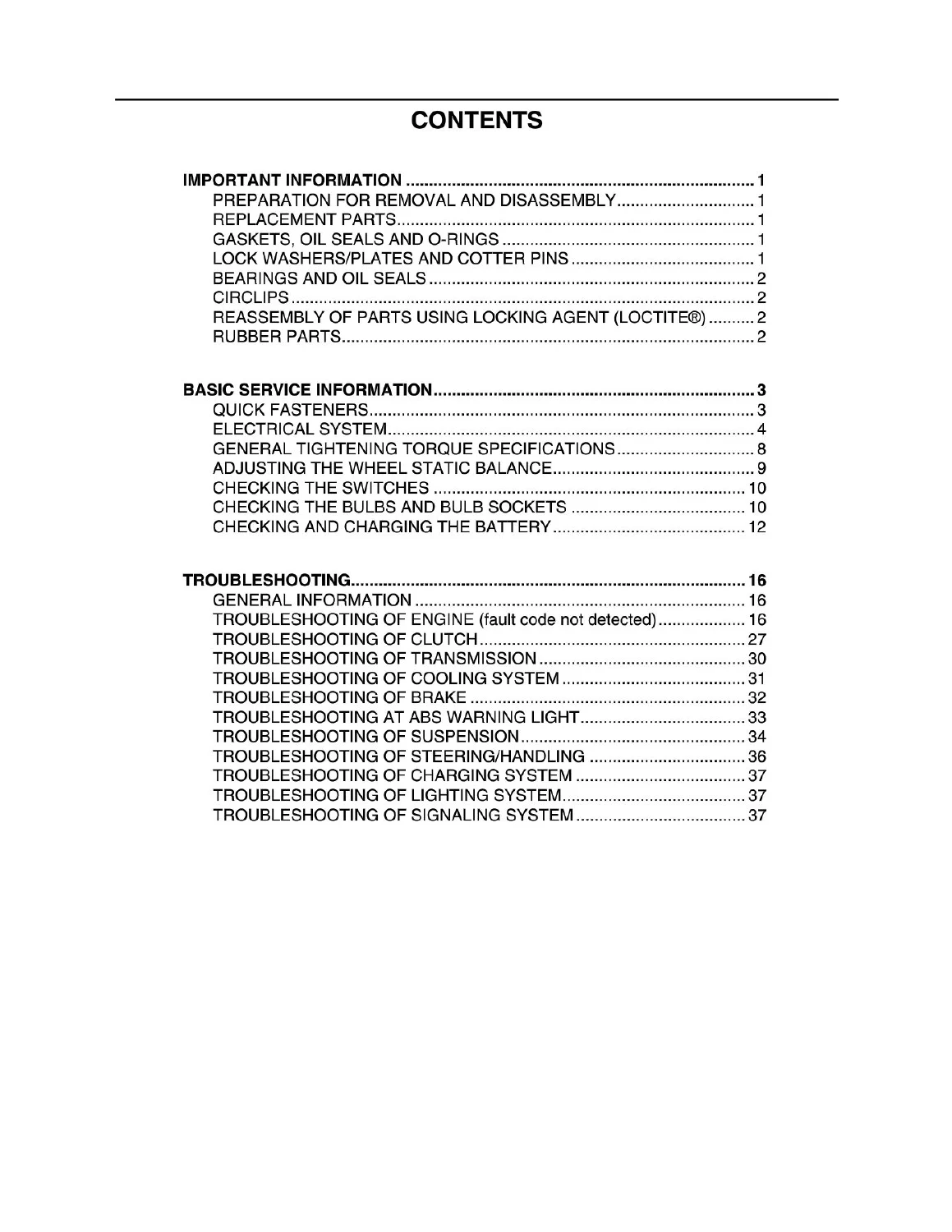

Major chapters and subjects in the 613-page manual

• Basic information
  • important information
  • basic service information
  • general tightening torque specifications
  • wheel static balance
  • switch, bulb and bulb-socket checks
• Troubleshooting
  • engine
  • clutch
  • transmission
  • cooling system
  • brake
  • ABS warning light
  • suspension
  • steering/handling
  • charging system
  • lighting system
  • signaling system
• Periodic maintenance
  • scheduled service checks
  • fuel system checks
  • engine speed and synchronization procedures
  • chassis inspection and adjustment
• Chassis
  • front wheel
  • rear wheel
  • front brake
  • rear brake
  • ABS (anti-lock brake system)
  • front fork
  • steering
  • rear suspension
  • drive chain
• Engine
  • lubrication system
  • cooling system
  • engine inspection
  • engine removal
  • camshafts
  • cylinder head
  • valves and valve springs
  • generator and starter clutch
  • cylinder and pistons
  • clutch
  • transmission
• Fuel system
  • fuel tank
  • fuel injection system
  • throttle body and sensors
  • diagnostic checks
• Electrical system
  • charging
  • starting
  • lighting
  • signaling
  • switches and connectors
  • circuit checks
• Reference data
  • special tools
  • general specifications
  • engine specifications
  • chassis specifications
  • tightening torques
  • cable routing

Engine, chassis and fuel-system procedures

The engine material covers lubrication and cooling, compression-related inspection, engine removal, camshafts, cylinder head, valves and valve springs, generator and starter clutch, cylinder and pistons, clutch and transmission. Procedure pages show component orientation, measurement points, service limits and tightening values. Chassis coverage includes front and rear wheels, brake assemblies, ABS, front fork, steering, rear suspension and drive chain, with inspection and adjustment information alongside removal and installation sequences.

Fuel-system work includes the fuel tank and fuel-injection system, with sensor and diagnostic checks integrated into the service flow. Electrical sections cover charging, starting, lighting, signaling, switches, couplers and circuit testing. Cable-routing illustrations identify the paths and connection points of harnesses, brake hoses and related components so reassembly can follow the documented routing rather than guesswork.

Specifications you can verify while servicing the motorcycle

• Model: BWM1
• Overall length: 2370 mm (93.3 in)
• Overall width: 905 mm (35.6 in)
• Overall height: 1455 mm (57.3 in)
• Wheelbase: 1595 mm (62.8 in)
• Ground clearance: 240 mm (9.45 in)
• Minimum turning radius: 2.9 m (9.51 ft)
• Curb weight: 205 kg (452 lb)
• Maximum load: 189 kg (417 lb)
• Riding capacity: 2 persons
• Combustion cycle: 4-stroke
• Cooling system: Liquid cooled
• Valve train: DOHC
• Displacement: 689 cm³
• Cylinder arrangement: Inline
• Number of cylinders: 2-cylinder
• Bore × stroke: 80.0 × 68.6 mm (3.15 × 2.70 in)
• Compression ratio: 11.5 : 1

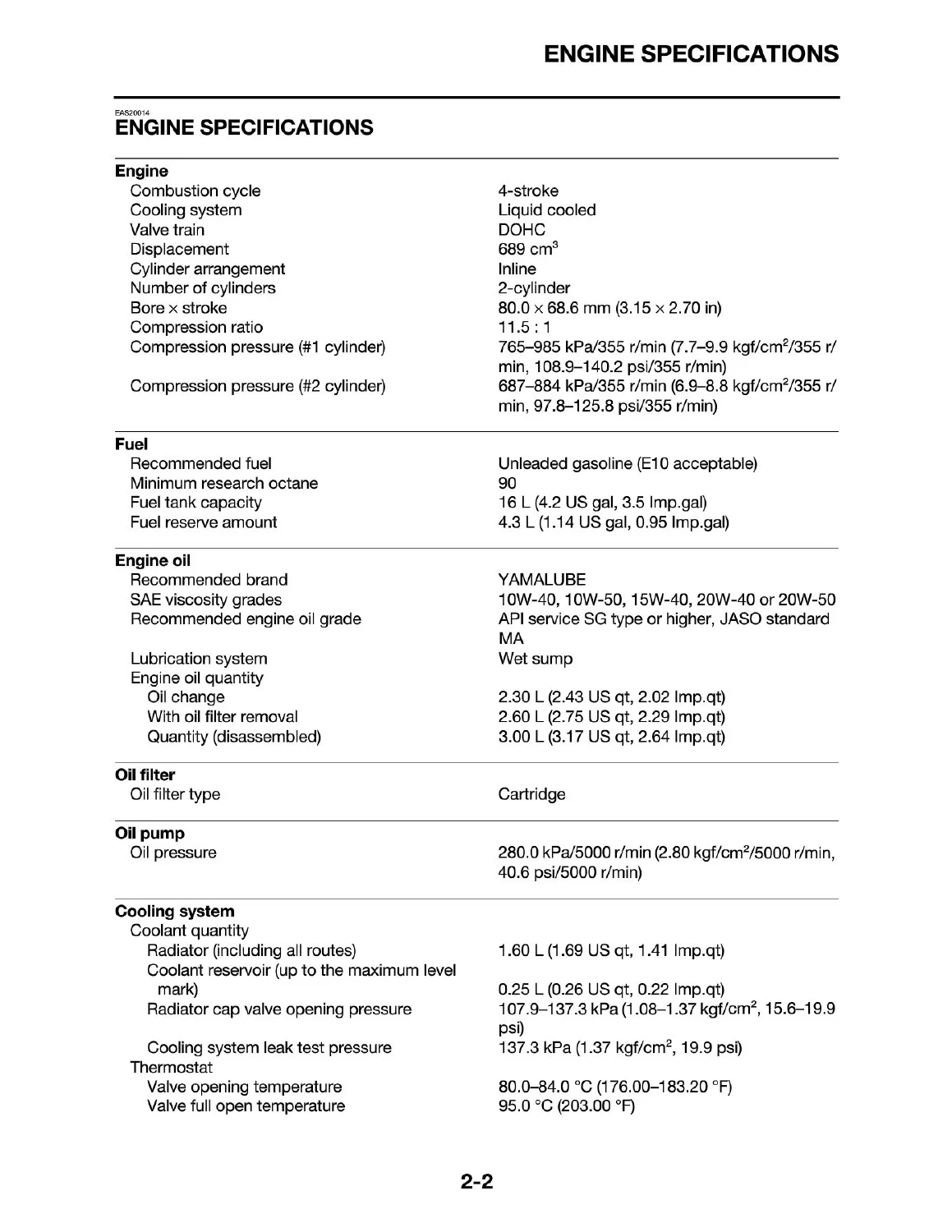

Further specification pages cover fuel capacity, engine-oil quantities and grade, oil pressure, cooling-system quantities and test pressures, thermostat temperatures, clutch and drivetrain data, suspension data and tightening torques. The manual lists a 689 cm³ liquid-cooled DOHC inline two-cylinder engine with 80.0 × 68.6 mm bore and stroke and an 11.5:1 compression ratio. General specifications identify model BWM1, 205 kg curb weight, 16 L fuel tank capacity, 2.30 L engine-oil change quantity and 1.60 L radiator coolant quantity.

Diagnostic and inspection information is tied to the service chapters

The troubleshooting material is organized around the same systems later covered in repair detail. Engine fault diagnosis, clutch and transmission complaints, cooling problems, braking faults, ABS warning-light conditions, suspension and steering/handling issues, charging faults and lighting/signaling problems can be traced into the relevant service sections. Basic electrical pages explain battery handling, connector inspection, continuity and resistance checks before the manual reaches the motorcycle-specific charging, starting, lighting and signaling work.

The specification chapters also support inspection decisions rather than merely describing the motorcycle. Compression pressure is listed separately for each cylinder, cooling-system test pressure and radiator-cap opening pressure are stated, thermostat opening temperatures are provided, and oil pressure and service quantities are collected with the engine data. Chassis pages add suspension settings, drive-chain information and tightening torques. These references are especially useful when a part looks serviceable but needs to be checked against a printed limit or setting before reuse.

Use the correct procedure and value at the point of repair

For jobs such as valve-train inspection, engine disassembly, wheel or suspension service, ABS troubleshooting, fuel-injection diagnosis, circuit checks and torque-sensitive reassembly, this manual puts the related procedure, inspection criteria and reference data in one document. That matters when a service task depends on the correct order, limit, connector check or tightening value rather than a generic procedure.

Purchase gives instant PDF download as soon as payment completes, with no shipping or waiting. Keep it on a phone, tablet, laptop or workshop PC for reference beside the motorcycle, or print the pages needed for bench work while carrying out maintenance, diagnosis and repair.
