Yamaha Xv1600 Wild Star Service Repair Pdf Manual 1999 2005 – PDF Download

Description

📘 COMPREHENSIVE DOCUMENT OVERVIEW

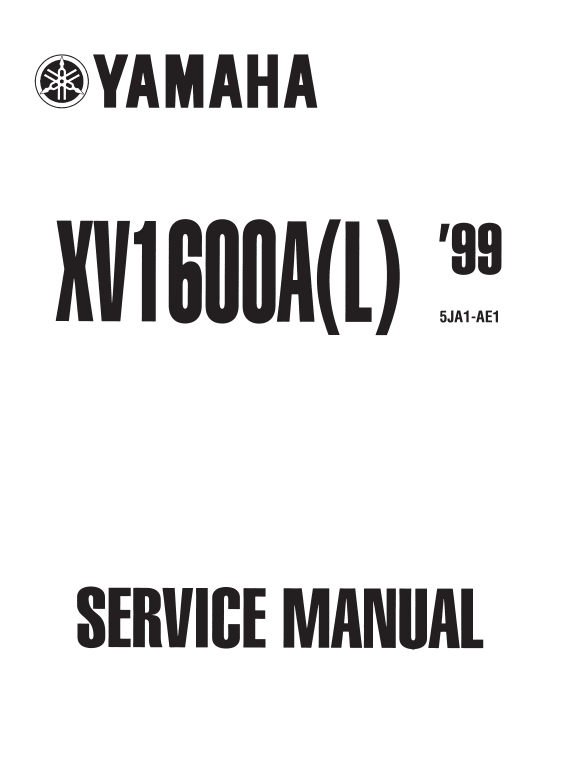

Dive deep into the mechanics of your Yamaha XV1600A(L) ’99 motorcycle with this official Yamaha Service Manual (Model Code 5JA1-AE1, First Edition, December 1998). 🛠️ This comprehensive digital manual, spanning 468 pages, is an indispensable resource for Yamaha dealers, qualified mechanics, and experienced DIY enthusiasts looking to perform detailed maintenance, service, and repair procedures. It’s meticulously designed to provide all the necessary information to keep your motorcycle in peak operating condition.

The manual begins with essential General Information, covering motorcycle identification (Vehicle Identification Number, Model Code), unique features of the XV1600A(L) ’99 model such as its twin spark plugs, speed sensor, self-diagnosis device, auto decompression mechanism, and oil-pressure-operated valve lifters. It also provides crucial guidelines on preparation for removal and disassembly, replacement parts, gaskets, oil seals, O-rings, lock washers, bearings, circlips, and checking electrical connections. A detailed list of special tools required for various tasks is also included.

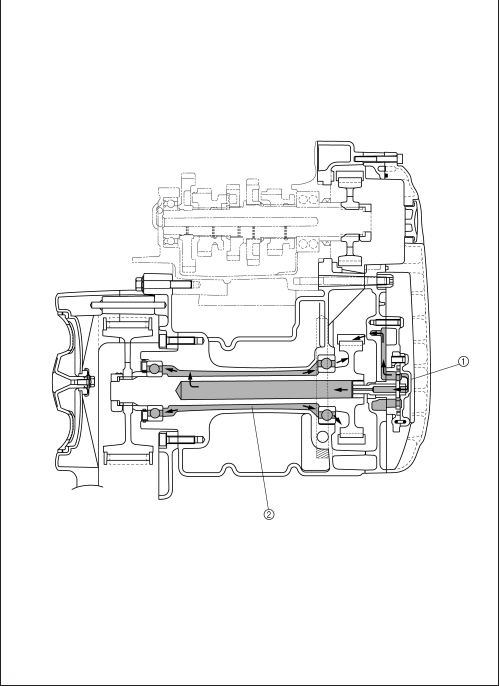

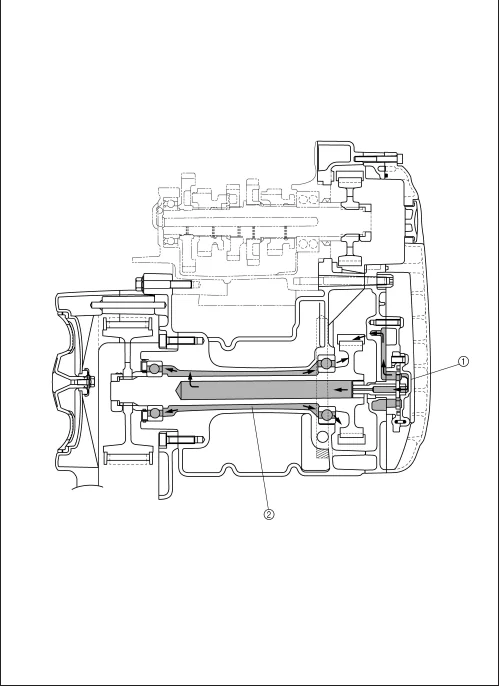

The Specifications chapter offers a wealth of technical data, including general, engine, chassis, and electrical specifications. You’ll find conversion tables, detailed tightening torques for all critical components, lubrication points and recommended lubricant types, comprehensive engine oil lubrication charts, engine and transfer gear oil flow diagrams, and detailed cable routing diagrams to ensure everything is reassembled correctly.

📋 A dedicated chapter on Periodic Checks and Adjustments outlines routine maintenance schedules and lubrication intervals. Procedures covered include adjusting valve clearance, engine idling speed, throttle cable free play, checking spark plugs, ignition timing, measuring compression pressure, checking and changing engine oil and transfer gear oil, adjusting clutch cable free play, cleaning the air filter element, checking the carburetor joint, fuel hoses, and exhaust system.

The Chassis section provides in-depth instructions for servicing the front and rear wheels (including brake discs and sprockets), front and rear brakes (master cylinders and calipers), front fork, handlebar, steering head, rear shock absorber and swingarm, and the drive belt. This includes disassembly, inspection, repair, and assembly procedures.

🔧 The extensive Engine chapter guides you through complete engine overhaul, including removal and installation, servicing rocker arms, push rods, valve lifters, camshafts (including the decompression system), cylinder heads, valves and valve springs, cylinders and pistons. It also covers the clutch, generator and starter clutch, transfer gear case (including oil pump), crankcase assembly, engine oil pump, crankshaft, and transmission components.

The Carburetion chapter focuses on the carburetor system, detailing its removal, disassembly, inspection, assembly, and installation. It includes procedures for measuring and adjusting the fuel level, checking and adjusting the throttle position sensor, checking the fuel pump, fuel cock, and the air induction system (including the air cutoff valve).

💡 The Electrical System section covers all electrical components, checking switch continuity, bulbs and bulb sockets, and LEDs. It provides detailed information and circuit diagrams for the ignition system, electric starting system (including starting circuit cutoff system operation), charging system, lighting system, signaling system, fuel pump system, carburetor heating system, and the self-diagnosis system.

⚠️ Finally, a comprehensive Troubleshooting guide helps diagnose and resolve common issues related to starting problems, incorrect engine idling speed, poor medium-and-high-speed performance, faulty gear shifting, clutch malfunctions, overheating, poor braking performance, faulty front fork legs, unstable handling, and faulty lighting or signaling systems. Detailed wiring diagrams for both EUR and AUS models are provided at the end of the manual for complete electrical servicing.

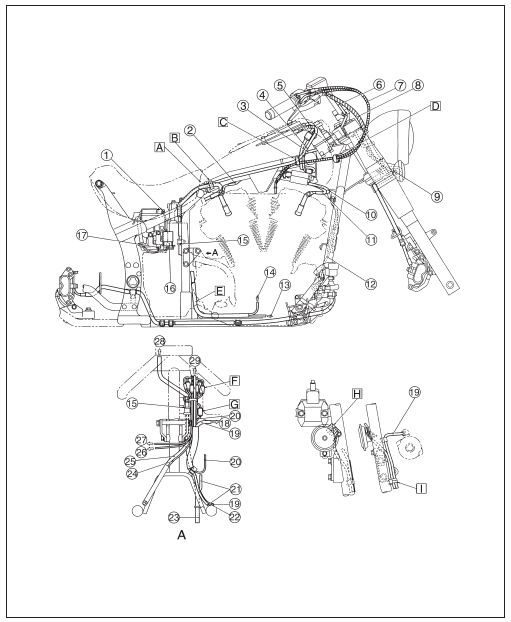

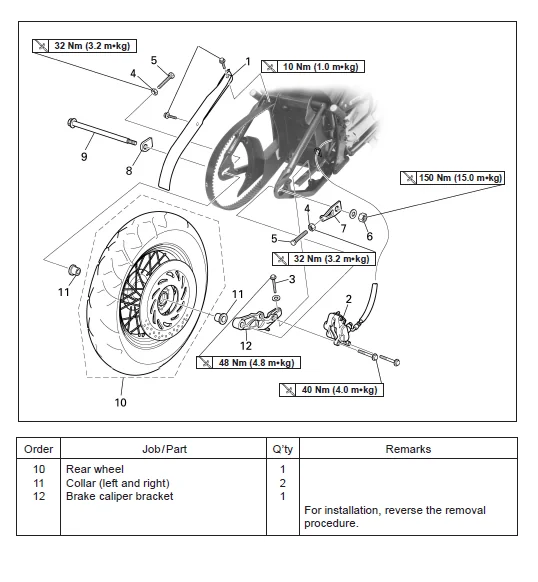

This manual emphasizes safety precautions and provides clear, step-by-step instructions with exploded diagrams and symbols to indicate lubrication points and part replacement, making complex tasks more manageable. It is an essential tool for anyone serious about maintaining or repairing their Yamaha XV1600A(L) ’99 motorcycle.

🔧 TECHNICAL SPECIFICATIONS & COVERAGE

• Model Covered: Yamaha XV1600A(L) ’99 (Model Code: 5JA1-AE1)
• Year: 1999 (Manual First Edition: December 1998)
• Engine Specifications:
  • Type: Air-cooled, 4-stroke, OHV, V-type 2-cylinder
  • Displacement: 1,602 cm³
  • Bore x Stroke: 95 mm x 113 mm
  • Compression Ratio: 8.3:1
  • Features: Twin spark plugs, auto decompression mechanism, oil-pressure-operated valve lifters.
• Electrical System:
  • System Voltage: 12V
  • Ignition System: Transistorized Coil Ignition (TCI)
  • Charging System: AC Magneto
  • Self-Diagnosis System: Covers throttle position sensor, speed sensor, solenoid, and fuel level meter.
• Transmission and Drivetrain:
  • Type: Constant mesh, 5-speed
  • Final Drive: Belt drive
• Carburetor: BSR40 (MIKUNI)
• Special Tools: A comprehensive list of Yamaha special tools is provided for specific service tasks (e.g., flywheel puller, timing light, fuel level gauge, clutch holding tool, various gauges and drivers).

📋 MANUAL SECTIONS & PROCEDURES

• General Information: Motorcycle identification, features, preparation for service, checking connections, special tools.
• Specifications: Detailed specs for engine, chassis, electrical; tightening torques, lubrication guides, cable routing.
• Periodic Checks and Adjustments: Maintenance schedules, valve clearance, idling speed, spark plugs, oil changes, brake adjustments, drive belt slack, steering head checks.
• Chassis: Wheels, front/rear brakes (master cylinders, calipers), front fork, handlebar, steering head, rear shock absorber, swingarm, drive belt servicing.
  • Procedures: Removal, disassembly, inspection, repair, assembly, installation, static balance.
• Engine: Complete engine overhaul including:
  • Top End: Rocker arms, push rods, valve lifters, camshafts, cylinder heads, valves, valve springs.
  • Bottom End: Cylinders, pistons, clutch, generator, starter clutch, transfer gear case, crankcase, oil pump, crankshaft, transmission.
  • Procedures: Removal, disassembly, inspection of wear limits, repair, assembly, installation.
• Carburetion: Carburetor servicing, fuel level adjustment, throttle position sensor check/adjustment, fuel pump, fuel cock, air induction system.
  • Procedures: Disassembly, cleaning, inspection, assembly, adjustment.
• Electrical System: Checking electrical components, switches, bulbs, LEDs. Detailed sections on:
  • Ignition System
  • Electric Starting System
  • Charging System
  • Lighting System
  • Signaling System
  • Fuel Pump System
  • Carburetor Heating System
  • Self-Diagnosis System
  • Procedures: Circuit diagram analysis, troubleshooting, component checks.
• Troubleshooting: Diagnostic guides for engine, performance, shifting, clutch, overheating, braking, suspension, and electrical issues.
• Wiring Diagrams: Included for EUR and AUS models.

❌ WHAT’S NOT INCLUDED

• Physical printed manual (this is a digital PDF download).
• Real-time technical support or direct consultation with Yamaha technicians.
• Warranty coverage for repairs or parts.

📊 COMPREHENSIVE RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

📋 SEO Schema for Google:

💬 Customer Questions & Answers:

Q: What specific models and years does this manual cover?
A: This service manual is specifically for the Yamaha XV1600A(L) ’99 model (Model Code: 5JA1-AE1). It is the First Edition, published in December 1998.

Q: What types of maintenance and repair procedures are included?
A: It covers a wide range of procedures including periodic maintenance, engine overhaul (top and bottom end), chassis servicing (wheels, brakes, suspension, steering), carburetor tuning and repair, electrical system troubleshooting (ignition, starting, charging, lighting, signals), and detailed troubleshooting for various common issues.

Q: Is this manual suitable for DIY mechanics or is it for professionals only?
A: While designed for professional technicians, an experienced DIY mechanic with a good mechanical aptitude and the right tools will find this manual extremely useful. Some advanced procedures may require professional expertise.

Q: What format is this manual in and how do I access it?
A: This is a digital service manual in PDF format. You will receive immediate download access after purchase, allowing you to use it on your computer, tablet, or smartphone, and print pages as needed.

Q: Are there special tools or diagnostic equipment requirements?
A: Yes, the manual details a list of Yamaha special tools required for certain procedures, such as specific pullers, holders, gauges, and drivers. Standard mechanic tools are also necessary.

Q: Does this manual include wiring diagrams and hydraulic schematics?
A: Yes, comprehensive wiring diagrams for both EUR and AUS versions of the XV1600A(L) ’99 are included. It also features detailed engine oil flow diagrams and transfer gear oil flow diagrams.

Q: Is the manual language technical or user-friendly?
A: The language is technical, as expected for a service manual intended for trained mechanics. However, it is clearly written with step-by-step instructions and numerous illustrations and diagrams to aid understanding.

Q: Can I print this manual or use it offline?
A: Yes, being a PDF, you can print the entire manual or specific sections you need. Once downloaded, it can be used offline on any device that can read PDF files.

🛠️ PROFESSIONAL ASSESSMENT & USABILITY

• Overall Quality Rating: ⭐⭐⭐⭐⭐ (Official Yamaha documentation, highly detailed and accurate)
• Content Classification: Motorcycle Service Manual
• Language & Accessibility: Technical English, aimed at individuals with mechanical knowledge. Clear illustrations and diagrams support the text.
• Professional Recommendation: Highly recommended for professional motorcycle technicians and repair shops specializing in Yamaha cruisers. Essential for any in-depth work on the XV1600A(L) ’99.
• Technical Depth: Extremely comprehensive, covering everything from basic maintenance to complete engine and chassis overhaul. Includes detailed specifications and wear limits.
• Page Count & Scope: 468 pages of in-depth technical content.
• File Quality & Format: High-resolution digital PDF, ensuring clear text, diagrams, and exploded views. Text is searchable.
• Update Status: First Edition, December 1998. While specific to the ’99 model, the fundamental mechanics are well-covered.

🎯 IDEAL USE CASES & APPLICATIONS

• Professional Repair Shops: For accurate and efficient servicing and repair of Yamaha XV1600A(L) ’99 motorcycles.
• Experienced Motorcycle Mechanics: A definitive guide for complex repairs, engine rebuilds, and chassis work.
• Dedicated Owners/Restorers: For those undertaking significant maintenance, restoration, or customization projects on their XV1600A(L) ’99.
• Maintenance Planning: Utilising the periodic check and adjustment schedules for preventative care.
• Troubleshooting and Diagnostics: Quickly identifying and resolving mechanical and electrical issues using the structured troubleshooting guides and self-diagnosis information.
• Parts Identification: Using exploded diagrams for correct parts identification during repairs or ordering.
• Technical Training: A valuable resource for learning the intricacies of the Yamaha XV1600A(L) ’99.

📋 Original Product Description:

DESCRIPTION:

Yamaha Xv1600 Wild Star Service Repair Pdf Manual was produced by the Yamaha Motor Company, Ltd. primarily for use by Yamaha dealers and their qualified mechanics. It is not possible to include all the knowledge of a mechanic in one manual. Therefore, anyone who uses this book to perform maintenance and repairs on Yamaha vehicles should have a basic understanding of mechanics and the techniques to repair these types of vehicles. Repair and maintenance work attempted by anyone without this knowledge is likely to render the vehicle unsafe and unfit for use. Yamaha Motor Company, Ltd. is continually striving to improve all of its models. Modifications and significant changes in specifications or procedures will be forwarded to all authorized Yamaha dealers and will appear in future editions of this manual where applicable.

IMAGES:

TABLE OF CONTENTS:

GENERAL INFORMATIONSPECIFICATIONSPERIODIC CHECKS ANDADJUSTMENTSENGINECARBURETIONCHASSISELECTRICAL SYSTEMTROUBLESHOOTING
