YAMAHA YN50 NEOS FULL SERVICE & REPAIR MANUAL 2002 – 2009

Description

📘 DOCUMENT OVERVIEW

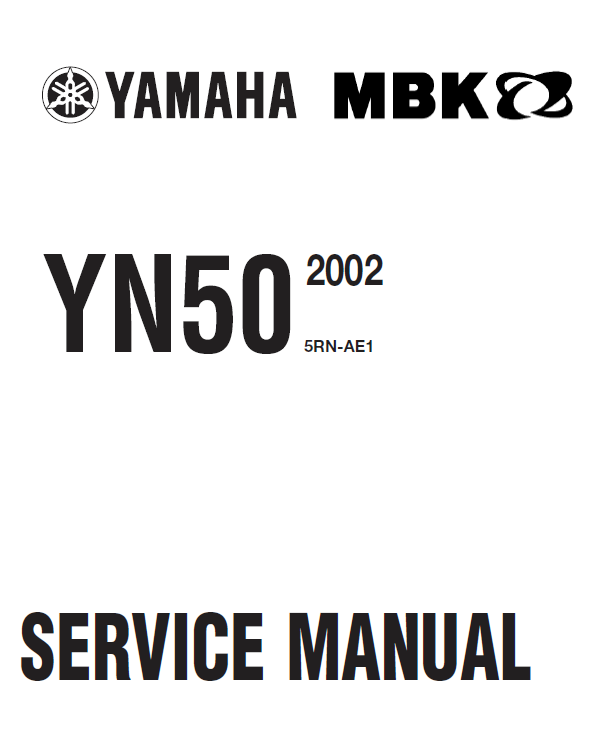

This comprehensive Yamaha/MBK YN50 2002 Service Manual (5RN-AE1) 📖 is your ultimate guide to maintaining and repairing this specific scooter model. Published by Yamaha Motor España, S.A. in September 2002, this first edition manual provides detailed, step-by-step instructions for a wide range of procedures. Whether you’re a professional mechanic 🔧 or an experienced DIY enthusiast, this manual will become an invaluable resource in your toolbox.

What’s Inside?

The manual is meticulously organized into distinct chapters, each focusing on a specific area of the scooter. Let’s explore some key highlights:

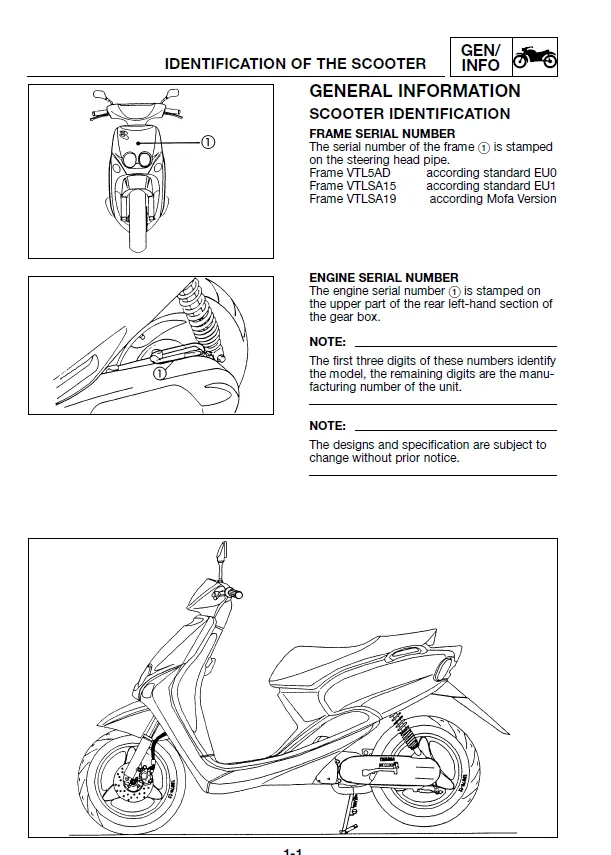

• General Information ℹ️: This section starts with a clear explanation on how to identify your scooter using the frame and engine serial numbers. Crucial information on the correct parts to use during maintenance and repair is provided, emphasizing the importance of using original Yamaha parts for optimal performance and safety. ⚠️ Detailed instructions on handling gaskets, o-rings, oil seals, and bearings are also included.
• Specifications 📏: A complete list of technical specifications is provided, covering engine details (type, capacity, compression ratio), fuel system (carburetor type, fuel tank capacity), transmission (type, ratios), chassis dimensions, brakes, electrical systems, tire sizes and pressures, and more. This section serves as a vital reference for accurate repairs and adjustments.

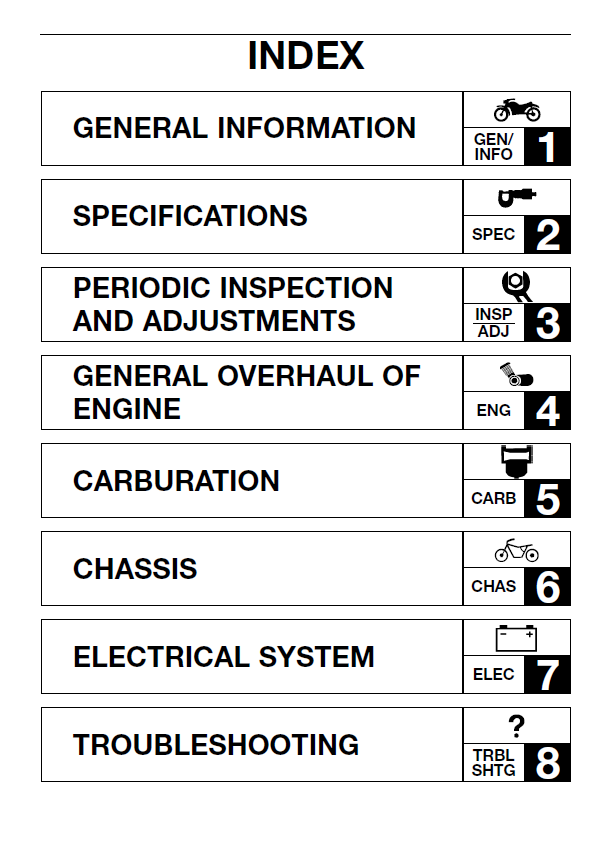

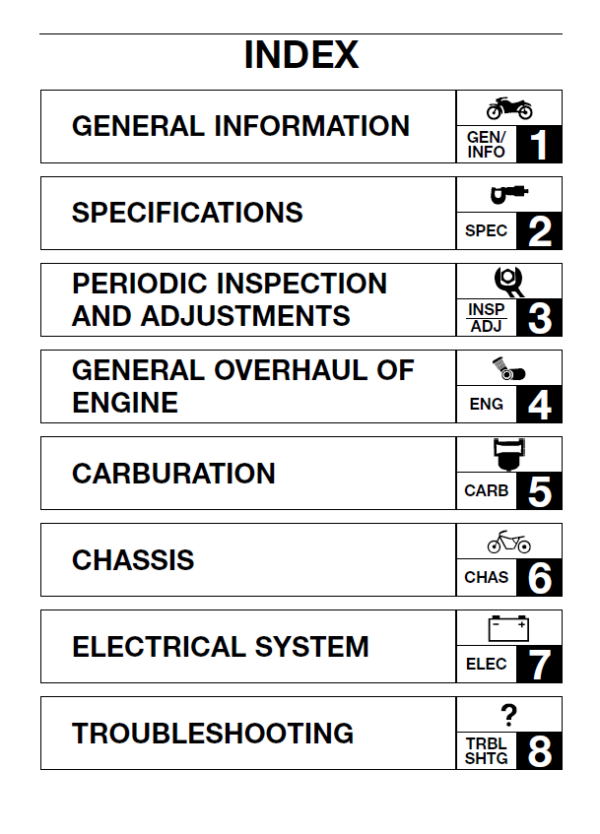

• Periodic Inspection and Adjustments ⚙️: This chapter is a goldmine for regular maintenance. It guides you through routine checks and adjustments, including engine idling, throttle cable free play, spark plug inspection, oil and transmission fluid levels, brake adjustments, tire pressure, and much more. Clear visual steps and diagrams make this a user-friendly section for scheduled maintenance.
• General Overhaul of Engine 🚜: This comprehensive section is for more involved work. It systematically walks you through the complete disassembly and reassembly of the engine, including detailed diagrams and instructions for every component. This includes procedures for inspecting and repairing the cylinder head, cylinder, piston, piston rings, crankcase, crankshaft, transmission, and other critical engine parts. Thorough attention is paid to lubrication points and special tools required for various operations.
• Carburetion 💨: This chapter focuses on the carburetor, covering its removal, disassembly, inspection (including checking float height and valve operation), reassembly, and installation. The manual clearly outlines the specific steps required for each process and provides detailed diagrams for reference. It’s essential for maintaining optimal fuel delivery and engine performance.
• Chassis châssis: This section provides comprehensive details on the chassis components, including front and rear wheels, brakes (disc and drum), rear fork, and handlebar and steering system. Detailed procedures for inspection, repair, and reassembly are provided, with emphasis on proper torque values and special tools needed for each task.
• Electrical System ⚡️: This section provides a thorough explanation on the electrical system, encompassing the ignition, charging, lighting, and signaling circuits. The manual provides circuit diagrams, troubleshooting guides to help resolve common issues, and step-by-step instructions for inspections, repairs, and component replacement.
• Troubleshooting ⚠️: The final chapter is dedicated to troubleshooting common problems. This section acts as a quick reference guide, providing clear diagnostics to pinpoint the root cause of issues and efficient steps to rectify them.

Throughout the manual, you’ll find a consistent use of illustrated symbols, detailed diagrams, and step-by-step instructions that ensure clarity and ease of understanding. This manual is a must-have resource for anyone who owns a Yamaha/MBK YN50 2002 scooter and desires to perform maintenance or repairs.

❌ WHAT’S NOT INCLUDED

• Wiring diagrams for some systems are not included.
• Detailed exploded diagrams of all parts are not included.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

Q: What models does this manual cover?

A: This service manual specifically covers the Yamaha/MBK YN50 2002 scooter model with the engine code 5RN-AE1.

Q: What type of procedures are included?

A: The manual includes procedures for general information, specifications, periodic inspection and adjustments, general engine overhaul, carburetion, chassis maintenance, electrical system diagnostics, and troubleshooting.

Q: Is this suitable for DIY mechanics?

A: While detailed, the manual’s technical depth may make it challenging for beginners. Experienced DIY users with basic mechanical knowledge will find it useful.

Q: What format is this manual in?

A: This manual is provided as a digital PDF, downloadable instantly after purchase.

Q: Are there any language requirements?

A: The primary language of the manual is English. However, some sections have Spanish terms.

Q: What special tools are mentioned in the manual?

A: The manual lists various special tools required for different procedures. These include engine wheel holding and removal tools, a crankcase separation tool, and others specific to certain tasks.

Q: What safety precautions are highlighted?

A: The manual emphasizes safety throughout, with warnings about potential dangers related to working with engine components, electrical systems, and fluids. Always follow safety instructions.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: High – Comprehensive and well-structured.
• Content Type: Service Manual
• Language: Primarily English with some Spanish terms.
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics and experienced DIY users familiar with scooter mechanics.
• Page Count: Approximately 161 pages.
• Image Quality: Good – Diagrams and illustrations are clear and easy to understand.

📋 Original Product Description:

2002 2003 2004 2005 2006 2007 2008 2009 YAMAHA YN50 NEOS FULL SERVICE & REPAIR MANUAL

YAMAHA YN50 NEOS FULL SERVICE & REPAIR MANUAL 2002 – 2009:
