Yanmar 3JH3E 3JH3E(EPA) & 3JH3CE Engine Parts Catalog Manual 0CR10-G46601 – PDF DOWNLOAD

Description

Yanmar 3JH3E 3JH3E(EPA) & 3JH3CE Engine Parts Catalog Manual 0CR10-G46601 – PDF DOWNLOAD

FILE DETAILS:

Yanmar 3JH3E 3JH3E(EPA) & 3JH3CE Engine Parts Catalog Manual 0CR10-G46601 – PDF DOWNLOAD

Language : English
Pages : 65
Downloadable : Yes
File Type : PDF
Size: 2.6 MB

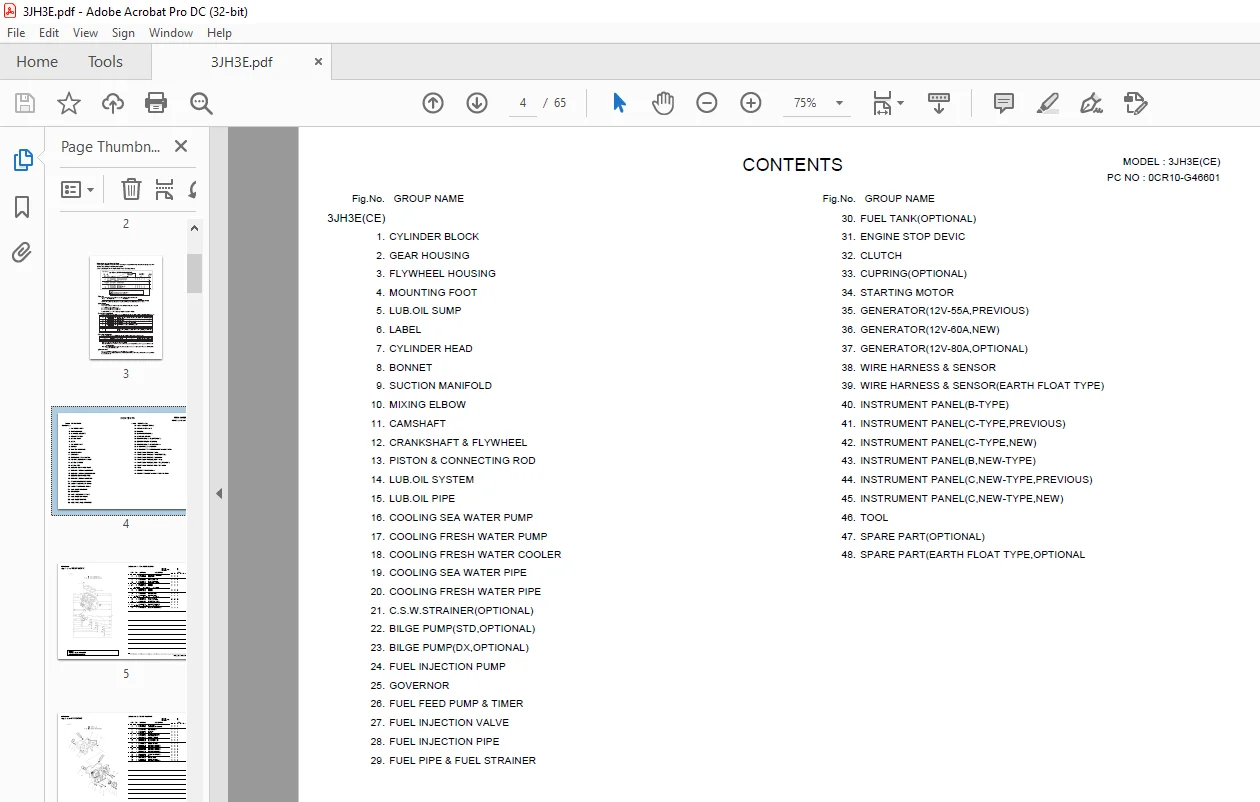

TABLE OF CONTENTS:

Yanmar 3JH3E 3JH3E(EPA) & 3JH3CE Engine Parts Catalog Manual 0CR10-G46601 – PDF DOWNLOAD

1. CYLINDER BLOCK
2. GEAR HOUSING
3. FLYWHEEL HOUSING
4. MOUNTING FOOT
5. LUB.OIL SUMP
6. LABEL
7. CYLINDER HEAD
8. BONNET
9. SUCTION MANIFOLD
10. MIXING ELBOW
11. CAMSHAFT
12. CRANKSHAFT & FLYWHEEL
13. PISTON & CONNECTING ROD
14. LUB.OIL SYSTEM
15. LUB.OIL PIPE
16. COOLING SEA WATER PUMP
17. COOLING FRESH WATER PUMP
18. COOLING FRESH WATER COOLER
19. COOLING SEA WATER PIPE
20. COOLING FRESH WATER PIPE
21. C.S.W.STRAINER(OPTIONAL)
22. BILGE PUMP(STD,OPTIONAL)
23. BILGE PUMP(DX,OPTIONAL)
24. FUEL INJECTION PUMP
25. GOVERNOR
26. FUEL FEED PUMP & TIMER
27. FUEL INJECTION VALVE
28. FUEL INJECTION PIPE
29. FUEL PIPE & FUEL STRAINER
30. FUEL TANK(OPTIONAL)
31. ENGINE STOP DEVIC
32. CLUTCH
33. CUPRING(OPTIONAL)
34. STARTING MOTOR
35. GENERATOR(12V-55A,PREVIOUS)
36. GENERATOR(12V-60A,NEW)
37. GENERATOR(12V-80A,OPTIONAL)
38. WIRE HARNESS & SENSOR
39. WIRE HARNESS & SENSOR(EARTH FLOAT TYPE)
40. INSTRUMENT PANEL(B-TYPE)
41. INSTRUMENT PANEL(C-TYPE,PREVIOUS)
42. INSTRUMENT PANEL(C-TYPE,NEW)
43. INSTRUMENT PANEL(B,NEW-TYPE)
44. INSTRUMENT PANEL(C,NEW-TYPE,PREVIOUS)
45. INSTRUMENT PANEL(C,NEW-TYPE,NEW)
46. TOOL
47. SPARE PART(OPTIONAL)
48. SPARE PART(EARTH FLOAT TYPE,OPTIONAL

DESCRIPTION:

Yanmar 3JH3E 3JH3E(EPA) & 3JH3CE Engine Parts Catalog Manual 0CR10-G46601 – PDF DOWNLOAD

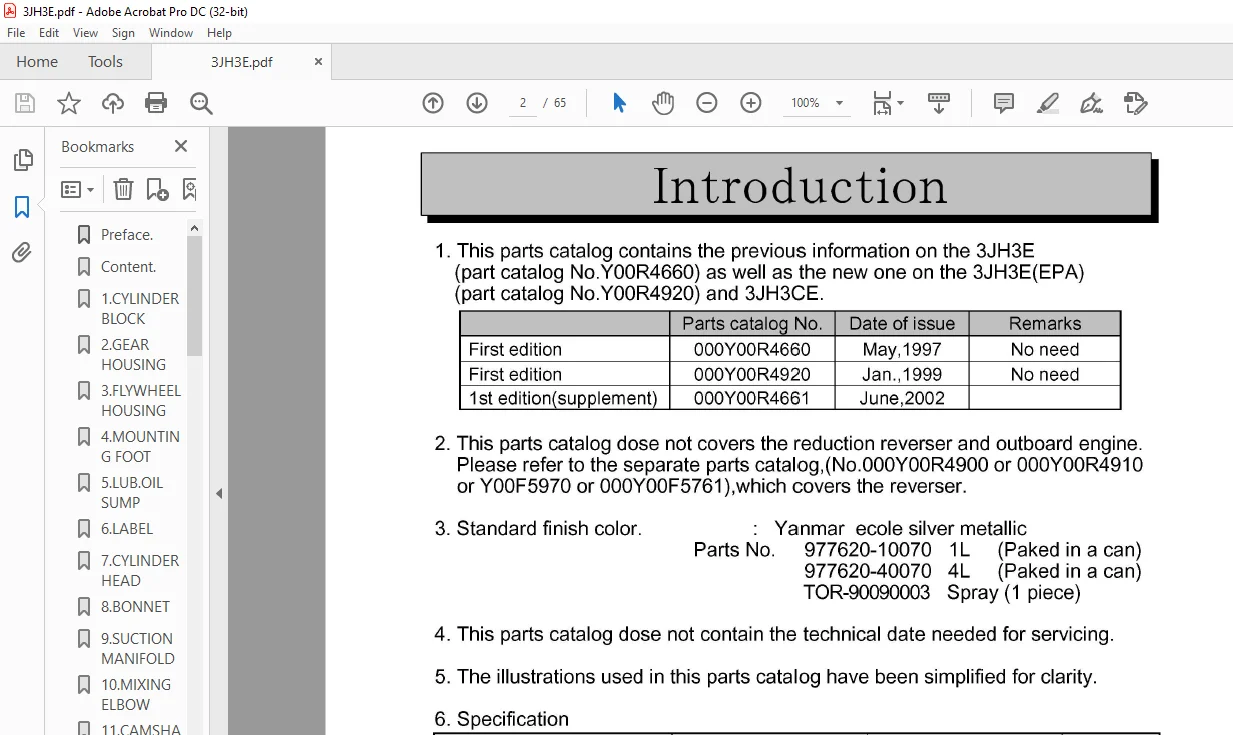

Introduction:
1. This parts catalog contains the previous information on the 3JH3E
(part catalog No.Y00R4660) as well as the new one on the 3JH3E(EPA)
(part catalog No.Y00R4920) and 3JH3CE.
Parts catalog No. Date of issue Remarks
First edition 000Y00R4660 May,1997 No need
First edition 000Y00R4920 Jan., 1999 No need
1 st edition(supplement) 000Y00R4661 June,2002
2. This parts catalog dose not covers the reduction reverser and outboard engine.
Please refer to the separate parts catalog,(No.000Y00R4900 or 000Y00R4910
or Y00F5970 or 000Y00F5761 ),which covers the reverser.
3. Standard finish color. : Yanmar ecole silver metallic
Parts No. 977620-10070 1 L (Paked in a can)
977620-40070 4L (Paked in a can)
TOR-90090003 Spray (1 piece)
4. This parts catalog dose not contain the technical date needed for servicing.
5. The illustrations used in this parts catalog have been simplified for clarity.

Directions for the Parts Catalog:
1.The parts stipulated in this Parts Catalog are not necessarily standard equipped parts.
2.Parts may change without prior notice.
3.The following is an example of the Parts Catalog format.
