Yanmar Marine Diesel Engine 2qm15 Service Repair Workshop Manual – PDF DOWNLOAD

Description

📘 COMPREHENSIVE DOCUMENT OVERVIEW

This comprehensive Yanmar 2QM15 Marine Diesel Engine Service Manual 🔧 is an indispensable resource for technicians, mechanics, and service professionals responsible for the maintenance, repair, and overhaul of this robust engine. Spanning 221 pages, this digital manual 📖 provides in-depth technical information, detailed procedures, and clear diagrams to guide you through every aspect of servicing this engine.

This manual covers the Yanmar 2QM15 model, a vertical 4-cycle water-cooled diesel engine commonly used in marine applications. It delves into the intricacies of the engine’s construction, operation, and maintenance, providing the knowledge necessary to ensure optimal performance and longevity. It’s a crucial tool for anyone working with this engine, from seasoned professionals to those just starting out. ⛵

Key Sections & Procedures:

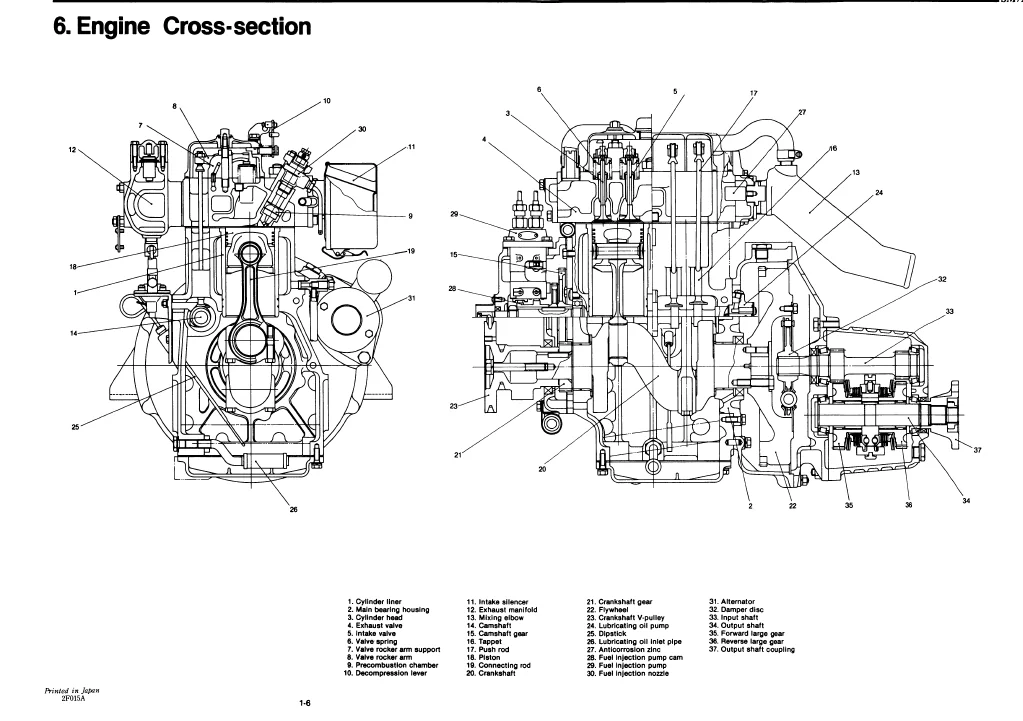

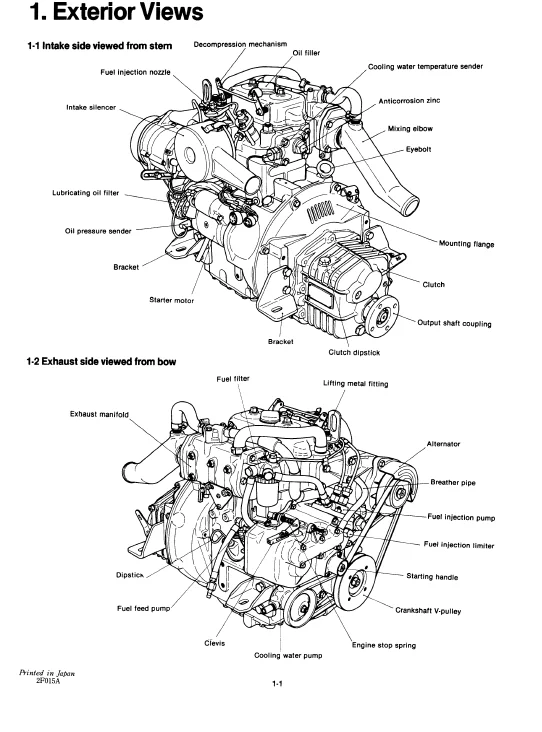

• General Information: Exterior views, specifications, performance curves, features, sectional views, and diagrams provide a thorough overview of the engine.
• Basic Engine: Detailed descriptions of the cylinder block, liner, head, piston, connecting rod, crankshaft, camshaft, and timing gear.
• Fuel System: Comprehensive explanation of the fuel system, including the injection pump, nozzle, filter, feed pump, and fuel tank.
• Governor: In-depth information about the governor, injection limiter, and engine stop spring.
• Intake & Exhaust: Covers intake and exhaust systems, silencers, and the breather pipe.
• Lubrication: Explanation of the lubrication system, oil pump, filter, pressure regulator valve, and oil pressure measurement.
• Cooling System: Details about the cooling system, water pump, thermostat, anticorrosion zinc, Kingston cock, and bilge strainer.
• Reduction & Reversing Gear: Construction, installation, operation, maintenance, inspection, and disassembly/reassembly procedures.

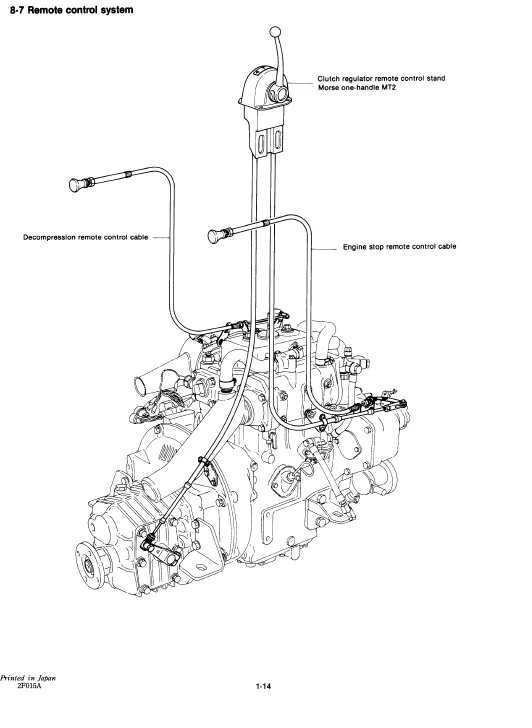

• Remote Control: Information about the remote control system and its components.
• Electrical System: Covers the electrical system composition, battery, starter motor, alternator, and alarm circuit.
• Installation & Fitting: Guidance on propeller selection, engine installation, stern equipment, piping, wiring, and front power take-off.
• Operating Instructions: Detailed instructions on fueling, lubrication, starting, warm-up, operation, stopping, storage, and emergency procedures.
• Troubleshooting: Comprehensive troubleshooting guides with causes and corrective actions for common problems.
• Disassembly & Reassembly: Step-by-step procedures with diagrams and precautions for major engine components and systems.

Maintenance Schedules & Service Intervals:

The manual provides detailed periodic inspection and servicing schedules, outlining daily, 50-hour, 100-hour, 300-hour, 500-hour, and 1000-hour maintenance tasks. This helps you proactively address potential issues and maximize the engine’s lifespan. 📋

Safety Procedures & Warnings:

Safety is paramount. ⚠️ The manual highlights crucial safety precautions throughout, emphasizing proper procedures, handling techniques, and potential hazards to minimize the risk of injury or damage during service and repair operations.

🔧 TECHNICAL SPECIFICATIONS & COVERAGE

• Model Covered: Yanmar 2QM15
• Engine Type: Vertical, 4-cycle water-cooled diesel engine
• Number of Cylinders: 2
• Bore x Stroke: 75mm x 75mm
• Displacement: 0.662L
• Rated Output: 14HP/3000rpm (continuous), 15HP/3000rpm (one hour)
• Cooling System: Sea water forced cooling
• Lubrication System: Closed forced lubrication
• Electrical System: 12V with alternator and starter motor
• Reduction Gear: Spur gear constant-mesh system with wet multi-disc mechanical clutch

📋 MANUAL SECTIONS & PROCEDURES

• Service Procedures & Maintenance Schedules: Detailed tables and checklists for routine and periodic maintenance.
• Repair Instructions & Troubleshooting Guides: Step-by-step instructions with illustrations for common repairs and diagnostic procedures.
• Parts Identification: Detailed diagrams and illustrations for identifying and ordering replacement parts.
• Assembly & Disassembly Instructions: Comprehensive procedures for disassembling and reassembling major engine components and systems.
• Adjustment & Calibration Procedures: Instructions for adjusting and calibrating engine systems, including fuel injection, governor, and valves.
• Safety Procedures & Precautions: Emphasis on safe work practices and hazard identification throughout the manual.

❌ WHAT’S NOT INCLUDED

• Physical printed manual (this is a digital download only)
• Real-time technical support or consultation
• Warranty coverage or repair guarantees

📊 COMPREHENSIVE RECOMMENDATION SUMMARY
