YANMAR SV60-A EXCAVATOR SERVICE MANUAL – PDF DOWNLOAD

Description

YANMAR SV60 A EXCAVATOR SERVICE MANUAL – PDF DOWNLOAD

YANMAR SV60-A EXCAVATOR SERVICE MANUAL – PDF DOWNLOAD:

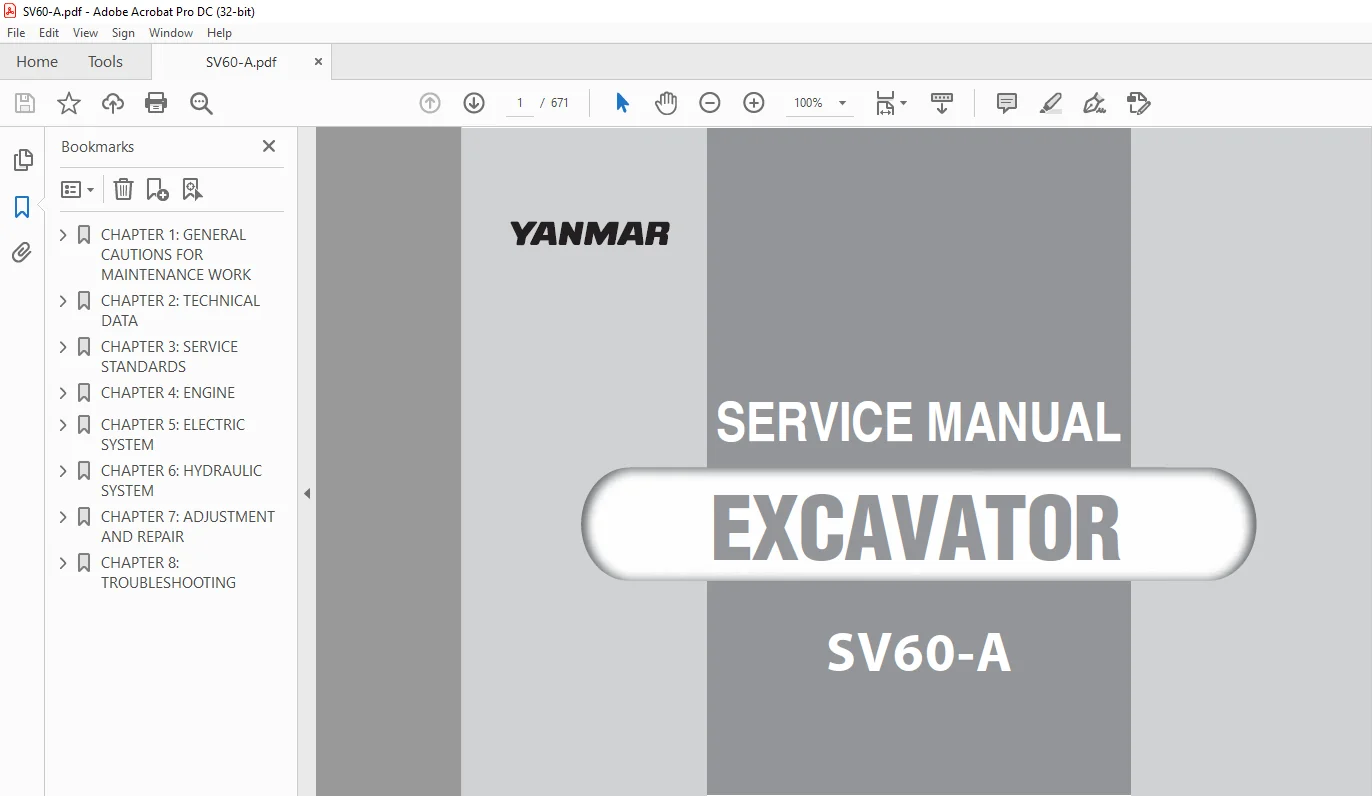

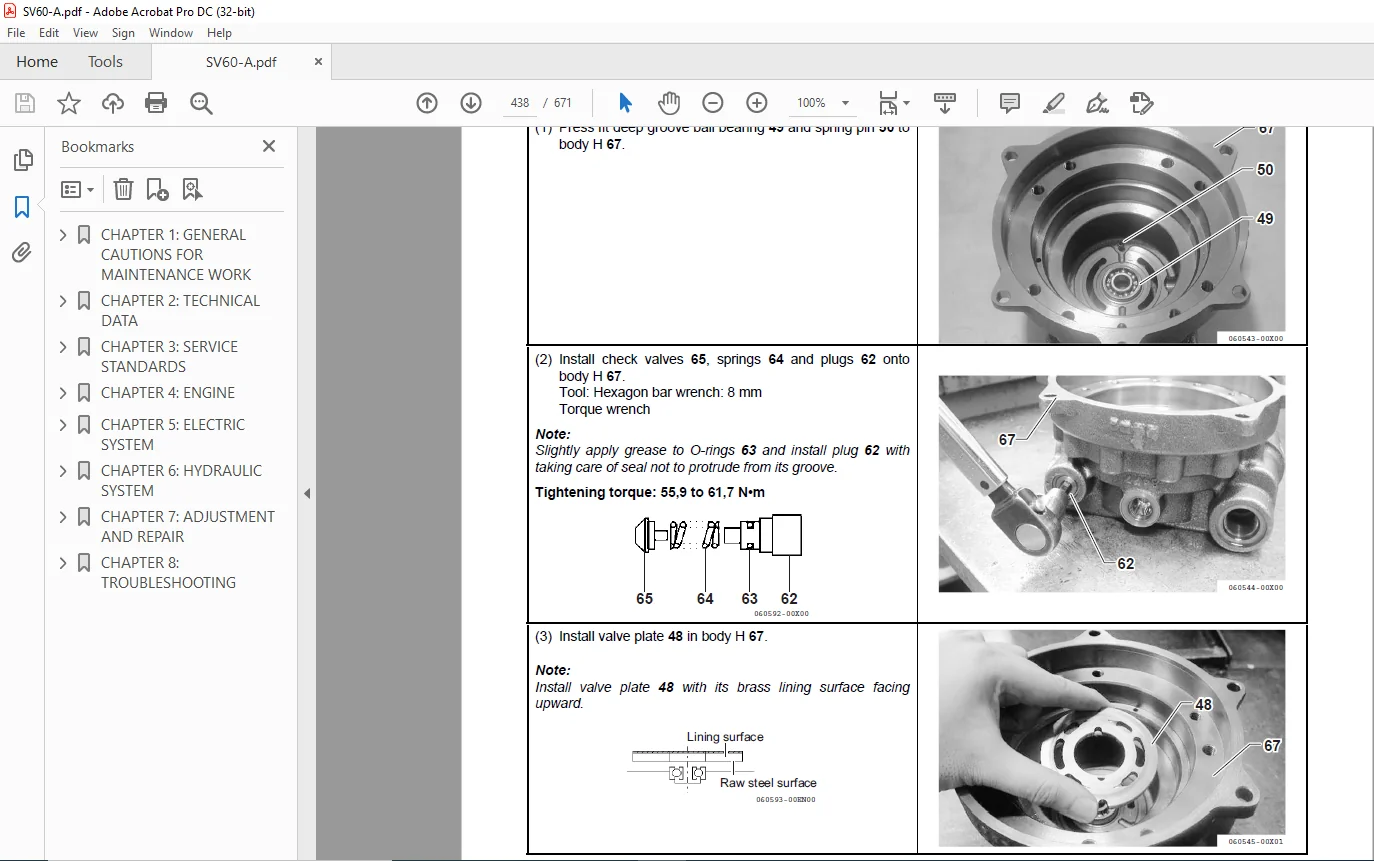

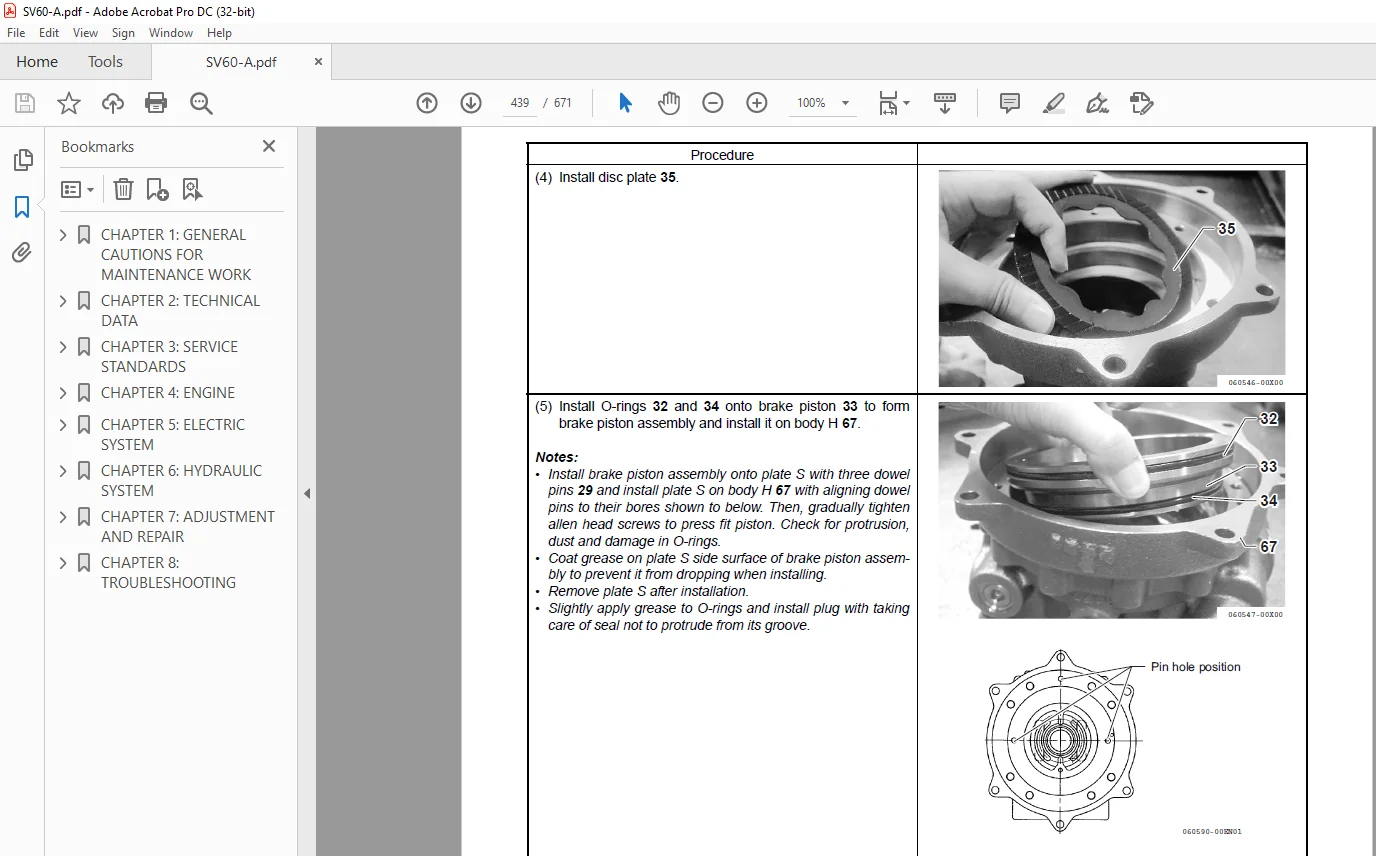

IMAGE PREVIEW:

DESCRIPTION:

YANMAR SV60 A EXCAVATOR SERVICE MANUAL – PDF DOWNLOAD

• Correct work means the quickest possible completion of according to the correct procedures and the specified standards.
• It is important when conducting certain operations always to bear in mind the equipment, tools, gauges, materials, oil and grease, etc. that you must have ready, as well as items to be checked, adjusted, or disassembled, and cautions to watch out for.
• (1) Never attempt servicing while engine is running or immediately after stopping operation. (2) Wear work cloths, safety shoes and helmet. (3) Check the equipment and tools before use. Especially, be sure to check the crane, lifting equipment and tools.
• (4) When working together with other persons, allocate everyone’s share of job, arrange the signals and act in concert with the other persons. (5) The operation of the crane and slinging work must be performed by qualified persons.
• (6) Do not enter or pass under the raised load. (7) Lift and support the massive parts by crane before removing the installation bolts. (8) Disconnect cables from battery before repairing the electric system.
• (9) Remove the battery when welding the machine. (1) Check the service record of the machine. (That is, check how many months or hours the machine has been used since the preceding overhaul, what was the trouble then and what parts were replaced.)
• (2) Have all servicing tools ready, i.e., tools, measuring devices (which have received periodic maintenance), containers, oil & grease, etc. (3) Have the service literature (operation manual, parts catalog, etc.) ready.
• (1) Clean the machine before disassembly. (2) Check and record the condition of the machine before disassembly : • Model, machine number, operation hours • Reasons for repair, history of repair •
• Contamination of filters • Fuel and oil condition • Damage to parts, etc. (3) Place alignment marks on the necessary parts to facilitate reassembly. (4) Clean all the removed parts and new replacement parts and put them in order. (5) Use new seals, split pins, etc. for reassembly.

TABLE OF CONTENTS:

YANMAR SV60 A EXCAVATOR SERVICE MANUAL – PDF DOWNLOAD

CHAPTER 1: GENERAL CAUTIONS FOR MAINTENANCE WORK....................  4
	Correct Work....................................................  6
	Safety Precautions..............................................  6
	Preparations....................................................  6
	Cautions for Disassembly and Reassembly.........................  6
	Cautions for Removal and Installation of Hydraulic Equipment....  7
	Cautions for Removal and Installation of Hydraulic Piping.......  7
	Cautions for Handling Seals.....................................  8
	Correct Installation of Hydraulic Hose..........................  8
	Specification of Hydraulic Hose................................. 11
	Air Release of Hydraulic Equipment.............................. 13
CHAPTER 2: TECHNICAL DATA........................................... 16
	Specifications.................................................. 18
	Outline Drawing and Working Area................................ 26
	Weight List of Main Parts....................................... 27
	Lifting Capacity List........................................... 28
	Specifications for Attachment................................... 30
	Periodic Inspection and Servicing............................... 31
	Fuel, Lube Oil and Grease Recommended........................... 33
	Hydraulic Circuit Schematic..................................... 34
	Wiring Diagram.................................................. 35
CHAPTER 3: SERVICE STANDARDS........................................ 41
	Machine Performance............................................. 43
	Engine.......................................................... 47
	Undercarriage................................................... 52
	Controls........................................................ 56
	Hydraulic Equipment............................................. 57
	Implement....................................................... 58
	List of Tightening Torque....................................... 60
	Pressure Adjustment............................................. 69
CHAPTER 4: ENGINE................................................... 76
	Safety.......................................................... 78
	Engine.......................................................... 92
	Fuel System.....................................................144
	Cooling System..................................................172
	Lubrication System..............................................181
	Turbocharger....................................................187
	Starter Motor...................................................197
	Alternator......................................................211
	Electronic Control System.......................................222
	Electric Wiring.................................................224
	Failure Diagnosis...............................................225
	Troubleshooting.................................................230
CHAPTER 5: ELECTRIC SYSTEM..........................................237
	Electric Equipment of Machine...................................239
	Circuit Description of Engine Start and Stop....................253
	Engine ECU......................................................255
	Error Code List.................................................260
CHAPTER 6: HYDRAULIC SYSTEM.........................................269
	Outline.........................................................271
	Circuit Operation...............................................278
	Hydraulic Pump..................................................312
	Control Valve...................................................346
	Pilot Valve.....................................................413
	Swing Motor.....................................................422
	Travel Motor....................................................449
	Proportional solenoid valve for P.T.O...........................500
CHAPTER 7: ADJUSTMENT AND REPAIR....................................507
	Engine and Electric Equipment...................................509
	Undercarriage...................................................535
	Controls........................................................556
	Swing Bearing...................................................561
	Hydraulic Equipment.............................................563
	Work Implements.................................................609
	Cabin...........................................................619
	Air Conditioner.................................................641
CHAPTER 8: TROUBLESHOOTING..........................................658
	Non-Breakdowns..................................................660
	Quick Reference Table for Troubleshooting.......................666

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

SK
