Yanmar TNE Series Diesel Engine Operation Manual – 2TNE 3TNE 4TNE PDF

Description

Yanmar TNE Series Diesel Engine Operation Manual

This is the complete operation manual for the Yanmar TNE Series diesel engine family, covering the 2TNE, 3TNE and 4TNE model groups. The document is published by YANMAR POWER TECHNOLOGY CO., LTD. and carries document code 0ATNE-M00022. It walks an operator or mechanic through the full working life of the engine – from pre-start checks and breaking-in, through daily operation, all the way to long-term storage and fault finding.

The manual is presented in five languages side by side (English, French, German, Spanish and Italian), so the same Yanmar TNE Series diesel engine operation manual content is available regardless of which language edition you normally work from. The English section is the reference edition reproduced in this PDF and mirrors the operational content of the other four translations.

File Details

• Manual type: Operation Manual
• Brand: Yanmar
• Series: TNE Series diesel engines (2TNE, 3TNE, 4TNE)
• Document code: 0ATNE-M00022
• Edition: 3rd edition, April 2020 (1st edition December 2008, 2nd edition September 2012)
• Languages: English, French, German, Spanish, Italian
• Page count: 132
• File format: PDF

Chapters Covered

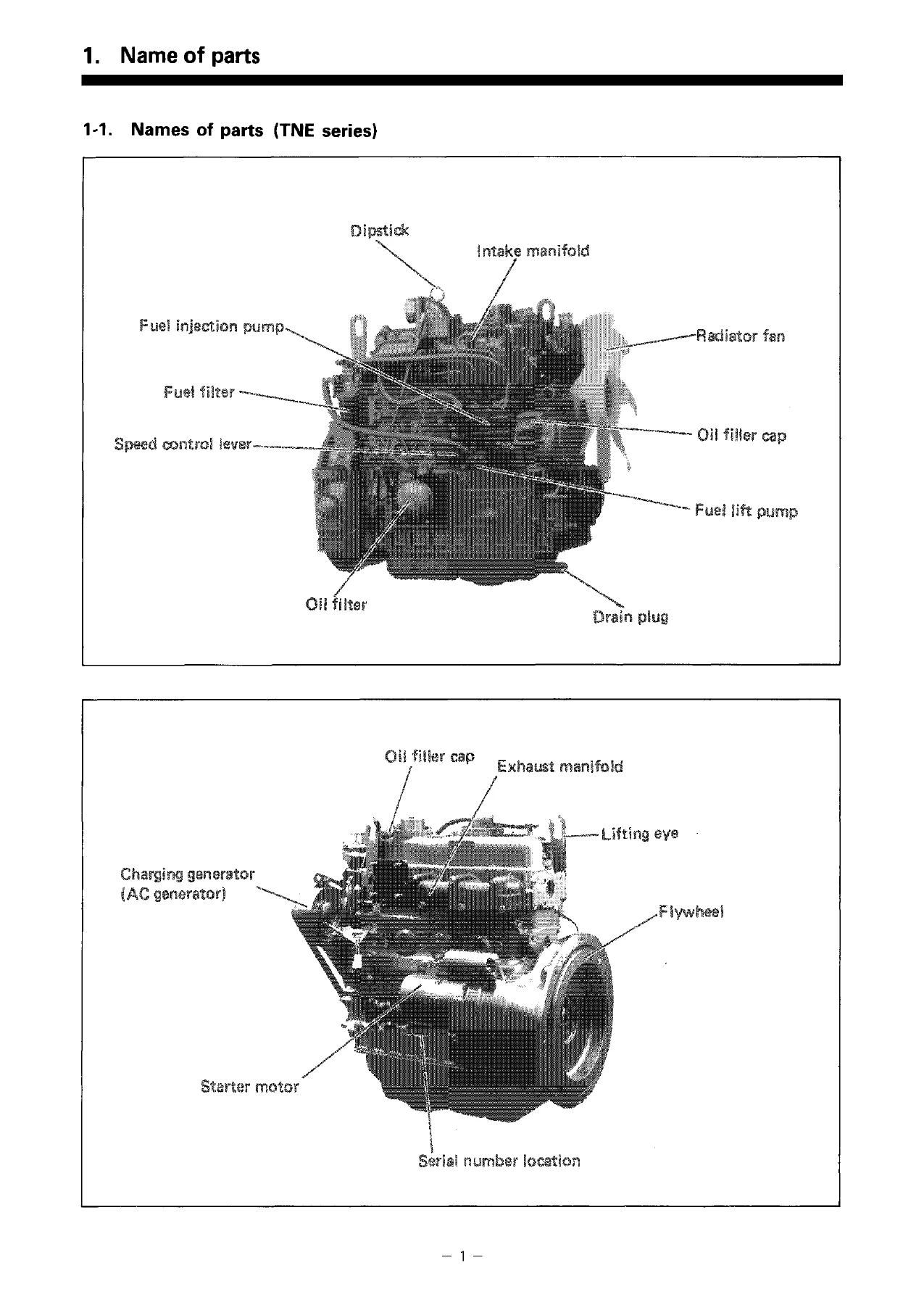

• Names of parts – labelled views of the TNE engine assembly
• Specifications – model-by-model bore, stroke, displacement, rpm, dimensions, oil and coolant capacities, alternator rating
• Basic rules that must be kept for engine handling – running-in, warm-up, fuel cetane value, fuel tank draining, lube oil and filter intervals, cooling water, anti-freeze, belt tension
• Fuel oil, lube oil and cooling water – selection and handling of fuel, lube oil grades and viscosity chart, crankcase filling, cooling water supply and draining
• Breaking-in operation – initial fuel fill, draining the fuel tank, draining the fuel filter, bleeding the fuel system, lubricating engine parts, spreading the lube oil, pilot lamp checks
• Operating your engine – starting procedure, cold weather starting, cautions after starting, warnings during operation (exhaust colour, leaks, resonance range, alarm lamps, abnormal noise), engine stopping, emergency stop
• Periodic checks and maintenance – maintenance interval chart, fuel oil system, lube oil system, cooling water system, air intake system, engine body, electrical equipment, fan belt tension
• Long-term storage – three-month plus storage preparation and monthly battery care
• Troubleshooting – hard-to-start flow chart covering fuel, compression, injection timing, exhaust restriction and battery

The Yanmar TNE Series diesel engine operation manual is built around the practical routines a machine operator or small workshop needs day to day. It does not try to be a full rebuild guide – instead it concentrates on the actions that keep a 2TNE, 3TNE or 4TNE engine running cleanly: correct fuel quality, warm-up before load, the exact lube oil and filter replacement intervals, cooling water treatment, and the checks that catch a fault before it becomes a failure. The specification chapter gives you the model data needed to identify exactly which variant you are looking at, while the troubleshooting section gives a structured path when the engine will not start.

What This Yanmar TNE Series Manual Enables You To Do

• Identify the engine variant and locate every major component from the labelled part views
• Read the correct specification values for your exact 2TNE68, 3TNE74, 3TNE84, 4TNE88 or other TNE model
• Run a proper breaking-in routine on a new or freshly rebuilt engine
• Bleed the fuel system correctly on both mechanical and electromagnetic fuel feed pump types
• Follow the periodic maintenance chart for daily, 50-hour, 200-hour, 400-hour, 1000-hour and 2000-hour intervals
• Service the fuel filter, lube oil filter, cooling system, air cleaner and fan belt to the correct intervals and tensions
• Diagnose hard starting and engine faults using the structured troubleshooting chart
• Prepare the engine correctly for long-term storage and bring it back into service safely

Getting these routines right is what separates a TNE engine that runs for years from one that suffers piston seizure, bearing wear or overheating. A coolant level checked at the right time, a lube oil filter changed at the right interval, and a fuel system bled properly all depend on knowing the exact steps – and this manual spells them out for every model in the Yanmar TNE Series range.
