YANMAR VIO45-6A EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CS10-M59200EN – PDF DOWNLOAD

Description

YANMAR VIO45-6A EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CS10-M59200EN – PDF DOWNLOAD

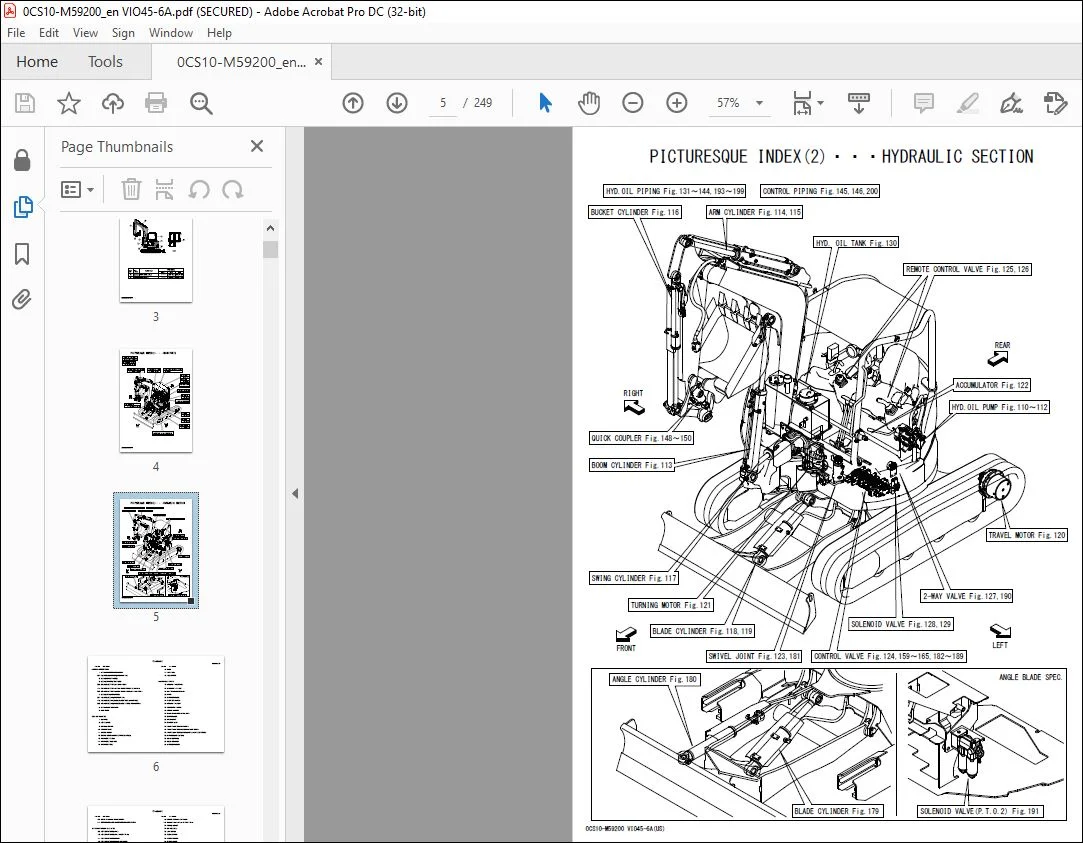

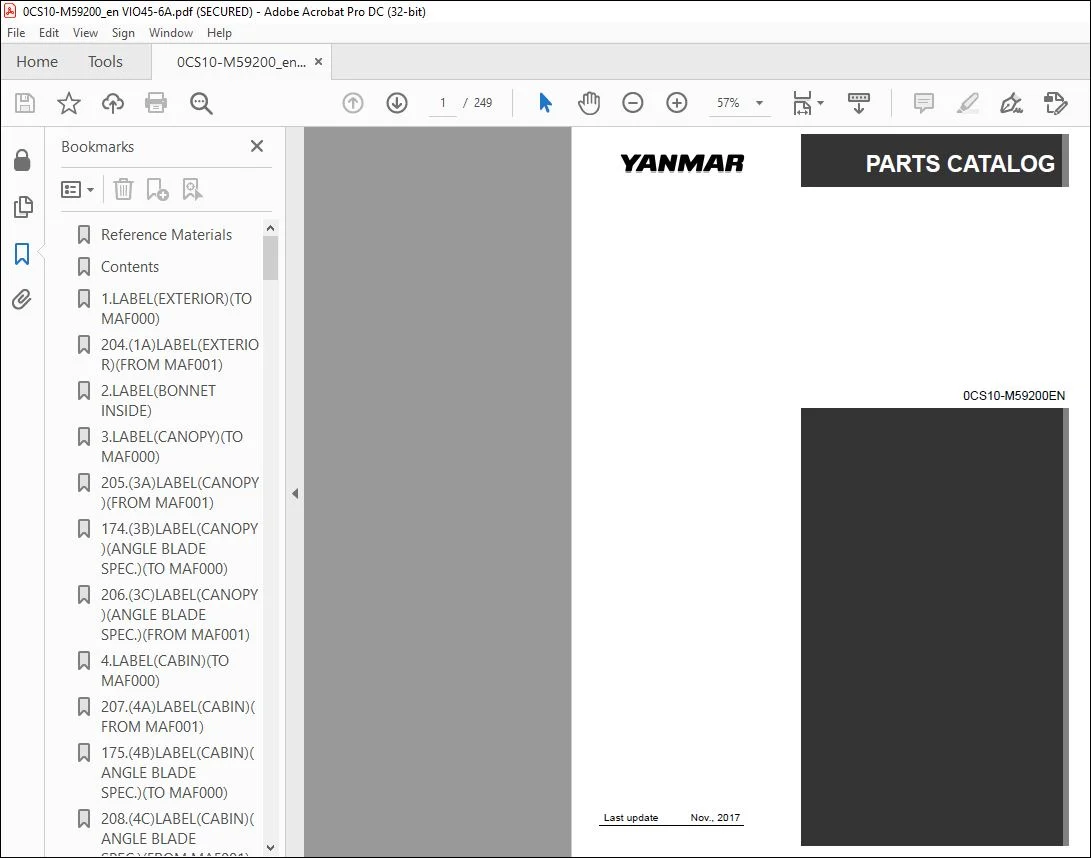

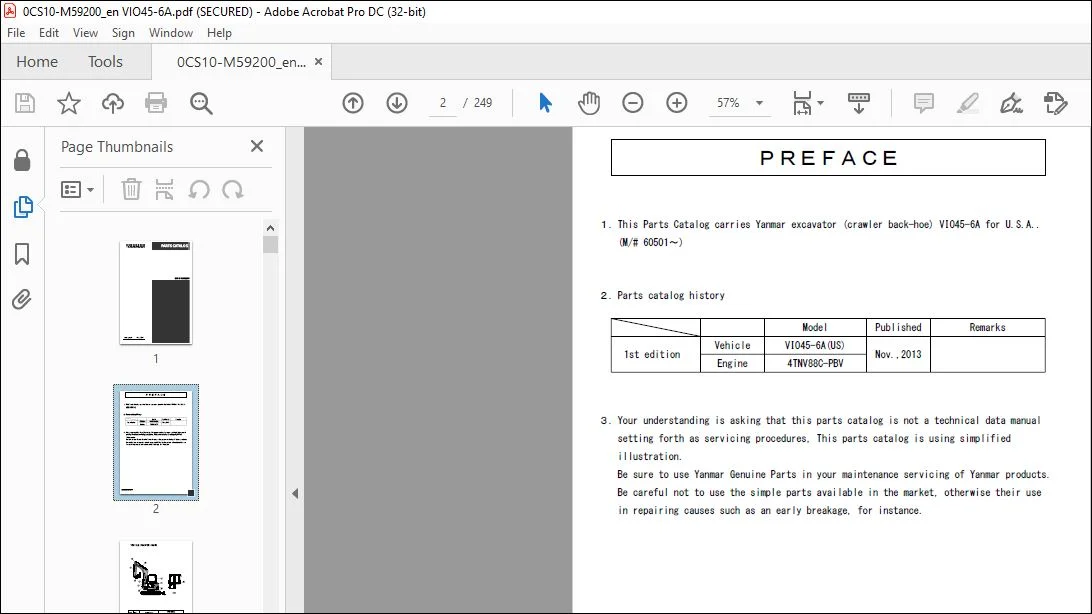

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

YANMAR VIO45-6A EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CS10-M59200EN – PDF DOWNLOAD

INTRODUCTION:

• Your understanding is asking that this parts catalog is not a technical data manual setting
  forth as servicing procedures, This parts catalog is using simplified illustration.
• Be sure to use Yanmar Genuine Parts in your maintenance servicing of Yanmar products.
  Be careful not to use the simple parts available in the market, otherwise their use in
  repairing causes such as an early breakage, for instance.

TABLE OF CONTENTS:

YANMAR VIO45-6A EXCAVATOR CRAWLER BACKHOE PARTS CATALOG MANUAL 0CS10-M59200EN – PDF DOWNLOAD

Reference Materials 2
Contents 6
1 LABEL(EXTERIOR)(TO MAF000) 11
204 (1A)LABEL(EXTERIOR)(FROM MAF001) 12
2 LABEL(BONNET INSIDE) 13
3 LABEL(CANOPY)(TO MAF000) 14
205 (3A)LABEL(CANOPY)(FROM MAF001) 15
174 (3B)LABEL(CANOPY)(ANGLE BLADE SPEC )(TO MAF000) 16
206 (3C)LABEL(CANOPY)(ANGLE BLADE SPEC )(FROM MAF001) 17
4 LABEL(CABIN)(TO MAF000) 18
207 (4A)LABEL(CABIN)(FROM MAF001) 19
175 (4B)LABEL(CABIN)(ANGLE BLADE SPEC )(TO MAF000) 20
208 (4C)LABEL(CABIN)(ANGLE BLADE SPEC )(FROM MAF001) 21
5 LABEL(QUICK COUPLER) 22
6 TOOL CASE 23
7 MUFFLER 24
8 AIR CLEANER 25
9 MUFFLER COVER 26
10 ACCELERATOR 27
11 ENGINE MOUNT 28
12 ENGINE MOUNT(AIR CONDITIONER SPEC ) 29
13 RADIATOR SHROUD 30
14 RADIATOR & SUB TANK 31
15 RADIATOR HOSE 32
16 DUCT 33
17 FUEL TANK 34
18 FUEL PIPING 35
19 AROUND THE ENGINE 36
20 HARNESS SUPPORT 37
21 BATTERY(MINUS CABLE) 38
22 HORN 39
23 HARNESS GUIDE 40
24 STARTER SWITCH 41
25 AROUND THE SEAT 42
26 PRESSURE SWITCH 44
27 TRAVEL BUZZER 45
28 QUICK COUPLER(SWITCH BOX) 46
29 CONTROLLER 47
30 WORK LAMP 48
31 CANOPY LAMP 49
32 INSTRUMENT PANEL(CANOPY) 50
33 INSTRUMENT PANEL(CABIN)(HEATER SPEC ) 51
34 INSTRUMENT PANEL(CABIN)(AIR CONDITIONER SPEC ) 52
35 HARNESS(AIR HEATER) 53
36 WORK CONTROL 54
37 RELAY BRACKET 55
38 HARNESS MOUNT 56
176 (38A)P T O (ANGLE BLADE SPEC ) 57
177 (38B)ANGLE BLADE LEVER(ANGLE BLADE SPEC ) 58
39 AIR CONDITIONER(UNIT) 59
40 AIR CONDITIONER(UNIT)(INNER PARTS) 60
41 AIR CONDITIONER(PIPING) 62
42 AIR CONDITIONER(ENGINE RELATED) 63
43 AIR CONDITIONER(CONDENSER RELATED) 64
44 AIR CONDITIONER(ELECTRIC PARTS) 65
45 HEATER(UNIT) 66
46 HEATER(UNIT)(INNER PARTS) 67
47 HEATER(PIPING) 68
48 DUCT(AIR CONDITIONER & HEATER) 69
49 SPROCKET 70
50 IDLER & ADJUST 71
51 TRACK ROLLER 72
52 CARRIER ROLLER 73
53 CRAWLER 74
171 (53A)CRAWLER(T SPEC ) 75
54 VALVE MOUNT 76
55 TRAVEL PEDAL(FIXED TYPE) 77
203 (55A)TRAVEL PEDAL(FOLDING TYPE) 78
56 TRAVEL LEVER 79
57 SWING PEDAL 80
58 LINK COVER 81
59 PEDAL COVER 82
60 LEVER SPACER 83
61 BLADE LEVER 84
178 (61A)BLADE LEVER(ANGLE BLADE SPEC ) 85
62 ARMREST 86
63 LOCK LEVER & STAND 87
64 TRACK FRAME 88
65 CRAWLER GUARD(IRON CRAWLER SPEC ) 89
66 COUNTER WEIGHT 90
67 TURNING FRAME 91
68 TURNING BEARING 92
69 COVER(MULTI) 93
70 UPPER COVER(1) 94
71 UPPER COVER(2) 95
72 COVER(TURNING FRAME) 96
73 COVER(TRAVEL FRAME) 97
74 FRAME GUARD(LEFT) 98
75 FRAME GUARD(RIGHT) 99
76 COVER(TURNING FRAME)(FRONT – LEFT) 100
77 COVER(TURNING FRAME)(FRONT – RIGHT) 101
78 STEP(CABIN) 102
79 STEP(CANOPY) 103
80 COVER(LEVER) 104
81 COVER(MONITOR)(CANOPY) 105
82 COVER(MONITOR)(CABIN)(AIR CONDITIONER SPEC ) 106
83 COVER(MONITOR)(CABIN)(HEATER SPEC ) 107
84 SEAT MOUNT 108
85 COVER(SEAT MOUNT) 109
86 SEAT 110
87 SEAT(INNER PARTS) 111
88 HANDRAIL(LEFT) 112
89 HANDRAIL(RIGHT) 113
90 BONNET(REAR) 114
91 BONNET(FRONT) 115
92 BONNET(LEFT) 116
93 BONNET(RIGHT) 117
94 CANOPY 118
95 CANOPY MOUNT 119
96 WINDOW WASHER 120
97 CABIN(ASSEMBLY) 121
98 CABIN DOOR(1) 122
99 CABIN DOOR(2) 123
100 CABIN(FRONT WINDOW)(1) 124
101 CABIN(FRONT WINDOW)(2) 125
102 CABIN(GLASS) 126
103 CABIN(REAR COVER) 128
104 CABIN(ELECTRIC PARTS) 129
105 CABIN(ACCESSORY) 130
106 REARVIEW MIRROR 131
107 CABIN MOUNT 132
108 BOX(CABIN HEATER SPEC ) 133
109 HYDRAULIC PUMP MOUNT 134
110 HYDRAULIC PUMP(QUICK COUPLER SPEC ) 135
111 HYDRAULIC PUMP(E S S SPEC ) 137
112 HYDRAULIC PUMP(E S S & QUICK COUPLER SPEC ) 139
113 BOOM CYLINDER 141
114 ARM CYLINDER 143
115 ARM CYLINDER(QUICK COUPLER SPEC ) 144
116 BUCKET CYLINDER 145
117 SWING CYLINDER 146
118 BLADE CYLINDER 147
119 BLADE CYLINDER(QUICK COUPLER SPEC ) 148
179 (119A)BLADE CYLINDER(ANGLE BLADE SPEC ) 149
180 (119B)ANGLE CYLINDER(ANGLE BLADE SPEC ) 150
120 TRAVEL MOTOR 151
121 TURNING MOTOR 153
122 ACCUMULATOR 154
123 SWIVEL JOINT 155
181 (123A)SWIVEL JOINT(ANGLE BLADE SPEC ) 156
124 CONTROL VALVE(1/8) 157
159 (124A)CONTROL VALVE(2/8) 158
160 (124B)CONTROL VALVE(3/8) 159
161 (124C)CONTROL VALVE(4/8) 160
162 (124D)CONTROL VALVE(5/8) 161
163 (124E)CONTROL VALVE(6/8) 162
164 (124F)CONTROL VALVE(7/8) 163
165 (124G)CONTROL VALVE(8/8) 164
182 (124H)CONTROL VALVE(1/8)(ANGLE BLADE SPEC ) 165
183 (124I)CONTROL VALVE(2/8)(ANGLE BLADE SPEC ) 166
184 (124J)CONTROL VALVE(3/8)(ANGLE BLADE SPEC ) 167
185 (124K)CONTROL VALVE(4/8)(ANGLE BLADE SPEC ) 168
186 (124L)CONTROL VALVE(5/8)(ANGLE BLADE SPEC ) 169
187 (124M)CONTROL VALVE(6/8)(ANGLE BLADE SPEC ) 170
188 (124N)CONTROL VALVE(7/8)(ANGLE BLADE SPEC ) 171
189 (124O)CONTROL VALVE(8/8)(ANGLE BLADE SPEC ) 172
125 REMOTE CONTROL VALVE(RIGHT) 173
126 REMOTE CONTROL VALVE(LEFT) 174
127 2-WAY VALVE 175
190 (127A)2-WAY VALVE(ANGLE BLADE SPEC ) 176
128 SOLENOID VALVE(P T O )(E S S SPEC ) 177
129 SOLENOID VALVE(P T O ) 178
191 (129A)SOLENOID VALVE(P T O 2)(ANGLE BLADE SPEC ) 179
192 (129B)SOLENOID VALVE BRACKET(P T O 2)(ANGLE BLADE SPEC ) 180
130 HYD OIL TANK 181
148 QUICK COUPLER(HITCH CYLINDER) 182
131 TANK – PUMP & CONTROL VALVE 183
132 CONTROL VALVE – TURNING MOTOR 184
133 CONTROL VALVE(FITTING)(1) 185
193 (133A)CONTROL VALVE(FITTING)(1)(ANGLE BLADE SPEC ) 186
134 CONTROL VALVE(FITTING)(2) 187
194 (134A)CONTROL VALVE(FITTING)(2)(ANGLE BLADE SPEC ) 188
135 CONTROL VALVE – RETURN & DRAIN 189
136 CONTROL VALVE – BOOM BULKHEAD & SWING 190
137 CONTROL VALVE – BOOM CYLINDER 191
138 CONTROL VALVE – SWIVEL JOINT 192
195 (138A)CONTROL VALVE – SWIVEL JOINT(ANGLE BLADE SPEC ) 193
139 TRAVEL FRAME 194
196 (139A)TRAVEL FRAME(ANGLE BLADE SPEC ) 195
140 ARM CYLINDER & BUCKET CYLINDER 196
141 P T O (CONTROL VALVE – BOOM) 197
142 P T O (BOOM – ARM END) 198
143 P T O (SOLENOID VALVE) 199
197 (143A)P T O (SOLENOID VALVE)(ANGLE BLADE SPEC ) 200
144 P T O (SOLENOID VALVE & E S S ) 201
198 (144A)P T O (SOLENOID VALVE & E S S )(ANGLE BLADE SPEC ) 202
199 (144B)P T O 2(ANGLE BLADE)(ANGLE BLADE SPEC ) 203
145 CONTROL PIPING(1) 204
200 (145A)CONTROL PIPING(1)(ANGLE BLADE SPEC ) 205
146 CONTROL PIPING(2) 206
147 GREASING 207
149 QUICK COUPLER(HYD OIL PIPING)(1) 208
150 QUICK COUPLER(HYD OIL PIPING)(2) 209
151 QUICK COUPLER(BODY) 210
152 BOOM BRACKET 211
153 BOOM 212
154 ARM 213
155 BUCKET ARM & LINK 214
156 BLADE 215
157 BLADE(QUICK COUPLER SPEC ) 216
201 (157A)BLADE(ANGLE BLADE SPEC ) 217
172 BUCKET PIN 218
173 BUCKET 219
158 LABEL KIT(FOR CANADA)(OPTIONAL) 220
202 (158A)LABEL KIT(FOR CANADA)(ANGLE BLADE SPEC )(OPTIONAL) 222
166 P T O STOP VALVE CONNECTER KIT(OPTIONAL) 224
167 REMOTE CONTROLLER KIT(OPTIONAL) 225
168 RADIO KIT(OPTIONAL)NO RADIO 226
169 P T O OVER LOAD VALVE KIT(OPTIONAL) 227
170 ADDITIONAL WEIGHT KIT(OPTIONAL) 228
Parts No Index 229
