ZF 9S 109 Isuzu Parts Manual 1304 051 414 – PDF DOWNLOAD

Description

ZF 9S 109 Isuzu Parts Manual 1304 051 414 – PDF DOWNLOAD

FILE DETAILS:

ZF 9S 109 Isuzu Parts Manual 1304 051 414 – PDF DOWNLOAD

Language : English
Pages : 52
Downloadable : Yes
File Type : PDF

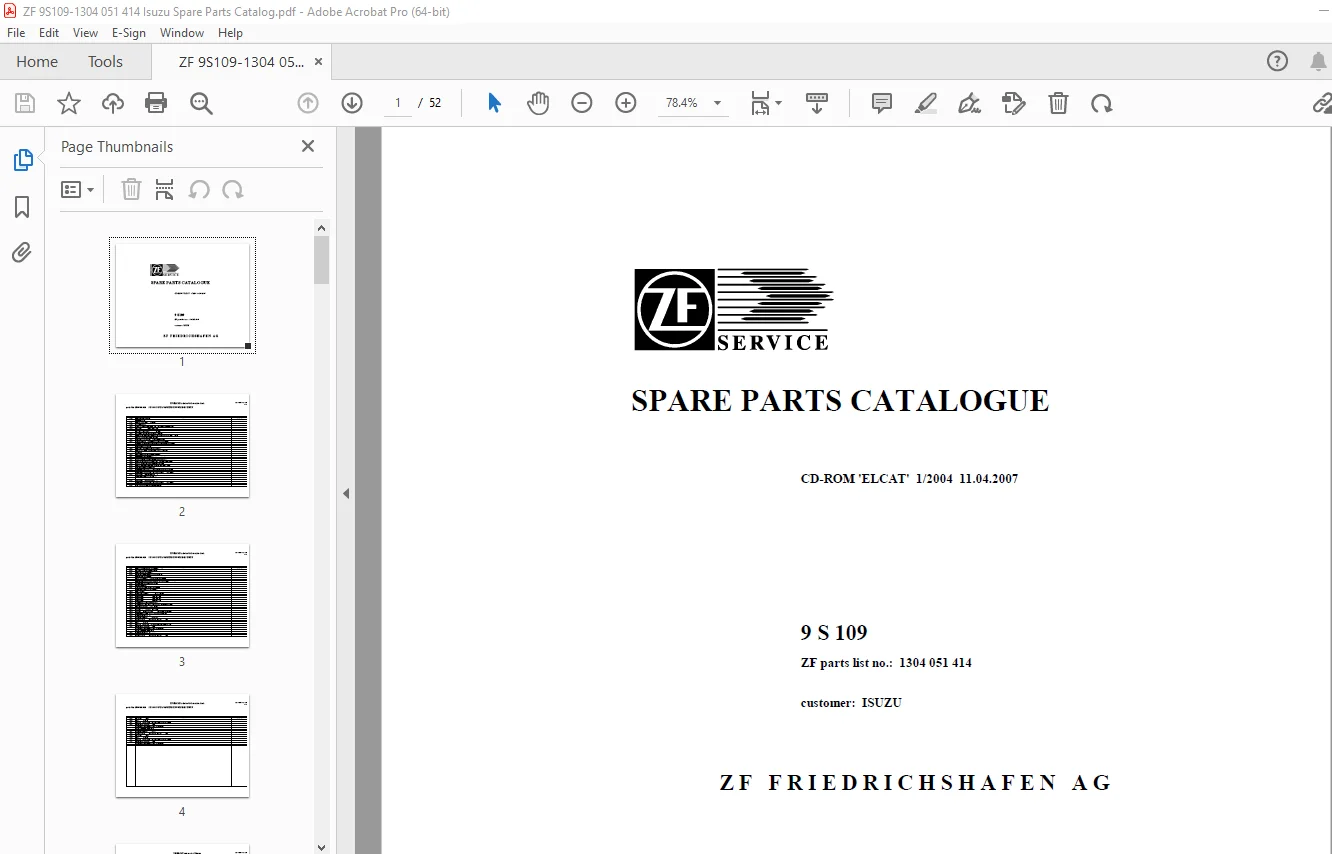

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF 9S 109 Isuzu Parts Manual 1304 051 414 – PDF DOWNLOAD

CUSTOMER:ISUZU
COUNTRY:J
A14 CUST.SPEC.NO: CODE:
A16 1-33040-571-4
F06 INSTAL.POSITION:HOR. LH *FLANGE MOUNTED*
F10 RATIO: 10,24- 0,74 *SG
G10,24* 6,57* 4,78* 3,53* 2,61* 1,86*
G 1,35* 1,00* 0,74* R 9,44
F26 PLANET GEAR SET:I=3,530* 4 GEAR
F34 CONTROL:REMOTE CONTROL*HORIZONTAL RH *H-H
GP:PLASTIC FORMED PIPING
F38 SEPARAT.CLUTCH: SYNCHRONIZED
F40 INPUT SHAFT : L=320,0*SAE 10C 1 3/4INCH
JOURNAL:D=25 G7*SHAFT:D=44,00*BUSH:WITHOUT
F46 REL.BRG.CARRIER:L= 215,0 D= 57,000 E8
SEALING CAP:WITH
F50 OUTPUT :STANDARD BEARINGS
F52 OUTP.FLANGE RA:OD=190 *NH= 4 *D=16,1
L=189,0
F62 GP HOUSING :HEXAGON SCREW
F64 CONN.OF GEARSHIFT:
F66 CONTROL SHAFT DIMENSION:A=248,0*
F68 MEAS.POINT: SHIFTLEVER-LOCATION *
F96 SET OF SPRINGS:LAYOUT Q5 *INSERTION:W066
F98 PAWL STOP: SPRING FORCE RG= 60N
G06 GEAR DETENT:SPRING FORCE NG+GG = 68N
G16 SELECTION PATTERN:WI
G26 SPEEDO-DRIVE:I= 1,545*PROTECTING CAP:WITH
G30 SWITCH: RG*CLOSING *SHIFT RAIL
PROTECT.CAP:WITH *CABLE+PLUG *L= 2,0M
G32 SWITCH: NG*OPENING *
PROTECTING CAP:WITH *
G36 SWITCH: GP*OPENING *
PROTECT.CAP:WITH *CABLE+PLUG *L= 2,0M
G50 AUXILIARY UNITS:WITHOUTWSK *
G60 AUXILIARY UNITS/ACCESSORIES
ZF-ELCAT technical information sheet CD 1/2004 11.04.2007
sheet 3
parts list: 1304 051 414 9 S 109 / SG*LL*ANGEFL*DW-WR H-H / ISUZU
item text mod. no.
G64 HEAT EXCHANGER:WITHOUT *
G66 G.BOX VENTING:BREATHER
G74 RETARDER:WITHOUT
G76 CLUTCH HOUSING:SAE 2 *L=210,0*
RELEASE: WITHOUT
CYL: WITHOUT * BALL PIN: WITHOUT
ASSEMBLY POS: 6 * LUBRICAT.CONNETION:WITHOUT
RELEASE SHAFT: BOTTOM* Y = 57* Z = 100
G86 PARKING BRAKE:PREPARED
H50 ELECTRONIC:
H64 TRANSMITTER INPUT:WITHOUT
PROTECTING CAP:WITHOUT
M00 DRAWING:
M02 INSTALLATION: 1304 651 057
M14 SECTION: 1304 051 410
M16 SECTION: 1304 172 171
M18 SECTION: 1304 149 012
M20 SECTION: 6060 000 001
M50 ASSEMBLY INSTRUCTIONS:
M58 ASSEMBLY:OIL FILL+OVERFLO *HOUSING LEFT
M90 OIL CAPACITY: AP. 8,50L
M92 OIL GRADE ACC.TO ZF:TE-ML02
M94 MASS : APPRX. 190,0 KG
M96 PAINT :DEEP-BLACK *RAL9005 ZFN915W
M98 PRESERVATION : KA2 T/KI2/S40*ZFN 916
S02 VEHICLE DATA 1:
S04 MODEL:TRUCK *GXZ 23
S06 MAX.G.V.M. 26T*MAX. G.C.M. 38T
S08 R DYN: 516*
S10 RA: I= 5,12
S14 ISUZU /6SD1-TC *KW201/2200*N.M1000/1500
S18 CLUTCH: DAIKIN *380
MOMENT OF INERTIA:J=0,0700KGM2
SLIP TORQUE: 2621 N.M
S52 VEHICLE DATA 2:
S54 MODEL:TRUCK *FXZ
S56 MAX.G.V.M. 26T*MAX. G.C.M. 40T
ZF-ELCAT technical information sheet CD 1/2004 11.04.2007
sheet 4
parts list: 1304 051 414 9 S 109 / SG*LL*ANGEFL*DW-WR H-H / ISUZU
item text mod. no.
S58 R DYN: 516*
S60 RA: I= 6,14
S64 ISUZU /6SD1-TCR *KW180/ 220*N.M 892/1500
S68 CLUTCH: DAIKIN *380
MOMENT OF INERTIA:J=0,0700KGM2
SLIP TORQUE: 2621 N.M
T02 VEHICLE DATA 3:
T04 MODEL:TRUCK *FXZ
T06 MAX.G.V.M. 26T*MAX. G.C.M. 40T
T08 R DYN: 516*
T10 RA: I= 6,42
T14 ISUZU /6SD1-TCR *KW180/ 220*N.M 892/1500
T18 CLUTCH: DAIKIN *380
MOMENT OF INERTIA:J=0,0700KGM2
SLIP TORQUE: 2621 N.M
