ZF 9S109 ISUZU MOTORS Parts Manual 1304.051.402 – PDF DOWNLOAD

Description

ZF 9S109 ISUZU MOTORS Parts Manual 1304.051.402 – PDF DOWNLOAD

FILE DETAILS:

ZF 9S109 ISUZU MOTORS Parts Manual 1304.051.402 – PDF DOWNLOAD

Language : English
Pages : 57
Downloadable : Yes
File Type : PDF

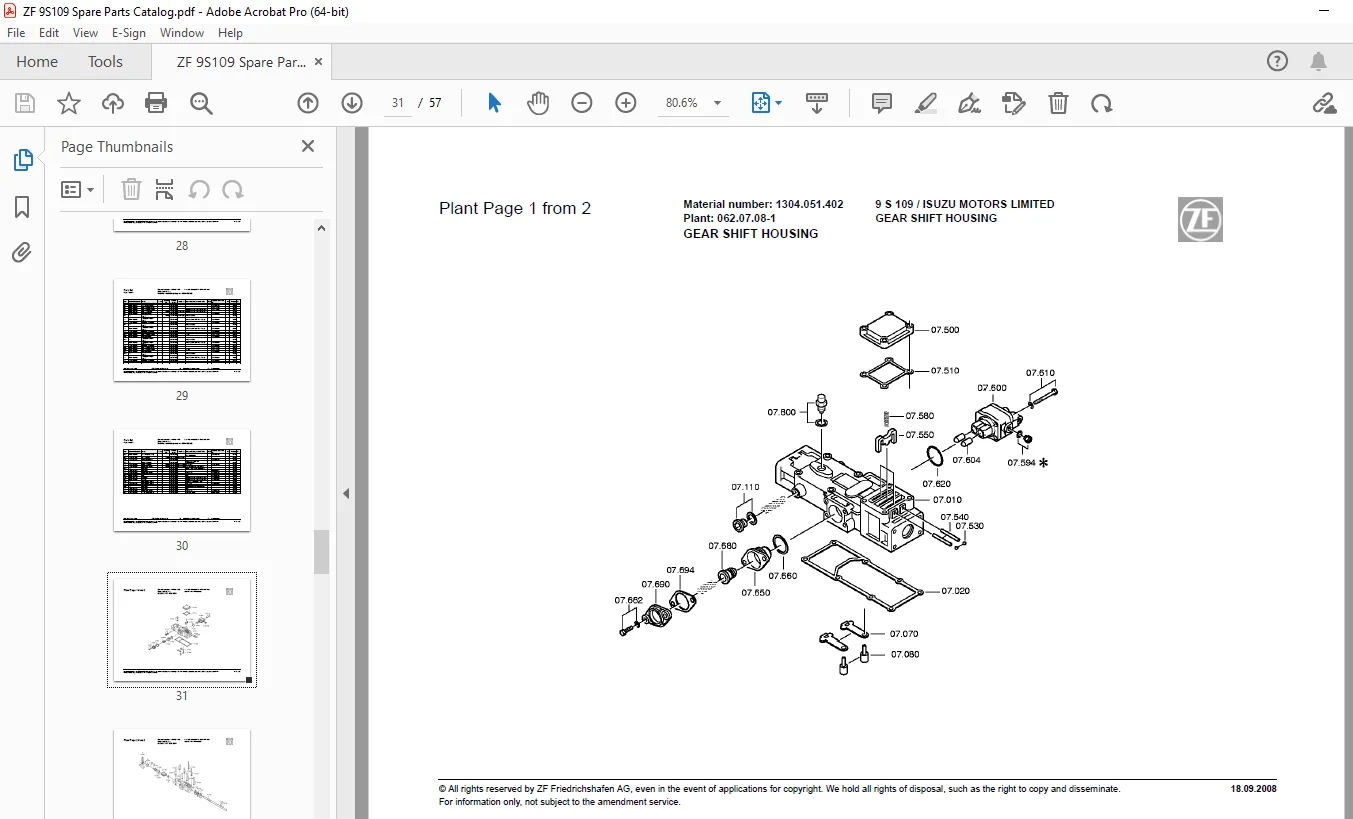

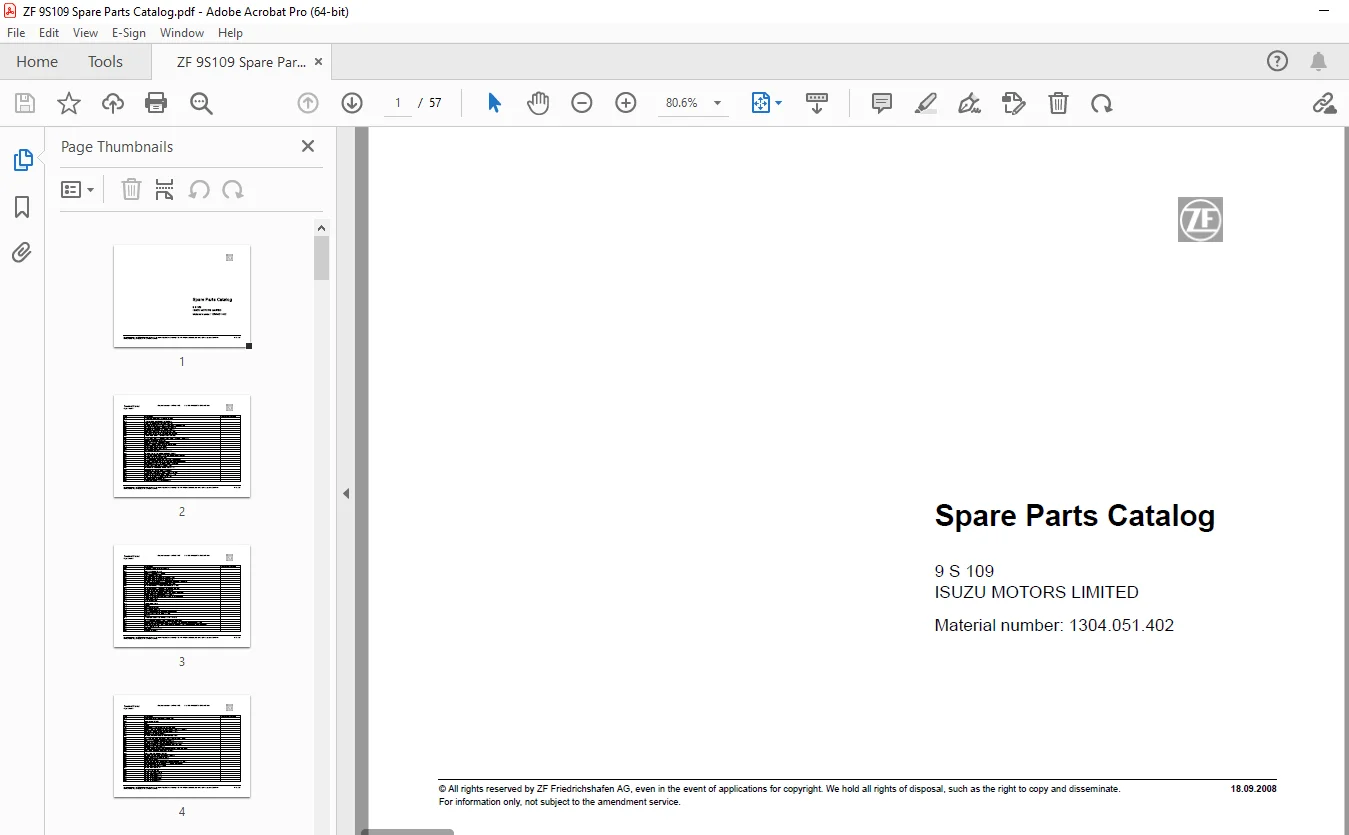

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF 9S109 ISUZU MOTORS Parts Manual 1304.051.402 – PDF DOWNLOAD

DIAMETER, RELEASE FLANGE 57 mm
079 DICHTKAPPE AUSRUECKLAGERFL y
080 TYPE FIT RELEASE BEARING FLA. E8
081 DESIGN BEARING OUTPUT STANDARD SUSPENSION
082 OUTER DIA. OUTPUT FLANGE RA 190 mm
084 NUMBER OF OUTPUT FL. BORES HA1 4
085 BORE DIA. OUTPUT FLANGE RA 16,1 mm
086 REF. LENGTH OUTPUT FLANGE RA 189 mm
093 DIMENSION SHIFT TURRET DIST. 248 mm
094 MEAS. LOC. SHIFT TURRET DIST. SHIFT LEVER-LOCATION
115 SPRING ARRANGEMENT Q5
116 TOOLING SET OF SPRINGS W066
117 SPRING FORCE PAWL STOP R-GEAR 60 N
018 RPM at nom. power 2200 1/min
020 RPM at nom. torque 1500 1/min
021 Classification use case ——————–
052 DESIGN, SHIFT SYSTEM TURNING SHAFT
053 POSITION, GEAR SHIFT SYSTEM HORIZONTAL RIGHT
054 DESIGN, SHIFT PATTERN H-H
057 AUSFUEHRUNG ROHR GP PLASTIC-FORM-PIPE
062 DESIGN, SEPARATING CLUTCH FULL-SYNCHRONIZED
063 REFERENCE LENGTH INPUT SHAFT 320 mm
064 STANDARD TYPE INPUT SHAFT SAE
065 NUMBER OF WEDGES INPUT SHAFT 10
066 VERSION OF INPUT SHAFT FORM C
067 DIAMETER, JOURNAL, INPUT SHAFT 25 mm
069 NOMINAL DIAMETER INPUT SHAFT 1,75 in
070 TYPE FIT SPIGOTS INPUT SHAFT G7
022 DESIGNATION, CLUTCH 380
023 MANUFACTURER, CLUTCH DAIKIN
Tecnical Cover
Page 1 from 5
Material number: 1304.051.402 9 S 109 / ISUZU MOTORS LIMITED
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
18.09.2008
Pos. Information Amendment number
026 DYNAMIC TYRE RADIUS 516 mm
027 REAR AXLE RATIO 5,12
029 INERTIA TORQUE ,07 kg/m2
030 SLIP TORQUE 2621 Nm
031 PERMISS.GROSS VEHICLE WEIGHT 26 t
032 PERMISS.GROSS COMBIN.WEIGHT 38 t
189 DESIGN LUBRI.CONN. REL.BEARING WITHOUT GROOVE
192 LAGE AUSRUECKHEBELWELLE BOTTOM
195 ABSTANDSMASS Y AUSRUECKWELLE 57 mm
197 ABSTANDSMASS Z AUSRUECKWELLE 100 mm
210 DESIGN, PARKING BRAKE PREPARED
213 DESIGN PULSE SENSOR INPUT WITHOUT GROOVE
215 SCHUTZKAPPE IMP.GEBER ANTRIEB n
261 HINWEIS ZU OELBEFUELLUNG FILL IN OVERFLOW
007 Manufacturer Isuzu
013 Sales Designation
014 Manufacturer Isuzu
016 Cylinder
017 Nom. power 201 kW
019 Nom. torque 1000 Nm
286 KUPPLUNGSGLOCKE Drawing 6060.000.001
289 1304.051.491 Drawing 1304.051.491
003 City NN
072 DIAMETER SHAFT OF INPUT SHAFT 44 mm
074 BUSH VARIANT INPUT SHAFT WITHOUT GROOVE
287 Technisches Deckblatt (archiviert) zu 1304.051.402 Text-document 000000072407
288 Pruef- und Montagehinweise (archiviert) zu 1304.051.402 Text-document 000000072409
291 Isuzu 1-33040-571-3
001 Use case ——————–
008 Engineering Name
Tecnical Cover
Page 2 from 5
Material number: 1304.051.402 9 S 109 / ISUZU MOTORS LIMITED
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
18.09.2008
Pos. Information Amendment number
010 Vehicle/Hardware Type ROAD TRACTOR
009 Product Use TRUCK
011 SOP
012 Engine
118 FEDERKRAFT GANGRASTE NG+GG 68 N
122 SELECTION PATTERN VARIANT GEAR SHIFT PATTERN 1
127 UEBERSETZUNG MECH.TACHOANTR. 1,545
131 SWITCH, REVERSE GEAR y
132 DESIGN, RG (REV.GEAR) SWITCH CLOSING
133 NOTE ON SWITCH, REVERSE GEAR GEAR SHIFT RAIL
134 PROT. CAP SWITCH, REVERSE GEAR y
135 DESIGN, CONNECTION, RG SWITCH CABLE+PLUG
136 LENGTH CONNECTION RG-SWITCH 2000.000 mm
137 SWITCH, NEUTRAL GEAR y
138 DESIGN,NG(NEUTRAL GEAR)SWITCH OPENING SWITCH
139 PROT.CAP SWITCH, NEUTRAL GEAR y
142 FUNKTION GP-SCHALTER GP
143 DESIGN, GP SWITCH OPENING SWITCH
144 SCHUTZKAPPE GP-SCHALTER y
033 Product description ——————–
034 INSTALLATION POS TRANSMISSION HORIZONTAL LEFT
035 TRANSMISSION ATTACHMENT FLANGE-MOUNTED
036 RATIO, BOTTOM GEAR 10,24
037 RATIO, TOP GEAR ,74
038 SET OF RATIOS SG
039 RATIO, 1ST GEAR 10,24
040 RATIO, 2ND GEAR 6,57
041 RATIO, 3RD GEAR 4,78
042 RATIO, 4TH GEAR 3,53
043 RATIO, 5TH GEAR 2,61
Tecnical Cover
Page 3 from 5
Material number: 1304.051.402 9 S 109 / ISUZU MOTORS LIMITED
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
18.09.2008
Pos. Information Amendment number
044 RATIO, 6TH GEAR 1,86
045 RATIO, 7TH GEAR 1,35
046 RATIO, 8TH GEAR 1
047 RATIO, 1ST GEAR REVERSE 9,44
048 RATIO, 9TH GEAR ,74
049 UEBERSETZUNG PLANETENSATZ 3,53
050 NUMBER OF PLANETARY GEARS 4
002 Customer Isuzu
004 DUNS
005 Vehicle / Apparatus ——————–
006 Sales Name GXZ 23
290 Alias ID ——————– ——————–
145 DESIGN, CONNECTION, GP SWITCH CABLE+PLUG
146 LAENGE ANSCHLUSS GP-SCHALTER 2000.000 mm
152 NORMENART HOHLFLANSCH HEXAGON SCREW
158 ATTACHED AGRREGATES 1 WITHOUT WSK
159 ATTACHM. POS., HEAT EXCHANGER WITHOUT GROOVE
161 VER. TRANSMISSION VENTILATION BREATHER
167 ATTACHMENT VARIANT, RETARDER WITHOUT GROOVE
168 DESIGN,CONN., CLUTCH HOUSING SAE 2
172 LENGTH CLUTCH HOUSING 210 mm
174 TYPE OF RELEASE MECHANISM WITHOUT GROOVE
177 VERSION OF CLUTCH CYLINDER WITHOUT GROOVE
178 REF.LENGTH,RELEASE BEAR.FLAN 215 mm
180 ASSEMBLY POS. CLUTCH CYLINDER 6
182 AUSF KUGELBOLZEN AUSRUECKHEBEL WITHOUT GROOVE
015 Eng.Displ.
262 POSITION, OIL FILLER HOUSING, LH SIDE
263 OIL CAPACITY, GEARBOX 8,5 dm3
265 OIL GRADE PERMISSIBLE ACC. TO TE-ML02
Tecnical Cover
Page 4 from 5
Material number: 1304.051.402 9 S 109 / ISUZU MOTORS LIMITED
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
18.09.2008
Pos. Information Amendment number
267 COLOR NOT
272 CODING OUTER CONSERVATION KA2
273 SCOPE OUTER CONSERVATION T
274 CODING INNER CONSERVATION KI2
275 CONSERVATION SPECIFICATION ZFN 916
277 Documents ——————– ——————–
278 SCHALTGETRIEBE Drawing 1304.051.410
279 FEDERPAKET Drawing 1304.149.012
280 FEDERPAKET Drawing 1304.149.012
281 SCHALTUNG Drawing 1304.172.171
282 SCHALTUNG Drawing 1304.172.171
283 9-GANG-GETRIEBE Drawing 1304.651.032
284 9-GANG-GETRIEBE Drawing 1304.651.032
285 KUPPLUNGSGLOCKE Drawing 6060.000.001
Tecnical Cover
Page 5 from 5
Material number: 1304.051.402 9 S 109 / ISUZU MOTORS LIMITED
©

S.V 08/24
