ZF IVECO Eurotronic 2 EuroTech Eurostar EuroTrakker Stralis Gearshift Electronic Manual PDF

Description

ZF IVECO Eurotronic 2 EuroTech Eurostar EuroTrakker Stralis Gearshift Electronic Manual – PDF DOWNLOAD

FILE DETAILS:

ZF IVECO Eurotronic 2 EuroTech Eurostar EuroTrakker Stralis Gearshift Electronic Manual – PDF DOWNLOAD

Language : English
Pages : 100
Downloadable : Yes
File Type : PDF

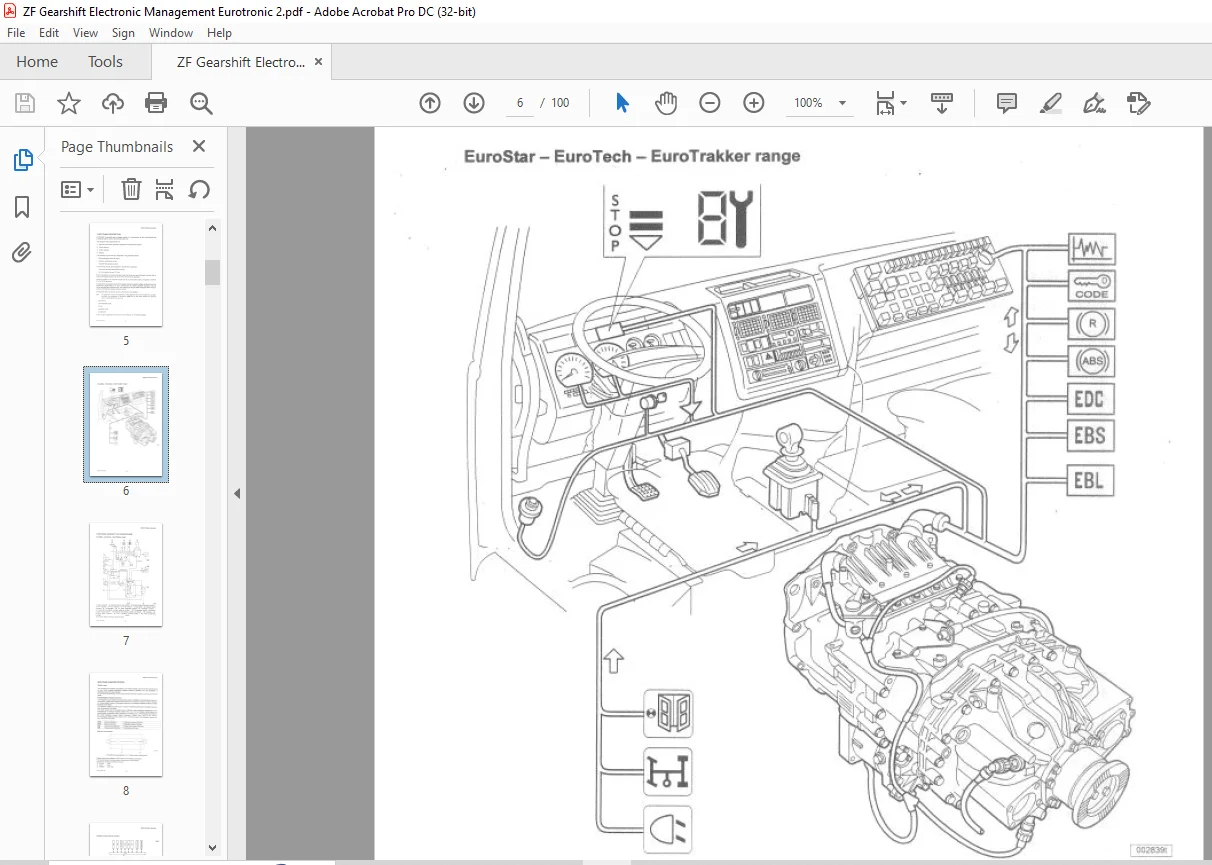

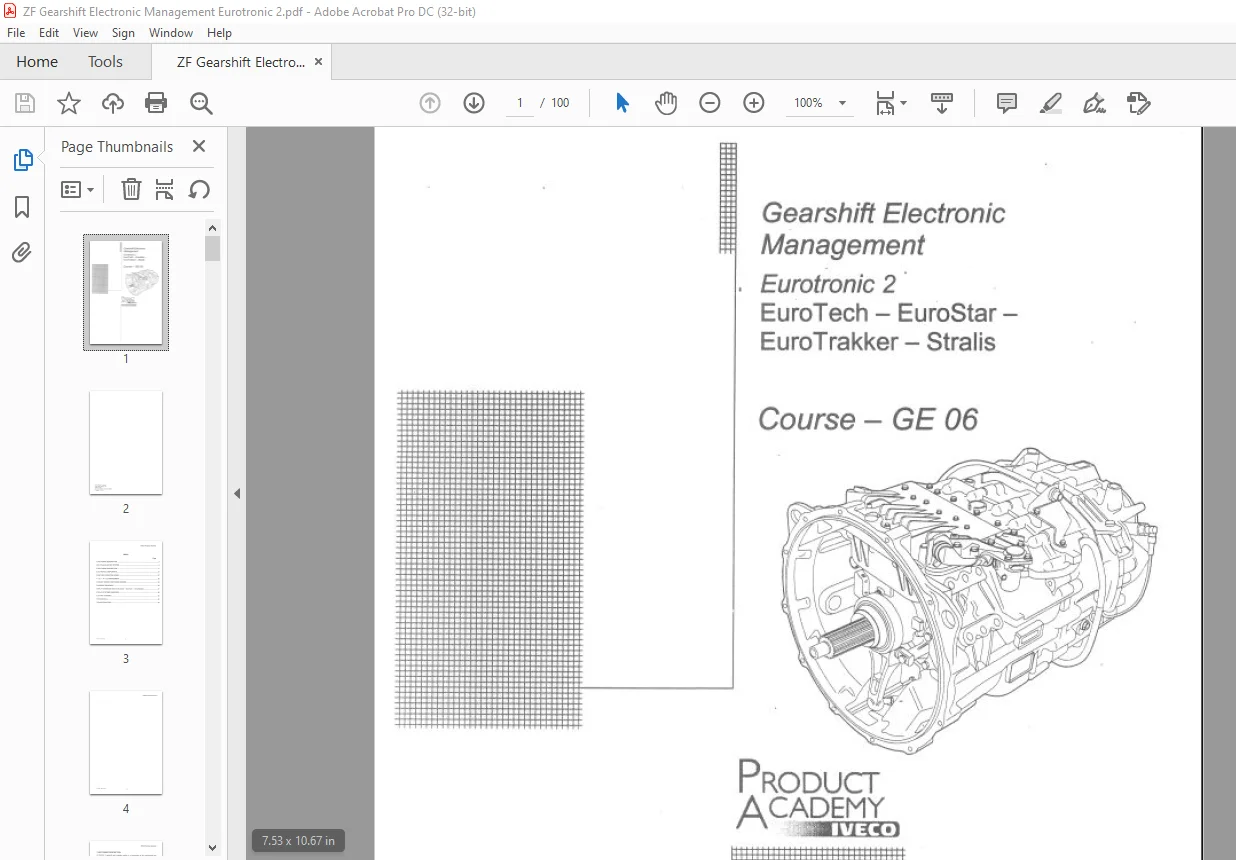

IMAGES PREVIEW OF THE MANUAL:

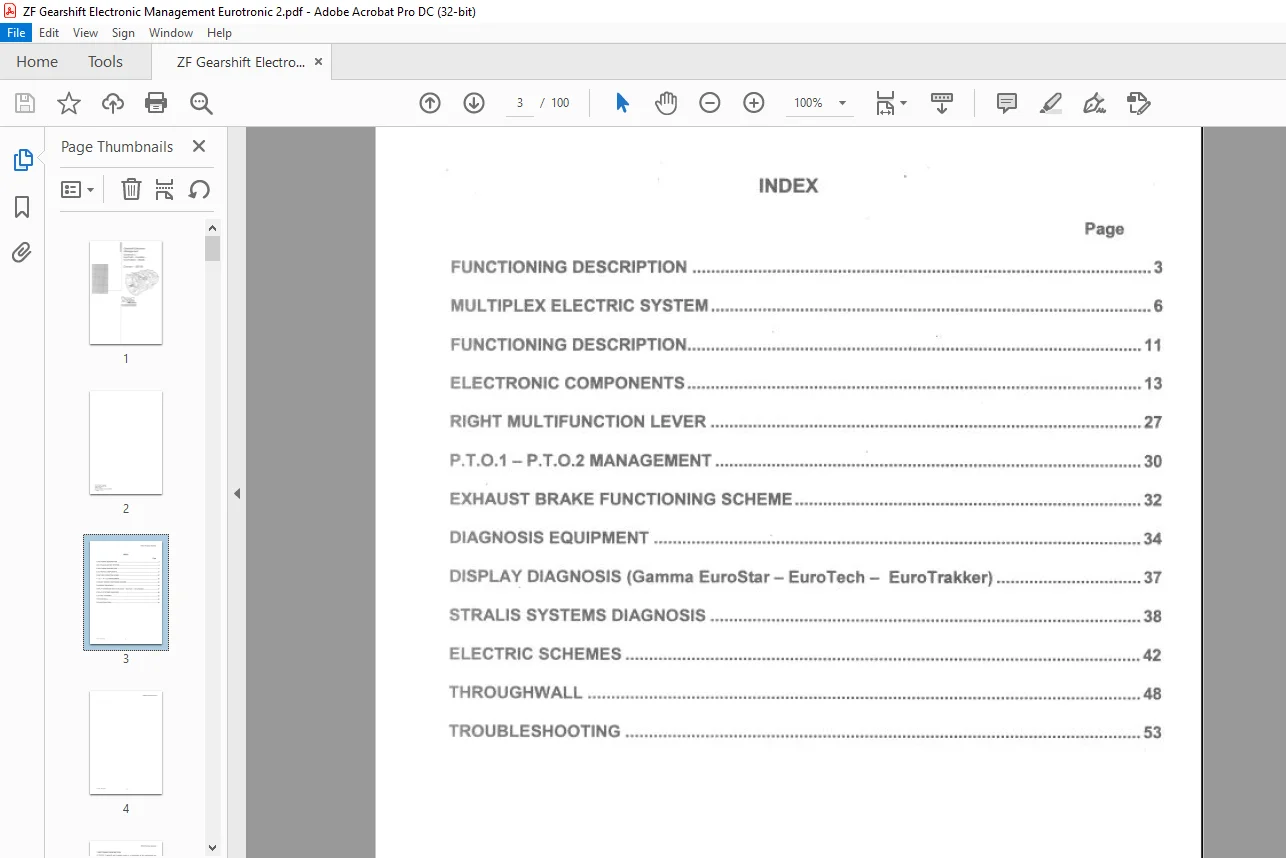

TABLE OF CONTENTS:

ZF IVECO Eurotronic 2 EuroTech Eurostar EuroTrakker Stralis Gearshift Electronic Manual – PDF DOWNLOAD

FUNCTIONING DESCRIPTION 3
MULTIPLEX ELECTRIC SYSTEM 6
FUNCTIONING DESCRIPTION 11
ELECTRONIC COMPONENTS 13
RIGHT MULTIFUNCTION LEVER 27
P T 0 1 P T 0 2 MANAGEMENT 30
EXHAUST BRAKE FUNCTIONING SCHEME 32
DIAGNOSIS EQUIPMENT 34
DISPLAY DIAGNOSIS (Gamma Eurostar Euro Tech EuroTrakker) 37
STRALIS SYSTEMS DIAGNOSIS 38
ELECTRIC SCHEMES 42
THROUGHWALL 48
TROUBLESHOOTING 53

DESCRIPTION:

ZF IVECO Eurotronic 2 EuroTech Eurostar EuroTrakker Stralis Gearshift Electronic Manual – PDF DOWNLOAD

FUNCTIONING DESCRIPTION
EUTRONIC 2 gearshift gear engaging system is a combination of the mechanical type
traditional system and the electro-pneumatic one.
The system’s main components are:
1) Electronic command gearcase integrated in the gearshift actuator.
2) Gears selector.
3) Clutch actuator.
4) Display.
The following components are integrated in the gearshift actuator.
– Gears engaging solenoid valves
– Entrance revolutions sensor
Gearshift temperature sensor
The following devices are integrated in the electronic gearcase:
– Electronic gearcase temperature sensor
– Air low pressure sensor (7,3 bar)
When the system is in semi-automatic mode, the driver can select the gear to start with by
acting on the gears selector so as to inform the electronic gearcase
When the system is in automatic mode just act on the function button, the gear is defined
directly by the gearcase.
