ZF-TRANSMATIC WSK 400 for 16S 151, 16S 221 WSK & 440 for 16S 251 Repair Manual 4130 751 103a PDF
$18.95
ZF-TRANSMATIC WSK 400 for 16S 151, 16S 221 WSK & 440 for 16S 251 Repair Manual 4130 751 103a – PDF DOWNLOAD
Description
ZF-TRANSMATIC WSK 400 for 16S 151, 16S 221 WSK & 440 for 16S 251 Repair Manual 4130 751 103a – PDF DOWNLOAD
FILE DETAILS:
ZF-TRANSMATIC WSK 400 for 16S 151, 16S 221 WSK & 440 for 16S 251 Repair Manual 4130 751 103a – PDF DOWNLOAD
Language : English
Pages : 76
Downloadable : Yes
File Type : PDF

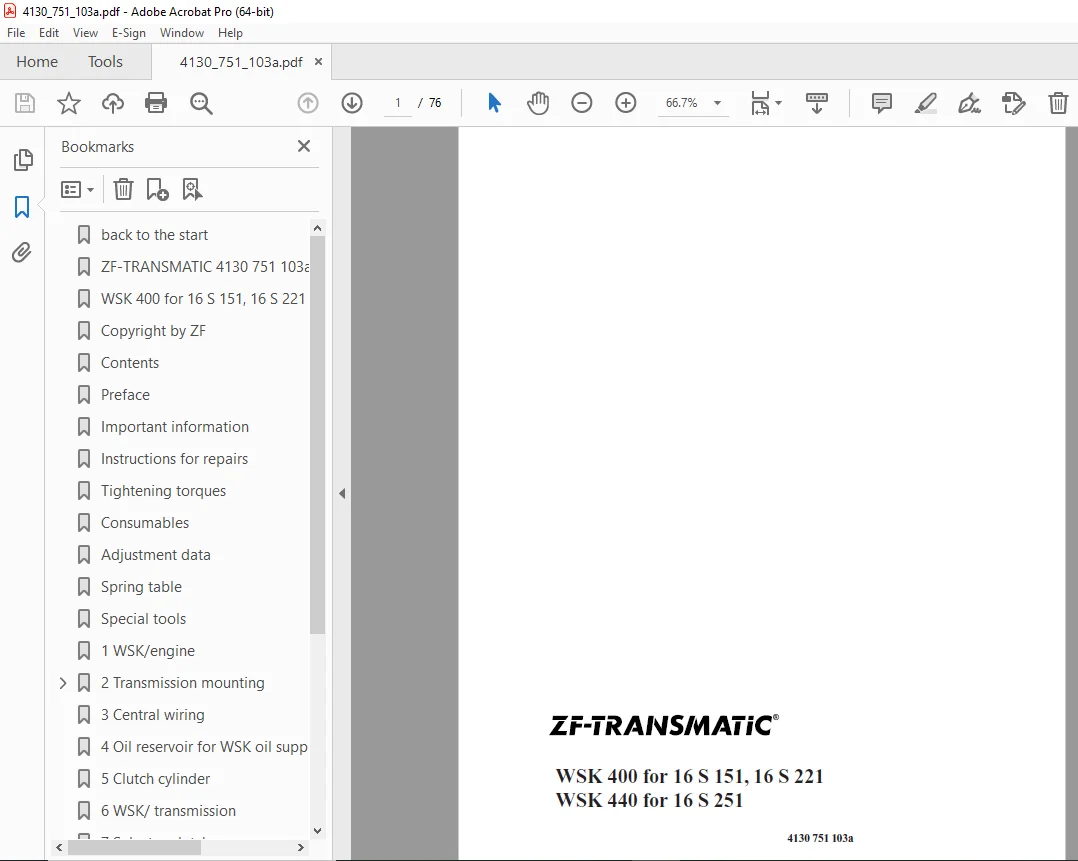

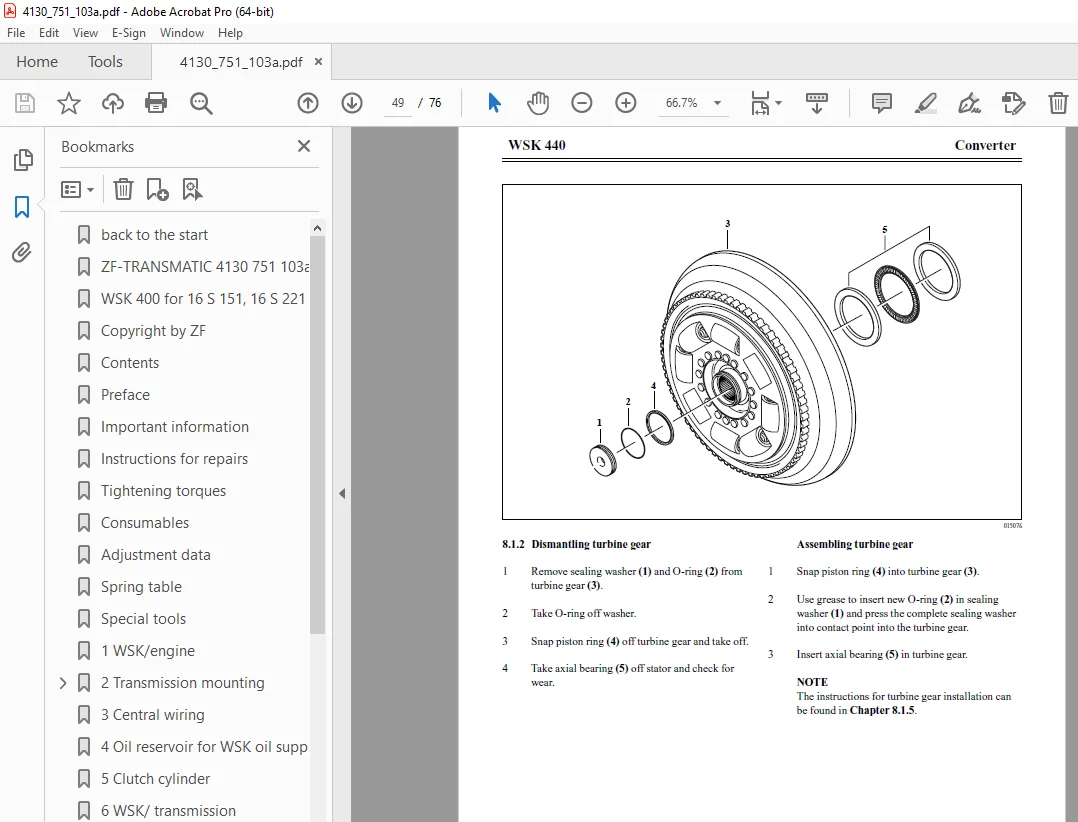

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
ZF-TRANSMATIC WSK 400 for 16S 151, 16S 221 WSK & 440 for 16S 251 Repair Manual 4130 751 103a – PDF DOWNLOAD
back to the start 0
ZF-TRANSMATIC 4130 751 103a 1
WSK 400 for 16 S 151, 16 S 221 WSK 440 for 16 S 251 1
Copyright by ZF 2
Contents 3
Preface 4
Important information 5
Instructions for repairs 6
Tightening torques 8
Consumables 10
Adjustment data 11
Spring table 17
Special tools 18
1 WSK/engine 25
2 Transmission mounting 29
2 1 Draining oil from transmission 29
2 2 Assembly device 1X56 139 137 29
3 Central wiring 31
4 Oil reservoir for WSK oil supply 33
5 Clutch cylinder 35
6 WSK/ transmission 37
7 Selector clutch 41
8 Converter 43
8 1 Dismantling and assembling converter (WSK 440) 47
8 1 1 Converter cover Disassembly and dismantling 47
8 1 2 Dismantling turbine gear 49
8 1 3 Dismantling stator 50
8 1 4 Dismantling pump 52
8 1 5 Measuring and completing converter 53
9 Turbine shaft 55
10 Oil filter 57
11 Control unit 59
11 1 WSK without NMV 59
11 2 WSK with NMV 61
12 Retarder 63
13 Converter housing 67
13 1 Oil feed flange 67
13 2 Gear pump and wiring harness 68
13 3 Converter housing 70
13 4 Screw connection M10 71
13 5 Screw connection M12 72
14 Pressures and measuring points WSK 400 and WSK 440 73
14 1 Retarder 73
14 2 Lock-up clutch 73
14 3 NMV (only in WSK 400) 73
After-Sales Service function test WSK system 75
DESCRIPTION:
ZF-TRANSMATIC WSK 400 for 16S 151, 16S 221 WSK & 440 for 16S 251 Repair Manual 4130 751 103a – PDF DOWNLOAD
Preface:
This repair manual is intended for skilled personnel trained by ZF Friedrichshafen AG to carry out maintenance and repair work on ZF products.
- This manual deals with the standard ZF product in accordance with the state of development on the date of issue.
However, due to continuing development of the product, repair work might require work practices and test or adjustment data not contained in this manual. We recommend that work done on your ZF product is carried out only by skilled mechanics who have had their practical and theoretical knowledge updated on a regular basis at our After-Sales Service training centers.
Service points equipped by ZF Friedrichshafen AG all over the world offer you:
1. Continually trained personnel
2. Specified equipment, e.g. special tools
3. Genuine ZF spares, to our latest specifications
S.V 1/04/2025
