ZF Transmission 16 K 160 Parts Manual 1297.002.187 – PDF DOWNLOAD

Description

ZF Transmission 16 K 160 Parts Manual 1297.002.187 – PDF DOWNLOAD

FILE DETAILS:

ZF Transmission 16 K 160 Parts Manual 1297.002.187 – PDF DOWNLOAD

Language : English
Pages : 44
Downloadable : Yes
File Type : PDF

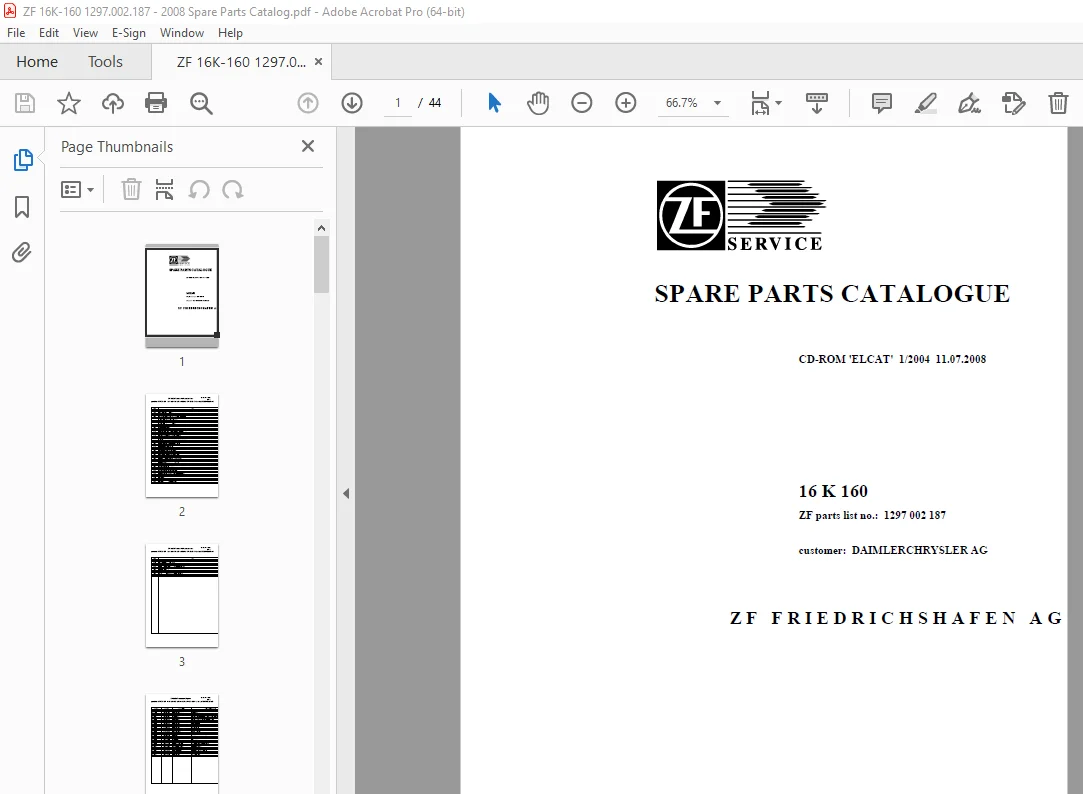

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF Transmission 16 K 160 Parts Manual 1297.002.187 – PDF DOWNLOAD

COUNTRY:D
A14 CUST.SPEC.NO: CODE:
A16 A6242606000
A20 APPLICATION:MALAYSIA
F06 INSTAL.POSITION:HOR. RH *FLANGE MOUNTED*
F10 RATIO: 13,68- 1,00 *DG
G13,68* 9,40* 6,73* 4,79* 3,36* 2,31*
G 1,65* 1,17* * R11,06
S11,64* 8,00* 5,73* 4,07* 2,86* 1,96*
S 1,40* 1,00* * R 9,41
F12 POSITION DELETED
F14 POSITION DELETED
F22 POSITION DELETED
F24 POSITION DELETED
F34 CONTROL:REMOTE CONTROL *VERTICAL *H-H
F38 SEPARAT.CLUTCH: DOG CLUTCH VERSION
F40 INPUT SHAFT : L=320,0*SAE 10C 2 INCH
JOURNAL:D= *SHAFT:D= *BUSH:
F46 REL.BRG.CARRIER:L= 170,0 D= 60,000 F8
F50 OUTPUT :STANDARD BEARINGS
F52 OUTP.FLANGE RA:OD=180 *BOLT=10XM16X1,50X45
L=204,0*
F54 POSITION DELETED
F64 CONN.OF GEARSHIFT:
F66 CONTROL SHAFT DIMENSION:A=370,0*
F74 SHIFT LEVER:R1= 85
F78 CONNECTING PIECE:G= 65
F80 CONTR.CONNECTION:POS. *ORDER DRAWING
F84 DIMENSION:S= 45,00*
F86 PIVOT POINT:ORDER DRAWING
F90 SETTING DIMENSION:Z=106,0*
F96 SET OF SPRINGS:LAYOUT Q3 *
F98 PAWL STOP: SPRING FORCE RG=240N
G16 SELECTION PATTERN:WI
G26 SPEEDO-DRIVE:I= 1,545
G30 SWITCH: RG*PREPARED *PAWL STOP
PROTECT.CAP: * *L= M
G32 SWITCH: NG*OPENING *
PROTECT.CAP: * *L= M
G36 SWITCH: GP*PREPARED *
PROTECTING CAP:WITHOUT*
G50 AUXILIARY UNITS:
G56 SWITCH: GV*PREPARED *
PROTECTING CAP:WITHOUT*
G60 AUXILIARY UNITS/ACCESSORIES
G64 HEAT EXCHANGER:FRONT LEFT PREP*
G82 CLUTCH BRAKE/-VALVE *AIR CONNECTION A
H50 ELECTRONIC:
H64 TRANSMITTER INPUT:PREP. *D= *WS
M00 DRAWING:
M12 ORDER DRAWING: 1297 600 033(0)
M14 SECTION: 1295 107 202(0)
M16 SECTION: 1295 002 700(0)
M50 ASSEMBLY INSTRUCTIONS:
ZF-ELCAT technical information sheet CD 1/2004 11.07.2008
sheet 3
parts list: 1297 002 187 16 K 160 / DG*LR*ANGEFL*DW-SE H-H / DAIMLERCHRYSLER AG
item text
M58 ASSEMBLY:OIL FILL+OVERFLOW *HOUSING LEFT+RIGHT
M82 ASSEMBLY:SHUT-OFF VALVE* F
M90 OIL CAPACITY: AP. 13,00L
M92 OIL GRADE ACC.TO ZF:TE-ML02
M94 MASS : APPRX. 340,0 KG
M96 PAINT :NOVA GREY *MB7350 ZFN 915W
M98 PRESERVATION : KA1 T/KI2/S09*ZFN 916
S02 VEHICLE DATA 1:
S04 MODEL:DUMPER * 6X 6
S06 MAX. G.V.M. 22T*MAX. G.C.M. 70T
S08 R DYN: 579*V MAX: APPRX. 65KM/H
S10 RA: I= 7,63*
S14 M.BENZ /OM423 *KW261/2300*N.M1304/1200

S.V 08/24
