ZF Transmission 16 S 151 IVECO Parts Manual 1315.051.949 – PDF DOWNLOAD

Description

ZF Transmission 16 S 151 IVECO Parts Manual 1315.051.949 – PDF DOWNLOAD

FILE DETAILS:

ZF Transmission 16 S 151 IVECO Parts Manual 1315.051.949 – PDF DOWNLOAD

anguage : English
Pages : 54
Downloadable : Yes
File Type : PDF

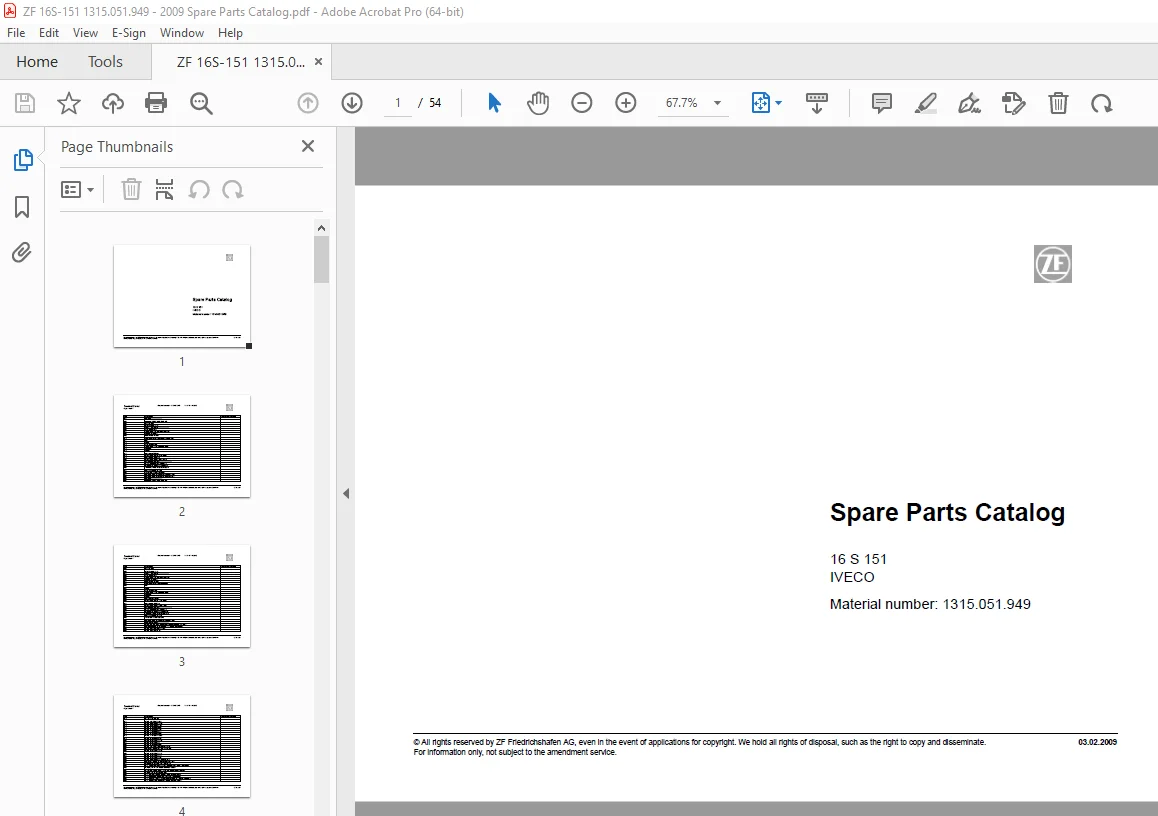

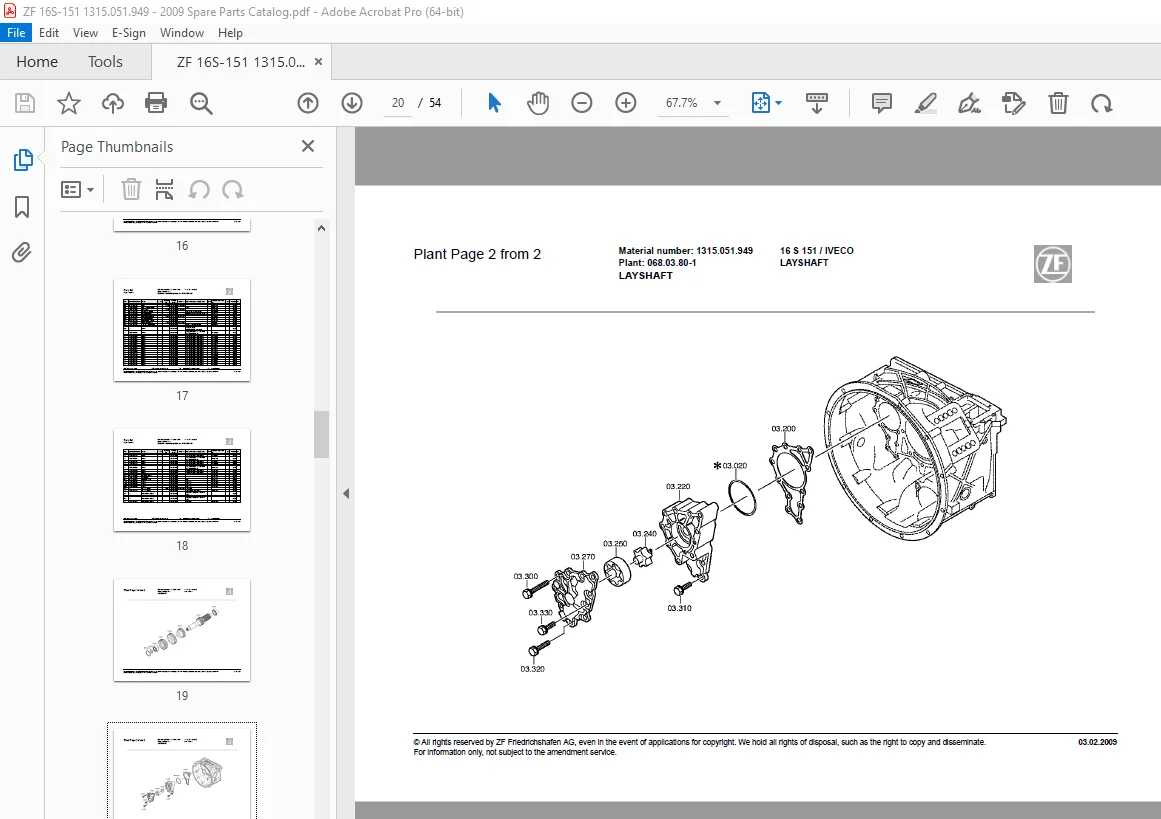

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF Transmission 16 S 151 IVECO Parts Manual 1315.051.949 – PDF DOWNLOAD

001 Use case
002 Customer IVECO MAGIRUS AG
003 City Neu-Ulm
004 DUNS 31-561-9072
005 Vehicle / Apparatus
006 Sales Name SPR
007 Manufacturer IVECO MAGIRUS AG
008 Engineering Name
009 Product Use TRUCK
010 Vehicle/Hardware Type ROAD TRACTOR
011 SOP
012 Engine
013 Sales Designation
014 Manufacturer FIAT GES.CO S.P.A
015 Eng.Displ.
016 Cylinder
017 Nom. power 276 kW
018 RPM at nom. power 2200 1/min
019 Nom. torque 1540 Nm
020 RPM at nom. torque 1300 1/min
021 Classification use case ——————–
024 TOTAL NUMBER OF GEARS 6
025 NUMBER OF DRIVING GEARS 4
026 DYNAMIC TYRE RADIUS 446 mm
027 REAR AXLE RATIO 2,93
028 MAXIMUM SPEED 125 km/h
031 PERMISS.GROSS VEHICLE WEIGHT 26 t
032 PERMISS.GROSS COMBIN.WEIGHT 60 t
033 Use case ——————–
034 Customer IVECO MAGIRUS AG
Tecnical Cover
Page 1 from 7
Material number: 1315.051.949 16 S 151 / IVECO
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
03.02.2009
Pos. Information Amendment number
035 City Neu-Ulm
036 DUNS 31-561-9072
037 Vehicle / Apparatus ——————–
038 Sales Name SPR
039 Manufacturer IVECO MAGIRUS AG
040 Engineering Name
041 Product Use TRUCK
042 Vehicle/Hardware Type DUMPER
043 SOP
044 Engine
045 Sales Designation
046 Manufacturer FIAT GES.CO S.P.A
047 Eng.Displ.
048 Cylinder
049 Nom. power 272 kW
050 RPM at nom. power 1900 1/min
051 Nom. torque 1688 Nm
052 RPM at nom. torque 1100 1/min
053 Classification use case ——————–
056 TOTAL NUMBER OF GEARS 6
057 NUMBER OF DRIVING GEARS 6
058 DYNAMIC TYRE RADIUS 487 mm
059 REAR AXLE RATIO 3,79
060 MAXIMUM SPEED 90 km/h
063 PERMISS.GROSS VEHICLE WEIGHT 38 t
065 Product description ——————–
066 INSTALLATION POS TRANSMISSION HORIZONTAL LEFT
067 TRANSMISSION ATTACHMENT FLANGE-MOUNTED
068 RATIO, BOTTOM GEAR 13,8
069 RATIO, TOP GEAR ,84
Tecnical Cover
Page 2 from 7
Material number: 1315.051.949 16 S 151 / IVECO
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
03.02.2009
Pos. Information Amendment number
070 SET OF RATIOS SG
071 RATIO, 1ST GEAR 13,8
072 RATIO, 2ND GEAR 11,54
073 RATIO, 3RD GEAR 9,49
074 RATIO, 5TH GEAR 6,53
075 RATIO, 4TH GEAR 7,93
076 RATIO, 7TH GEAR 4,57
077 RATIO, 9TH GEAR 3,02
078 RATIO, 11TH GEAR 2,08
079 RATIO, 6TH GEAR 5,46
080 RATIO, 13TH GEAR 1,43
081 RATIO, 15TH GEAR 1
082 RATIO, 8TH GEAR 3,82
083 RATIO, 1ST GEAR REVERSE 12,92
084 UEBERSETZUNGSREIHE BASIS DG
085 RATIO, 10TH GEAR 2,53
086 RATIO, 12TH GEAR 1,74
087 RATIO, 14TH GEAR 1,2
088 RATIO, 16TH GEAR ,84
089 RATIO, 2ND GEAR REVERSE 10,8
090 UEBERSETZUNG PLANETENSATZ 4,565
091 NUMBER OF PLANETARY GEARS 5
092 AUSF VERZAHNUNG PLANETENSATZ OBLIQUE TOOTHING
093 DESIGN, SHIFT SYSTEM TURNING SHAFT
094 POSITION, GEAR SHIFT SYSTEM HORIZONTAL RIGHT
095 DESIGN, SHIFT PATTERN H-H
096 AUSF BETAETIGUNG SCHALTUNG MECHANICAL
097 AUSFUEHRUNG ROHR GP PLASTIC-FORM-PIPE
098 AUSF RUECKSCHALTG GASSENSPERRE WITHOUT GROOVE
100 AUSF SCHALTUNTERSTUETZUNG SERVO RIGHT
Tecnical Cover
Page 3 from 7
Material number: 1315.051.949 16 S 151 / IVECO
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
03.02.2009
Pos. Information Amendment number
101 AUSFUEHRUNG ROHR SERVO PLASTIC PIPING
102 HINWEIS ZU AUSF SCHALTUNG AIR SHUT-OFF:MAGNET-VALVE
104 1.KUNDENSPEZIFIKATION SCHALTNG SOLENOID VALVE
108 AUSFUEHRUNG ROHR GASSENSPERRE WITHOUT PIPING
109 2.KUNDENSPEZIFIKATION SCHALTNG WITHOUT GROOVE
110 D-DROSSEL HAUPTABSCHALTVENTIL 1,55 mm
111 ANZAHL STOESSEL HAUPTABSCHALTV 2
112 POSITION LUFTANSCHLUSS HASV F
116 DESIGN, SEPARATING CLUTCH FULL-SYNCHRONIZED
117 AUSFUEHRUNG SYNCHRONISIERUNG 1 1.-4.GEAR BK-SYNCHRONIZATION
119 REFERENCE LENGTH INPUT SHAFT 117 mm
120 DIAMETER, JOURNAL, INPUT SHAFT 25 mm
121 STANDARD TYPE INPUT SHAFT SAE
122 NUMBER OF WEDGES INPUT SHAFT 10
123 TYPE FIT SPIGOTS INPUT SHAFT F7
124 VERSION OF INPUT SHAFT FORM C
125 DIAMETER SHAFT OF INPUT SHAFT 50,3 mm
126 NOMINAL DIAMETER INPUT SHAFT 2 in
127 BUSH VARIANT INPUT SHAFT WITHOUT GROOVE
131 LENGTH, INPUT SHAFT 390,5 mm
133 LENGTH, PROFILE, INPUT SHAFT 91 mm
134 AUSF LAGERUNG KONSTANTE 1 GL
135 D-LAGER ANTRIEBSWELLE 99,916 mm
136 PASSUNGSART LAGER ANTR.WELLE H5
137 AUSF LAGER ZAPFEN ANTR.WELLE TAPER ROLLER
138 DESIGN,CONN., CLUTCH HOUSING SAE 1
139 CENTR.DIA,HSG/ENGINE CONNECT. 511,175 mm
140 NUMBER OF BORES,ENGINE CONN. 12
141 BORE DIA, ENGINE CONNECTION 11 mm
142 D-LAGERBUCHSE AUSRUECKUNG LI 35 mm
Tecnical Cover
Page 4 from 7
Material number: 1315.051.949 16 S 151 / IVECO
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
03.02.2009
Pos. Information Amendment number
144 LAENGE SPANNLAPPEN RE MOTANSCH 292 mm
149 VERSION ENGINE CONNECTION NOT FORDABLE
150 DIAMETER, RELEASE FLANGE 62,611 mm
152 DESIGN BEARING OUTPUT STANDARD SUSPENSION
153 OUTER DIA. OUTPUT FLANGE RA 180 mm
156 NUMBER OF OUTPUT FL. BORES HA1 4
157 BORE DIA. OUTPUT FLANGE RA 15 mm
161 REF. LENGTH OUTPUT FLANGE RA 211,5 mm
170 LAGE ANFL.FLAECHE GEHAEUSE2 WITHOUT GROOVE
171 DIMENSION SHIFT TURRET DIST. 306 mm
172 MEAS. LOC. SHIFT TURRET DIST. SHIFT LEVER-LOCATION
191 SPRING ARRANGEMENT Q3
193 SPRING FORCE PAWL STOP R-GEAR 60 N
194 HOECKERFEDERKRAFT AUSSEN 120 N
197 ANORDNUNG RASTENHEBELAUSFUEHRG A
199 WAEHLFEDERKRAFT AUSSEN 35 N
200 WAEHLFEDERKRAFT INNEN 26 N
202 FEDERKRAFT AUSSEN RASTE NG 200 N
203 SELECTION PATTERN VARIANT GEAR SHIFT PATTERN 1
216 SWITCH, REVERSE GEAR y
217 DESIGN, RG (REV.GEAR) SWITCH CLOSING
218 NOTE ON SWITCH, REVERSE GEAR G.SHIFT SHAFT
219 PROT. CAP SWITCH, REVERSE GEAR y
220 DESIGN, CONNECTION, RG SWITCH DIN BAYONET
222 REF.LENGTH,RELEASE BEAR.FLAN -3 mm
223 SWITCH, NEUTRAL GEAR y
224 DESIGN,NG(NEUTRAL GEAR)SWITCH OPENING SWITCH
225 PROT.CAP SWITCH, NEUTRAL GEAR y
226 DESIGN, CONNECTION, NG SWITCH DIN BAYONET
228 FUNKTION GP-SCHALTER GP
Tecnical Cover
Page 5 from 7
Material number: 1315.051.949 16 S 151 / IVECO
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
03.02.2009
Pos. Information Amendment number
229 DESIGN, GP SWITCH CLOSING
230 SCHUTZKAPPE GP-SCHALTER y
231 DESIGN, CONNECTION, GP SWITCH DIN BAYONET
246 FUNKTION GV-SCHALTER GV
247 DESIGN, GV SWITCH PREPARED
248 SCHUTZKAPPE GV-SCHALTER n
251 ATTACHM. POS., HEAT EXCHANGER IN FRONT LEFT PREPARED
253 VER. TRANSMISSION VENTILATION BREATHER
262 AUSFUEHRUNG KUPPLUNGSGEHAEUSE INTEGRATED
265 ASSEMBLY POS. CLUTCH CYLINDER 6
273 NO. PULSES PULSE SENSOR SFAH68 6 IMP/U
276 VERSION PULSE SENSOR SFA H68 WITHOUT GROOVE
279 PROT. CAP PULSE SENSOR SFA H68 n
286 NO PULSES PULSE SENSOR TM H70 6 IMP/U
287 VER. PULSE SENSOR TRANSM. H70 WITHOUT GROOVE
288 PROT. CAP PULSE SENSOR TM H70 n
289 ASSEMBLY POS PULSE SENSOR H70 1
290 NOTE ASS. POS PULSE SENSOR H70 INSTALLATION DRAWING
345 HINWEIS ZU OELBEFUELLUNG FILL IN OVERFLOW
346 POSITION, OIL FILLER HOUSING LEFT+RIGHT
350 OIL CAPACITY, GEARBOX 11 dm3
351 OELBEFUELLUNGSVARIANTE EX WORKS
352 OIL GRADE PERMISSIBLE ACC. TO TE-ML02
353 OELKLASSE C
354 COLOR BLACK-GREY
355 COLOUR CLASSIFICATION ACC. TO RAL 7021
357 INFO TO PAINTING INSTRUCTIONS
358 CODING OUTER CONSERVATION KA1
359 SCOPE OUTER CONSERVATION T
360 CODING INNER CONSERVATION KI1
Tecnical Cover
Page 6 from 7
Material number: 1315.051.949 16 S 151 / IVECO
© All rights reserved by ZF Friedrichshafen AG, even in the event of applications for copyright. We hold all rights of disposal, such as the right to copy and disseminate.
For information only, not subject to the amendment service.
03.02.2009
Pos. Information Amendment number
361
