ZF Transmission 16 S 1650 Parts Manual 1297 095 160 – PDF DOWNLOAD

Description

ZF Transmission 16 S 1650 Parts Manual 1297 095 160 – PDF DOWNLOAD

FILE DETAILS:

ZF Transmission 16 S 1650 Parts Manual 1297 095 160 – PDF DOWNLOAD

Language : English
Pages : 55
Downloadable : Yes
File Type : PDF

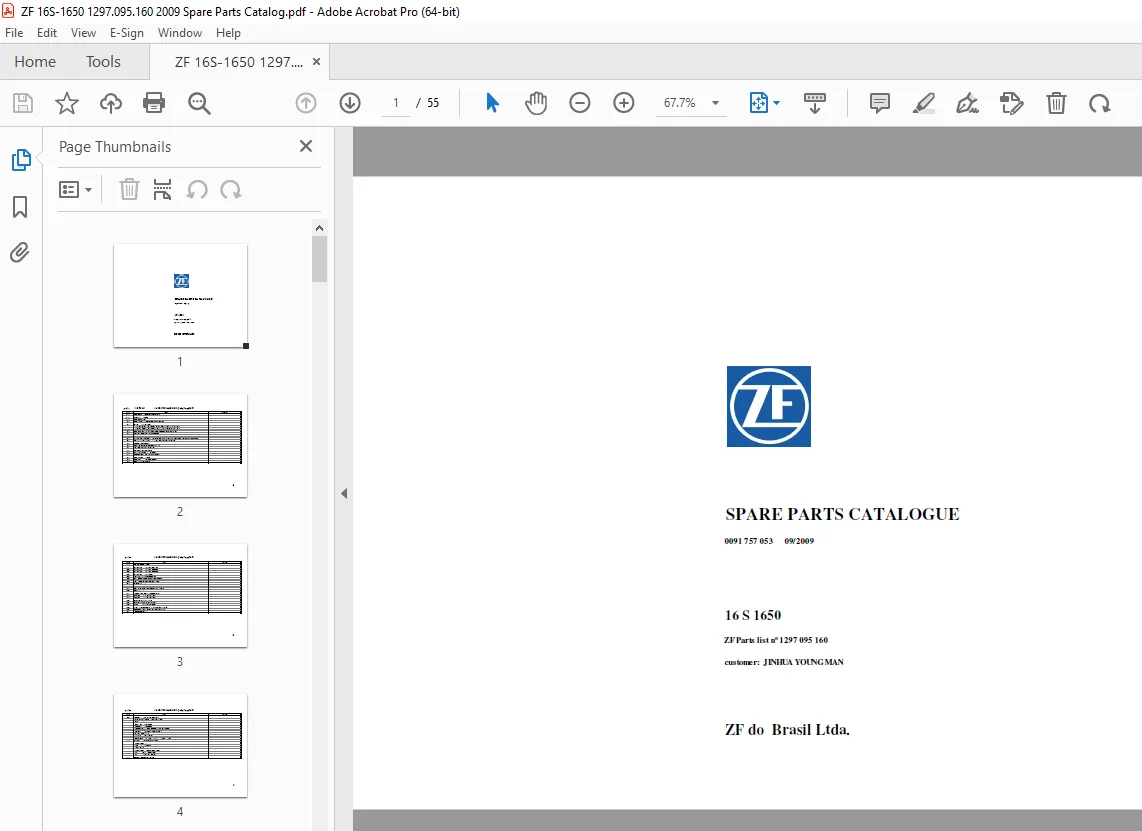

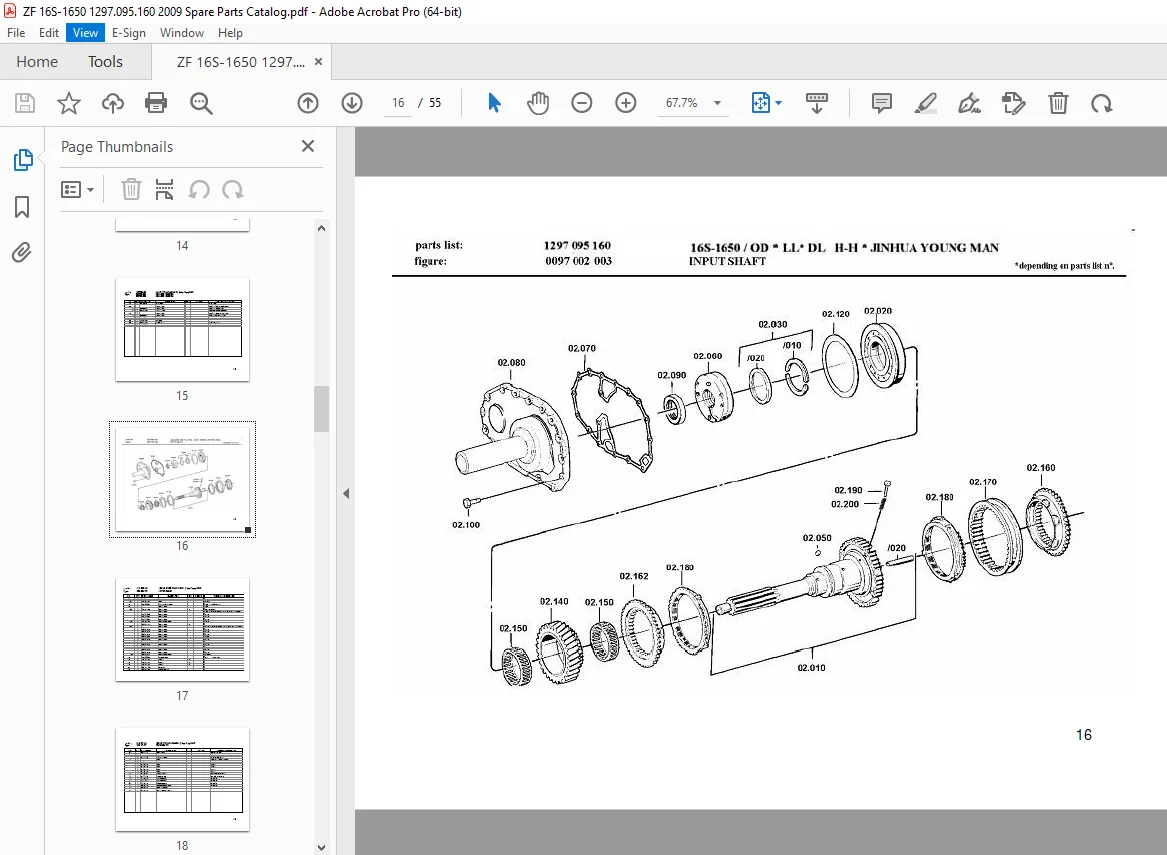

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF Transmission 16 S 1650 Parts Manual 1297 095 160 – PDF DOWNLOAD

A10 CUSTOMER : JINHUA YOUNG MAN
A14 COUNTRY : CHINA
A16 CUST.SPEC.NO :
F06 INSTAL.POS. : HOR.LH* FLANGE MONTED*
F10 RATIO : 15,39 – 0,85
H15,39 * 10,57 * 6,96 * 4,58 * 3,36 * 2,31 * 1,52 * 1,00 * R12,44 *
S13,09 * 9,00 * 5,92 * 3,90 * 2,86 * 1,96 * 1,29 * 0,85 * R10,59 *
F34 SHIFT SYSTEM : CABLE CONTROL- HORIZONTAL RIGHT *H-H*
F38 SEPARAT.CLUTCH: SYNCHRONIZED
F40 INPUT SHAFT : L=116 * SAE 10C 2″
F46 CLUTCH BELL HOUSING L=60F8XL=-7 SAE 1 * L=175 * RELEASE FORK PULL TYPE 78MM
F52 OUTPTPUT FLANGE RA : BAODL=T1 840X*ML1Z42X12,*5D0=X1540, 5** L=K1W50=150
F64 CONN.OF GEARSHIFT:
F66 CONTROL SHAFT DIMENSION : A=300
F68 F68 DISTANCE ARTICULATION
F72 SELECTOR LEVER : R= 69
F74 F74 SHIFT LEVER : 45/65/85
F78 CONNECTING POS. : G (CUSTOMER)
F80 SHIFT LEVER : POS.
F84 DISTANCE : S (CUSTOMER)
F94 G.SHIFT LEVER ANGLE :
3
part list: 16S-1650 / OD*LL*D-L H-H* Jinhua Young MAN
item text mod.no.
G16 SELECTION PATTERN:
G30 SWITCH RG : WITH * CLOSING
G32 SWITCH NG : WITH * OPENING
G36 SWITCH GP : WITH * OPENING
G56 SWITCH GV : WITHOUT
G60 AUXILIAR UNITS/ACCESSORIES
G64 HEAT EXCHANGER: FRONT LEFT PREP*
G66 TRANSMISSION VENTILATION : YES
H50 ELETRONIC :
H64 PULSE TRANSMITTER: E/Z6
H68 PULSE TRANSMITTER TACHO : IMP / U 6,00
M00 DRAWING :
M12 ASSEM.DRAWING : 1297.695.160(0)
M14 SECTION : 1295.173.010(0)
M16 SECTION : 1297.095.019(0)
M90 OIL CAPACITY : AP. 14,5L
M92 OIL GRADE ACC.TO ZF: TE-ML02
M94 MASS : APPRX. 400,0 KG
M96 PAINT : TIEFSCHWARZ * RAL 9005 * ZFN 915W
M98 PRESERVATION : KA2T/ KI2 / S09 * ZFN 916
S02 VEHICLE DATA 1:
4
part list: 16S-1650 / OD*LL*D-L H-H* Jinhua Young MAN
item text mod.no.
S04 VEHICLE : ARTIC TRACTOR 6X4
TYPE: HEAVY TRUCK ( YTQ1250FD16J)
GVW :
GCW 6X4 : 25.000KG
MARKET : CHINESE
APPLICATION : 60% ON ROAD 4O% OFF ROAD

S.V 08/24
