ZF Transmission 16 S 221 IVECO-M Parts Manual 1316 051 350 PDF

Description

ZF Transmission 16 S 221 IVECO-M Parts Manual 1316 051 350 – PDF DOWNLOAD

FILE DETAILS:

ZF Transmission 16 S 221 IVECO-M Parts Manual 1316 051 350 – PDF DOWNLOAD

Language : English
Pages : 51
Downloadable : Yes
File Type : PDF

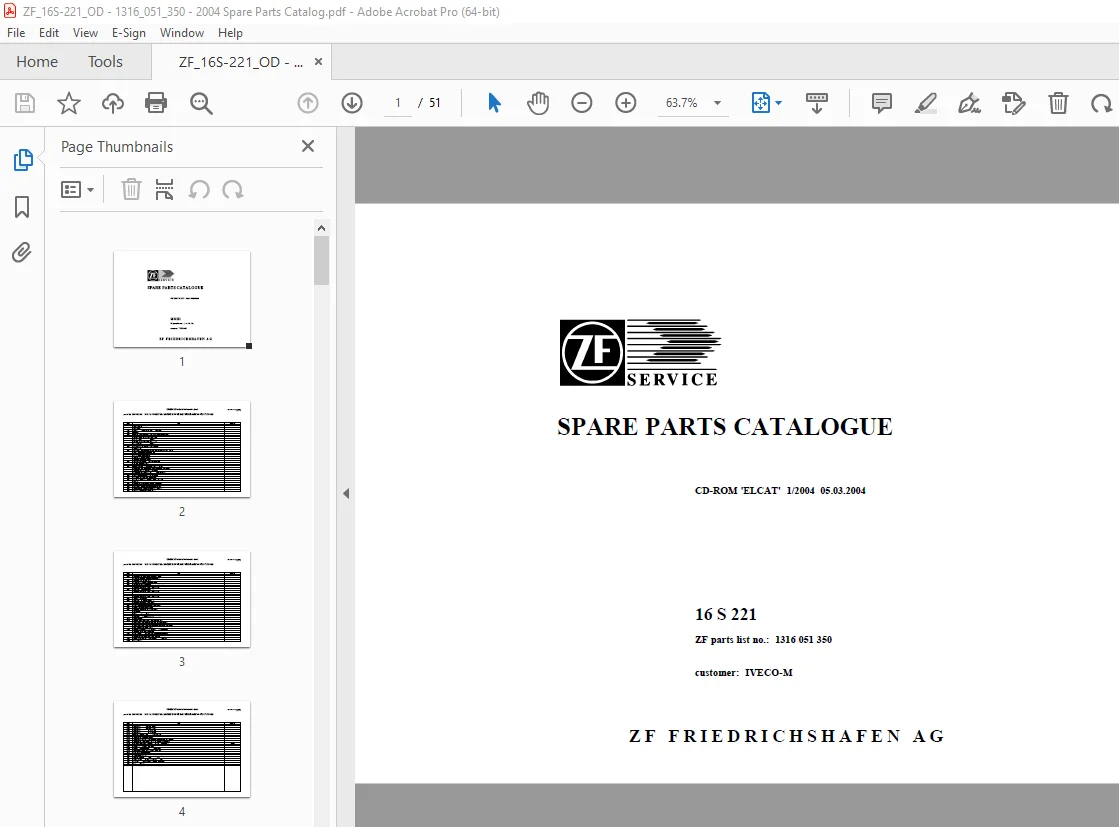

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF Transmission 16 S 221 IVECO-M Parts Manual 1316 051 350 – PDF DOWNLOAD

A10 CUSTOMER:IVECO-M
COUNTRY:D
CITY:ULM
A14 CODE: CUST.SPEC.NO: TYPE NO:
A16 8851760
F06 INSTAL.POSITION:HOR. LH *FLANGE MOUNTED*
F10 RATIO: 13,86- 0,84 *SG
G13,86* 9,52* 6,56* 4,58* 3,02* 2,08*
G 1,43* 1,00* R12,97
S11,59* 7,96* 5,48* 3,83* 2,53* 1,74*
S 1,20* 0,84* R10,85
RATIO SERIES-BASIS:DG
F26 PLANET GEAR SET:I= 4,583* 5 GEAR
SPUR GEAR.
F34 CONTROL:REMOTE CONTROL*HORIZONTAL RH *H-H
SHIFT ASSISTANCE:SERVO RH
ACTUATION:MECHANIC
GP:PLASTIC FORM PIPE
SERVO:PLASTIC PIPING
ZULUFTABSPERRVENTIL
F38 SEPARAT.CLUTCH: SYNCHRONIZED
1-4 GEAR BK-SYNCHR.
F40 INPUT SHAFT : L=117,0*SAE 10C 2 INCH
JOURNAL:D=25 F7*SHAFT:D=50,30*BUSH:WITHOUT
SHAFT:L=403,50 *SPLINE:L=120,000*
BEARING CONSTANT I:GL *D= 99,916H5
SPIGOT BEARING:TAPER ROLLER
F46 REL.BRG.CARRIER:L=- 3,0 D= 62,611
F50 OUTPUT :STANDARD BEARINGS
F52 OUTP.FLANGE RA:OD=180 *NH= 4 *D=15,0
L=211,5
F60 MOUNTING FACE HOUSING II:WITHOUT
F64 CONN.OF GEARSHIFT:
F66 CONTROL SHAFT DIMENSION:A=306,0*
F68 MEAS.POINT: SHIFTLEVER-LOCATION *
F96 SET OF SPRINGS:LAYOUT Q3 *
ZF-ELCAT technical information sheet CD 1/2004 05.03.2004
sheet 3
parts list: 1316 051 350 16 S 221 / SG-KK*LL*ANGEFL*DW-WR H-H *N221PL*SERVO-WR / IVECO-M
item text mod. no.
F98 PAWL STOP: SPRING FORCE RG= 60N
G00 RESISTANCE DETENT:SPRING HF= 120N
DETENT LEVER LAYOUT:VERSION= A
G02 SPRING*WF- 35N*I- 26N
G08 DETENT NG: SPRING FORCE= 200N
G16 SELECTION PATTERN:WI
G30 SWITCH: RG*CLOSING *G.SHIFT SHAFT
PROTECTING CAP:WITH *BAYONET
G32 SWITCH: NG*OPENING *
PROTECTING CAP:WITH *BAYONET
G36 SWITCH: GP*CLOSING *
PROTECTING CAP:WITH *BAYONET
G50 AUXILIARY UNITS:
G56 SWITCH: GV*PREPARED *
PROTECTING CAP:WITHOUT*
G60 AUXILIARY UNITS/ACCESSORIES
G64 HEAT EXCHANGER:FRONT LEFT PREP*
G66 G.BOX VENTING:BREATHER
G76 CLUTCH HOUSING:SAE 1 * INTEGR
RELEASE:
CYL: * *L=
HOLDING FIXTURE D= *SUSPENSION:
SENSOR: * ASSEMBLY: 6
H50 ELECTRONIC:
H68 PULSE TRANSMITTER TACHO:IMP/U 6,00
TRANSMIT:WITHOUT*PROTECT.CAP:WITHOUT
H70 PULSE TRANSMITTER TACHO:IMP/U 6,00 *
TRANSMITTER:WITHOUT*PROTECTING CAP:WITHOUT
POS: 1*INSTALL.DRAWING
K62 POWER TAKE-OFF TYPE:N221PL * * STEER.PU.
Z=85/67/ *PTO POSITION:TOP
K64 PTO SPEED: R= 1,850 XR MAIN OUTP*S.PUMP
K66 CONTROL:NON SHIFTABLE * S.PUMP
MOUNTING INTERFACE:WITH COVER
K82 PUMP TYPE:8605/07 *WITHOUT* S.PUMP
M00 DRAWING:
ZF-ELCAT technical information sheet CD 1/2004 05.03.2004
sheet 4
parts list: 1316 051 350 16 S 221 / SG-KK*LL*ANGEFL*DW-WR H-H *N221PL*SERVO-WR / IVECO-M
item text mod. no.
M02 INSTALLATION: 1316 655 002
M14 SECTION: 1315 051 100(0)
M16 SECTION: 1316 101 035(0)
M18 SECTION: 1316 173 010
M28 SECTION: 1315 192 100
M30 INSTALLATION PTO: 6091 616 001
M42 SECTION PTO: 6091 016 001
M50 ASSEMBLY INSTRUCTIONS:
M58 ASSEMBLY:OIL FILL+OVERFLOW *HOUSING LEFT+RIGHT
M82 ASSEMBLY:SHUT-OFF VALVE *F *THROTTLE:D=1,55
M90 OIL CAPACITY:EX WORKS * 13,00L GEARBOX 3998C
M92 OIL GRADE ACC.TO ZF:TE-ML02C
M94 MASS : APPRX. 335,0 KG
M96 PAINT :BROWN-RED *ZFN 915W
M98 PRESERVATION : KA1 T/KI2/ *ZFN 916
Q50 QUALITY INSTRUCTION:
Q52 TESTING:GAERBOX KPL/INTARDER 1Q49 154 847
S02 VEHICLE DATA 1:
S04 MODEL:TRUCK *SPR 6X 4
S06 MAX. G.V.M. 26T*MAX. G.C.M. 60T
S08 R DYN: 446*V MAX: APPRX. 110KM/H
S10 RA: I= 2,93
S14 FIAT /8280TCA *KW375/1900*N.M2200/1100

S.V 08/24
