1993-1998 Hyundai Sonata Workshop Manual PDF – Spanish & English Repair Guide

Description

Hyundai Sonata 1993-1998 Workshop Manual — Spanish & English Service Compilation

This Hyundai Sonata 1993-1998 workshop manual is a 555-page service and repair compilation covering the complete vehicle — engine, drivetrain, brakes, suspension, steering, electrical systems, HVAC, body electronics and factory wiring diagrams. Published as the Manual De Taller Hyundai Sonata (1993-1998), the main body of the text is written in Spanish, while the entire system wiring diagram section at the end is presented in English. This combination gives English-speaking technicians direct access to the electrical schematics while preserving the full depth of the original Spanish-language repair procedures. Every major mechanical and electrical system on the Sonata is documented with step-by-step removal and installation sequences, exploded component views, torque values, service limits and diagnostic charts.

File Details

• Manual Type: Workshop / Service / Repair Manual (Manual de Taller)
• Brand: Hyundai
• Model: Sonata
• Coverage Years: 1993-1998
• Language: Spanish (procedures and text), English (system wiring diagrams)
• Page Count: 555 pages
• File Format: PDF

Chapters Covered

• Sistema de airbag de seguridad suplementario (SRS)
• Protección del circuito — fusibles, relés y enlaces fusibles
• Luces intermitentes
• Control de Velocidad (Cruise Control)
• Reproductor de CD, radio y altavoces
• Calefacción y aire acondicionado
• Instrumentos y conmutadores
• Iluminación — faros, señal y luces marcadoras
• Limpiaparabrisas y lavadora
• Frenos — discos, tambores, ABS, cilindro maestro y servofreno
• Motor y reconstrucción
• Sistema de combustible — inyección, inyectores, bomba y depósito
• Suspensión y Dirección
• Transmisión automática
• Embrague
• Cambio manual
• Tren de accionamiento — semiejes y juntas homocinéticas
• 1995 System Wiring Diagrams (English)

Sistema de Airbag de Seguridad Suplementario (SRS)

The manual opens with the supplemental restraint system, covering the driver-side airbag module in the steering wheel, the passenger-side module, the control module under the heater unit on the floor pan, the accelerometer, the service warning lamp, the clock spring interconnect inside the steering column, and the knee bolster below the column. Service precautions, disarming and arming procedures, and handling rules for the airbag module are all documented. The text warns against disassembling the module, dropping it, or exposing it to temperatures above 200 °F (93 °C), and describes correct storage orientation with the pad surface facing up.

Protección del Circuito — Fusibles, Relés y Enlaces Fusibles

Circuit protection is covered in full: the underhood relay box with its lid schematic for relay and fuse identification, the passenger compartment fuse panel on the lower left dash panel, and the separate fusible link box near the battery. Replacement procedures for blade fuses, cartridge fuses and fusible links are given, including the use of a fuse puller tool for hard-to-reach locations and terminal inspection for corrosion or damage. Turn signal flasher replacement from the passenger compartment relay box is also documented.

Control de Velocidad (Cruise Control)

The Hyundai automatic speed control (ASC) system is described as an electronic, vacuum-operated system. The manual identifies the cruise control module, actuator, speed control switch in the multi-function switch, stop lamp switch, clutch switch, vehicle speed sensor, vacuum motor and pulley assembly. Component locations for the Excel, Scoupe, Elantra, Tiburon and Sonata are illustrated, and the input/output signal paths to the transaxle control module, cruise control/release valve and diagnostic connector are shown.

Audio System — Radio, CD Player and Speakers

Radio and CD player removal and installation is covered for vehicles with a CD player mounted below the main radio unit. The manual explains fascia panel removal, multi-pole harness disconnection, antenna lead disconnection, and speaker removal from door trim and rear parcel shelf. Rear speaker mounting nuts may be removed from the luggage compartment side on certain models. Speaker garnish and cover removal is illustrated with step-by-step photographs.

Calefacción y Aire Acondicionado

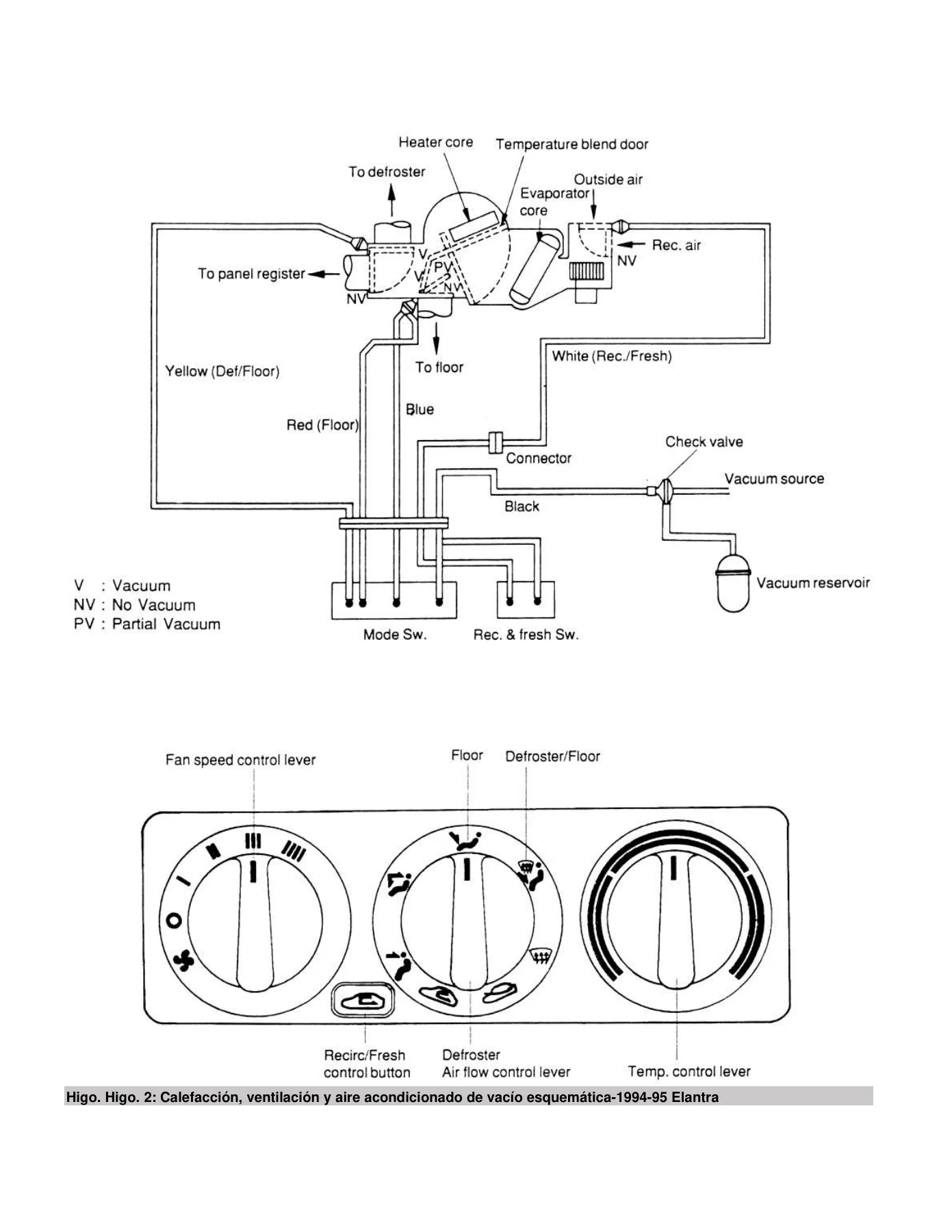

The heating, ventilation and air conditioning chapter covers the blower motor under the right side of the instrument panel, the heater core inside the heater unit, the control panel with its vacuum switches, the air mix door cable adjustment, and the full vacuum hose harness schematic. Vacuum schematics are provided for the 1994-95 Elantra, Scoupe, Accent, Tiburon and 1996-98 Elantra, showing mode control switching, fresh/recirculation doors, defroster/floor/panel door positions and the vacuum reservoir and check valve. Heater core removal requires disassembly of the heater case, and the manual provides the full removal and installation sequence including refrigerant recovery and recharge.

Instrumentos y Conmutadores

Instrument cluster removal and gauge replacement is documented for Excel, Scoupe, Elantra, Accent, Tiburon and Sonata, with screw locations illustrated for each. The speedometer cable removal and installation procedure explains the correct routing radius (no more than 6 in. / 150 mm) to prevent needle fluctuation and noise. Headlamp switch and wiper switch are part of the multi-function switch, covered under Suspension and Steering. Rear window wiper switch removal is also included.

Iluminación — Faros, Señal y Luces Marcadoras

Headlamp bulb replacement is shown with the retaining ring and bulb holder removal sequence, and the manual warns against handling quartz bulbs with bare hands because skin oils cause premature failure. Headlamp housing removal requires grille removal and several mounting screws. Signal and marker lamp removal procedures are illustrated for early and late model license plate lamps, rear turn signal, stop and parking lamps behind the luggage compartment access panel, and front turn signal and parking lamps in the engine compartment. Headlamp alignment is required after housing installation.

Limpiaparabrisas y Lavadora

The wiper and washer chapter covers the washer reservoir and pump assembly, washer nozzle and hose routing with guide clips, front wiper arm and blade removal with matchmarking, rear wiper arm removal for Elantra, Tiburon and Accent, wiper motor removal and installation, and wiper linkage removal and lubrication. Torque specifications are given for wiper arm nuts, wiper motor bolts and pivot shaft nuts. The manual explains that the wiper linkage must be lubricated and correctly connected to the motor before installation.

Frenos — Sistema Hidráulico, Discos, Tambores y ABS

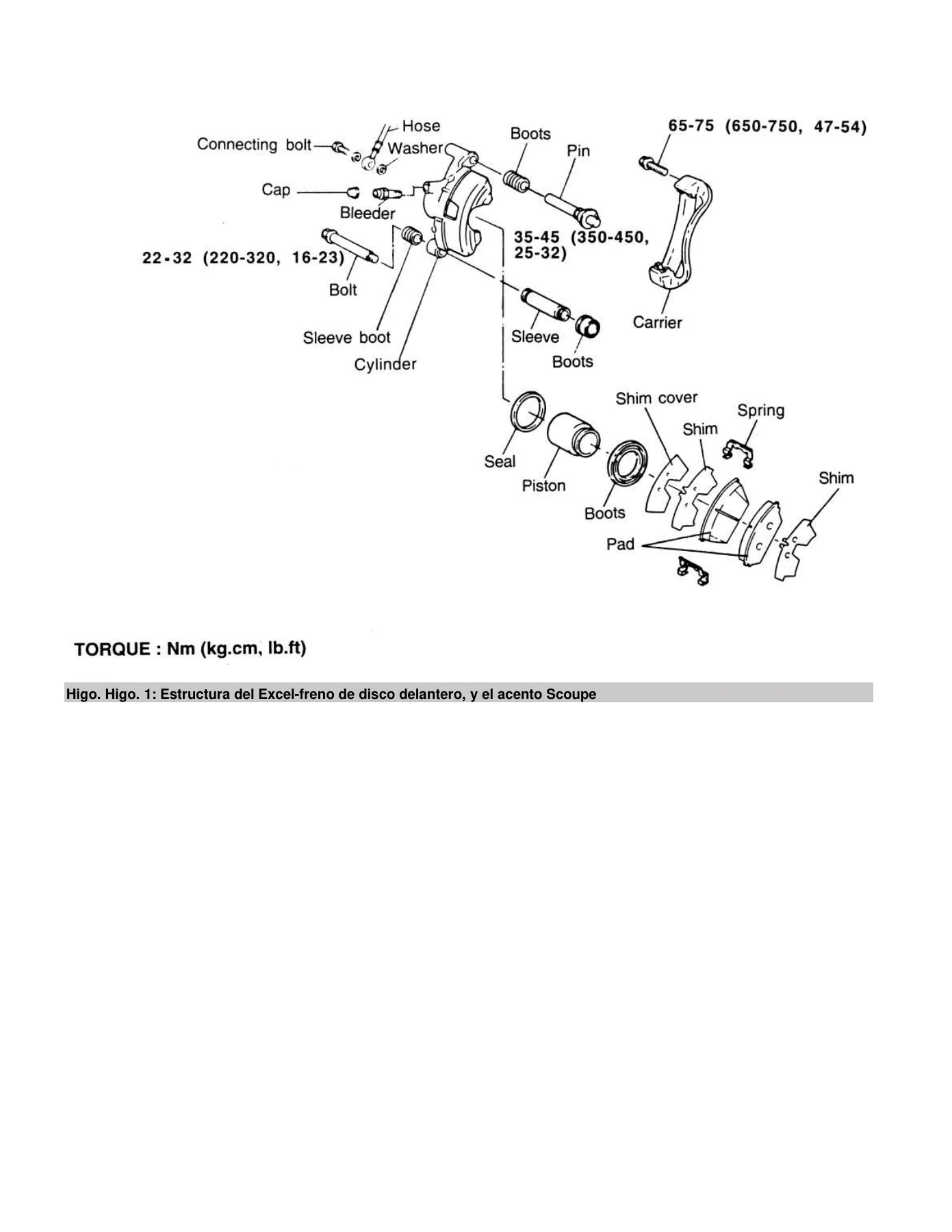

The brake section is extensive. It begins with hydraulic principles, dual-circuit master cylinder operation, proportioning and metering valves, and power brake booster operation. Disc brake caliper removal, overhaul, piston retraction, seal and boot replacement are documented for front and rear calipers, including the special tool required to screw the rear caliper piston back in. Drum brake shoe replacement, wheel cylinder overhaul, brake drum inspection, and parking brake cable replacement and adjustment are covered. Brake line and hose replacement includes flaring, routing and bleeding procedures with torque values. ABS coverage includes the ABS ECU, ABS relay, warning lamp relay, hydraulic modulator, wheel speed sensors, tone wheels, and diagnostic code reading via the Hyundai Multi-Use Tester (MUT) or equivalent scan tool on 1994-1995 Elantra and Sonata. The manual states there are no special bleeding procedures for the ABS system.

Motor y Reconstrucción

Engine overhaul coverage spans balance shaft and bearing replacement with special tool numbers, camshaft and hydraulic lash adjuster removal and installation, cylinder head removal and installation with torque sequences for each engine family, intake manifold and exhaust manifold removal, oil pan and oil pump service, timing belt removal and installation with alignment marks, water pump replacement, turbocharger removal and installation on the 1.5L turbo, radiator removal, rear main seal replacement, rocker arm and shaft service, and valve cover removal. Engine removal and installation is documented with the recommendation to remove the engine and transaxle as a single unit, including labeling of components, hoses and electrical connectors. Torque specifications and tightening sequences are given throughout.

Sistema de Combustible

Fuel system coverage includes the fuel injection system overview, multiport fuel injection (MFI) operating modes, fuel injector removal and testing with a stethoscope and ohmmeter, fuel pressure regulator removal and installation, electric fuel pump removal from the fuel tank, fuel tank removal and installation, throttle body removal and adjustment, and accelerator cable adjustment with and without cruise control. Fuel pressure testing procedures with a gauge are documented, including expected pressure drop when the vacuum hose is disconnected from the regulator.

Suspensión y Dirección

Front suspension coverage includes MacPherson struts, ball joints, front axle and bearing replacement, lower control arm and bushing replacement, stabilizer bar, steering knuckle, and strut disassembly and reassembly. Rear suspension coverage varies by model: independent rear suspension with coil springs and separate shocks on Excel and Scoupe, torsion beam axle on 1994-1995 Elantra and Sonata, and multi-link MacPherson rear suspension on other models. Steering coverage includes manual rack and pinion, power rack and pinion, power steering pump removal and bleeding, tie rod ends, multifunction switch with and without airbag, ignition switch, and steering wheel removal with and without airbag. Alignment and torque specifications are provided throughout.

Transmisión Automática

Automatic transaxle coverage includes fluid pan removal and installation, filter service, axle shaft removal and installation, inhibitor switch removal, adjustment and testing, and transaxle removal and installation with torque values for M8, M10 and M12 bolts. The manual explains the purpose of the inhibitor switch as a neutral safety switch that prevents starting in any gear except P or N and completes the back-up lamp circuit in R. Control cable adjustment is also documented.

Embrague y Cambio Manual

Clutch coverage includes the clutch master cylinder, clutch release cylinder, driven disc and pressure plate, release bearing and release shaft, and pedal height and free play adjustment. Hydraulic system bleeding is documented. Manual transaxle coverage includes back-up light switch, axle shafts, CV joint overhaul for Birfield, tripod and double offset joint types, and manual transaxle assembly removal and installation. The manual notes that axle shaft joints use special grease and that the correct boot band spacing is critical to prevent premature joint failure.

Tren de Accionamiento — Semiejes y Juntas Homocinéticas

Drive axle coverage includes removal and installation for all models, with specific procedures for the Sonata V6 left and right axle shafts. CV joint overhaul is documented for the Birfield joint (BJ), tripod joint (TJ) and double offset joint (DOJ), with instructions not to disassemble a Birfield joint but to clean and repack it with a new boot kit. The manual explains that the distance between the large and small boot bands must be checked before and after boot service and that the special grease supplied with the kit must be used.

1995 System Wiring Diagrams (English)

The final section of the manual is the complete 1995 Hyundai Sonata system wiring diagram set, entirely in English. It covers air conditioning circuits, anti-lock brake circuits, anti-theft circuit, body computer circuits, 2.0L and 3.0L computer data lines, cooling fan circuit, cruise control circuit, defogger circuits with and without ETACS unit, 2.0L and 3.0L engine performance circuits for California and Federal emissions, back-up lamps, exterior lamps, ground distribution, headlight circuit, horn circuit, instrument cluster circuits, courtesy lamps with and without sunroof, instrument illumination, power antenna, power distribution, power door locks, power mirrors, heated seats, power seats, power top/sunroof, power windows, radio circuits, shift interlock, 2.0L and 3.0L starting circuits, charging circuit, supplemental restraint circuit, 2.0L and 3.0L transmission circuits, trunk release, warning systems with and without ETACS unit, and wiper/washer circuits with and without ETACS unit.

Why This Hyundai Sonata Workshop Manual Belongs in Your Toolbox

Whether you are replacing a timing belt, overhauling a brake caliper, diagnosing an ABS fault, or tracing an electrical gremlin through the body computer, this Hyundai Sonata 1993-1998 workshop manual gives you the procedure, the torque value, the exploded view, and the wiring diagram you need to get it right the first time. The combination of Spanish-language repair procedures and English-language wiring diagrams makes this compilation uniquely useful for bilingual technicians or English-speaking shops working on a Spanish-market Sonata. The step-by-step removal and installation sequences, service limits, tightening sequences and diagnostic charts are the same ones the factory-trained technician relies on — no guesswork, no generic advice, no missing steps.

IMAGES PREVIEW

This is a downloadable PDF product. After payment, you receive the complete 555-page manual instantly — no shipping, no waiting, no import fees. The file works on any device: laptop, tablet or smartphone, and every page can be printed for use in the workshop. Whether you are a professional mechanic, a serious DIY owner, or a shop that needs factory-level procedures for the Sonata platform, this Hyundai Sonata repair manual PDF delivers the complete service information in one organized file.
